Many flashlight users, especially beginners, often ask the same question:

“Is a 14500 battery the same size as an AA battery?”
“Can I use a 14500 rechargeable battery instead of a normal AA battery?”

The short answer is:

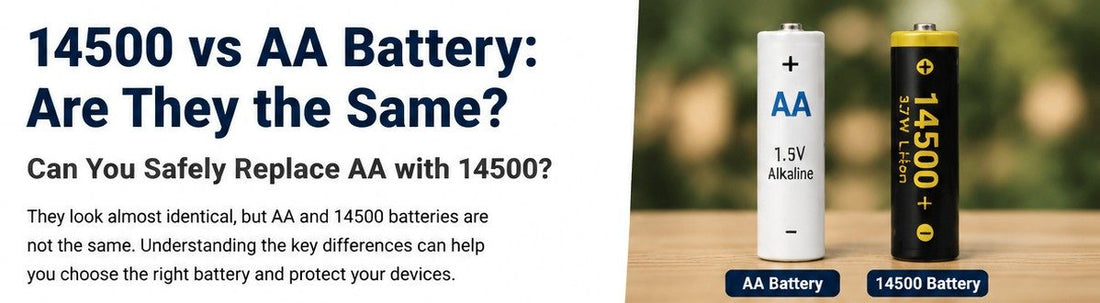

A 14500 battery looks almost identical to an AA battery, but they are NOT the same battery. In most cases, you should NOT replace an AA battery with a 14500 unless the device specifically supports it.

Although they share the same physical size, their voltage, chemistry, power output, and safety requirements are very different.

Let's take a closer look.

1. What Are AA and 14500 Batteries?

AA Battery: The Common Everyday Battery

AA batteries are one of the most widely used battery sizes in the world. They are found in:

• Flashlights

• Remote controls

• Toys

• Cameras

• Wireless keyboards

• Household electronics

AA batteries come in several types:

Alkaline AA

• Voltage: 1.5V

• Disposable

• Low cost

• Common in supermarkets

NiMH Rechargeable AA

• Voltage: 1.2V

• Rechargeable

• Environmentally friendly

• Popular brands include Eneloop-style batteries

AA batteries are designed for everyday devices that require relatively low power.

14500 Battery: A Rechargeable Lithium Battery

A 14500 battery is a lithium-ion rechargeable battery.

The name comes from its size:

• 14mm diameter

• 50mm length

• 0 = cylindrical battery shape

Its size is almost identical to an AA battery.

Typical specifications:

• Voltage: 3.7V nominal

• Fully charged voltage: 4.2V

• Rechargeable lithium-ion chemistry

• Higher energy density

• Higher discharge capability

14500 batteries are commonly used in:

• High-performance flashlights

• EDC lights

• Small electronic devices designed for lithium batteries

2. Similarities Between AA and 14500 Batteries

Despite their differences, AA and 14500 batteries do share some similarities.

① Almost the Same Physical Size

The biggest reason people confuse them is their dimensions.

A 14500 battery can usually fit into a device designed for AA batteries.

However, physical compatibility does not mean electrical compatibility.

② Same Cylindrical Shape

Both batteries have:

• Positive (+) terminal on one end

• Negative (-) terminal on the other end

• Cylindrical design

This makes them look almost identical.

③ Used in Similar Products

Both batteries are often used in:

• Compact flashlights

• Headlamps

• Small electronic devices

This is why many flashlight manufacturers design models that can accept either AA or 14500 batteries.

3. Key Differences Between AA and 14500 Batteries

The differences are much more important than the similarities.

① Voltage Difference: The Biggest Difference

This is the most important factor.

A 14500 battery provides more than twice the voltage of a traditional AA battery.

For example:

A flashlight designed for AA:

• AA battery → 1.5V

• 14500 battery → 3.7V

The circuit may receive much more voltage than it was designed for.

This can cause:

• Overheating

• Damaged electronics

• Shortened lifespan

• Permanent failure

② Chemistry Difference

AA batteries can use different chemistries:

Alkaline AA

• Chemical system: Zinc-Manganese dioxide

• Disposable

• Lower power output

NiMH AA

• Chemical system: Nickel-metal hydride

• Rechargeable

• Stable and safe

14500

• Chemical system: Lithium-ion

• Rechargeable

• Higher energy density

• Requires proper charging protection

Lithium-ion batteries require more careful handling.

They should:

• Use a compatible charger

• Avoid overcharging

• Avoid deep discharge

• Avoid physical damage

③ Power Output Difference

14500 batteries can deliver much higher current.

For example:

A normal AA alkaline battery may struggle with high-power flashlights.

A quality 14500 battery can provide:

• Higher brightness

• Longer turbo mode operation

• Better performance under heavy load

This is why some EDC flashlights become dramatically brighter when using a 14500 battery instead of AA.

Example:

A flashlight may produce:

• AA battery: 150 lumens

• 14500 battery: 600 lumens

(depending on the flashlight design)

④ Capacity Is Not Always Higher

Many people assume:

"14500 is stronger, so it must last longer."

Not necessarily.

Typical energy comparison:

Although the 14500 has a smaller mAh number, its higher voltage gives it comparable energy.

4. Can You Use a 14500 Instead of an AA Battery?

The answer depends on the device.

✅ Safe: Devices Specifically Designed for 14500

If the manufacturer says:

• "AA / 14500 compatible"

• "Supports 14500 lithium battery"

then it is safe.

Many modern EDC flashlights are designed this way.

They automatically regulate voltage and can handle both batteries.

⚠️ Risky: Devices Designed Only for AA

If a product only says:

• "Uses AA battery"

• "Compatible with alkaline AA"

• "Use NiMH AA"

then do not assume 14500 will work.

Examples:

❌ Remote controls
❌ Toys
❌ Old electronics
❌ Devices without voltage regulation

A 14500 may damage them.

5. Why Do Some Flashlights Support Both AA and 14500?

Modern flashlights often use advanced electronic drivers.

They can regulate different input voltages.

For example:

AA Mode:

• Lower voltage

• Lower brightness

• Longer runtime

14500 Mode:

• Higher voltage

• Higher brightness

• Stronger output

This gives users flexibility:

AA = Easy to find anywhere
14500 = Maximum performance

6. How to Identify If Your Flashlight Supports 14500

Before inserting a 14500 battery, check:

Product description:

Look for:

• "AA/14500 compatible"

• "Supports lithium-ion battery"

• "3.7V battery compatible"

User manual:

Manufacturers usually list supported batteries.

Battery tube markings:

Some flashlights clearly show:

• 1×AA

• 1×14500

• Li-ion compatible

7. Beginner Recommendation: Which Battery Should You Choose?

Choose AA if you want:

✅ Easy availability
✅ Lower cost
✅ Safer everyday use
✅ Emergency backup

AA batteries are perfect for:

• Camping backup lights

• Household flashlights

• General users

Choose 14500 if you want:

✅ Maximum brightness
✅ Better performance
✅ Rechargeable power
✅ Compact EDC flashlight use

14500 batteries are ideal for:

• Flashlight enthusiasts

• Outdoor users

• Everyday carry (EDC)

Final Conclusion

A 14500 battery is not the same as an AA battery.

They have the same physical size, but their electrical characteristics are completely different.

The key differences:

Never replace AA with 14500 unless the manufacturer confirms compatibility.

For flashlights that support both, the choice is simple:

AA = reliable and convenient
14500 = powerful and high-performance

Knowing the difference helps you get the best performance while avoiding unnecessary damage to your device.
