When you pick up a flashlight, the first things you might notice are its size, the way it feels in your hand, or how intense the beam is. But the real heart of any flashlight lies inside — the battery. The type of battery not only determines how bright your light can be, but also how long it will run, how heavy it will feel, and how dependable it will be when you need it most.

Rechargeable battery technology has advanced enormously in recent years. We’ve moved from humble nickel-metal hydride (NiMH) cells that powered basic household torches, to high-capacity lithium-ion powerhouses capable of driving thousands of lumens in a device that fits in your pocket.

In this guide, we’ll explore the entire landscape of rechargeable batteries for flashlights, from the smallest AAA cells to the massive 32650 giants used in industrial-grade searchlights. We’ll cover their chemistries, strengths, limitations, and the types of flashlights that use them. By the end, you’ll have a clearer picture of which battery format best fits your lighting needs.

The Small but Dependable: AAA and AA Rechargeable Cells

AAA and AA cells remain some of the most common batteries in the world, and they are still widely used in certain flashlight designs. Rechargeable versions typically use NiMH (Nickel-Metal Hydride) chemistry. Compared to disposable alkaline batteries, NiMH cells offer stable voltage output until nearly empty, meaning the beam stays brighter for longer.

Typical capacities are around 800–1000 mAh for AAA and 1900–2500 mAh for AA. They’re ideal for penlights, compact EDC lights, and low-power household flashlights. Low self-discharge NiMH types can hold most of their charge for months, making them reliable for infrequent use.

Advantages:

• Widely available and affordable.

• Low self-discharge types can hold most of their charge for months.

• Compatible with older devices as well as modern LED lights designed for 1.2 V cells.

Limitations:

• Lower energy density compared to lithium-ion.

• Unsuitable for flashlights demanding high currents or producing over 500 lumens for extended periods.

Lithium-Ion Rechargeables: The Power Leap

Lithium-ion batteries revolutionized flashlight design. With a nominal voltage of 3.6–3.7 V and much higher energy density than NiMH, these cells allow smaller flashlights to produce light outputs previously reserved for bulky searchlights.

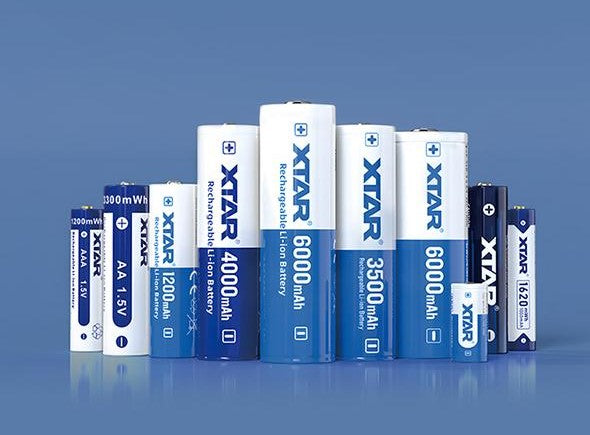

The most common cylindrical lithium-ion formats used in flashlights include:

• 14500 – same size as AA, typically 700–1000 mAh capacity.

• 16340 (RCR123A) – compact, around 600–900 mAh.

• 18350 – short and fat, often used in pocket rocket flashlights, 1100–1400 mAh.

• 18650 – the classic high-performance cell, 2600–3600 mAh.

• 21700 – modern high-capacity format, 4000–5000 mAh.

• 26650 Heavy-Duty Power 5000–6000 mAh

• 32650 6500 mAh capacity

The 14500 Cell: Upgrading AA Lights

The 14500 lithium-ion cell can instantly transform an AA-sized flashlight into a much brighter performer. Where a NiMH AA produces about 1.2 V, a 14500 delivers 3.7 V—allowing LEDs to run at higher power without boost converters.

• Pros:

• Significant performance boost in lights compatible with both chemistries.

• Maintains small, familiar form factor.

• Cons:

• Lower capacity (around 800 mAh) compared to larger lithium-ion cells.

• Requires flashlights designed to handle higher voltage.

Typical use cases include upgraded EDCs and compact tactical lights where space is at a premium.

The 16340 and CR123A Size

The 16340 rechargeable Li-ion is dimensionally similar to the disposable CR123A lithium battery but can be recharged hundreds of times. With capacities around 700 mAh, it offers short but intense bursts of light, making it ideal for small tactical flashlights, weapon-mounted lights, or backup emergency tools.

High-quality 16340 cells often come with a PCB (Protection Circuit Board) that safeguards against overcharging, over-discharge, and short circuits. These features are critical for small cells that may be used in high-drain devices.

The 18350 Cell: Compact Power

The 18350 format is beloved by flashlight enthusiasts who enjoy stubby builds—short flashlights with massive outputs for their size. Capacities usually range from 1100 to 1400 mAh. These cells can feed 2000-lumen bursts in high-performance pocket lights but have shorter runtimes than their bigger siblings.

The 18650 Standard

The 18650 lithium-ion cell became the backbone of high-performance flashlights for over a decade. Its size (18 mm diameter, 65 mm length) offers a sweet spot between capacity, discharge rate, and portability.

Modern high-quality 18650 cells can deliver:

• Capacity: 2600–3600 mAh.

• Continuous discharge: 10–20 A for high-drain lights.

• Cycle life: Hundreds of charge/discharge cycles with minimal capacity loss when properly maintained.

They’re found in everything from tactical searchlights to EDC workhorses. Their popularity also means a huge choice of chargers, holders, and accessories.

The 21700 Powerhouse

The 21700 cell (21 mm diameter, 70 mm length) represents the next step in flashlight performance. With 4000–5000 mAh capacity and improved thermal handling, they enable sustained high brightness without overheating as quickly.

Flashlights designed around 21700 batteries often produce over 3000 lumens while still fitting comfortably in the hand. They are increasingly becoming the standard for premium tactical and outdoor lights.

• Advantages over 18650:

• 30–40% more capacity.

• Better performance under continuous high drain.

• Often paired with fast charging options like USB-C.

The Giants: 32650 and Beyond

For the most demanding applications, such as industrial searchlights, marine beacons, or specialized rescue lighting, 32650 lithium-ion cells are a top choice. These massive cells can exceed 6500 mAh capacity, allowing for extremely long runtimes even at high brightness levels.

While their size makes them impractical for everyday carry, they are unmatched for endurance. Some models can keep a high-powered light running for many hours on a single charge.

Built-in USB-C Rechargeable Cells

A growing trend is batteries with integrated USB-C charging ports. These eliminate the need for a separate charger—just connect a USB-C cable directly to the cell.

Benefits:

• Charge anywhere with a standard USB cable.

• No dedicated charger required.

• Ideal for travel or field use.

Limitations:

• Slightly heavier and longer due to integrated electronics.

• Charging speed may be slower than high-end external chargers.

• Heat management is critical—look for well-ventilated designs.

Safety: Protection Circuits and Smart Features

High-capacity lithium-ion cells are powerful but require careful handling. Protection Circuit Boards (PCBs) are often added to prevent:

• Overcharging – avoids cell damage or fire risk.

• Over-discharge – preserves capacity and prevents deep-cycle damage.

• Short circuits – instantly cuts output to prevent catastrophic failure.

Many modern flashlights also add mechanical and electronic protections, such as:

• Reverse polarity protection (mechanical tabs or electronic sensing).

• Overheat regulation (step-downs when temperature exceeds safe limits).

• Low-voltage warnings or automatic shut-off.

These systems work together to keep both the flashlight and its user safe.

Choosing the Right Battery for Your Needs

The right cell depends on your flashlight type and intended use:

• Compact EDC: AAA, 14500, 16340, or 18350.

• General outdoor use: 18650 for balance of runtime and size.

• Extended or high-output use: 21700 for maximum capacity and sustained brightness.

• Travel and convenience: Built-in USB-C rechargeable cells.

Always check your flashlight manufacturer’s recommendations before switching chemistries or voltages.

Chargers: The Other Half of the Equation

Even the best battery underperforms with a poor charger. Look for:

• Multiple slot compatibility (from AAA to 21700).

• Automatic charge termination.

• Overcharge and reverse polarity protection.

• Digital readouts for voltage and capacity.

• Support for both Li-ion and NiMH chemistries.

Smart chargers not only prolong battery life but also provide diagnostic information that helps you monitor cell health.

Battery Care and Maintenance

To maximize lifespan and safety:

• Store cells in a cool, dry place.

• Avoid fully discharging lithium-ion cells—recharge when they drop to around 3.2–3.4 V.

• Do not leave cells charging unattended overnight.

• Transport batteries in protective cases to prevent short circuits.

• Dispose of old or damaged cells at designated recycling points.


Conclusion

Rechargeable batteries are far more than just a power source — they are the beating heart of any flashlight. From the compact AAA cell that keeps a penlight running for quick household tasks to the robust 21700 lithium-ion that powers high-output tactical beams in extreme conditions, each battery type has its own strengths, limitations, and ideal applications. Understanding these differences allows users to match the right cell to their specific needs, ensuring not only better performance but also greater safety and longevity.

Advancements such as built-in USB-C charging, high-capacity lithium-ion chemistry, and integrated protection circuits have made modern batteries more efficient, reliable, and user-friendly than ever before. At the same time, safe handling practices, quality chargers, and proper storage remain essential to get the most out of every charge cycle.

In the end, choosing the right rechargeable battery is not just about lumens and runtime — it’s about trust. It’s about knowing that when you reach for your flashlight, whether during a power outage, a night hike, or an emergency situation, it will perform exactly as expected. The right battery transforms a flashlight from a simple tool into a dependable partner in the dark, ready to shine when you need it most.
