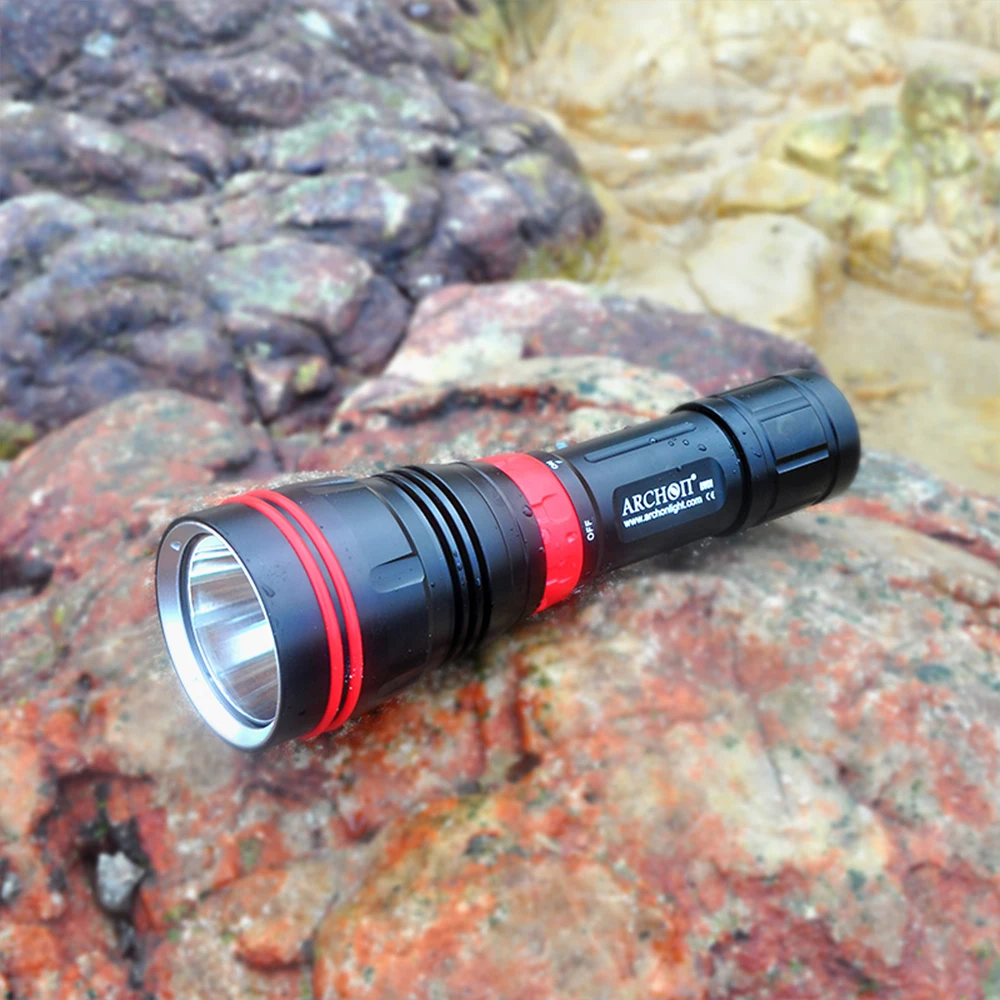

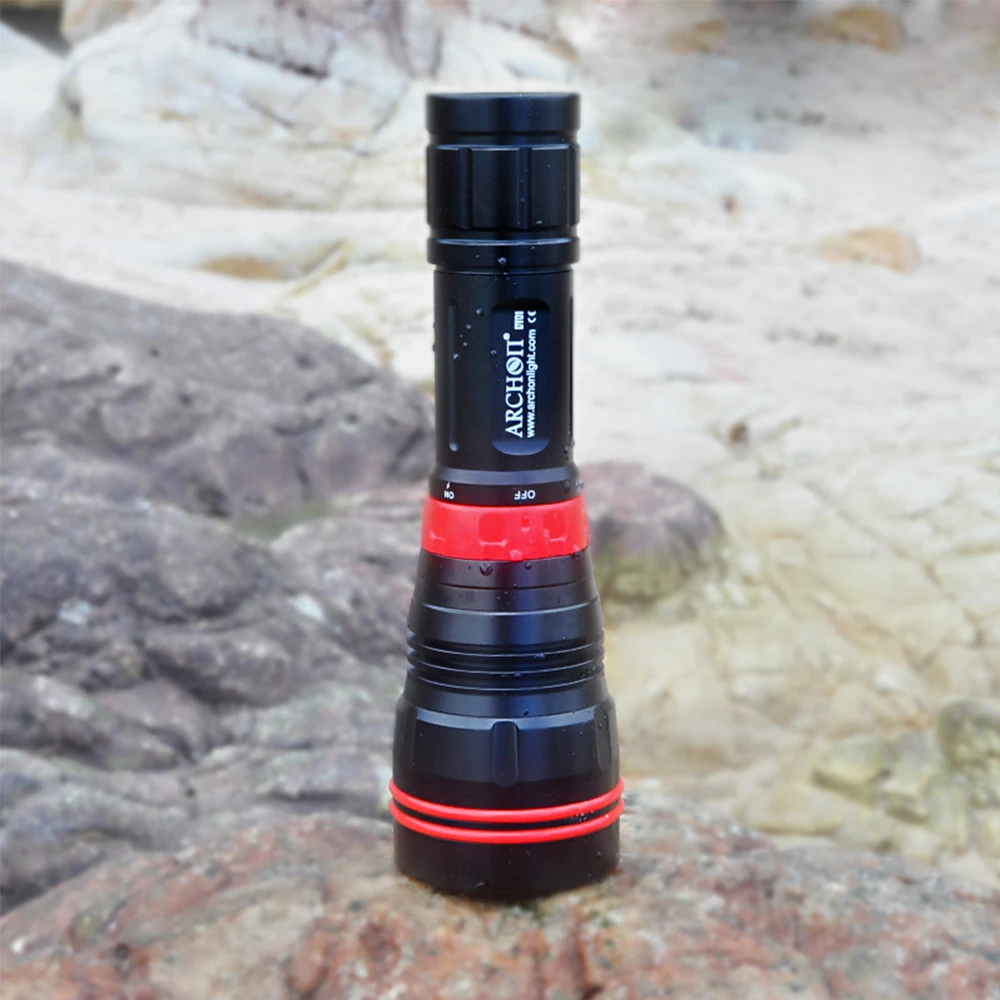

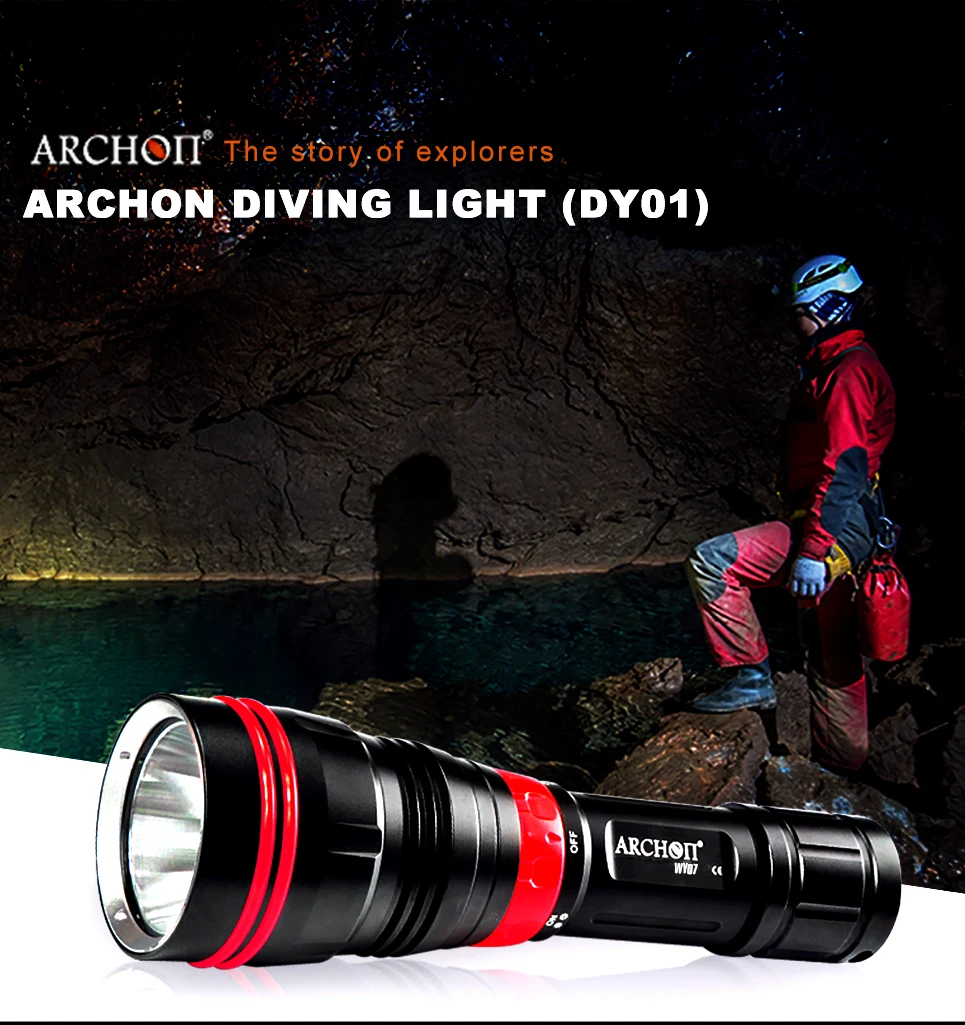

The ARCHON DY01 1000 Lumen Diving Light is a high-performance underwater flashlight designed to meet the rigorous demands of both professional and recreational divers. This versatile dive light offers powerful illumination, robust construction, and user-friendly features, making it an indispensable tool for underwater exploration, photography, and safety.

The ARCHON DY01 is available in two models: DY01 with a 4500K warm white LED and DY01-W with a 6500K cold white LED. The warm white light provides a softer, more natural illumination that is ideal for close-up photography and videography, enhancing the colors and details of marine life and underwater environments. The cold white light, on the other hand, offers a brighter, more intense beam that is perfect for long-range visibility and general exploration, illuminating large areas with clarity and precision.

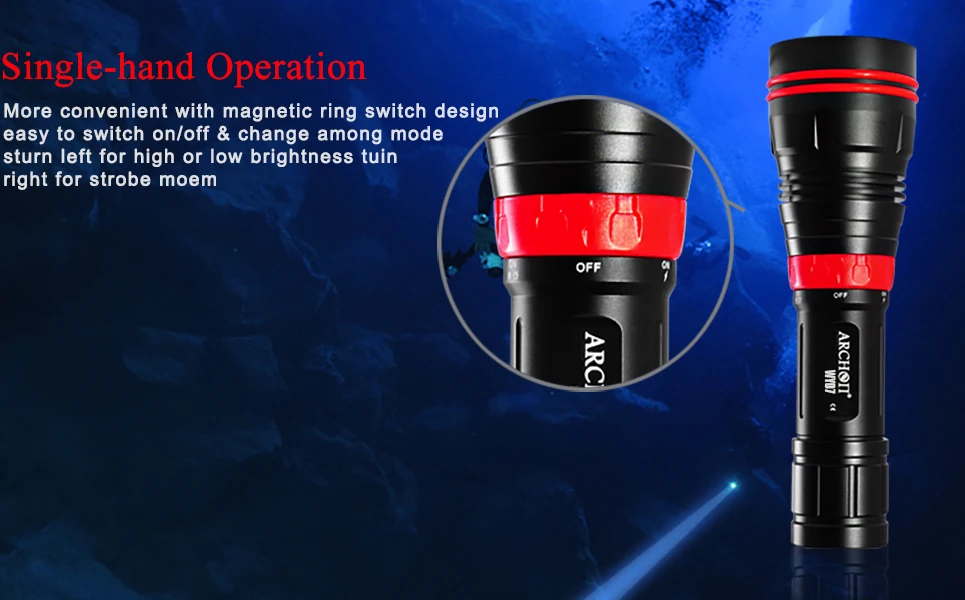

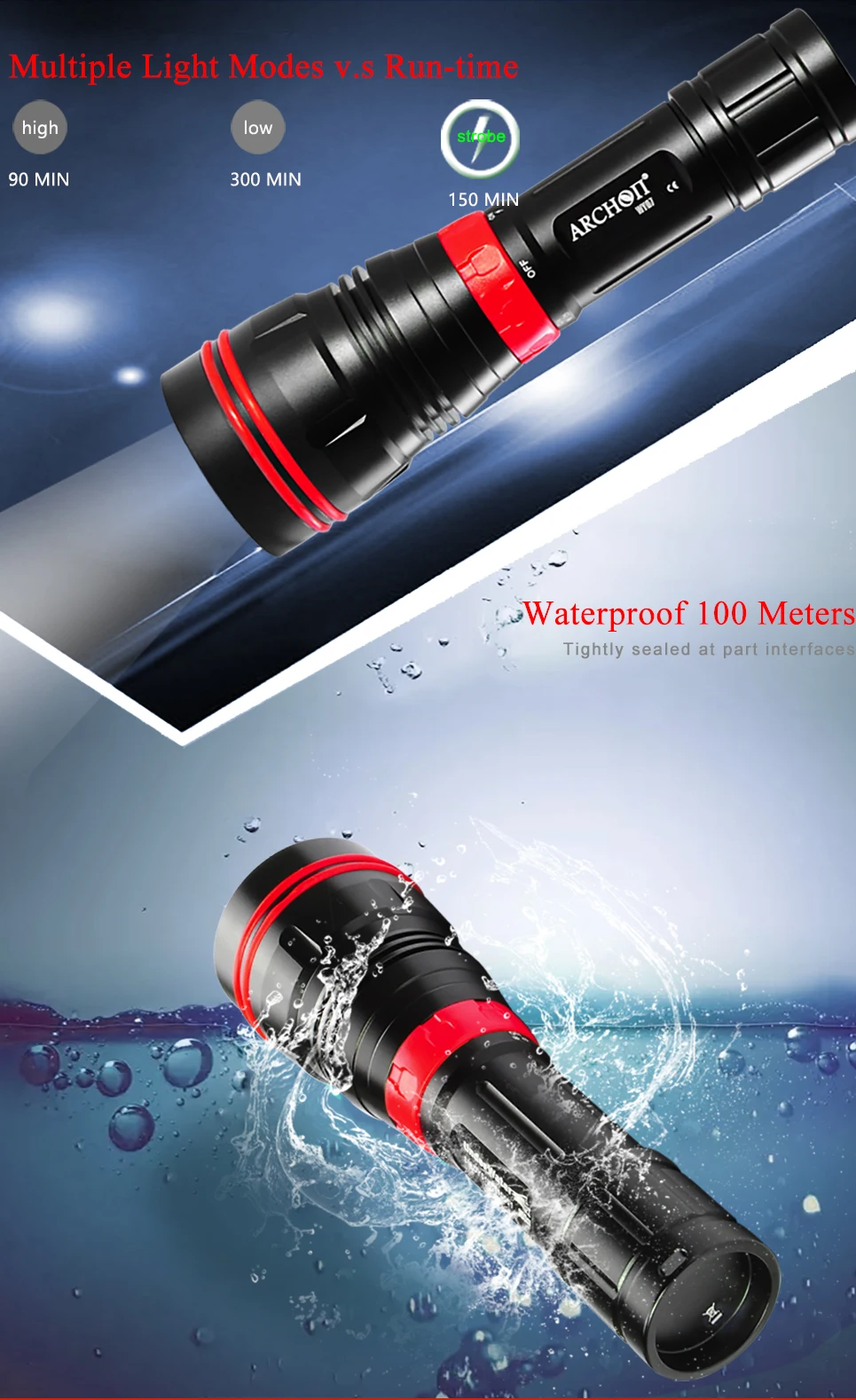

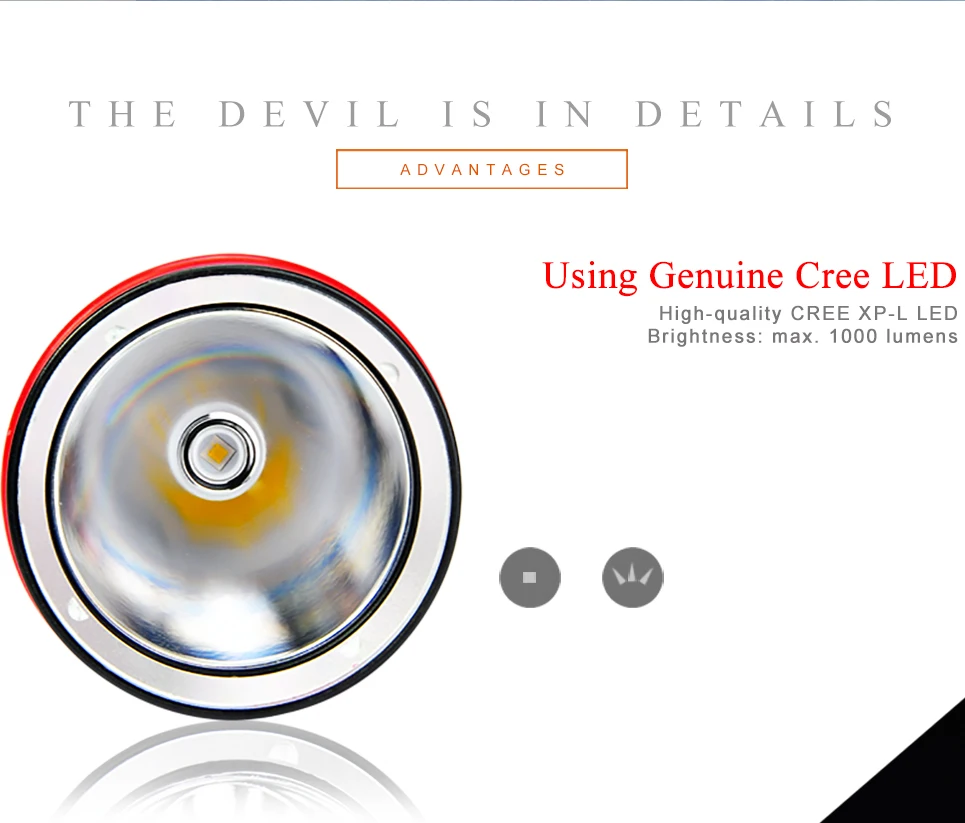

Both models are equipped with a CREE XP-L LED that delivers a maximum output of 1000 lumens. This high-intensity LED ensures that even the darkest underwater environments are brightly lit, allowing divers to see clearly and capture detailed images and videos. The flashlight offers three output levels: high, low, and strobe. In high mode, the DY01 WY07 provides up to 90 minutes of intense illumination, making it suitable for detailed inspections and navigating dark environments. The low mode extends the runtime to an impressive 300 minutes, offering a softer light for extended dives and conserving battery life. The strobe mode, with a runtime of 150 minutes, is essential for signaling and emergency situations, ensuring divers can communicate effectively and attract attention when needed.

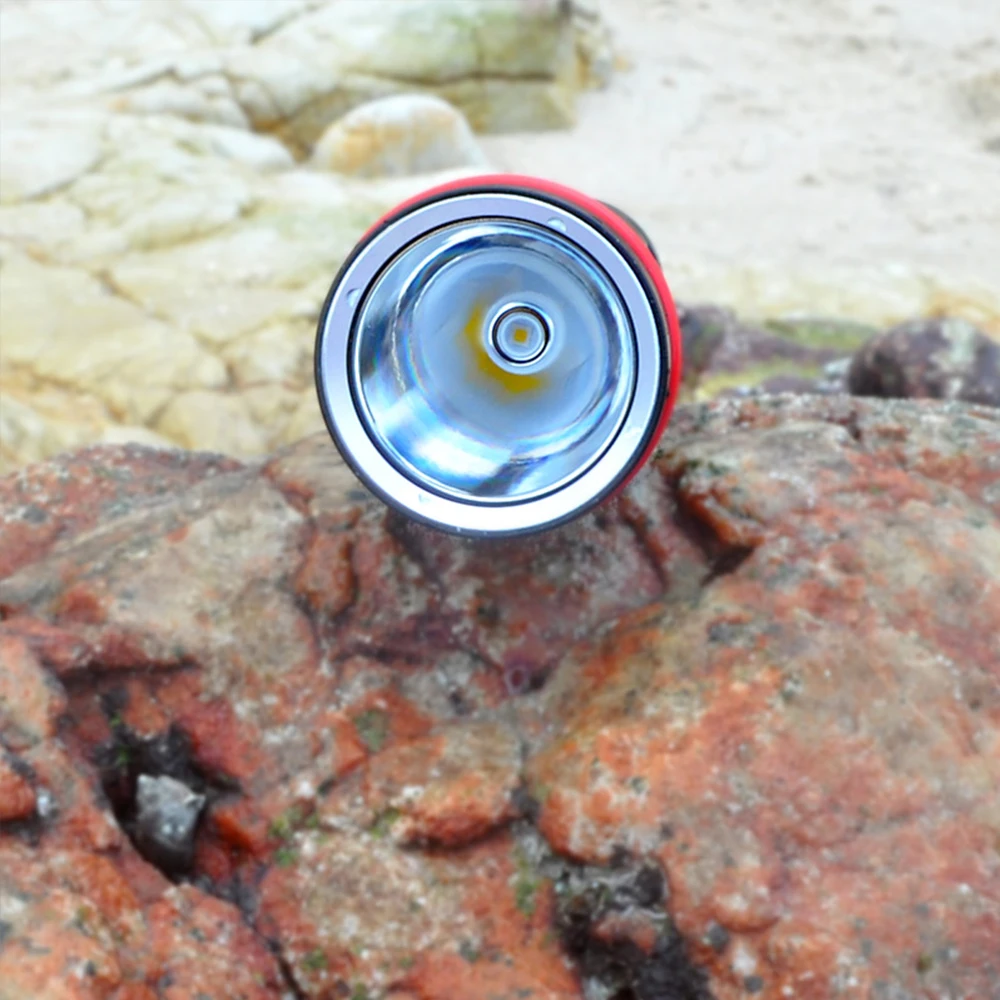

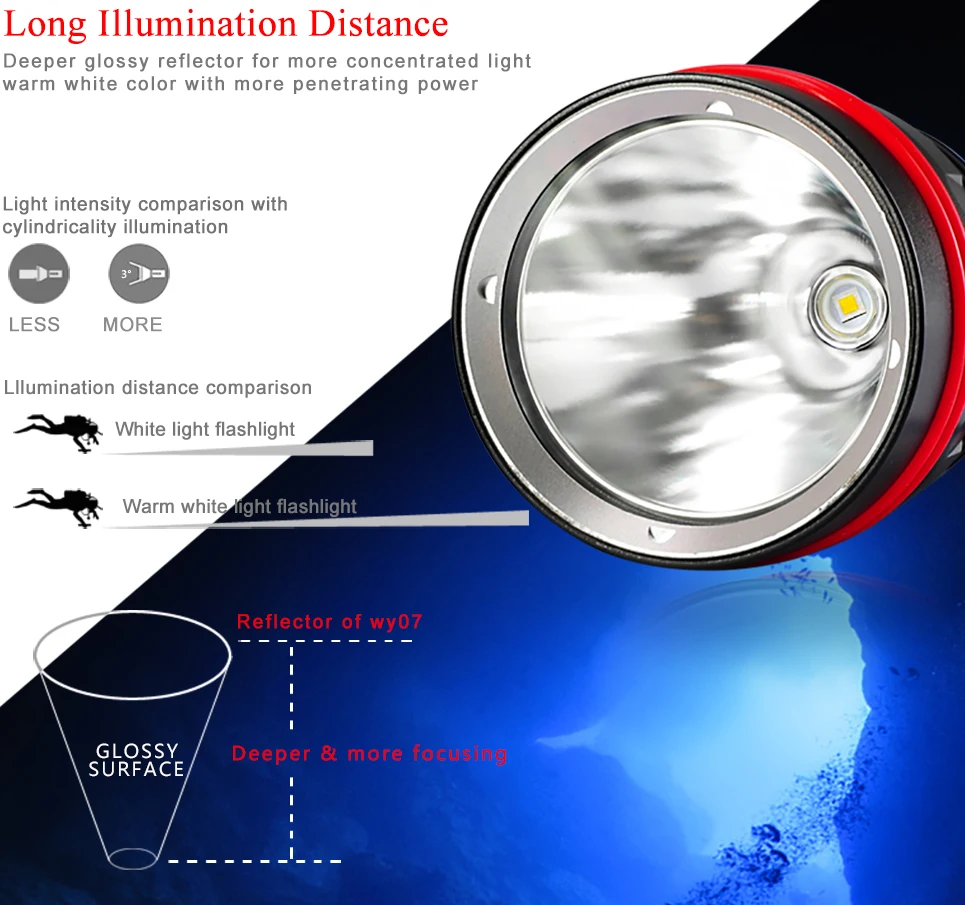

The ARCHON DY01 features a glossy aluminum reflector that enhances light distribution, creating a focused 3° hotspot beam. This narrow beam angle provides a concentrated and powerful light source that is ideal for pinpointing specific areas or objects underwater. The 4 mm polycarbonate lens adds durability, ensuring the light can withstand the pressures and potential impacts encountered during deep dives.

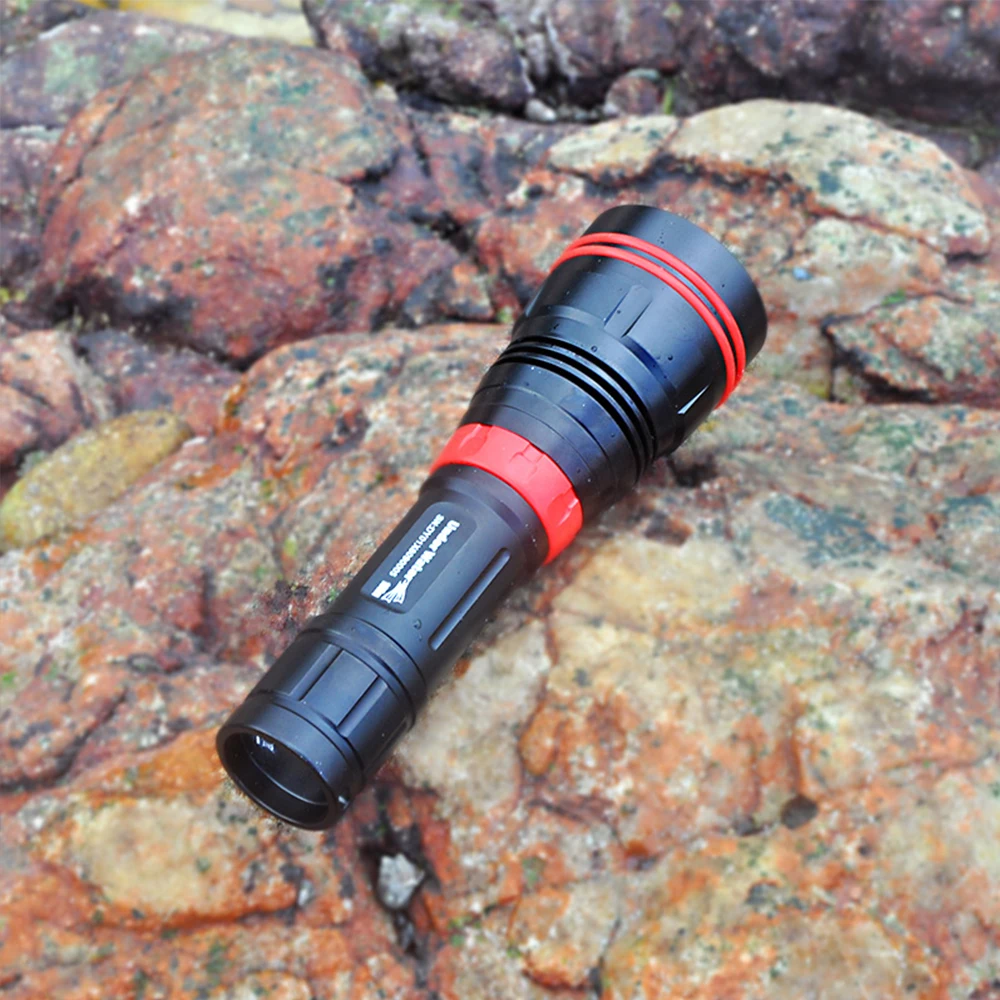

Constructed from durable aircraft-grade aluminum, the ARCHON DY01 is built to withstand the harsh conditions of underwater environments. The body of the flashlight is treated with premium type III hard-anodizing, providing excellent resistance to corrosion and physical wear. This robust construction ensures that the light remains functional and aesthetically pleasing even after prolonged use in saltwater. The flashlight is designed to be waterproof up to 100 meters, making it suitable for a wide range of underwater activities, from recreational snorkeling to professional deep-sea diving.

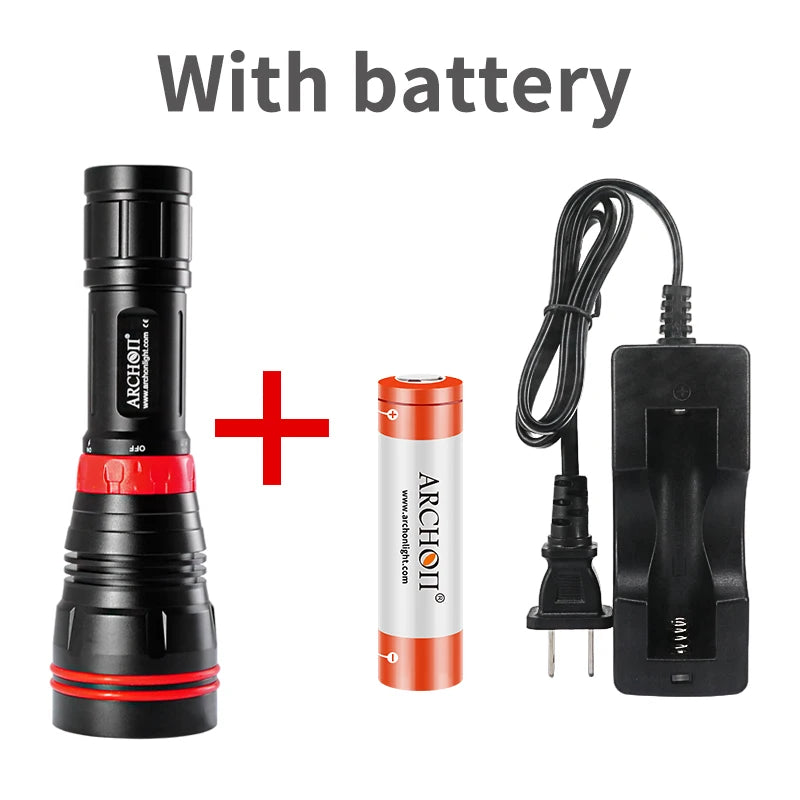

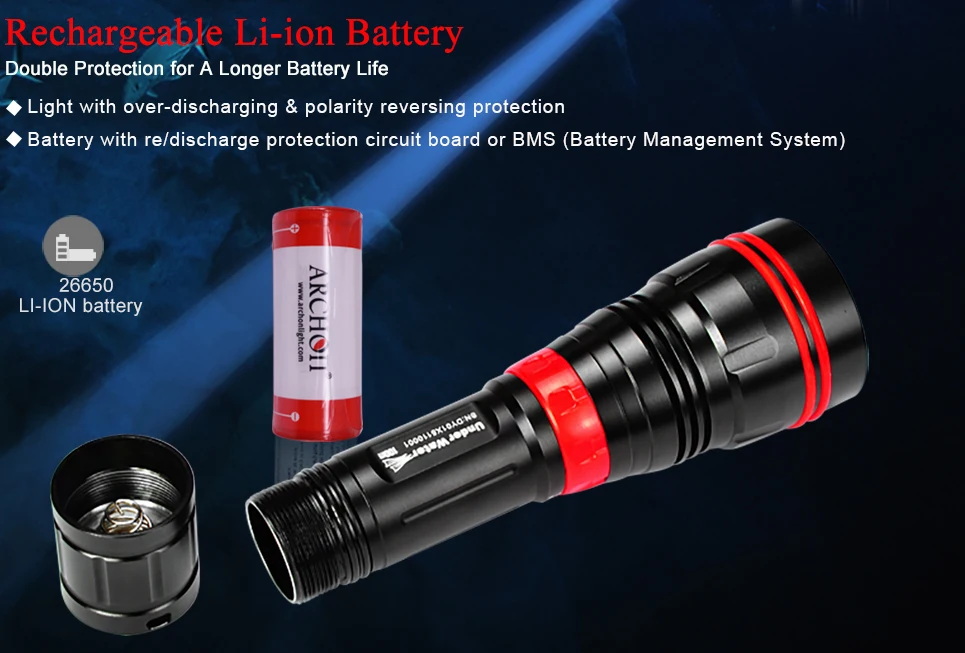

Powering the ARCHON DY01 is a single 26650 Li-ion battery, which provides reliable energy for extended dives. The flashlight includes a Battery Management System (BMS) with over-discharging protection and polarity reversing protection, ensuring safe and reliable operation. The operating voltage ranges from 4.5V to 2.8V, maintaining stable performance throughout the battery's discharge cycle.

The flashlight's compact dimensions, measuring 184 mm in length, 55 mm in diameter at the lamp head, and 32.8 mm in diameter at the body, make it easy to handle and maneuver underwater. The light weighs approximately 299 grams without the battery and 390 grams with the battery in air, and about 160 grams underwater, ensuring minimal buoyancy and ease of handling.

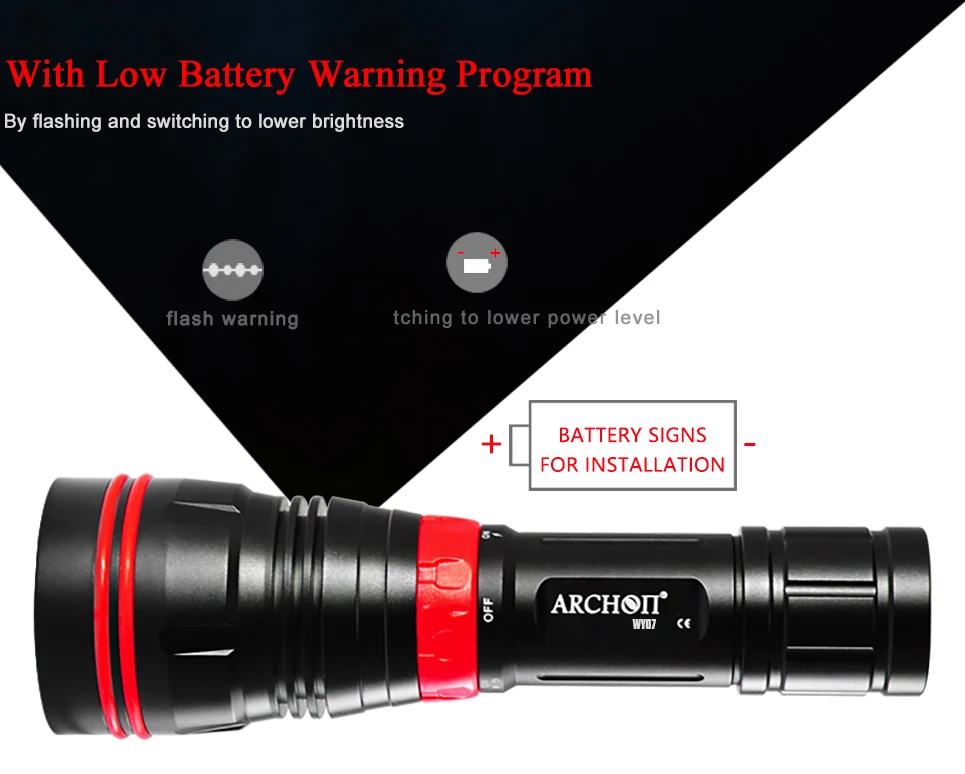

For added safety, the ARCHON DY01 includes a low battery warning system. When the power capacity drops below 10%, the light flashes three times and repeats this warning every five seconds before automatically switching to a lower brightness mode. If the battery capacity falls below 5%, the flashlight will automatically switch off to prevent over-discharging and potential damage to the battery. This feature ensures that divers are never caught off guard by a sudden loss of light, providing peace of mind during dives.

In conclusion, the ARCHON DY01 1000 Lumen Diving Light is a high-performance, reliable underwater lighting solution designed for divers seeking powerful illumination and durability. Its versatile output levels, robust construction, and advanced safety features make it an ideal choice for underwater exploration, photography, and safety. Whether you are exploring vibrant coral reefs, navigating through underwater caves, or documenting marine life, the DY01 WY07 enhances the underwater experience with exceptional performance and reliability.

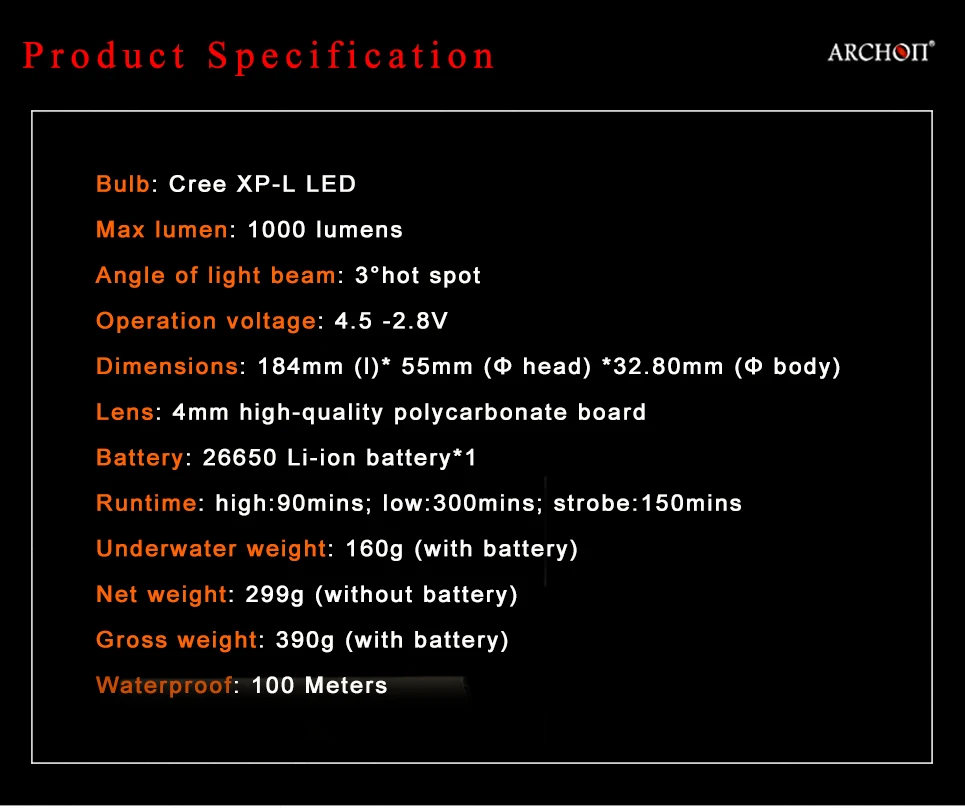

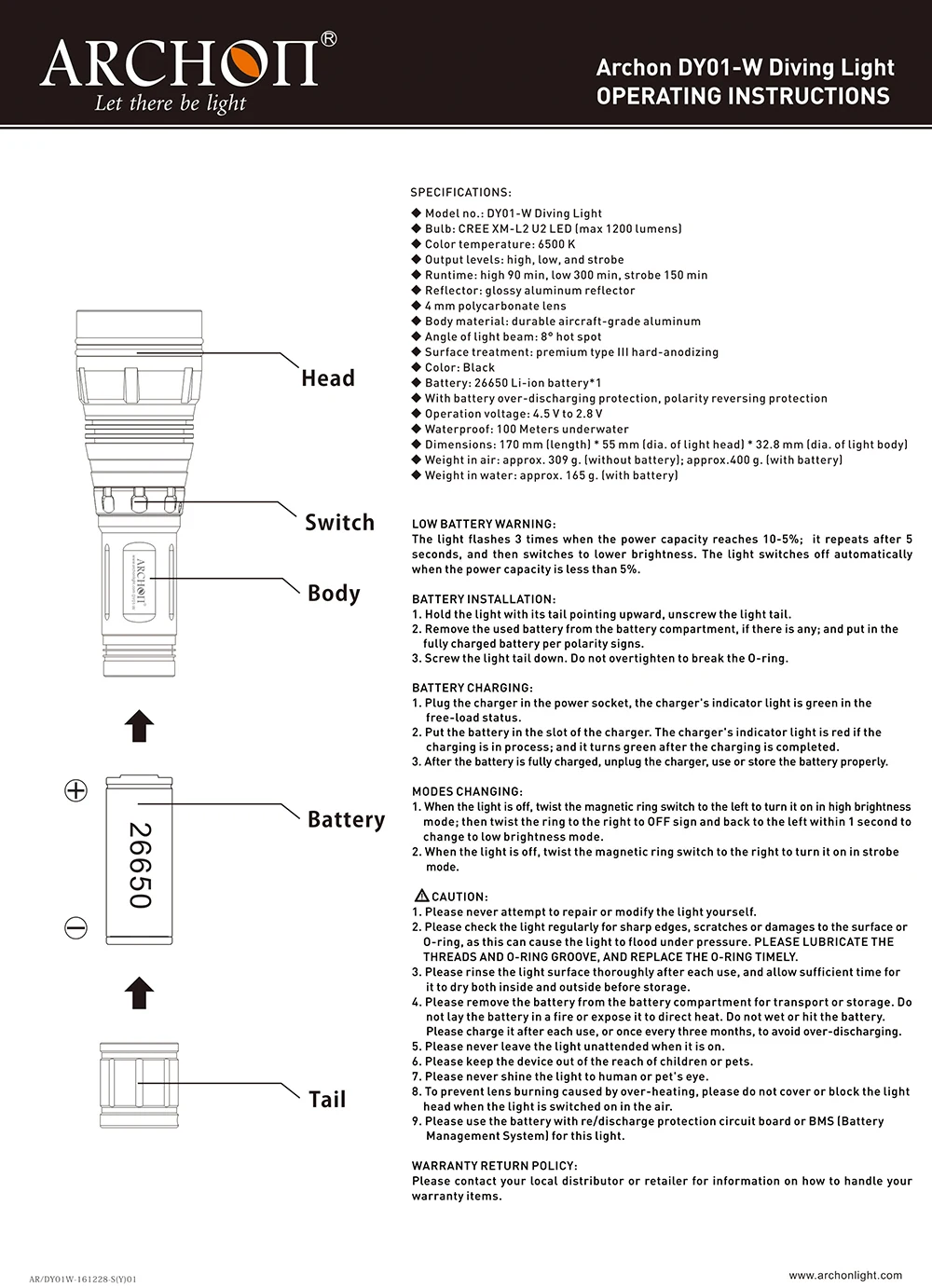

◆ Model no.: DY01(4500K) DY01-W(6500K)
◆ Bulb: CREE XP-L LED (Max 1000 lumens)
◆ Runtime: high 90 min, low 300 min, strobe 150 min
◆ Output levels: high, low, and strobe
◆ Reflector: glossy aluminum reflector
◆ 4 mm polycarbonate lens
◆ Body material: durable aircraft-grade aluminum
◆ Angle of light beam: 3° hot spot
◆ Surface treatment: premium type III hard-anodizing
◆ Color: Black
◆ Battery: 26650 Li-ion battery*1
◆ With battery over-discharging protection, polarity reversing protection
◆ Operation voltage: 4.5 V to 2.8 V
◆ Waterproof: 100 Meters underwater
◆ Dimensions: 184 mm (length) * 55 mm (dia. of lamp head) * 32.8 mm (dia. of lamp body)
◆ Weight in air: ca. 299 g. (without battery); ca.390 g. (with battery)
◆ Underwater weight: ca. 160 g. (with battery)

LOW BATTERY WARNING:

The light flashes 3 times if the power capacity is less than 10%; it repeats after 5 seconds, and then switches to lower brightness. The light switches off automatically when the power capacity is less than 5%.
