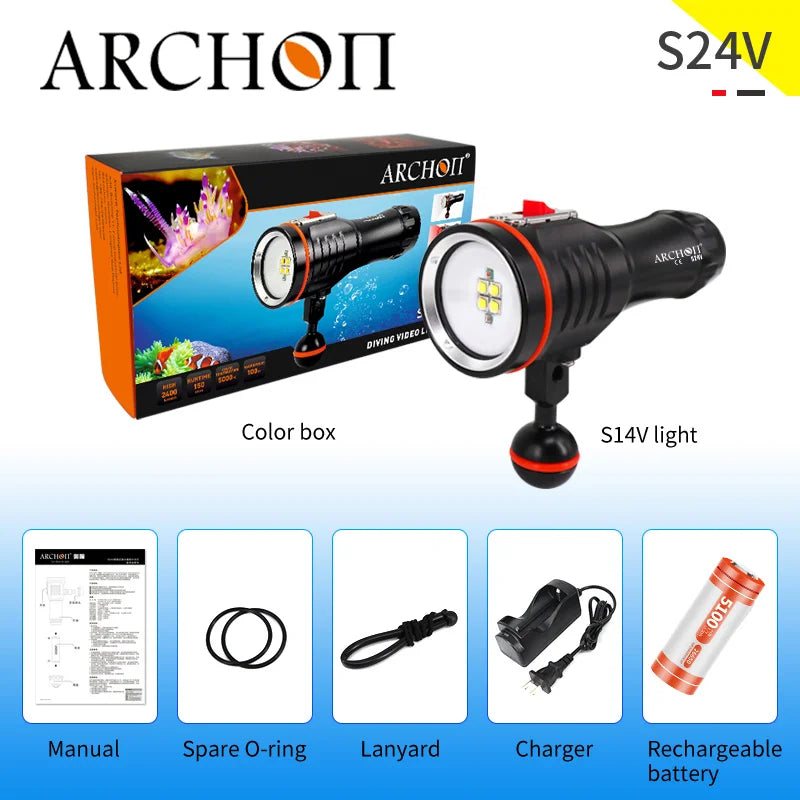

ARCHON S24V 2400lm 5000k diving video light
Couldn't load pickup availability
Share This:
The ARCHON S24V 2400lm 5000K Diving Video Light is an advanced, multifunctional underwater lighting solution designed for serious underwater photographers and videographers. This dive light combines high-performance white and red LEDs, durable construction, and sophisticated safety features to provide exceptional illumination and reliability in various underwater environments.

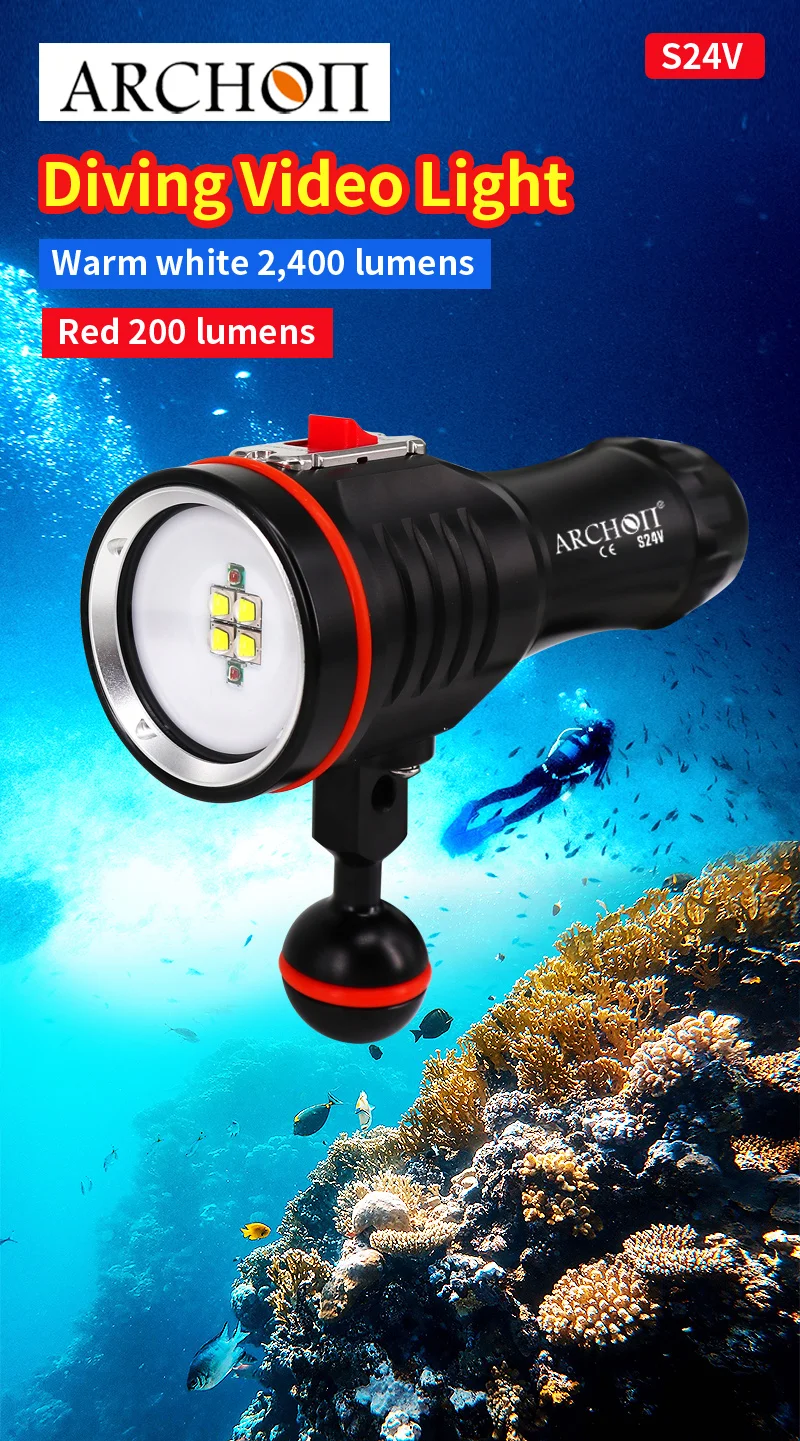

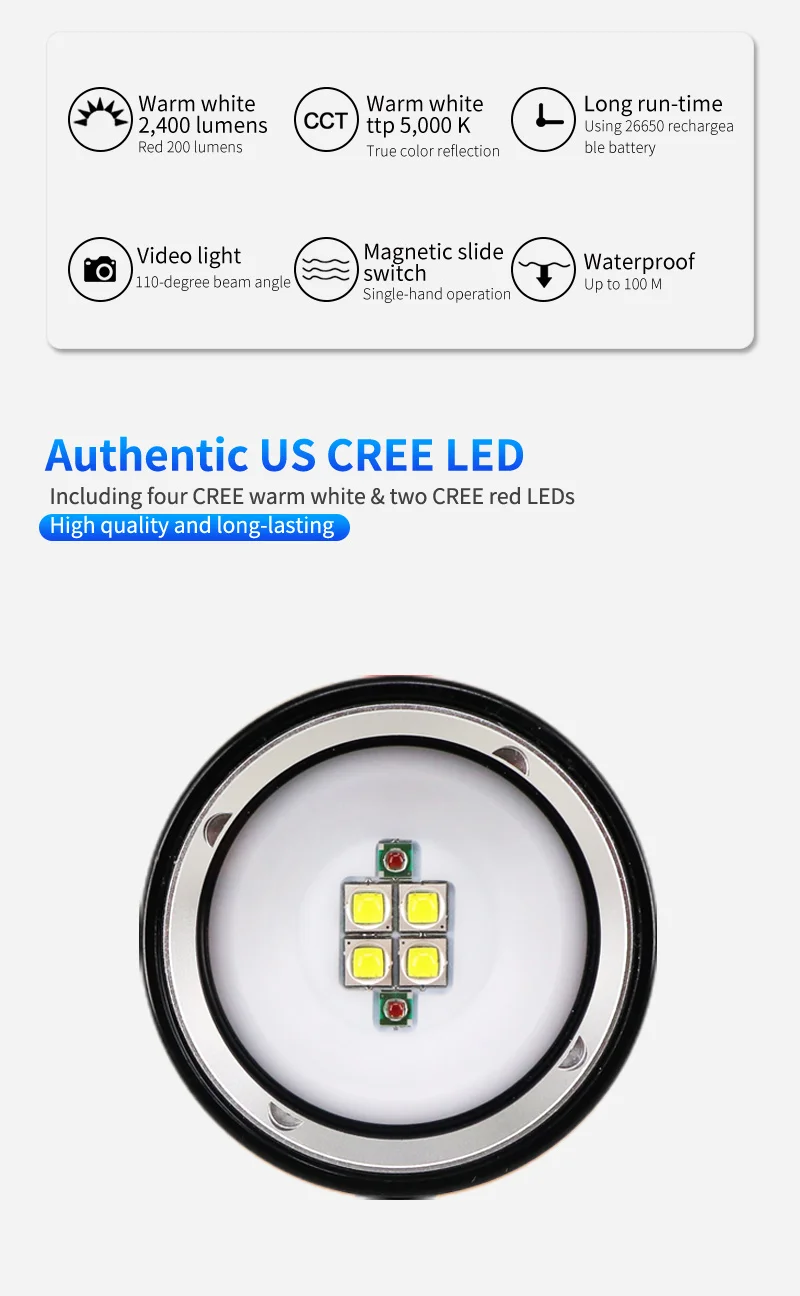

At the core of the ARCHON S24V is its dual-LED system, featuring four CREE XM-L2 U2 white LEDs and two CREE XP-E N3 red LEDs. The white LEDs deliver a maximum output of 2400 lumens with a color temperature of 5000K, closely mimicking natural daylight. This bright and natural light is perfect for underwater photography and videography, as it enhances color accuracy and detail, making marine life and underwater landscapes appear vibrant and true-to-life. The red LEDs, with a wavelength of 620 nm and an output of 200 lumens, are ideal for night diving and close-up photography, as they provide illumination without startling nocturnal marine creatures or affecting the diver's night vision.
The ARCHON S24V offers three output levels: high white, medium white, and red. In high white mode, the flashlight provides maximum brightness for up to 90 minutes, making it suitable for capturing high-quality footage and navigating through dark underwater environments. The medium white mode extends the runtime to 150 minutes, offering a balance between brightness and battery conservation for longer dives. The red mode provides a runtime of 120 minutes, making it perfect for specific underwater tasks that require subtle lighting.

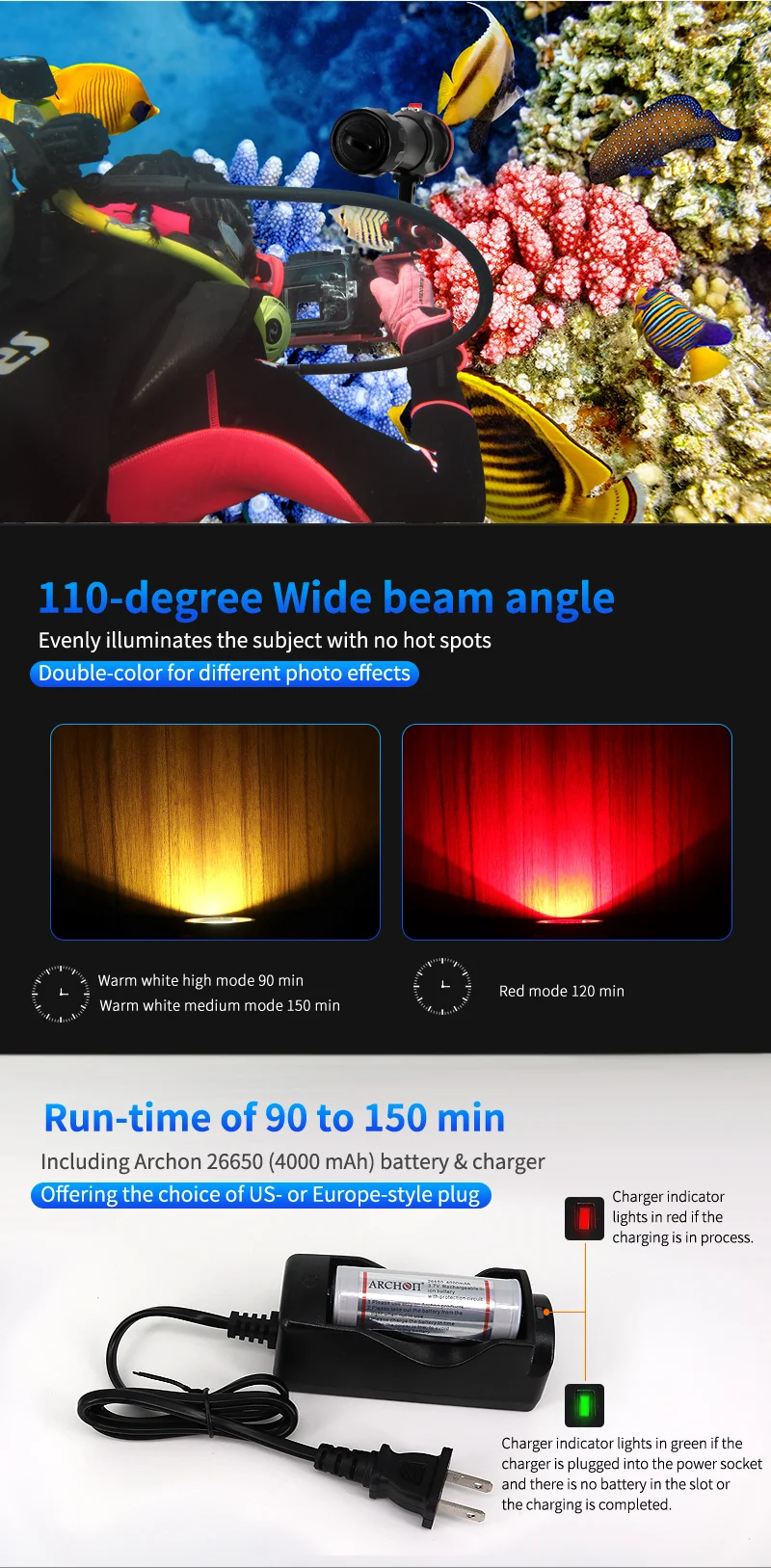

Designed with practicality in mind, the ARCHON S24V features a no-hotspot design and lacks a reflector, ensuring even and consistent light distribution. The 110° beam angle provides wide coverage, illuminating a broad area and making it perfect for capturing wide-angle shots and large underwater scenes. This wide beam angle ensures that the light covers a substantial area, enhancing visibility and reducing the need for multiple light sources.

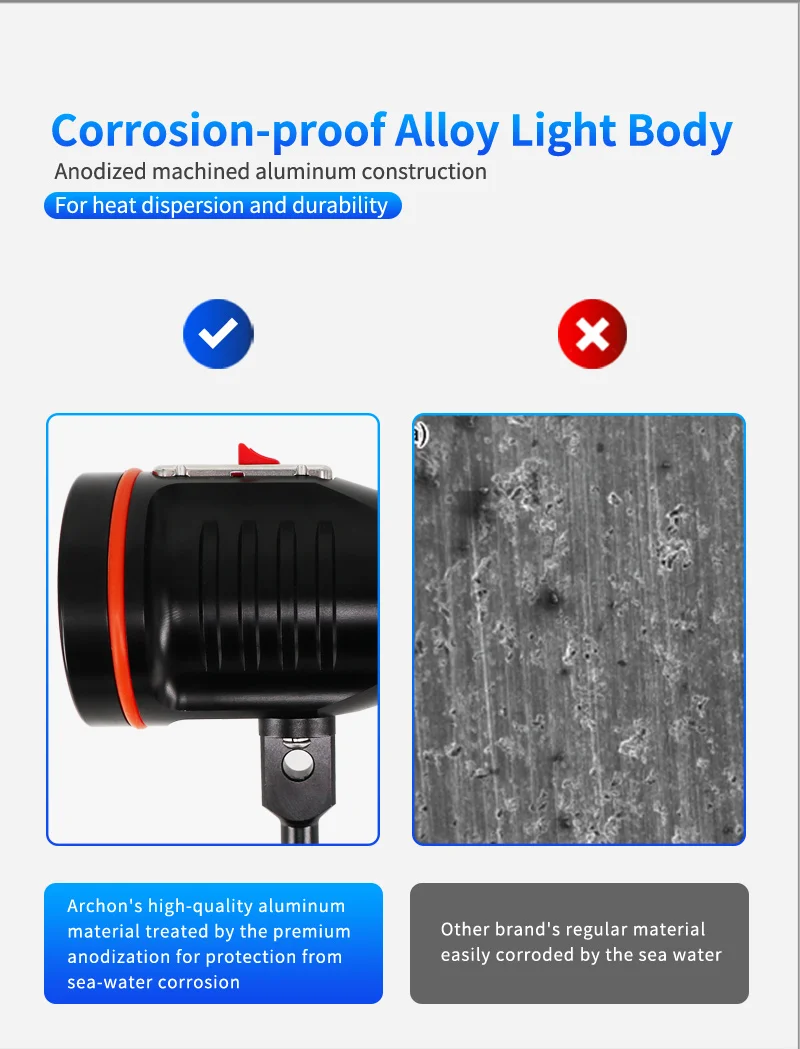

Constructed from durable aircraft-grade aluminum, the ARCHON S24V is built to withstand the harsh conditions of underwater environments. The body of the flashlight is treated with premium type III hard-anodizing, providing excellent resistance to corrosion and physical wear. This robust construction ensures that the light remains functional and aesthetically pleasing even after prolonged use in saltwater. The 4 mm polycarbonate lens adds further durability, ensuring clear light transmission and protecting the LEDs from impact.
The ARCHON S24V is designed with user-friendly features to enhance the diving experience. One such feature is the integrated Battery Management System (BMS), which includes over-discharging protection and polarity reversing protection. This system ensures safe and reliable operation, extending the battery's lifespan and preventing damage. The flashlight operates within a voltage range of 4.2V to 3.0V, maintaining stable performance throughout the battery's discharge cycle.
With a waterproof rating of up to 100 meters, the ARCHON S24V is suitable for a wide range of underwater activities, from recreational snorkeling to professional deep-sea exploration. The flashlight's compact dimensions, measuring 148 mm in length, 50 mm in diameter at the light head, and 36 mm in diameter at the body, make it easy to handle and maneuver underwater. The light weighs approximately 262 grams without the battery and 352 grams with the battery in air, and about 167 grams underwater, ensuring minimal buoyancy and ease of handling.
For added safety, the ARCHON S24V includes a low battery warning system. When the power capacity drops below 10%, the light flashes three times and repeats this warning every five seconds before automatically switching to a lower brightness mode. If the battery capacity falls below 5%, the flashlight will automatically switch off to prevent over-discharging and potential damage to the battery. This feature ensures that divers are never caught off guard by a sudden loss of light, providing peace of mind during dives.
In conclusion, the ARCHON S24V 2400lm 5000K Diving Video Light is a high-performance, reliable underwater lighting solution designed for underwater photographers and videographers. Its powerful dual-LED system, wide beam angle, advanced battery management, and durable construction make it an indispensable tool for capturing stunning underwater footage. Whether exploring vibrant coral reefs, navigating through underwater caves, or documenting marine life, the S24V enhances the underwater experience with exceptional performance and reliability.

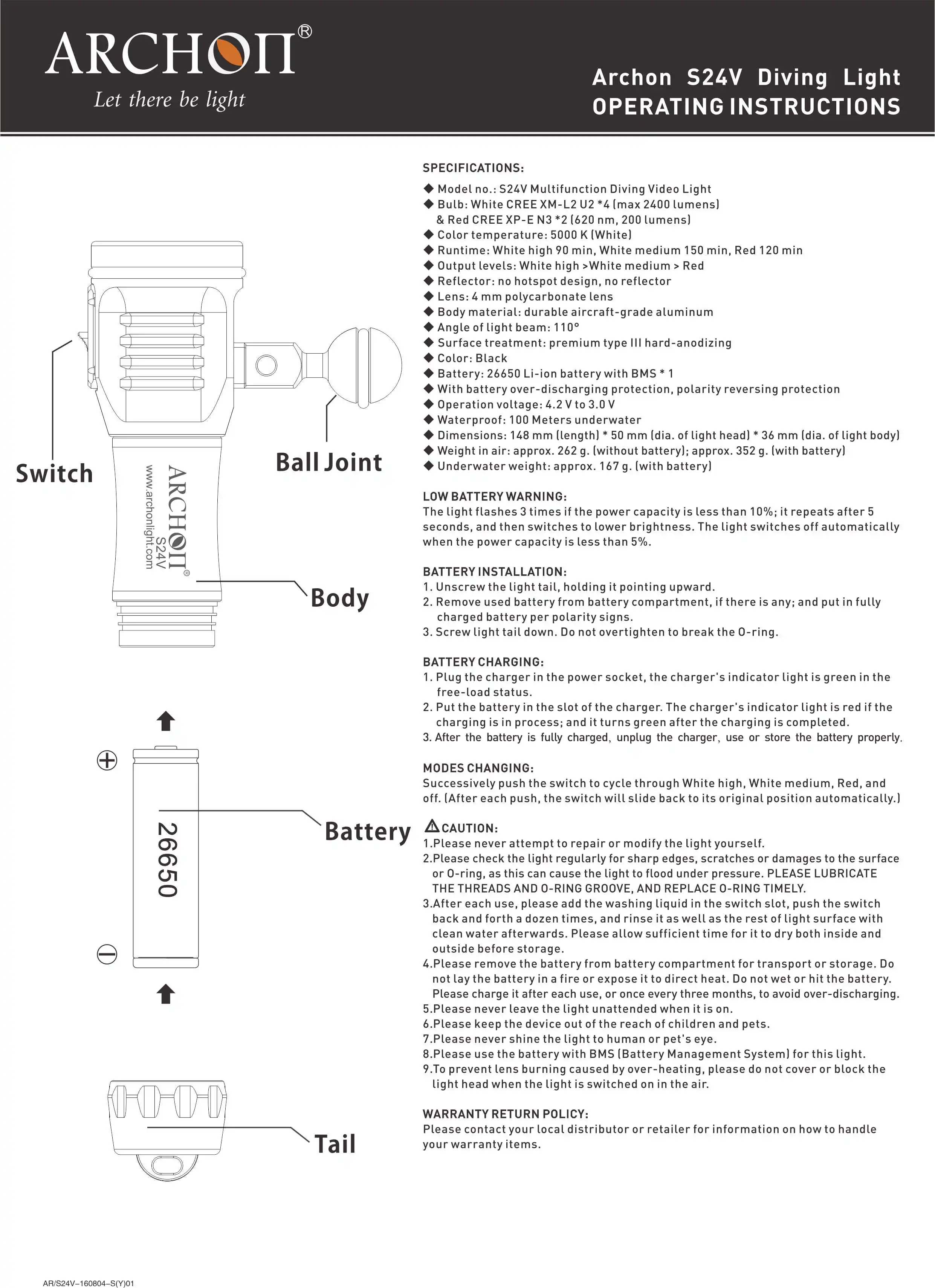

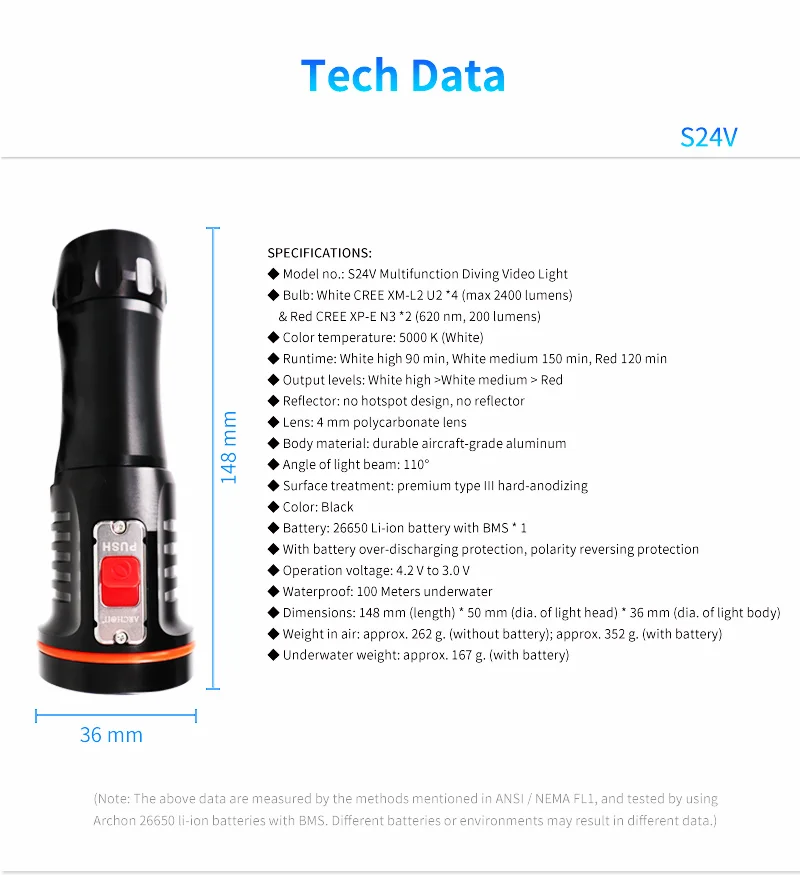

SPECIFICATION:
âModel no.: S24V Multifunction Underwater Photographing Light
âBulb: White CREE XM-L2 U2 *4 (max 2400 lumens) & Red CREE XP-E N3 *2 (620 nm, 200 lumens)
âColor temperature: 5000 K (White)
âRuntime: White high 90 min, White medium 150 min, Red 120 min
âOutput levels: White high >White medium > Red
âReflector: no hotspot design, no reflector
âLens: 4 mm polycarbonate lens
âBody material: durable aircraft-grade aluminum
âAngle of light beam: 110°
âSurface treatment: premium type III hard-anodizing
âColor: Black

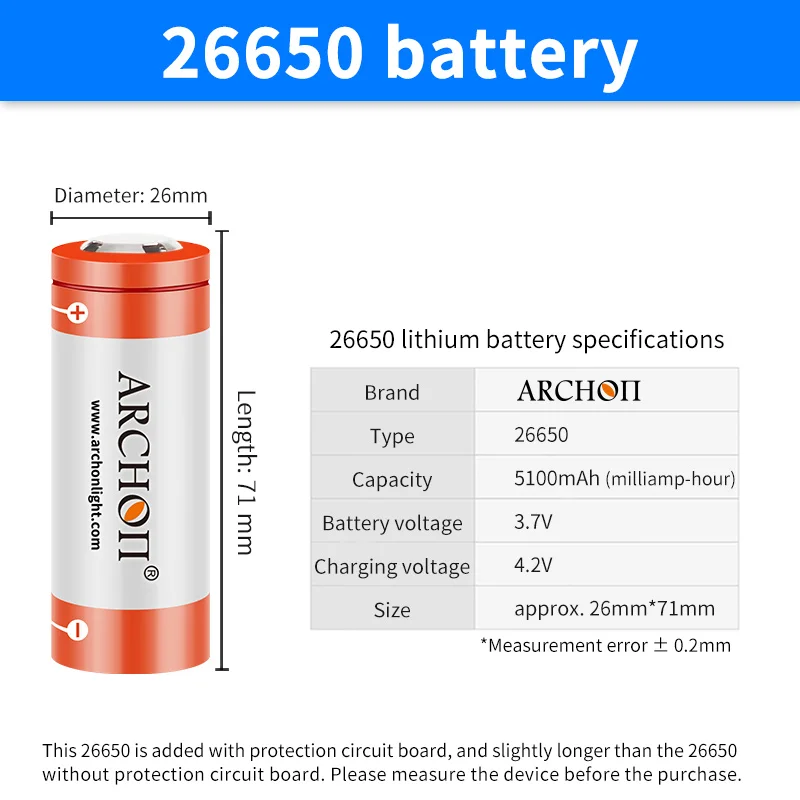

âBattery: 26650 Li-ion battery with BMS * 1
âWith battery over-discharging protection, polarity reversing protection
âOperation voltage: 4.2 V to 3.0 V
âWaterproof: 100 Meters underwater
âDimensions: 148 mm (length) * 50 mm (dia. of light head) * 36 mm (dia. of light body)
âWeight in air: approx. 262 g. (without battery); approx. 352 g. (with battery)
âUnderwater weight: approx. 167 g. (with battery)
LOW BATTERY WARNING:
The light flashes 3 times if the power capacity is less than 10%; it repeats after 5 seconds, and then switches to lower brightness. The light switches off automatically when the power capacity is less than 5%.
