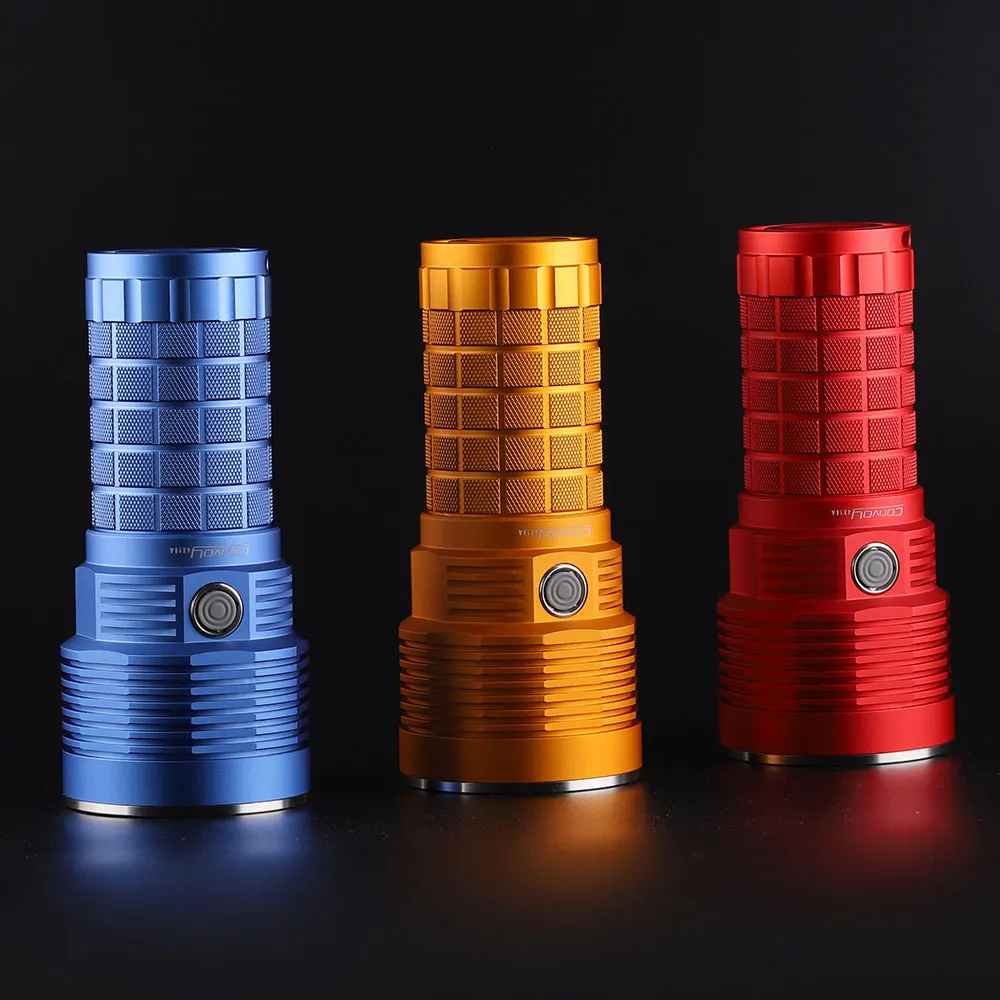

Convoy 4X18A XHP70.3 HI 18650 Flashlight
Couldn't load pickup availability
Share This:
| Material: | Aluminium alloy body, The surface is treated by anodic oxidation. | |
| Lens type: | Ar-coated glass lens | |
| Reflector: | made of aluminium alloy, the reflective surface is vacuum-coated. | |
| orange peel for LHP73B, GT FC40Ā | ||
| smooth for SBT90.2 | ||
| LED MCPCB: | made of copper. DTP thermally conductive structure. 3.0 W/(mĀ·K) thermal grease below the MCPCB. |
|
| Head structure: | integrated type (Best structure for conducting heat, but please note that fast heat transfer does not mean fast heat dissipation, which depends on the surface area of the flashlight.) | |
| Switch: | The electronic switch is located on the side of the head, pay attention to the flashlight using the electronic switch has standby current, if it is possible that you will not use the flashlight for more than a week, please loosen the tail of the flashlight to avoid the risk of battery damage. | |
| Tail: | nickel-plated phosphor copper spring inside, it can bear 10A current. | |
| Electro&optical parameters | Driver output: | 12V 4A boost for GT FC40 |
| 3V 18A linear for SBT90.2,LHP73B | ||
| Driver efficiency: | 90-95% | |
| Charging: | 5V 3A Type-C port | |
| Mode: | GT FC40 : click --> ON / OFF, press and hold ---> 5%-30%-100%Ā | |
| SBT90.2 / LHP73B : See below for details | ||
| Flux: | ? | |
| Illumination distance: | ? (ANSI standard) | |
| Runtime: | ? | |
| Related features | Low voltage warning: | Yes |
| Reverse polarity protection: | Yes | |
| Reverse charging function | No | |
| Mode memory: | Yes | |
| Temperature control functionļ¼ | Yes , As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.When the flashlight works for a long time under the maximum brightness, the surface temperature will rise to 80-90 degrees Celsius, please be careful of burns. | |
| Tailstand: | Yes | |
| About the battery | Battery included: | No |
| Required battery type: | INR or IMR 18650 lithium cell or batteryĀ | |
| Required battery quantity | 4 pieces | |
| Size & weight | Length: | 153mm |
| Diameter: | head 69mm , body 50mm | |
| Weight: | Net weight 425gĀ Gross weight 490g (include package) |
|
| Accessory: | 1* flat-to-top battery adapter | |
Mode operation instructions(SBT90.2ļ¼LHP73B):
1.click the buttonĀ āā>Ā flashlight is turned on with last brightness āā> press the button,brightness ramping up āā> release and press the button again,brightness ramping down
2.flashlight off, press the buttonĀ āā>Ā moonlight mode 0.2%Ā Ā [This brightness will not be remembered]
3.flashlight on or off, 2-click the buttonĀ āā>Ā turbo 100%ļ¼Double-click again to return to the previously set brightness.
4.flashlight off,3-click the buttonĀ Ā āā>Ā strobe
5.flashlight off,4-click the buttonĀ Ā āā>Ā tactical mode, only 100% ,4-click the button again to quit tactical mode.
6.flashlight off,5-click the buttonĀ Ā āā>Ā voltage detectionĀ (* means "flash" ,Ā *** pause ******* means 3.7V, )
7.flashlight off,6-click the buttonĀ Ā āā>Ā normal ramping mode switch to 4modes 1%-10%-40%-100%
8.flashlight off,10-click the buttonĀ Ā āā>Ā Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.
Ā The flashlight has low voltage protection and temperature control protection.
Mode operation instructions(GT FC40):
Driver modes :Ā click --> ON / OFF, press and hold ---> 5%-30%-100%,Ā Ā
Please use TYPE-A to TYPE-C cable and 5V adapter to charge the battery.
There is a black hold in the middle of the light spot if you choose smooth reflector.
