Convoy H4 2000 Lumens Headlamp

In stock
SKU: H4-519A-5700K-without battery
Regular price $28.99
LED
Colour Temperature
Battery

Parameter:
LED: NICHIA 519A R9080,LUMINUS SST40 R70,CREE XHP50.2
Luminous flux(max): 519A 1300LM / SST40,XHP50.2 2000LM
Mode: see detailed description later
Brightness memory: Yes

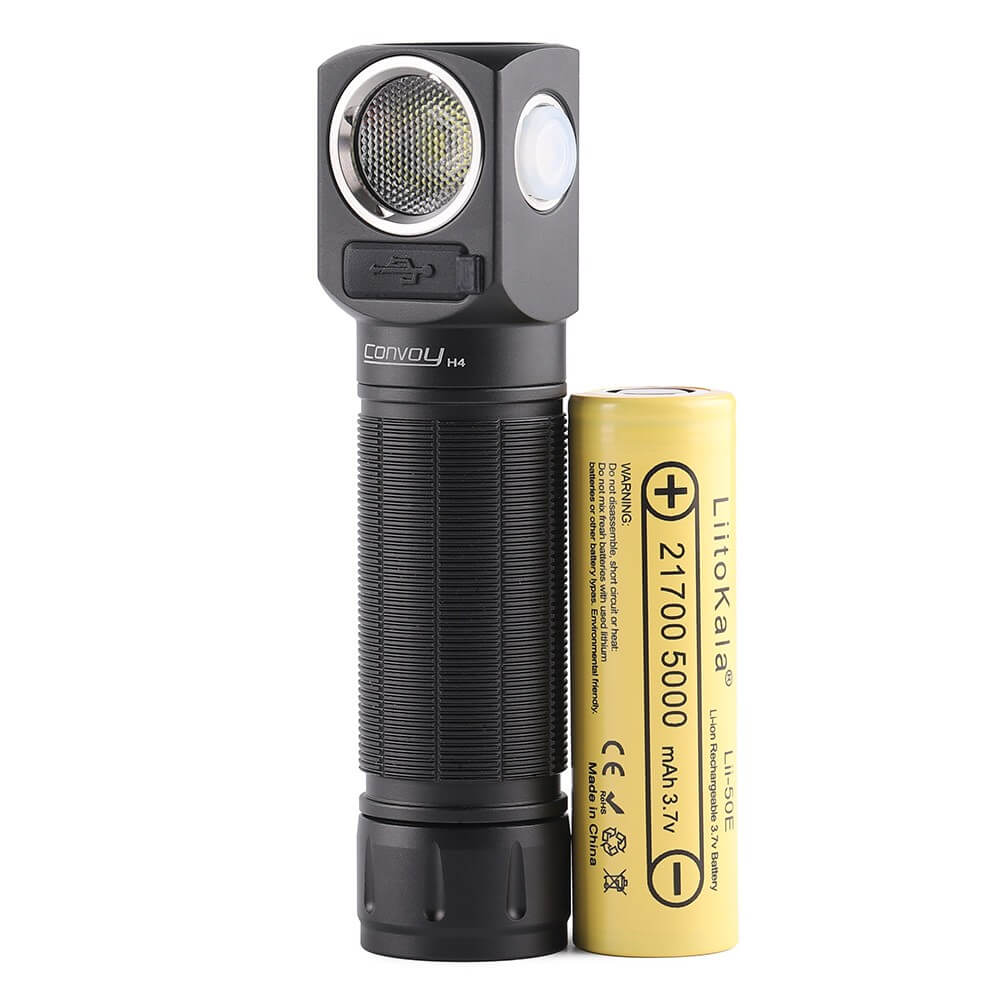

Battery:  1 * 21700 flat head without protection board
Material: aluminum alloy
Colour: Black
Waterproof rating: IPX4
Driver: XHP50.2(3amps),519A/SST40(6amps) temp control
Switch type: electronic switch (with standby current ,around 32μA)
Charging port: TYPE-C charging interface, charging current 2A, the product does not include a charging cable.
Lens type: 40degree TIR for SST40 / XHP50.2, 45degree TIR for 519A
Size: 26.5mm (diameter), 114.2mm (length)
Net weight of the flashlight: 81.2g (without packaging, batteries, headlight straps, and holding clips)
Included accessories: 1*blue headlight belt, 1*holding clip





Mode operation instructions:

1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down

2.flashlight off, press the button  ——>  moonlight mode  [This brightness will not be remembered]

3.flashlight on or off, 2-click the button  ——>  turbo 100%

4.flashlight off,3-click the button   ——>  strobe

5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.

6.flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )

7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%

8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.

 The flashlight has low voltage protection and temperature control protection.
