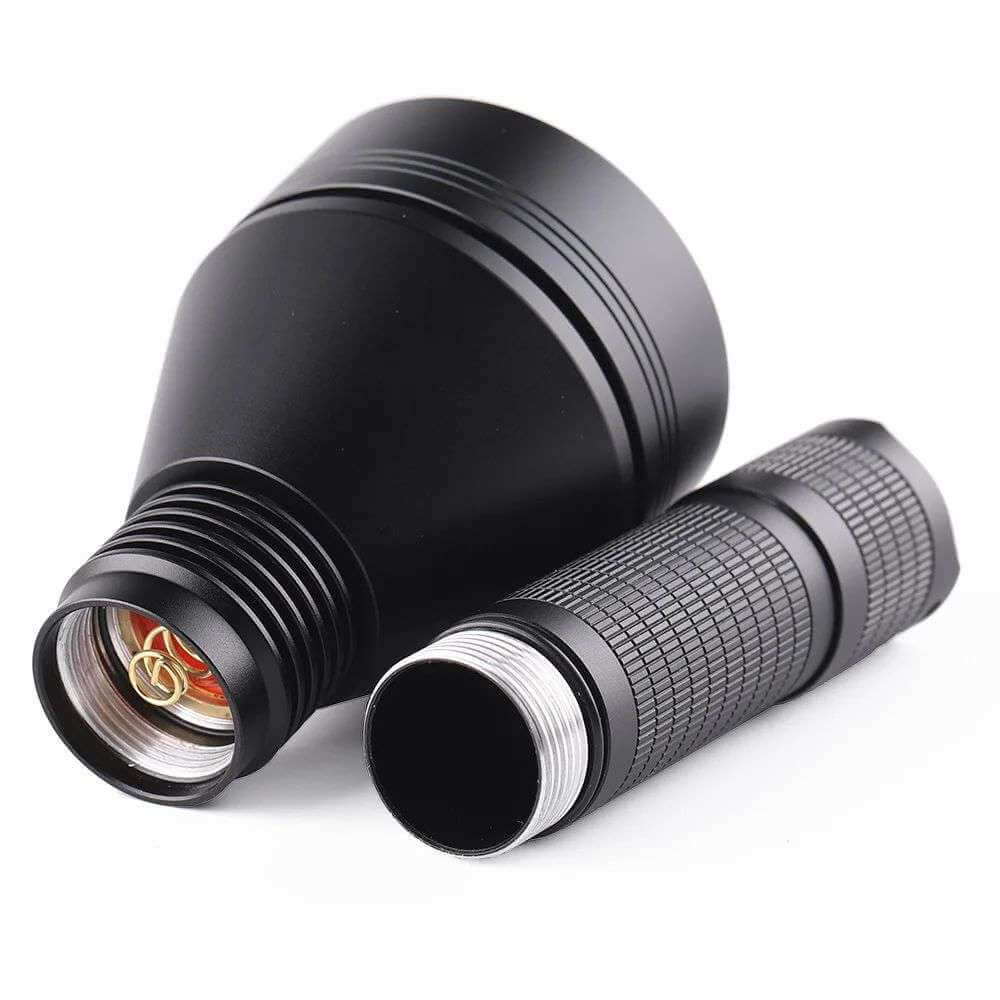

Convoy L21B KR CSLNM1.23 Led Red Flashlight
Couldn't load pickup availability
Share This:
The Convoy L21B KR CSLNM1.23 Red Flashlight is a highly versatile and durable flashlight designed for various applications, especially those requiring specialized red lighting. This flashlight is crafted from high-quality aluminum alloy, offering both durability and lightweight convenience. The L21B is equipped with a KR CSLNM1.23 red LED, specifically designed to emit a red light, making it ideal for activities such as night vision preservation, hunting, astronomy, and emergency signaling. The red light is particularly useful in situations where maintaining night vision is important, as it doesnât affect the eyes' adaptation to darkness.
The flashlight operates on a single 21700 lithium battery, which is necessary for delivering optimal power for the flashlightâs features. This type of battery provides a significant boost in performance and runtime compared to smaller batteries, ensuring that the flashlight can operate efficiently for longer periods. The driver inside the L21B supports 12 different mode groups, offering versatility for a variety of lighting needs. These mode groups include several brightness levels and special modes such as strobe, SOS, biking, and battery-check, providing an all-in-one solution for many different situations.
The L21B flashlight features a smooth reflector and an AR-coated glass lens that ensures better light transmission and a more focused beam. The smooth reflector helps the red light beam to project in a concentrated manner, making it ideal for both close and distant lighting tasks. Its mode memory function ensures that the flashlight will start in the last mode used, allowing for a quick and efficient operation without needing to reset the mode each time it is turned on.
This flashlight also includes a low voltage warning and reverse polarity protection, ensuring that the user can safely operate the flashlight without the risk of damaging internal components due to improper battery installation or a low charge. The reverse polarity protection prevents the flashlight from operating if the battery is installed incorrectly, providing peace of mind to users and safeguarding the internal circuitry. Furthermore, the low voltage warning lets the user know when the battery charge is running low, allowing them to take timely action to recharge or replace the battery.
In terms of design, the Convoy L21B features a compact body that measures 170.5mm in length, with a head diameter of 62.6mm and a body diameter of 26.1mm. This design ensures that the flashlight is easy to handle and carry, yet large enough to house the necessary components for powerful lighting performance. Despite its compact size, the L21B weighs 212g, making it a sturdy and robust tool that can withstand daily use and harsh environments.
The L21B flashlight also has a tailstand function, which means that it can be placed upright on a flat surface for hands-free use, offering additional convenience during various tasks. This is particularly useful in situations where you need to direct light in a specific area without holding the flashlight. The tailstand feature adds to the practicality of the flashlight, making it a reliable companion for hands-free lighting.
The operational instructions for the L21B are intuitive, with a simple click to turn the flashlight on and off. The user can cycle through various modes by tapping the switch. Additionally, by quickly tapping the switch 20 times, the user can enter the configuration mode, which allows them to customize the flashlightâs settings according to their needs. The 12 mode groups provide a wide range of options, with each group offering different brightness levels and special functions, including strobe, SOS, and biking modes. This customizable functionality allows users to tailor the flashlight's performance for various situations, whether they need maximum brightness, an energy-efficient mode, or an emergency signaling feature.
Option 2, which allows users to activate or deactivate the mode memory, is another useful feature, ensuring that the flashlight will remember the last used mode. This makes it quicker and easier to use the flashlight without having to cycle through all the modes again.
With temperature protection management built inside, the L21B ensures safe operation even during extended use, preventing overheating and protecting the flashlightâs internal components. This added safety feature ensures that users can rely on the flashlight during demanding tasks without worrying about potential damage due to excessive heat.
The Convoy L21B KR CSLNM1.23 Red Flashlight is a reliable and highly adaptable tool, offering exceptional performance in a compact, user-friendly design. Its red LED makes it perfect for specialized lighting needs, while the wide range of features, such as mode memory, low voltage warning, and reverse polarity protection, enhances its practicality and ease of use. Whether you are using it for night vision, hunting, or emergency situations, the L21B is designed to meet your needs while providing lasting durability and performance.
Material: Aluminum Alloy
LED: KR CSLNM1.23 red light
Low voltage warning: Â Yes
Reverse polarity protection: Â Yes
Lens type: Ar-coated glass lens
Reflector: smooth
Mode memory: Yes
Tailstand: Â Yes
Required battery type: 21700 lithium battery
Required battery quantity: 1pcs
Driver: 12groups
Temperature protection management inside
Length / Head diameter / Body diameter : 170.5mm / 62.6mm / 26.1mm
Net weight: 212g
Gross weightďź247g
Operation instructions: (12 groups)
1.Click the switch to turn the flashlight on/off,tap the switch to select mode
2.If flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)
Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
