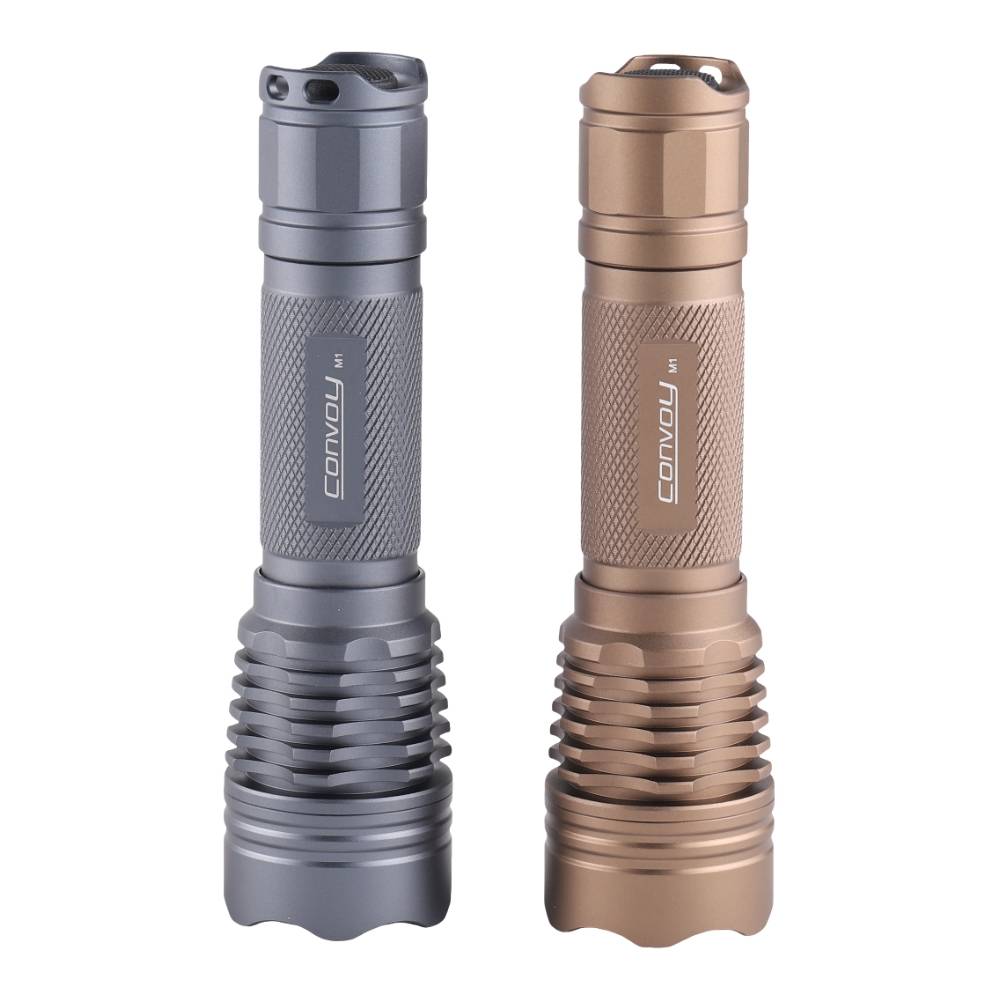

Convoy M1 XHP70.3 HI 12groups 18650 Flashlight

In stock
SKU: M1-6500K-Grey-XHP70.3 HI R70
Regular price $29.99
Emitting Color
Color
LED

PARAMETER

Material:  Aluminum Alloy
Low voltage warning:  Yes
Reverse polarity protection:  Yes
Lens type:  ar-coated glass lens
Reflector:orange peel reflector
Driver output: 6V 5A boost constant current
Mode memory:Yes
Tailstand:  Yes
Required battery type:  unprotected INR or IMR 18650 lithium battery which can bear 10A current, not include
Required battery quantity:1pcs
Diameter(Head/Body/Tail): 35.6 / 24.9 / 26.8 mm
Length: 133.6mm
Weight:110g

12 groups:

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

   Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)

       -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)

       -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

       -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

       -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

       -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

       -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)

       -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)

   Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.

battery-check instructions:

 <2.95V   1 flash,

2.95-3.25V 2 flashes,

3.25-3.55V 3 flashes,

3.55-3.85V 4 flashes,

>3.85V    5 flashes
