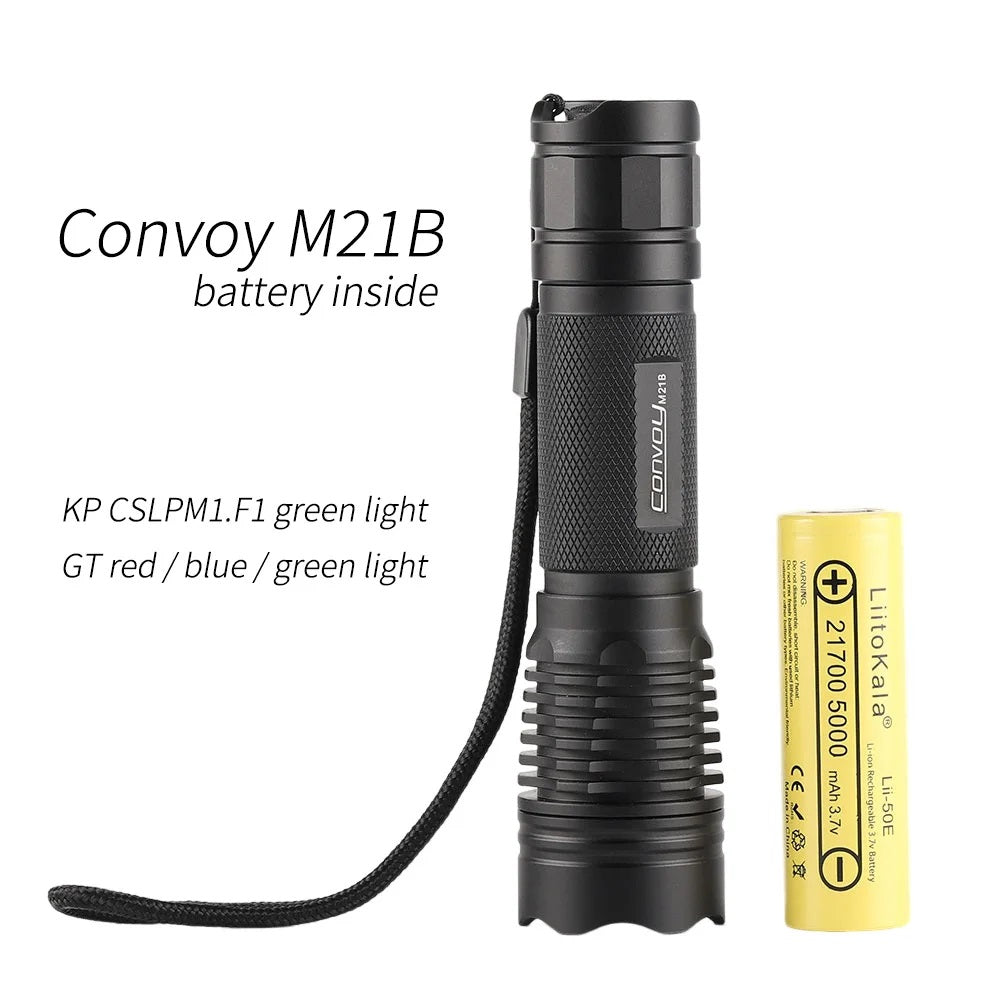

Convoy M21B Multicolor Option 21700 Flashlight

In stock
SKU: Black-EVE 50E-KP CSLPM1.F1 green
Regular price $29.99
Color
Battery Type
Emitting Color

Tax and Duty Paid
Most of countries can enjoy tax and duty paid by Flashlightgo in priority shipping or premium shipping.

Covid-19 Shipping Delay Notice
Shipping may be delayed in different countries due to covid-19.

You can also add links

Descriptlon:
Material: Aluminum AlloyDriver: 12 groups 8amps for GT LED, 6amps for KP CSLPM1.F1, Temperature protection management insideow voltage warning: Yes
Reverse polarity protection: Yes
Lens type: ar-coated glass
Reflector:smooth
Mode memory: Yes
Tailstand:Yes
Batteryincluded: One piece 21700 battery inside.
Diameter(Head/Body):35.7/27.1 mm
Length:141.5mm
Weight: 120g



12 groups:

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

   Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)

       -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)

       -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

       -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

       -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

       -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

       -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)

       -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)

   Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.



battery-check instructions:

 <2.95V   1 flash,

2.95-3.25V 2 flashes,

3.25-3.55V 3 flashes,

3.55-3.85V 4 flashes,

>3.85V    5 flashes



About the battery

EVE 50E

Full Model Name: EVE-INR21700/50E

It is manufactured by EVE Energy Co., Ltd.,

The typical discharge capacity is 5000mAh (@1000mA,2.5V DC cut-off).

The maximum continuous discharge current is 15A.

The working temperature is -20  to 60 .



Liitokala 50E

Full Model Name: Liitokala lii50E

It is manufactured by Liitokala Co., Ltd.,

The typical discharge capacity is 5000mAh (@1000mA,2.5V DC cut-off).

The maximum continuous discharge current is 15A.

The working temperature is -20  to 60 .



Molicel P42A

Full Model Name: INR-21700-P42A

It is manufactured by E-One Moli Energy Corp.

The typical discharge capacity is 4200mAh (@800mA,2.5V DC cut-off).

The maximum continuous discharge current is 45A.

The working temperature is -40  to 60 .
