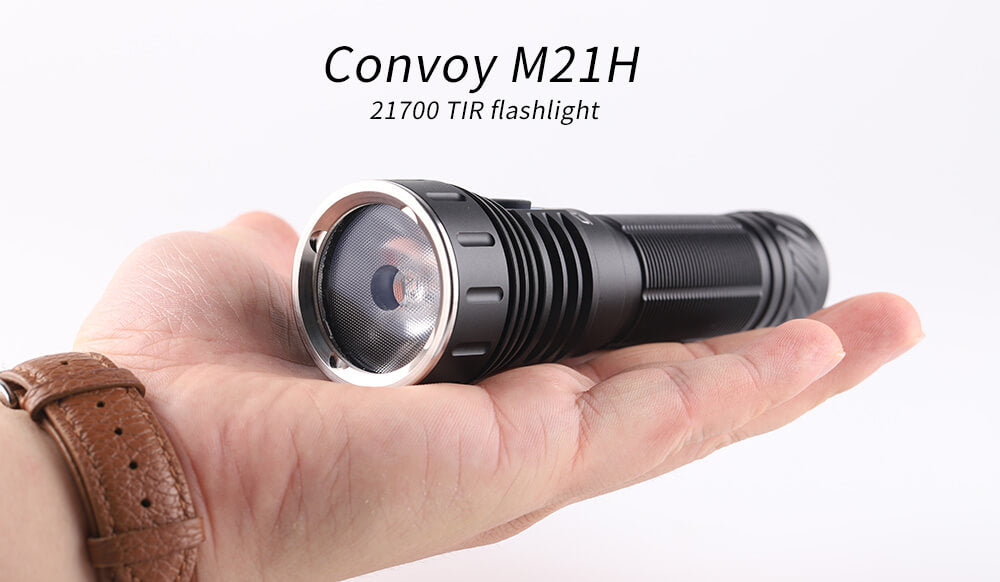

Convoy M21H 21700 TIR flashlight

In stock
SKU: M21H-XHP70.2-6500k-EVE 50E
Regular price $36.99
LED
Emitting Color
Battery Type

The Convoy M21H is a powerful flashlight made of aluminum alloy, designed to offer reliable performance in various situations. With a compact and lightweight design, this device is easy to carry and is packed with many features that make it versatile and efficient. The flashlight has a low voltage warning, which indicates when the battery is running low, allowing you to take the right precautions for replacement or recharging. Reverse polarity protection ensures that the flashlight will not be damaged if the battery is inserted incorrectly. As for the light emitted, the lens is made of AR coated glass and the flashlight features a 12 TIR bead lens. degrees. This combination allows for uniform light distribution and excellent color rendering. The Convoy M21H offers several light options with different brightness and luminous flux: For XHP70.2 and XHP70.3 Hi R70 mode, the flashlight emits a luminous flux of 4000 lumens. For XHP70.3 Hi R9050 mode, the flashlight emits a luminous flux of 3000 lumens. For the FC40 GT mode, the flashlight emits a luminous flux of 2500 lumens. The flashlight is equipped with an ergonomically positioned side switch, which facilitates access to the different lighting modes. The modes memory function allows you to go back to the last used setting without having to go through all the options again. Also, thanks to the rear kickstand, the flashlight can be positioned upright to illuminate a specific area without having to hold it. The Convoy M21H requires a 21700 battery to operate. The flashlight can be recharged with up to 2A current. However, the charger is not included in the package and you will need to purchase it separately. The size of the M21H Convoy is 130.8mm in length, with a 40mm head, 27mm body, and 28.5mm tail diameter. Weighing only 132g, the flashlight is comfortable to hold and carry. As for the modes of operation, the flashlight offers several options that can be easily selected using the power button. By clicking the button, the flashlight turns on with the last used brightness, and by pressing the button again you can increase or decrease the brightness. The moonlight mode, which offers 0.2% brightness, can be activated by pressing the button when the flashlight is off. Turbo mode, which offers 100% brightness, can be activated with two clicks of the button when the flashlight is on or off. Strobe mode can be activated with three clicks of the button when the flashlight is off. Tactical mode, which offers only 100% brightness, can be activated with four button clicks when the flashlight is off, and can be deactivated with four more button clicks. The torch also offers a voltage sensing mode and a normal crimping mode with 4 brightness levels (1%, 10%, 40%, 100%). Finally, there is a lockout mode that can be activated with ten clicks of the button when the flashlight is off. The flashlight will flash once to indicate it is locked, and will be unlocked with another ten clicks of the button.The Convoy M21H features low voltage protection and temperature control protection. Low voltage protection ensures that the flashlight turns off when the battery reaches a critical voltage level to avoid battery damage. Temperature control protection adjusts the power output of the flashlight based on ambient temperature to prevent overheating and maintain optimum performance.

Parameters:
Material: aluminum alloy
Low voltage warning: yes
Reverse polarity protection: yes
Lens Type: ar-coated glass lens ,
                  3degree TIR  for SFT40/SFT-25R,
                  8degree TIR for LHP531/SFT70/LHP73B,
                  12degree TIR for XHP70/GT FC40
Switch position: side
Mode memory: yes
Tail stand: yes
Driver output :
                     6V 5A for XHP70.2,XHP70.3 Hi,SFT70
                     12V 2.5A for GT FC40
                     3V 8A for GT red/green/blue light, SFT40, SFT-25R, LHP531
                     3V 20A for LHP73B
Flux:
                     XHP70.2,XHP70.3 Hi R70--- 4000LM
                     XHP70.3 Hi R9050---3000LM
                     GT FC40 --- 2500LM
Maximum charging current: 2A
Battery charger includes: not included
Battery type required: 1*21700 standard battery
Number of batteries required: 1
Size: Head/body/tail diameter: 40mm/27mm/28.5mm
length: 130.8mm
Product weight: 132g

Mode operation instructions(Excluding M21H LHP73B):
1.click the button  ——>  flashlight is turned on with last brightness ——> press the button,brightness ramping up ——> release and press the button again,brightness ramping down
2.flashlight off, press the button  ——>  moonlight mode  (0.2%)   [This brightness will not be remembered]
3.flashlight on or off, 2-click the button  ——>  turbo 100%
4.flashlight off,3-click the button   ——>  strobe
5.flashlight off,4-click the button   ——>  tactical mode, only 100% ,4-click the button again to quit tactical mode.
6.flashlight off,5-click the button   ——>  voltage detection  (* means "flash" ,  *** pause ******* means 3.7V, )
7.flashlight off,6-click the button   ——>  normal ramping mode switch to 4modes 1%-10%-40%-100%
8.flashlight off,10-click the button   ——>  Lock mode,The flashlight will flash once under any operation, which means the flashlight is locked.10-click the button again to quit lock mode,Please note that this is the only way to unlock.

The flashlight has low voltage protection and temperature control protection.

Mode operation instructions for M21H LHP73B:
• Press the button → The flashlight turns on at the last memorized brightness → Hold the button to gradually increase brightness → Release, then hold the button again to gradually decrease brightness
• When the flashlight is off, press and hold the button → Moonlight mode (this brightness level can not be memorized)
• Whether the flashlight is on or off, double-click the button → 10A brightness mode
• Whether the flashlight is on or off, double-click and hold the button → 20A brightness mode (after releasing the button, it returns to the previous brightness level or turns off)
• When the flashlight is off, triple-click the button → Strobe mode
• When the flashlight is off, quadruple-click the button → Tactical mode, 20A; quadruple-click again to exit Tactical mode
• When the flashlight is off, quintuple-click the button → Voltage check (“” indicates flashes, “** pause *******” indicates a voltage of 3.7V)
• When the flashlight is off, six-click the button → Switch to stepped brightness mode: four brightness levels, maximum current 10A
• When the flashlight is off, ten-click the button → Lockout mode; under any operation the flashlight will blink once to indicate it is locked. Ten-click again to exit Lockout mode. Note: This is the only way to unlock.
• The flashlight features low-voltage protection and temperature control protection.

About the battery

EVE 50E

Full Model Name: EVE-INR21700/50E

It is manufactured by EVE Energy Co., Ltd.,

The typical discharge capacity is 5000mAh (@1000mA,2.5V DC cut-off).

The maximum continuous discharge current is 15A.

The working temperature is -20 ℃ to 60 ℃.

Liitokala 50E

Full Model Name: Liitokala lii50E

It is manufactured by Liitokala Co., Ltd.,

The typical discharge capacity is 5000mAh (@1000mA,2.5V DC cut-off).

The maximum continuous discharge current is 15A.

The working temperature is -20 ℃ to 60 ℃.

Molicel P42A

Full Model Name: INR-21700-P42A

It is manufactured by E-One Moli Energy Corp.

The typical discharge capacity is 4200mAh (@800mA,2.5V DC cut-off).

The maximum continuous discharge current is 45A.

The working temperature is -40 ℃ to 60 ℃.
