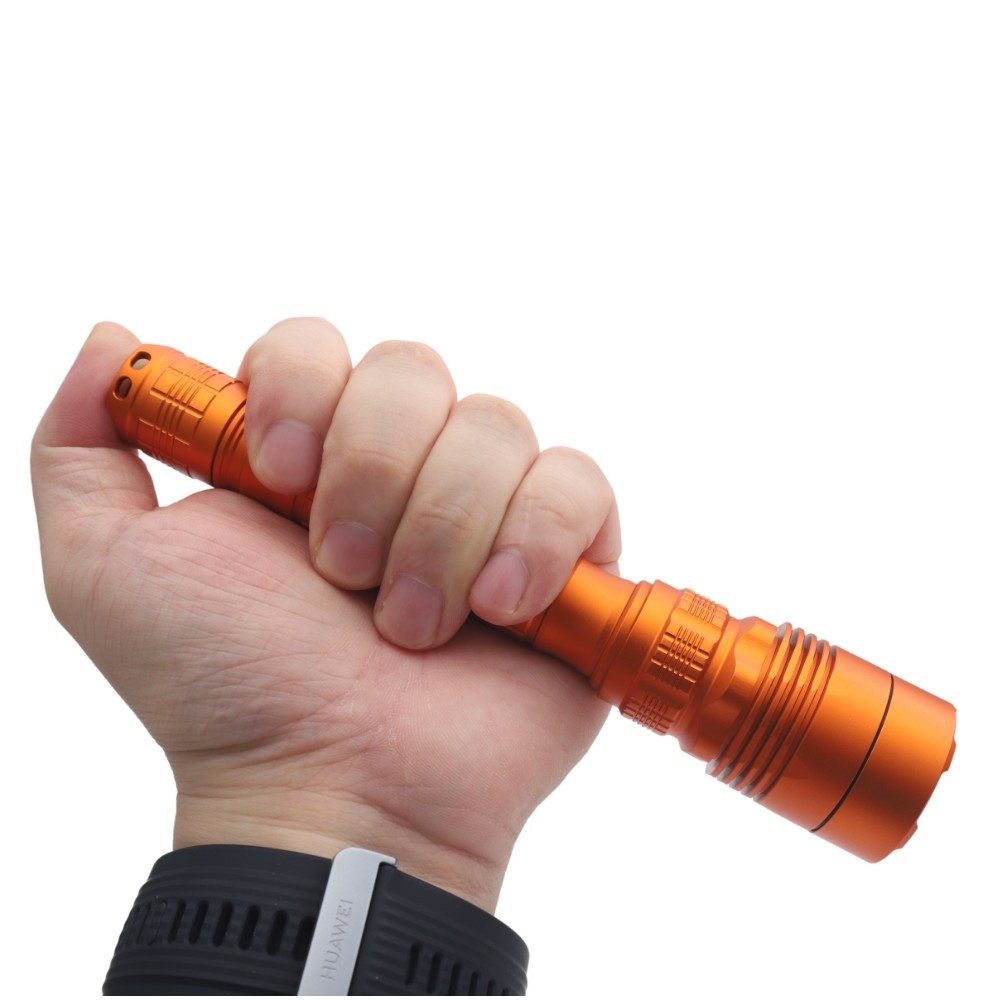

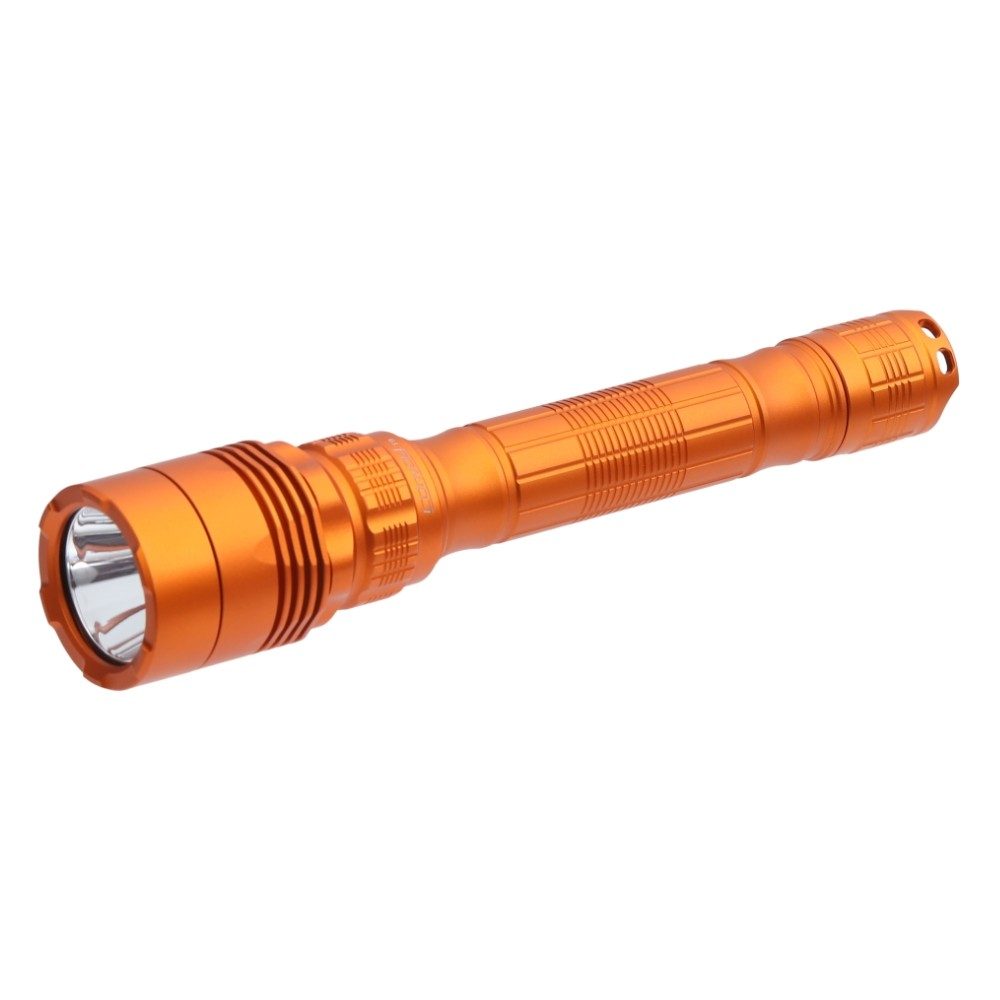

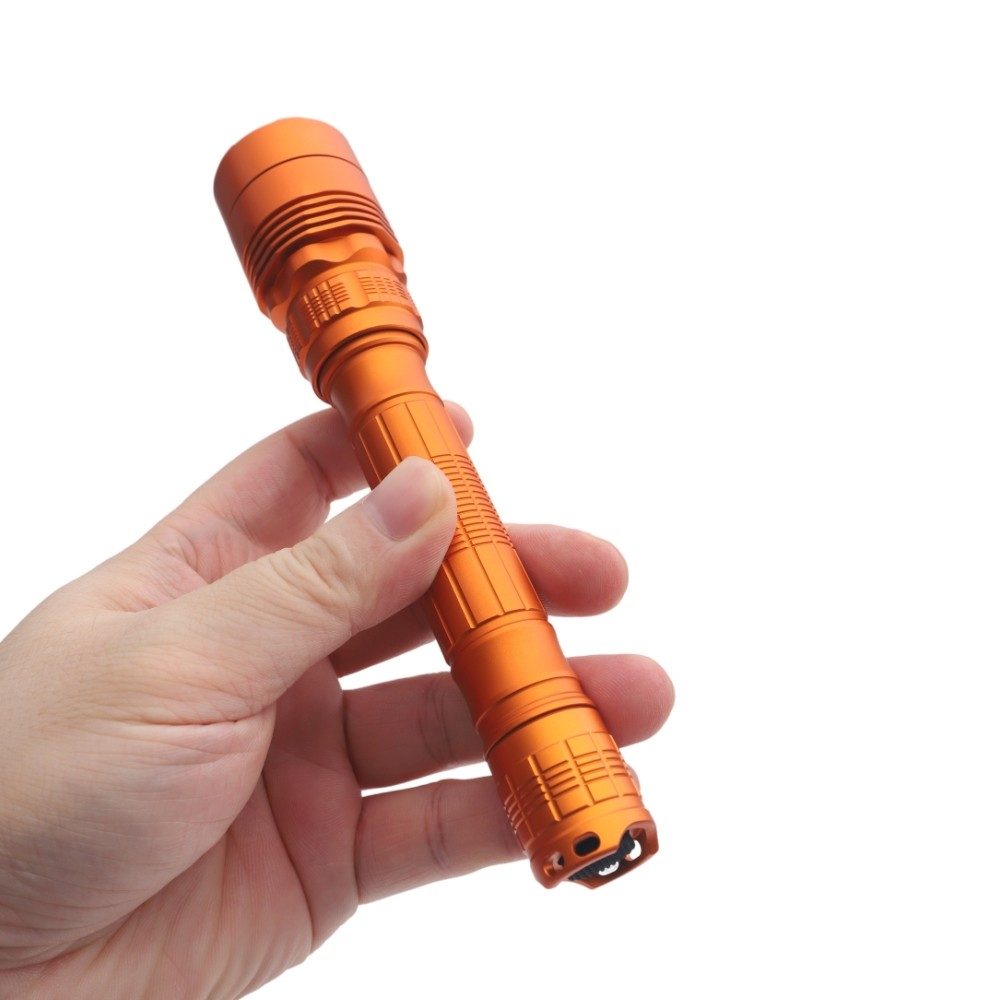

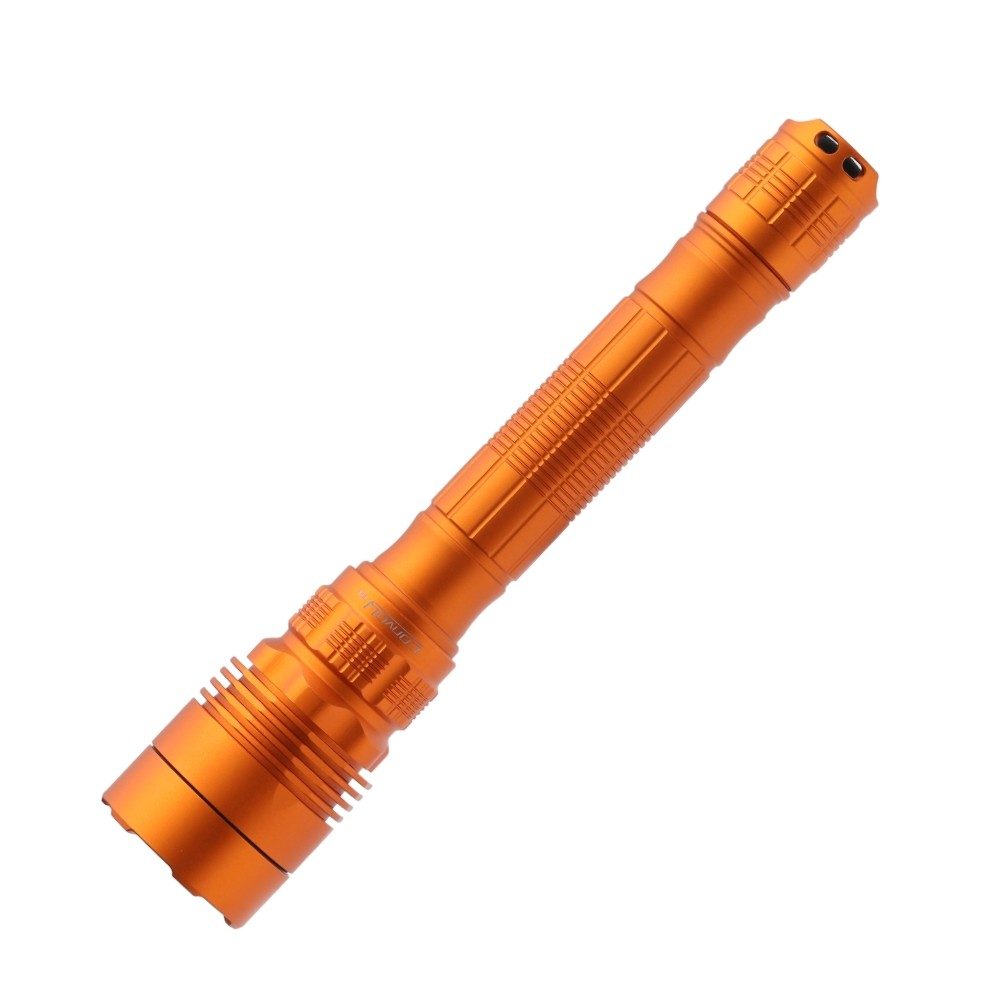

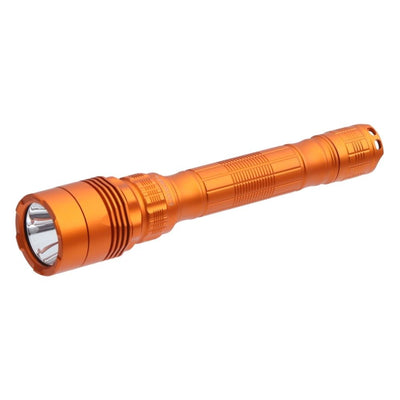

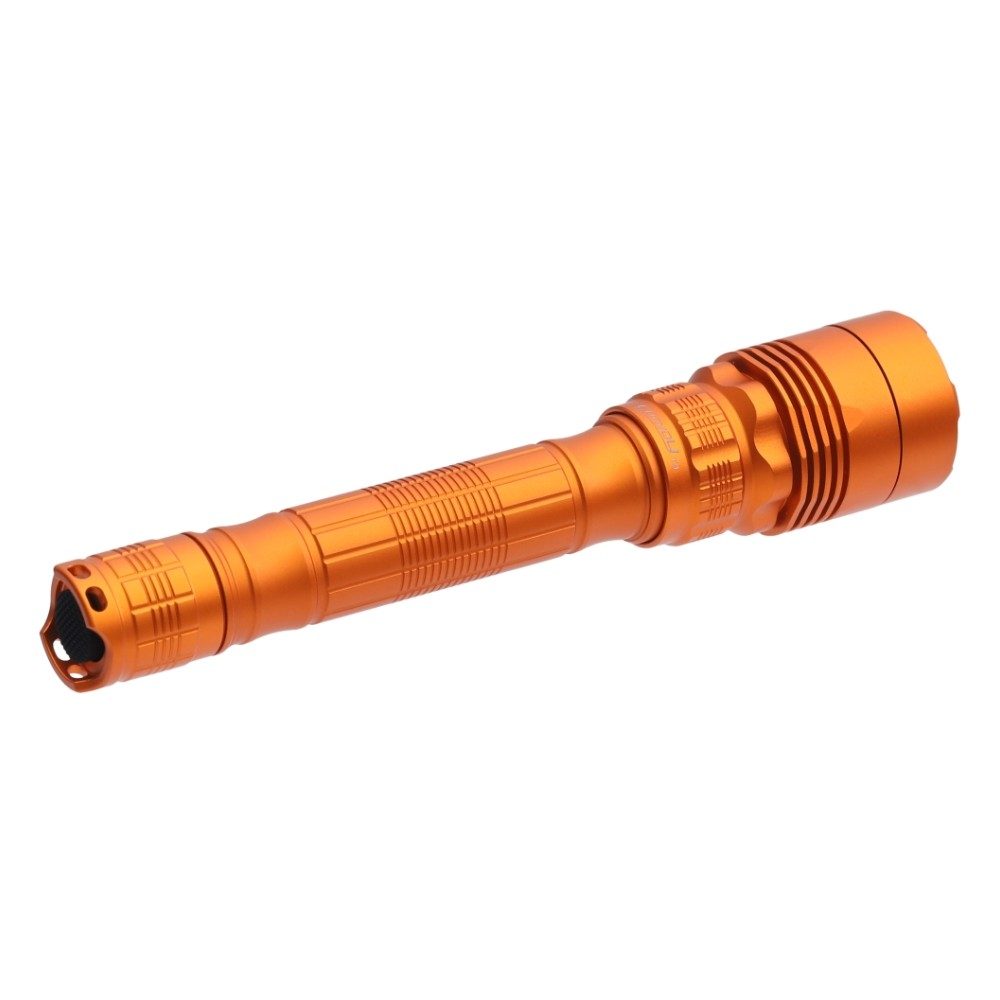

Convoy T9 AA 14500 flashlight

In stock
SKU: T9-SFT-25R-6500K
Regular price $26.99
LED
Color Temperature
Material: Aluminum Alloy
LED: SFT-25R / W5050SQ5 / SFT40
Low voltage warning: Yes(14500) / No (AA)
Reverse polarity protection: NO
Lens type: light-green coated glass lens
Reflector: orange peel
Mode memory: Yes
Tailstand: Yes
Battery included: No
Driver: 12 groups, max current output 6000mA(214500) / 1000mA(2AA)
Length / head diameter / tube diameter: 153.3mm / 27mm / 21mm
Net weight: 95g
Gross weight: 110g

Required battery type:

2 * AA (1.5V alkaline battery or 1.2V NiMH battery),
or 2 * 14500 button-top 3.7V lithium-ion rechargeable battery.
or 2 * 1.6V-1.8V lithium metal primary disposable batteries. 【The driver has been updated.】


◆ 12 groups:

if flashlight is turned on,tap the switch 10 times quickly to enter into config mode.
(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

OPTION 1

Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

01 sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (1%.10%.30%.100%)

02 sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (1% 10%.35%.100%.strobe.biking.batcheck)

03 sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%.35%.10%.1%)

04 sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%.20%.100%.strobe.biking.batcheck.sos)

05 sub-option 1.5 (normal-flash 5times) : tap the switch to select mode group 5(1%.20%.100%)

06 sub-option 1.6(normal-flash 6times) : tap the switch to select mode group 6(100%.20%.1%)

07 sub-option 1.7 (normal-flash 7times) : tap the switch to select mode group 7(1%.10%.50%.strobe.biking.batcheck.sos)

08 sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8 (1%.10%.50%)

09 sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%.10%.1%)

10 sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (20%.100%)

11 sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11(100%.20% strobe)

12 sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100%)


OPTION 2

Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.


◆ 14500 battery-check instructions:

Battery voltage Indicator
<2.95V*2 1 flash,
2.95-3.25V*2 2 flashes,
3.25-3.55V*2 3 flashes,
3.55-3.85V*2 4 flashes,
>3.85V*2 5 flashes
Notice that there is no battery-check function if flashlight is powered by the 1.5V battery
