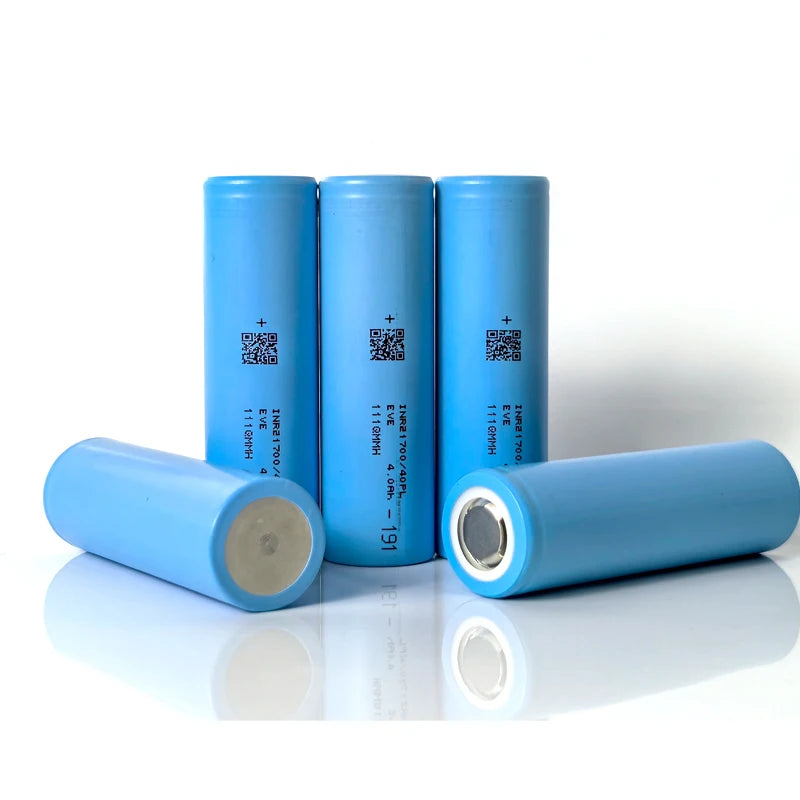

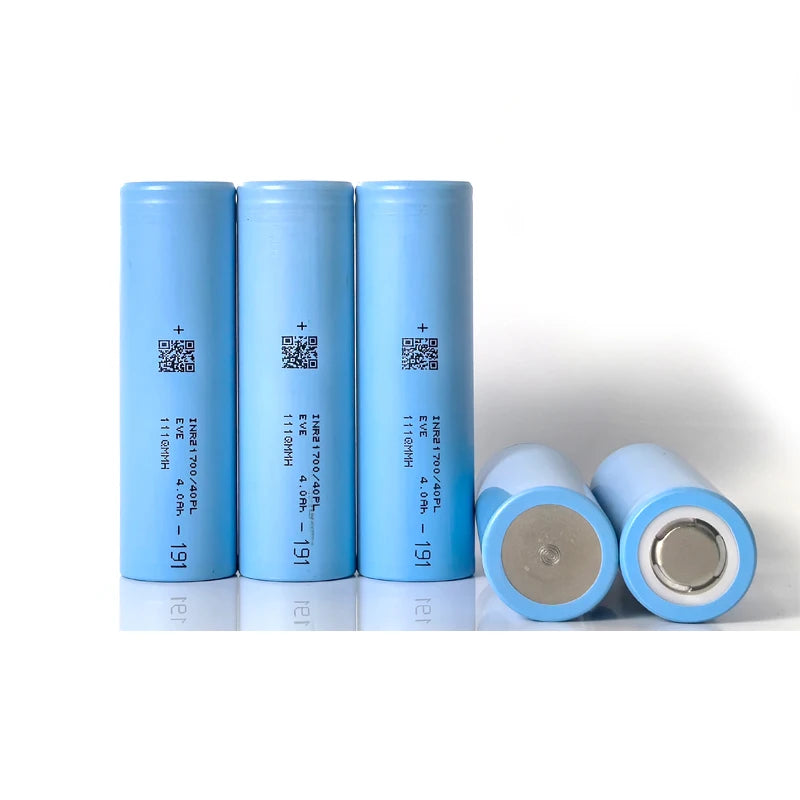

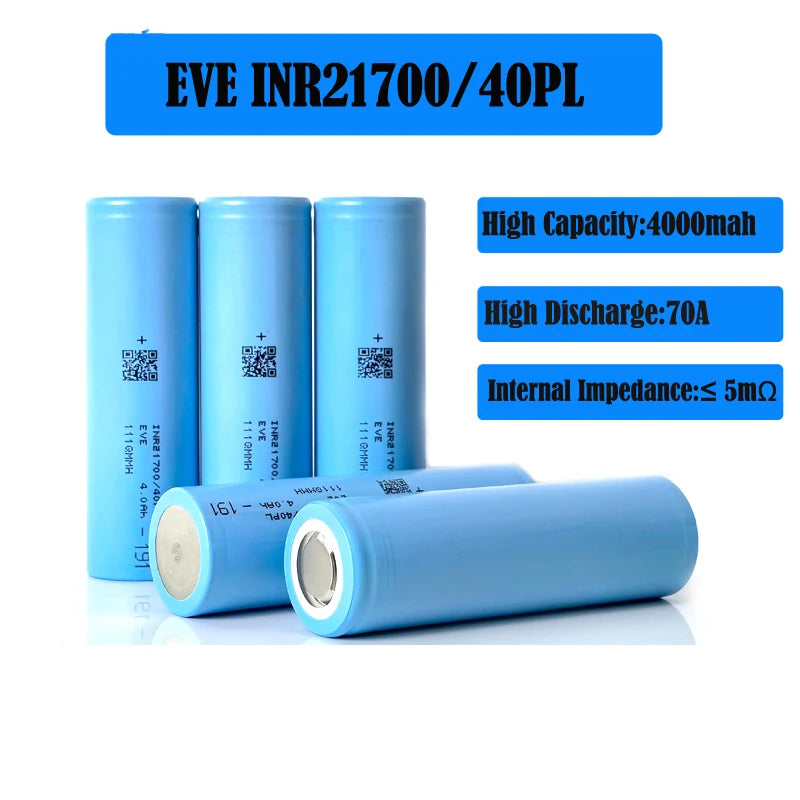

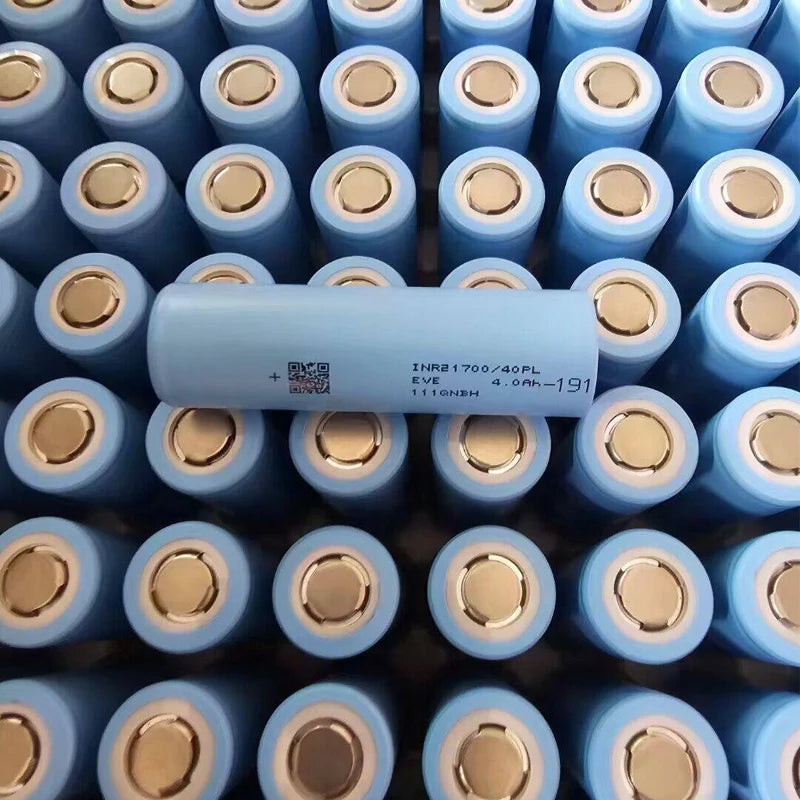

EVE 40PL 21700 4000mAh 70A Battery
Couldn't load pickup availability
Share This:
The EVE INR21700/40PL is a high-discharge 21700 lithium-ion rechargeable cell designed for applications that require high current output and reliable power delivery.
With a minimum rated capacity of 4000mAh, a nominal voltage of 3.6V, and a specified maximum discharge current of 70A under temperature cut-off conditions, the EVE 40PL is designed for demanding high-power applications, including compatible high-performance flashlights and other power equipment.
Its low initial internal impedance of 5mΩ or less supports high-current performance, while its compact 21700 cylindrical format makes it suitable for compatible battery compartments and battery pack designs.
Key Features
-
Model: EVE INR21700/40PL
-
Battery Size: 21700
-
Minimum Capacity: 4000mAh
-
Nominal Voltage: 3.6V
-
Maximum Discharge Current: 70A with temperature cut-off
-
Maximum Charging Current: 8A
-
Low Internal Impedance: ≤5mΩ
-
Rechargeable Lithium-ion Cell
-
High-Current Discharge Performance
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | EVE Energy |
| Model | INR21700/40PL |
| Cell Type | Lithium-ion rechargeable |
| Battery Format | 21700 |
| Minimum Rated Capacity | 4000mAh |
| Nominal Voltage | 3.6V |
| Standard Charging Current | 2A |
| Maximum Charging Current | 8A |
| Standard Charging Voltage | 4.20V ± 0.05V |
| Charging Termination Current | 0.1A |
| Maximum Discharge Current | 70A with temperature cut-off |
| Initial Internal Impedance | ≤5mΩ |
| Discharge Cut-off Voltage | 2.50V |
| Maximum Cell Weight | 67g |
| Dimensions | 70.15 ± 0.15mm × 21.15 ± 0.10mm |
| Charging Temperature | 0°C to 45°C ambient |
| Discharging Temperature | -20°C to 60°C ambient |
Discharge Performance
According to EVE's specification, the cell's discharge capacity is tested at different current levels at 25°C, following standard charging.
| Discharge Current | Relative Capacity |
|---|---|
| 0.8A | ≥100% |
| 10A | 100% (reference) |
| 30A | ≥95% |
| 40A | ≥95% |
The manufacturer's specification also lists a maximum discharge current of 70A with temperature cut-off, with a recommended cell temperature limit of 75°C and a maximum limit of 80°C.
Important: The 70A figure is a specified maximum discharge condition with temperature cut-off. It should not be interpreted as a guaranteed continuous discharge rating under all operating conditions. The specification does not explicitly identify 70A as a continuous discharge rating.
Charging Information
-
Standard charging current: 2A
-
Maximum specified charging current: 8A
-
Charging voltage: 4.20V ± 0.05V
-
Charging method: Constant-current/constant-voltage (CCCV)
-
Charge termination current: 0.1A
Use a compatible charger and observe the specified charging voltage, current, and temperature limits.
Important Safety Information
This is a high-discharge lithium-ion cell intended for users familiar with lithium-ion battery safety.
-
Verify that your device supports the 21700 battery format and the cell's dimensions.
-
Confirm that your device's electrical requirements are compatible with this cell.
-
Do not exceed the specified charging voltage or maximum charging current.
-
Prevent short circuits and reverse polarity.
-
Do not use cells with damaged insulation, deformation, leakage, or other visible damage.
-
Do not expose the cell to fire, excessive heat, water, or mechanical damage.
-
Do not over-discharge the cell below the specified cut-off voltage.
-
Use appropriate electrical and temperature protection in the device or battery system.
The cell must be used within the manufacturer's specified operating conditions. Actual performance depends on the device, current draw, temperature, and thermal management.
Package Contents
-
1 × EVE INR21700/40PL 21700 Lithium-ion Rechargeable Cell
Please verify the actual quantity and packaging before publishing.
Note: This is a bare lithium-ion cell, not a complete battery pack. Do not assume it includes a protection circuit; verify the supplied cell construction before use.
