EVE

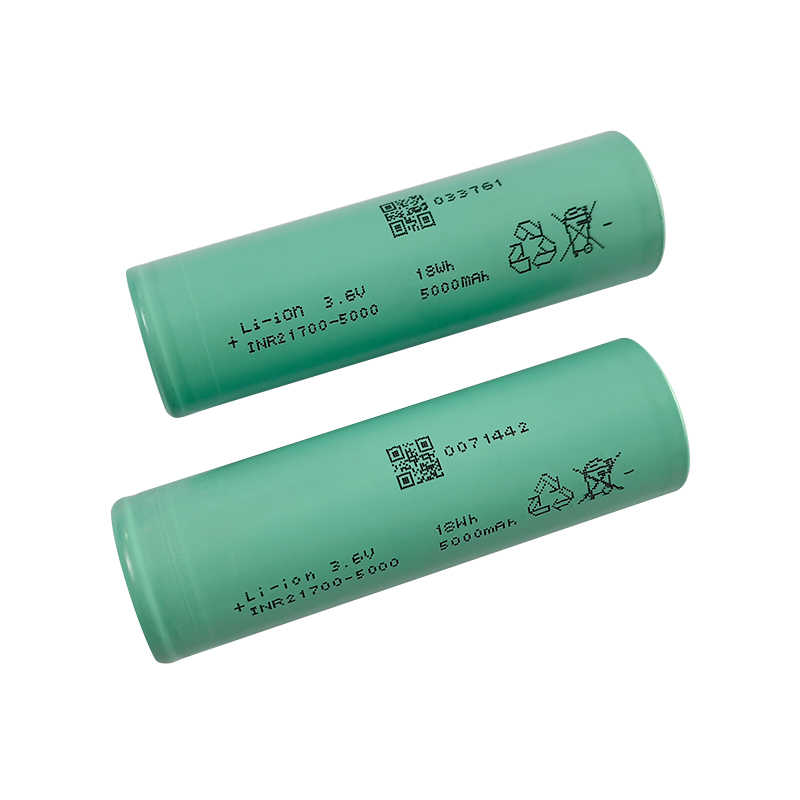

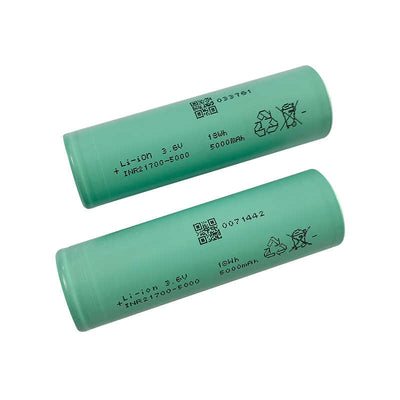

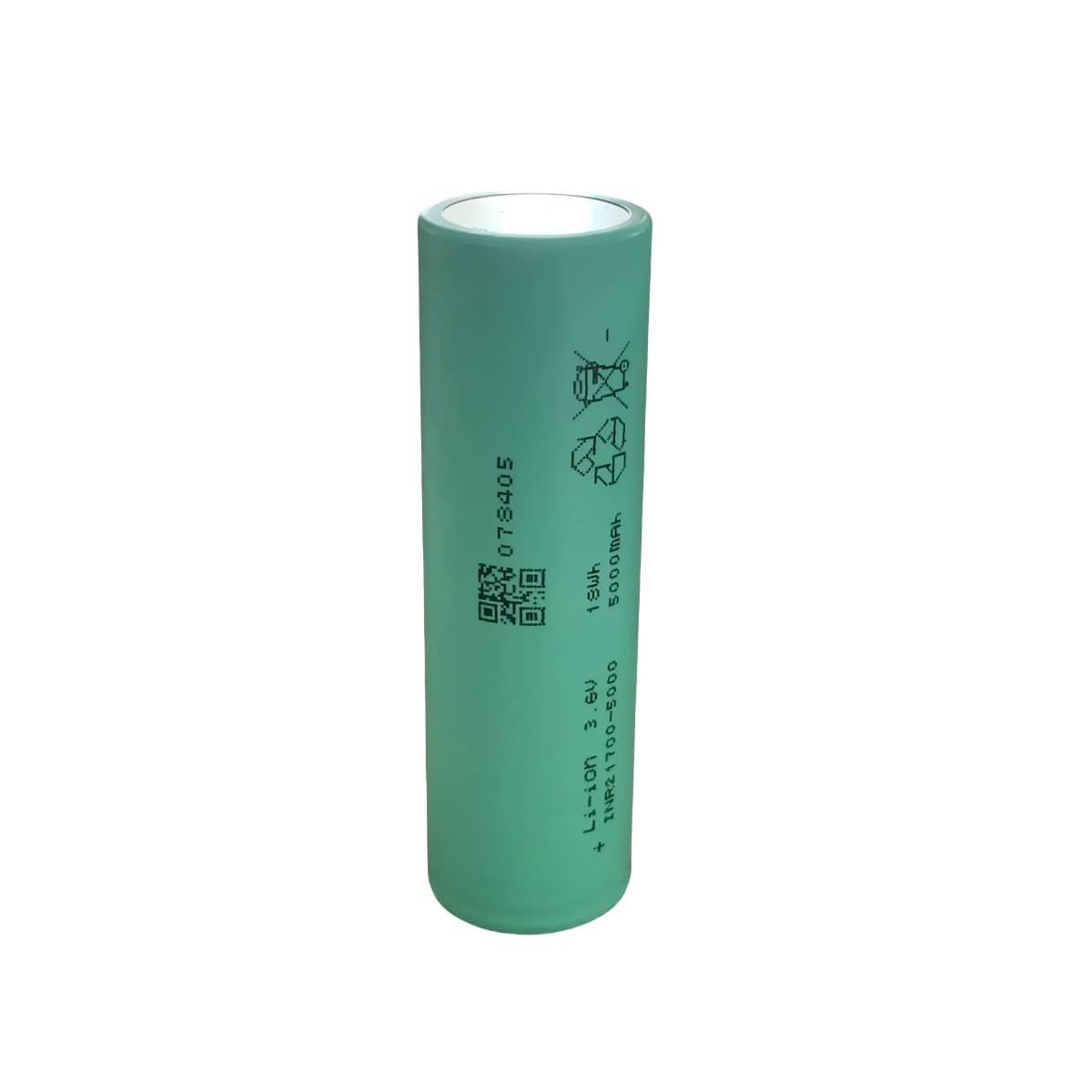

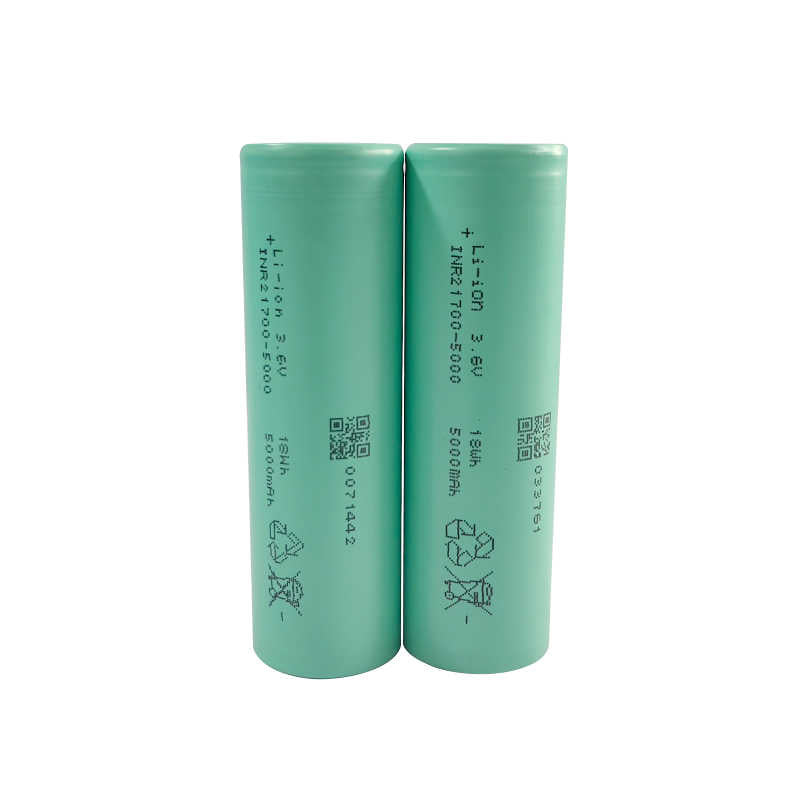

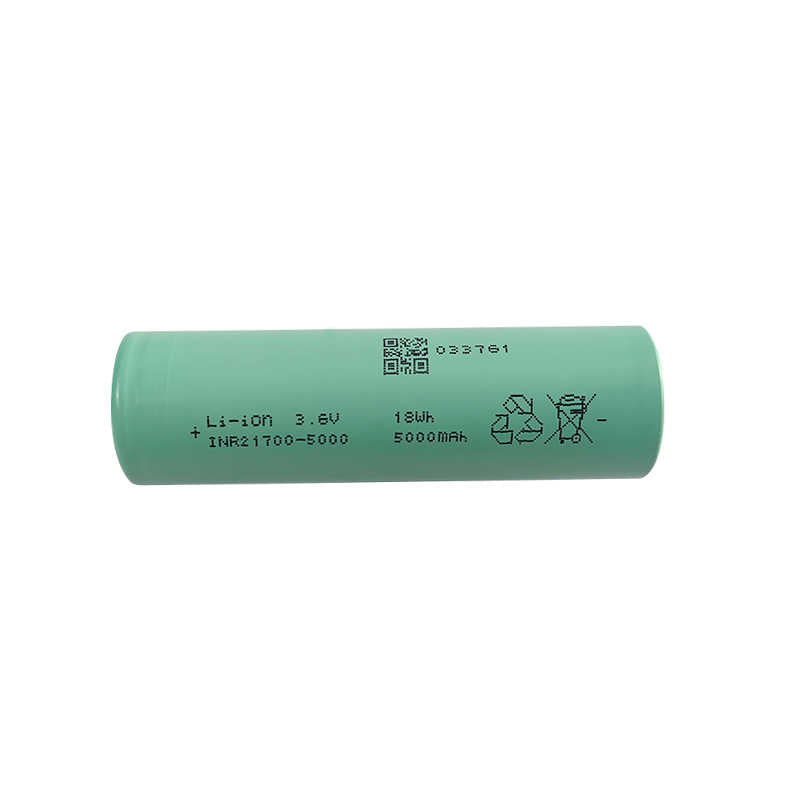

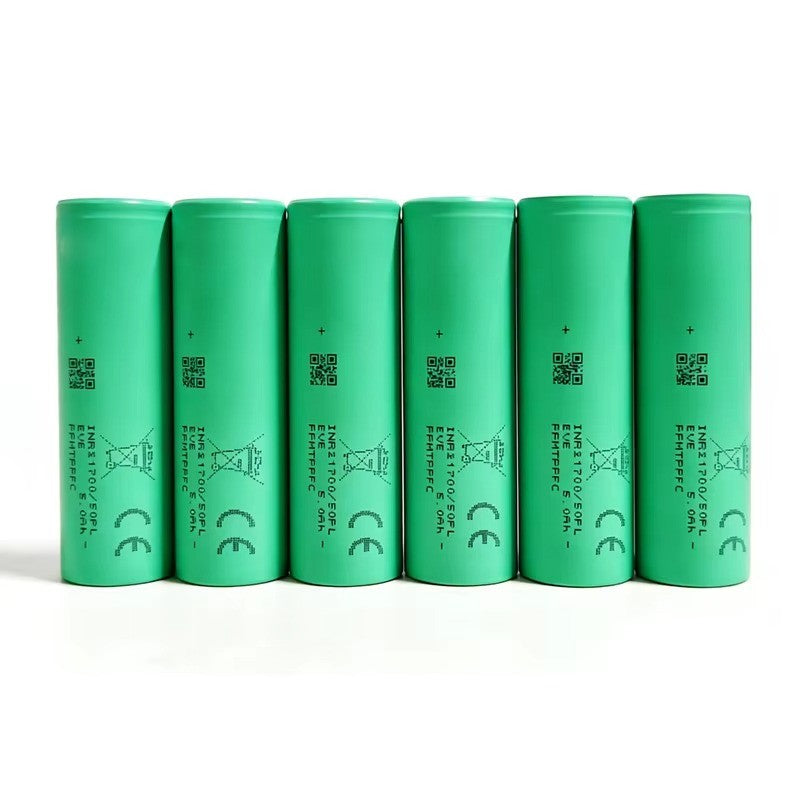

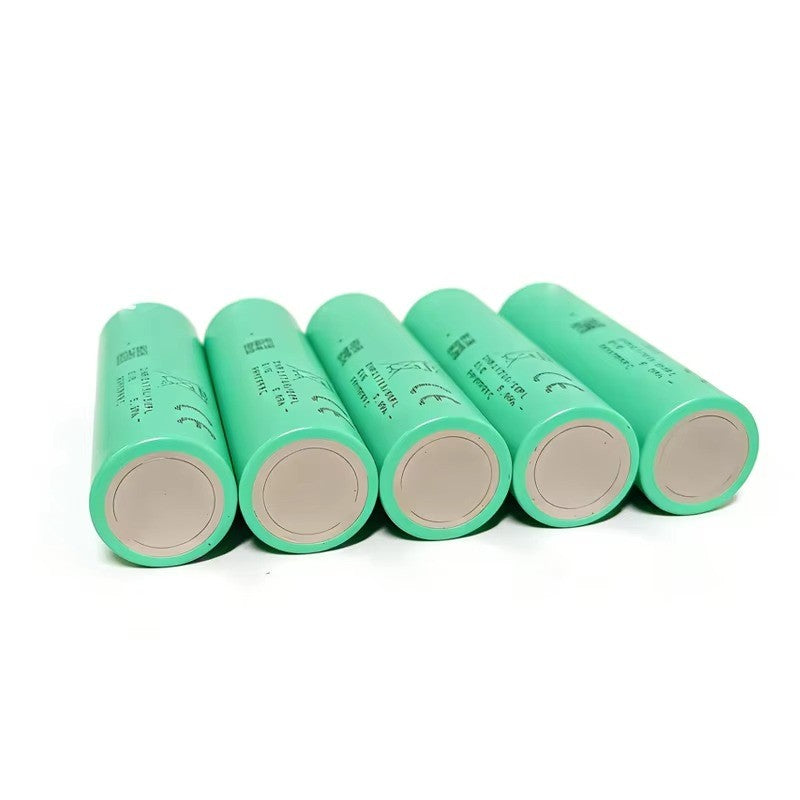

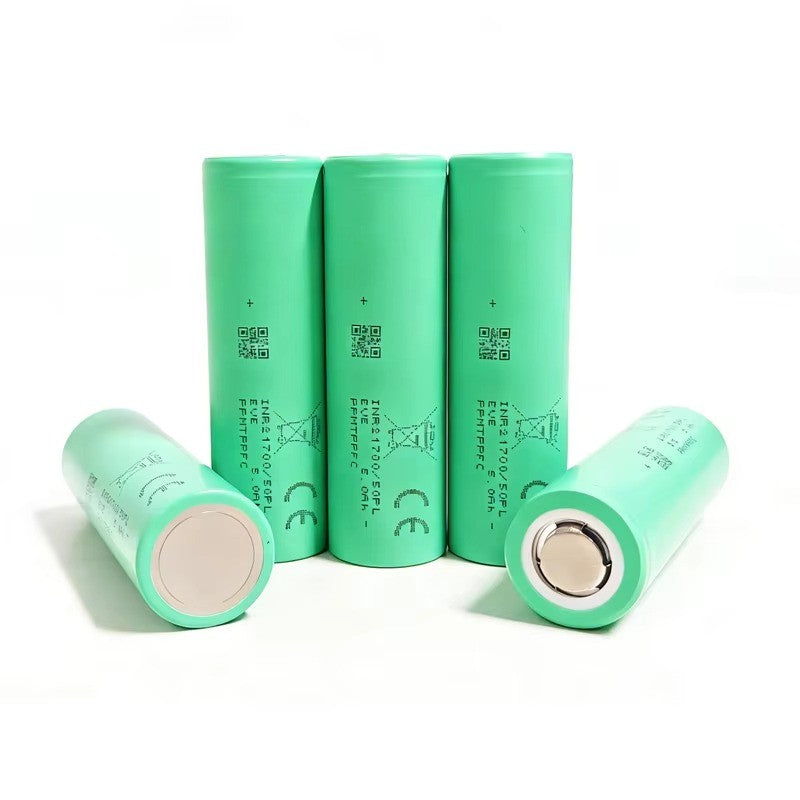

EVE 50PL 21700 5000 mAh 125A Battery

In stock
SKU: 50PL-1pcs
Regular price $8.99
COMB

EVE INR21700/50PL high-drain lithium-ion battery is the most powerful 21700 lithium-ion cell on the global market—with a class-leading 125A continuous discharge and a true 5000mAh capacity. There is nothing even close to this level of performance in a 21700 format. Built with next-gen tabless internal construction, the 50PL delivers ultra-low resistance and incredible thermal efficiency, making it a true revolution in high-drain energy cells, this cell is perfect for high-performance electric bikes, scooters, battery packs, drones, and other custom energy-dense, high-current projects

Parameter Specification Notes
Model EVE INR21700/50PL Official factory designation
Cell type Lithium ion rechargeable, NMC based High drain cylindrical cell

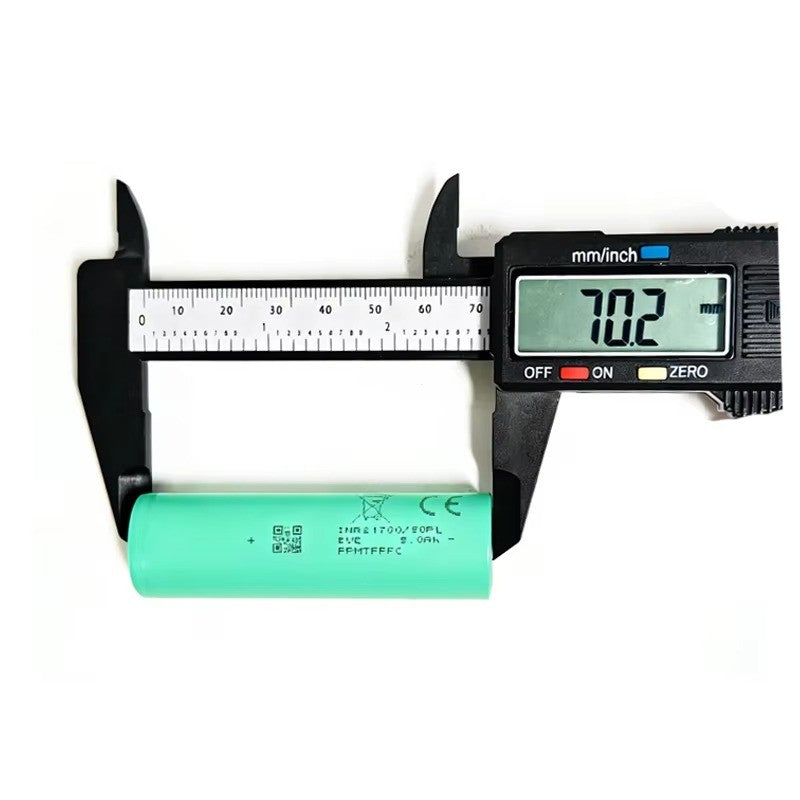

Size 21700 21.15 mm diameter, 70.15 mm height with wrap
Nominal voltage 3.60 V Typical Li ion operating voltage
Standard capacity 5000 mAh Nominal capacity
Minimum capacity 4800 mAh Measured at 0.2C to 2.50 V
Standard charge current 2.5 A (0.5C) CCCV to 4.20 ± 0.05 V, cut off at 0.1 A
Maximum charge current 10 A (2C) CCCV to 4.20 ± 0.05 V, cut off at 0.1 A
Standard discharge current 1 A (0.2C) To 2.50 V cut off
Maximum continuous discharge 125 A (25C) To 2.50 V, recommended thermal cut around 75 °C
Pulsed discharge 180 A (36C) for 2 s Short pulse per datasheet
Voltage range 2.50 V to 4.20 V Charge and discharge window

Data Sheet   Download
