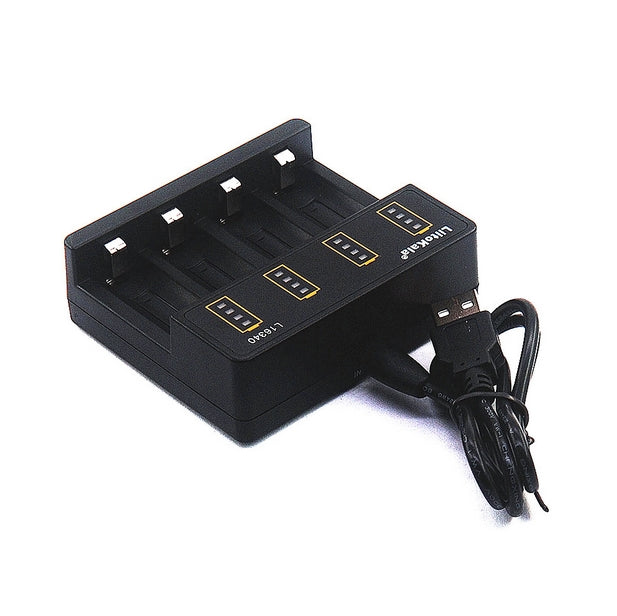

LiitoKala Lii-L16340 Charger

In stock
SKU: Lii-L16340
Regular price $16.90

IMPORTANT INFORMATION:

1.This charger is designed to charge type-16340 batteries.
2.Carefully read the operating instructions before use and pay attention to the polarity of the battery.
3.Charging is performed using the MK 5V USB adapter (standard adapter recommendation is 2A).
4.During operation this charger can get very hot. Be careful not to get burned.
5.Remove the battery after use and disconnect the power supply.
6.Device can only be used in dry rooms.
7.The specified information and test data are reference. Before using the product check information on the handling of electrical appliances.

CHARACTERISTICS AND FUNCTIONALITY:

1.Using the MK USB DC 5V and the microcomputer control system, the device can charge up to four 16340 batteries simultaneously.
2.Standard charging current - 500mA per slot.
3.Each slot has four indicator lights to display information about the charging process or faults.
4.Device has intelligent identification of short circuit, faulty battery or improper installation.
5.The function of supporting DC charging is available.
6.The working power of the charger is 2A/5V (USB connector).

LED DISPLAY:

1.The device can simultaneously and independently charge four batteries with the display of current information on each of them.
2.When the charger is connected to a 5V power adapter, all indicators should light up and then go out. This means that the automatic check is completed and the device is in standby mode.
3.After installing the battery, the system determines the voltage and capacity, and then displays the appropriate level.
4.During charging of the battery on the indicator light flashes corresponding.
5.When fully charged, all four lights are on.
6.In case of battery failure (including short circuit of the battery, reverse connection, etc.) - four red lights will light up simultaneously. This warning is abnormal. Check your device and batteries.

Specifications :

Brand: LiitoKala
Model: Lii-L16340
Input power: Micro USB DC 5V/2A.
Output voltage: 4.20V.
Output current: 500 mA * 4 slots.
Power supply standby current: <15.0mA.
Dimensions: 80 mm × 70 mm × 25 mm.
