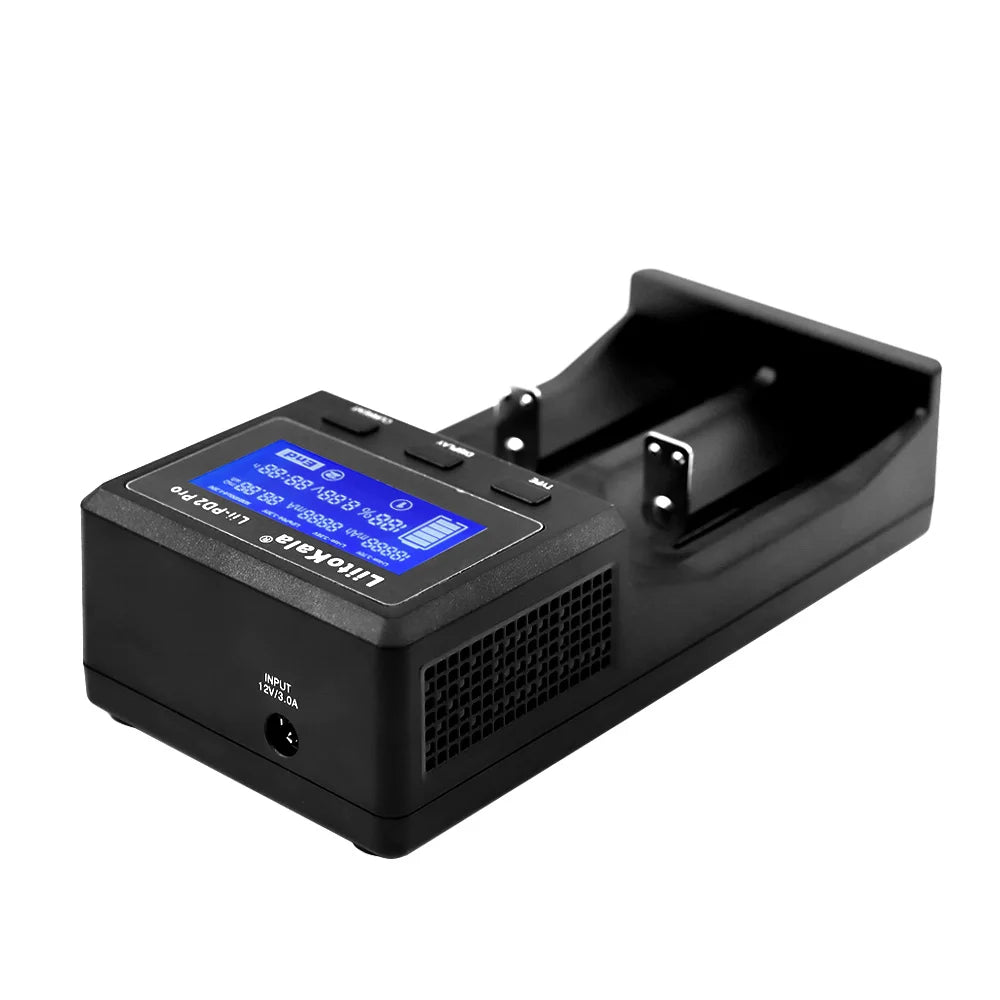

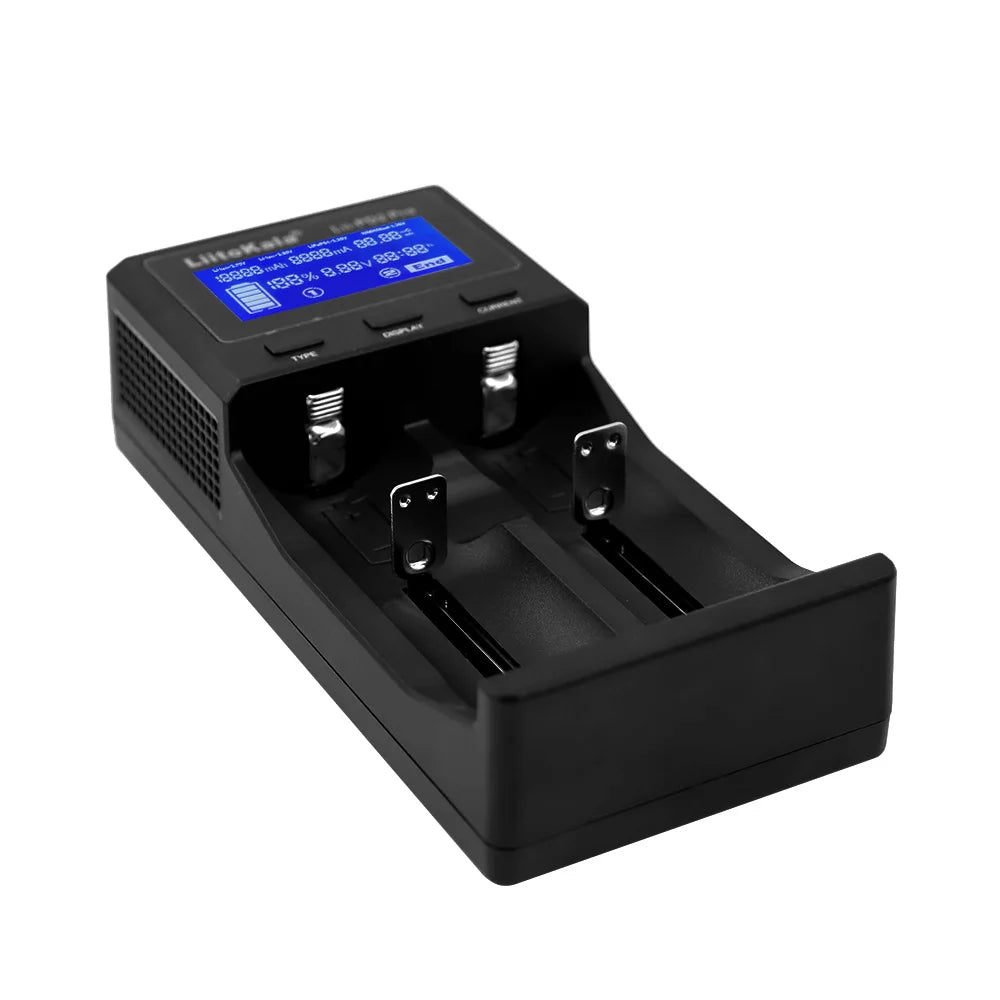

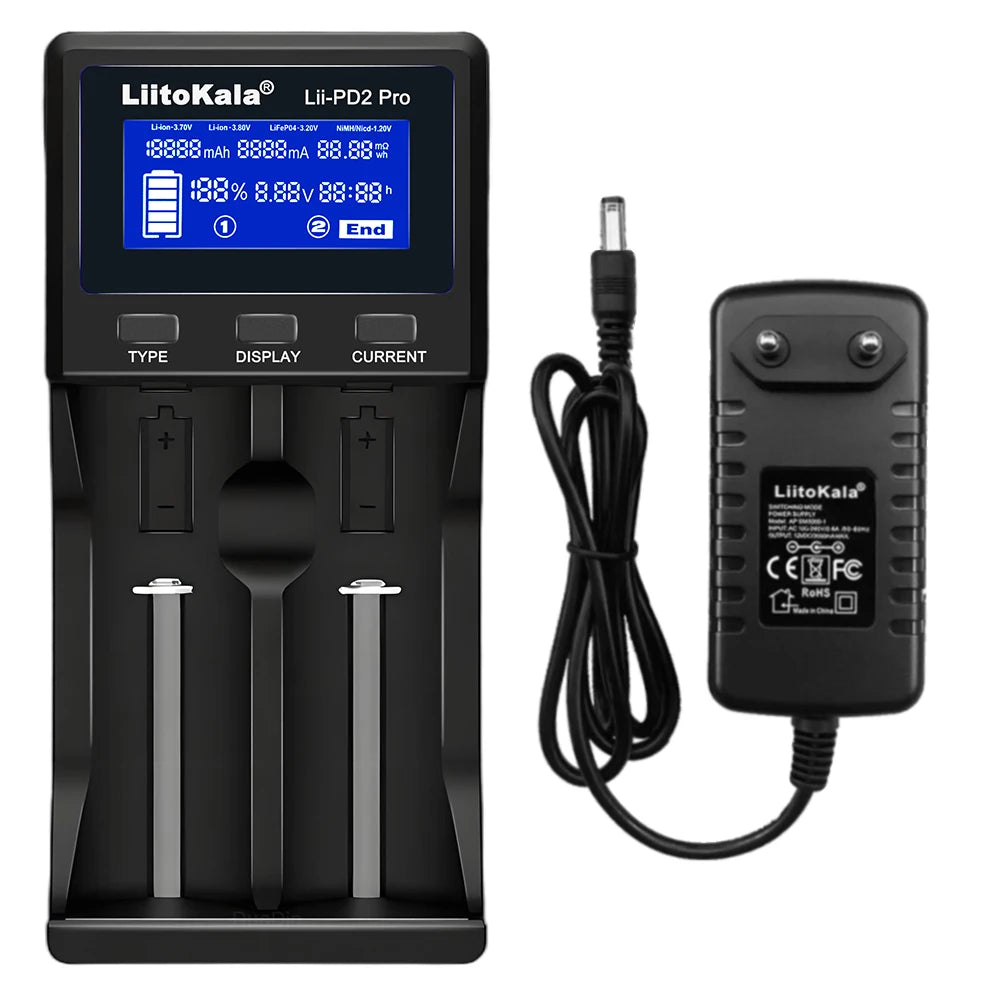

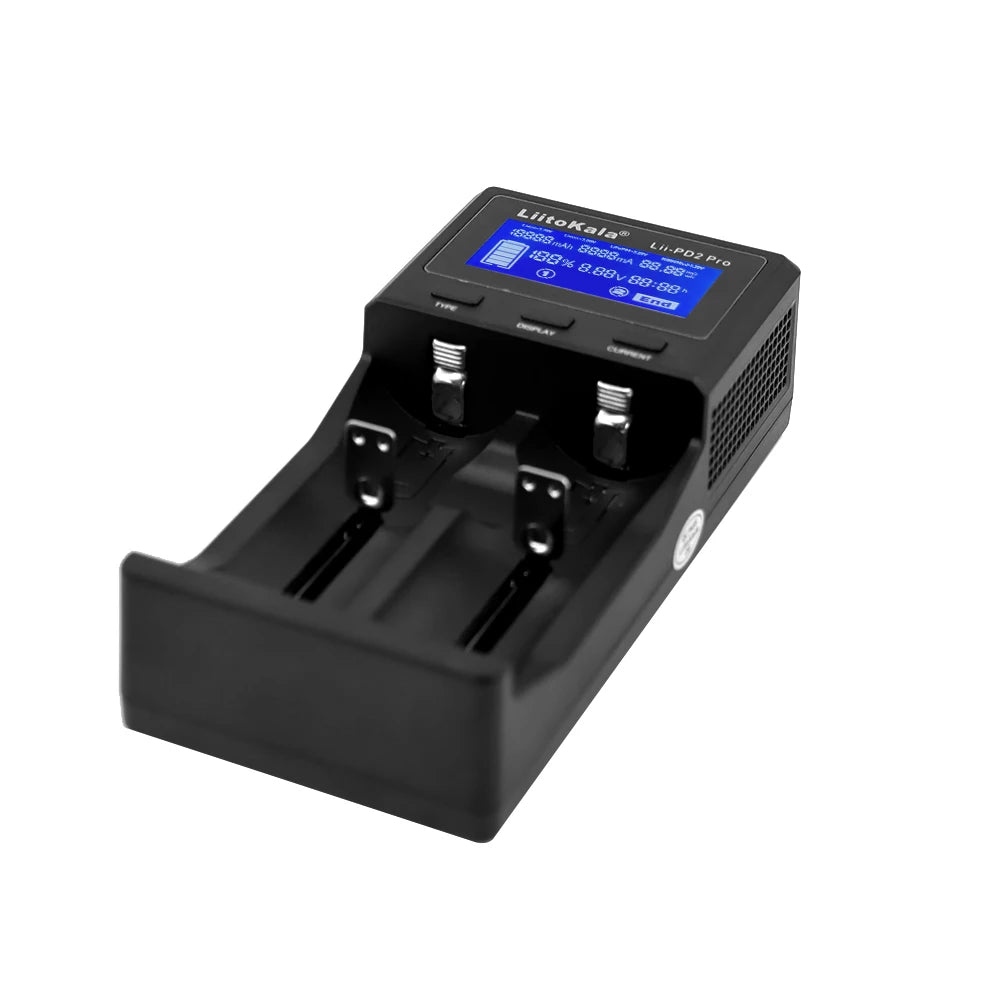

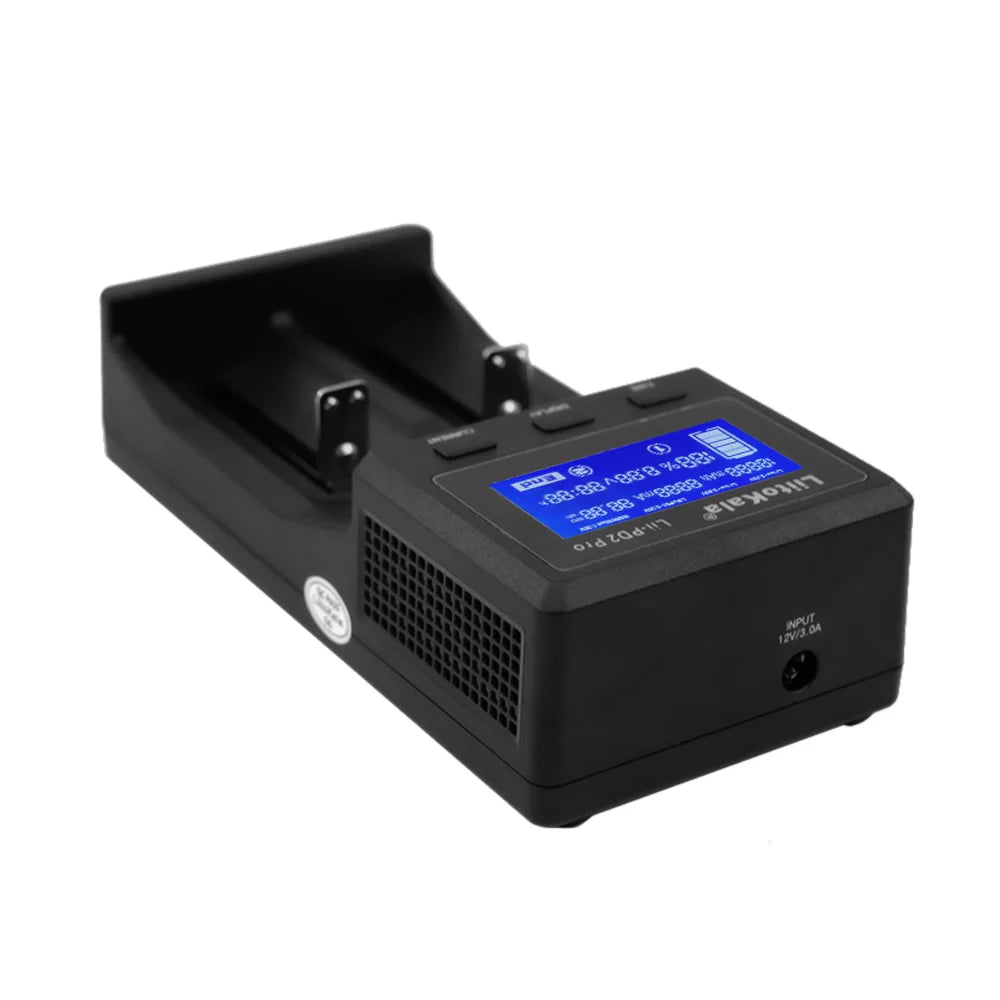

LiitoKala Lii-PD2 Pro Charger

In stock
SKU: Lii-PD2 Pro-US
Regular price $24.99
Plug

I. The charger is only suitable for cylindrical lithium-ion batteries (3.7V, 3.8V), NiMH/NiCd (1.2V), and LiFePO4 batteries (3.2V).

Before use, carefully read this manual. Pay attention to the recommended charging current for your batteries; do not exceed it.

When using a 12V adapter, ensure its output current is at least 3.0A.

The charger may become hot during use; be careful to avoid burns.

After use, unplug the power adapter and remove the batteries.

Use only in normal indoor environments.

The detection data provided by this product is for reference only. Refer to professional instruments for accurate measurements.

II. Charger Specifications & Features:

Input: DC 12V/3A. Features dual independent charging slots and a microprocessor management system.

Charging Current: Smart auto-selection from 9 levels (500mA / 750mA / 1000mA / 1500mA / 2000mA / 2500mA / 3000mA / 4000mA / 5000mA).

LCD Display: Shows charging percentage, voltage, time, capacity, and battery type (NiMH 1.2V, Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR)).

Auto Detection: Automatically identifies Li-ion (3.7V) and Ni-MH batteries. Manual selection required for LiFePO4 and Li-ion 3.80V (IMR) batteries.

0V Activation Function: Can attempt to recover deeply discharged batteries (1.65V - 2.20V range may not charge normally but receives a trickle activation current).

Multiple Safety Protections: Includes overcharge, over-discharge, short circuit, and reverse polarity protection. Can intelligently identify faulty batteries.

Charging Mode: Constant Current / Constant Voltage (CC/CV).


III. Buttons & Display:

Buttons:
TYPE: Selects battery type.
CURRENT: Selects charging current.
DISPLAY: Selects battery slot view.

Within 8 seconds after powering on and inserting batteries, press TYPE or CURRENT to choose battery type or charging current. Selected parameters are confirmed after 8 seconds, and charging begins.

LCD Display:
When powered on, the LCD lights up fully for 3 seconds.

If no battery is inserted, LCD shows null. Display turns off after 30 seconds of inactivity.

When a battery is detected, LCD shows the corresponding slot number and the detected battery type symbol (e.g., Li-ion-3.70V) flashes.

Press TYPE to select the desired battery type. If no selection is made within 8 seconds, charging starts with the auto-detected type.

During charging: The % symbol flashes. Voltage, capacity, and time are displayed.

Charging Complete: Percentage shows 100% and End is displayed at the bottom right. (Reference LCD Display Image Placeholder)

IV. Electrical Specifications:
Input Power: 12V/3.0A
Output Voltage:DC 4.2V for Li-Ion
DC 4.35V for IMR
DC 3.65V for LiFePO4
DC 1.48V for NiMH/Ni-Cd

Output Current:
Li-Ion/IMR/LiFePO4: 5000mA1 (any single channel), 3000mA2 (both channels), 500mA*2 (both channels)

NiMH/NiCd: 2000mA2 (both channels), 500mA2 (both channels)

Charging Mode: CC/CV. Cut-off Current: < 100mA

Standby Current (No Load): < 15.0mA

V. Compatible Battery Types & Models:

Li-ion / IMR / LiFePO4: 32700, 26650, 21700, 20700, 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

NiMH/NiCd: AA, AAA, SC, C, D

VI. Charger Dimensions:
150mm × 71mm × 42mm (L × W × H)
Weight: 155g (exclude power cable)
