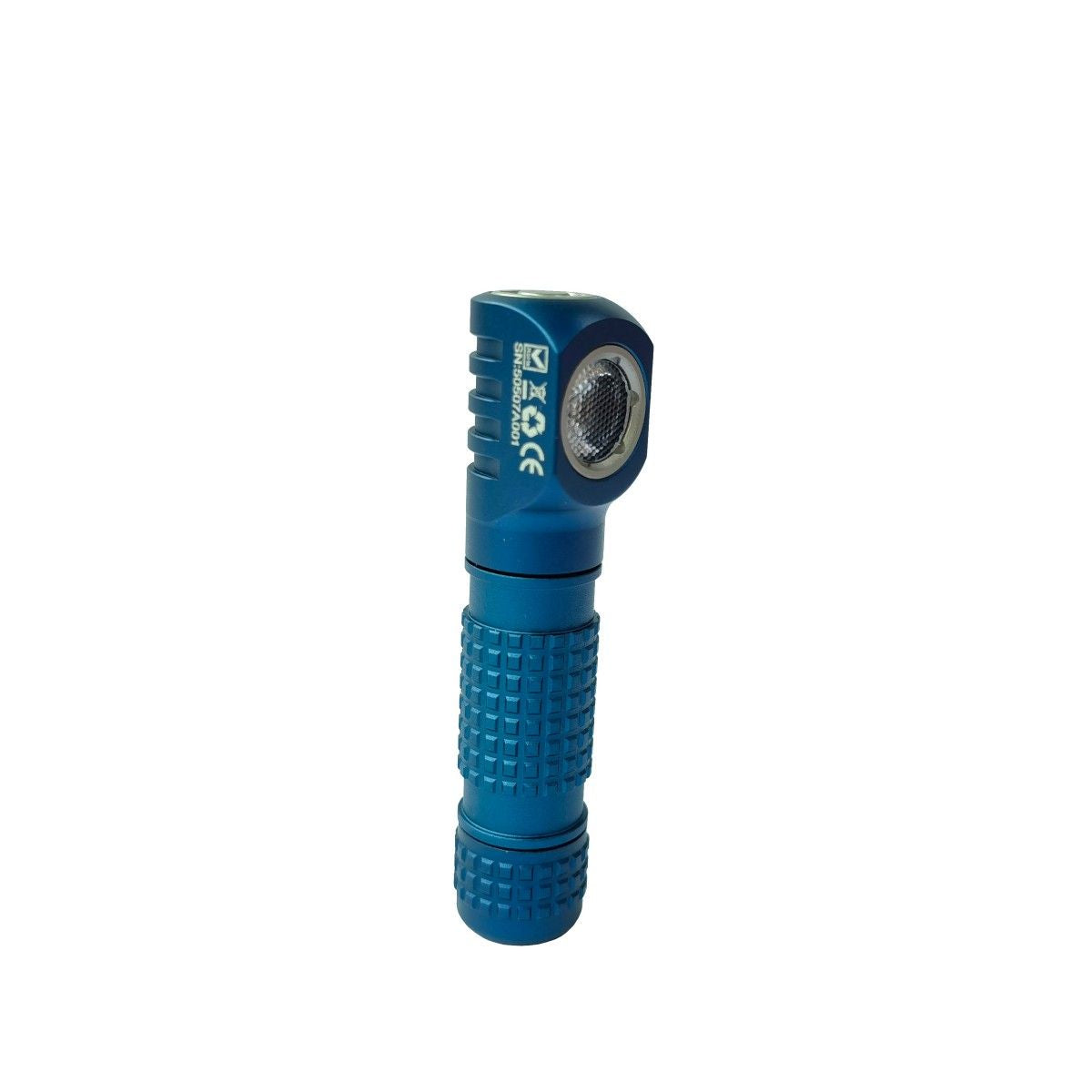

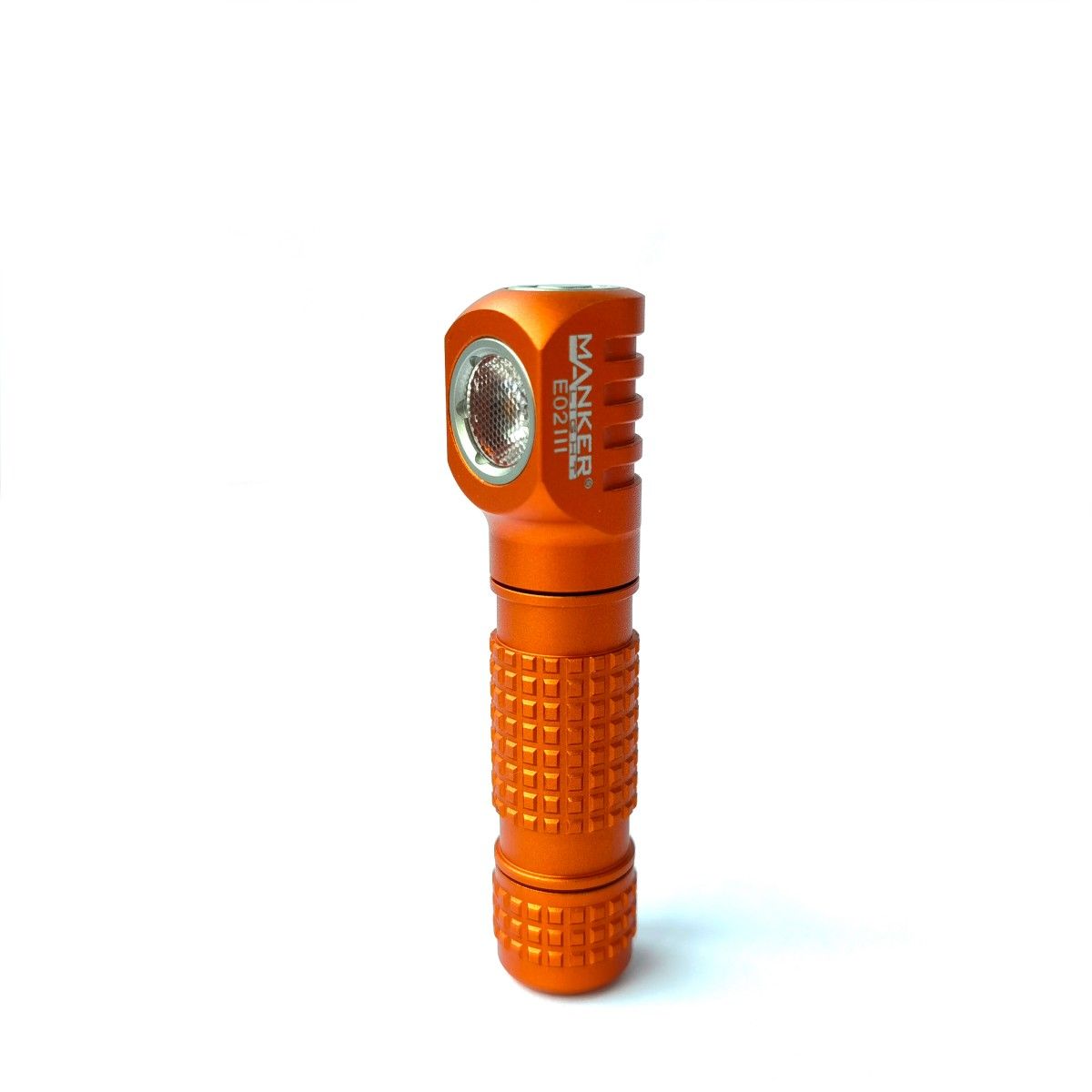

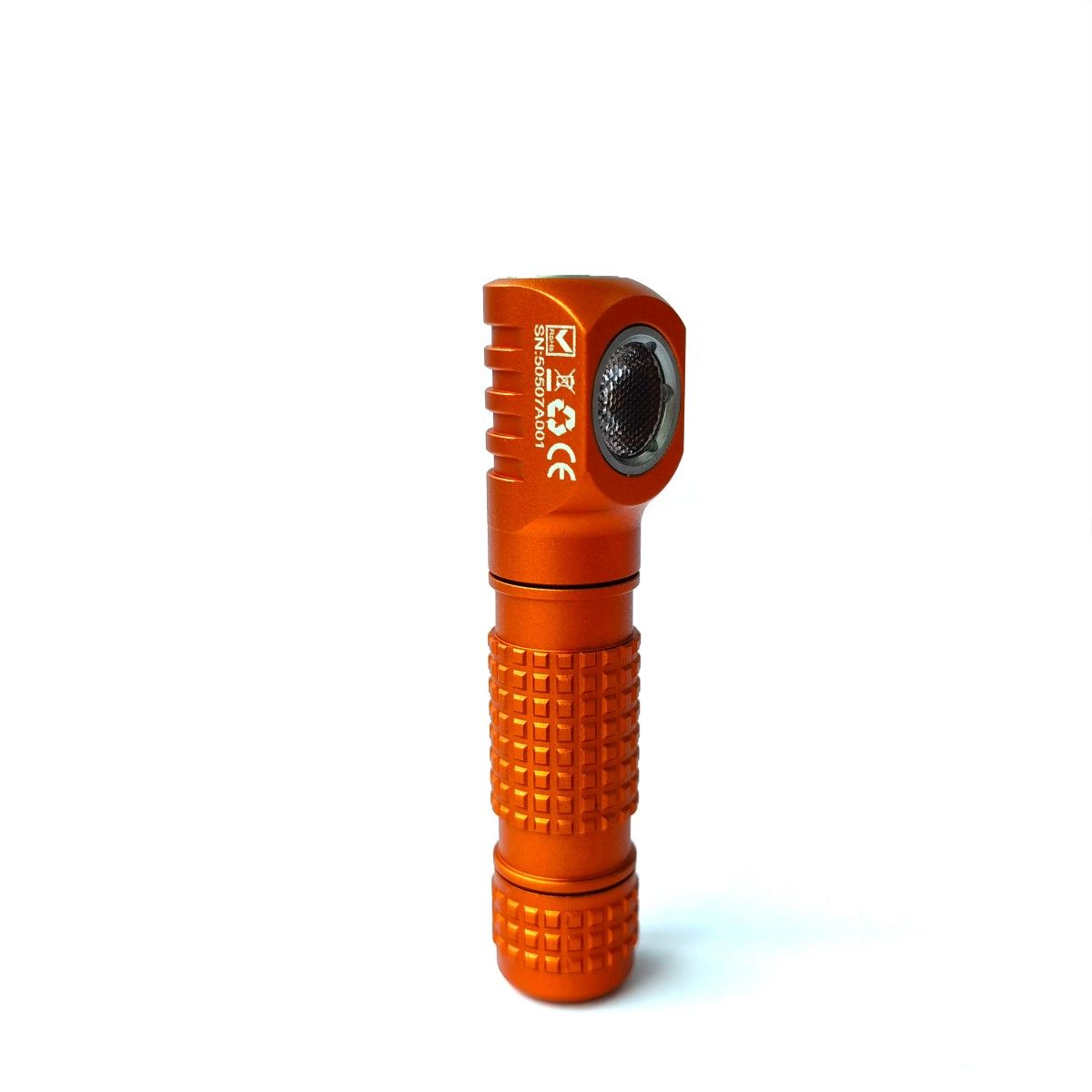

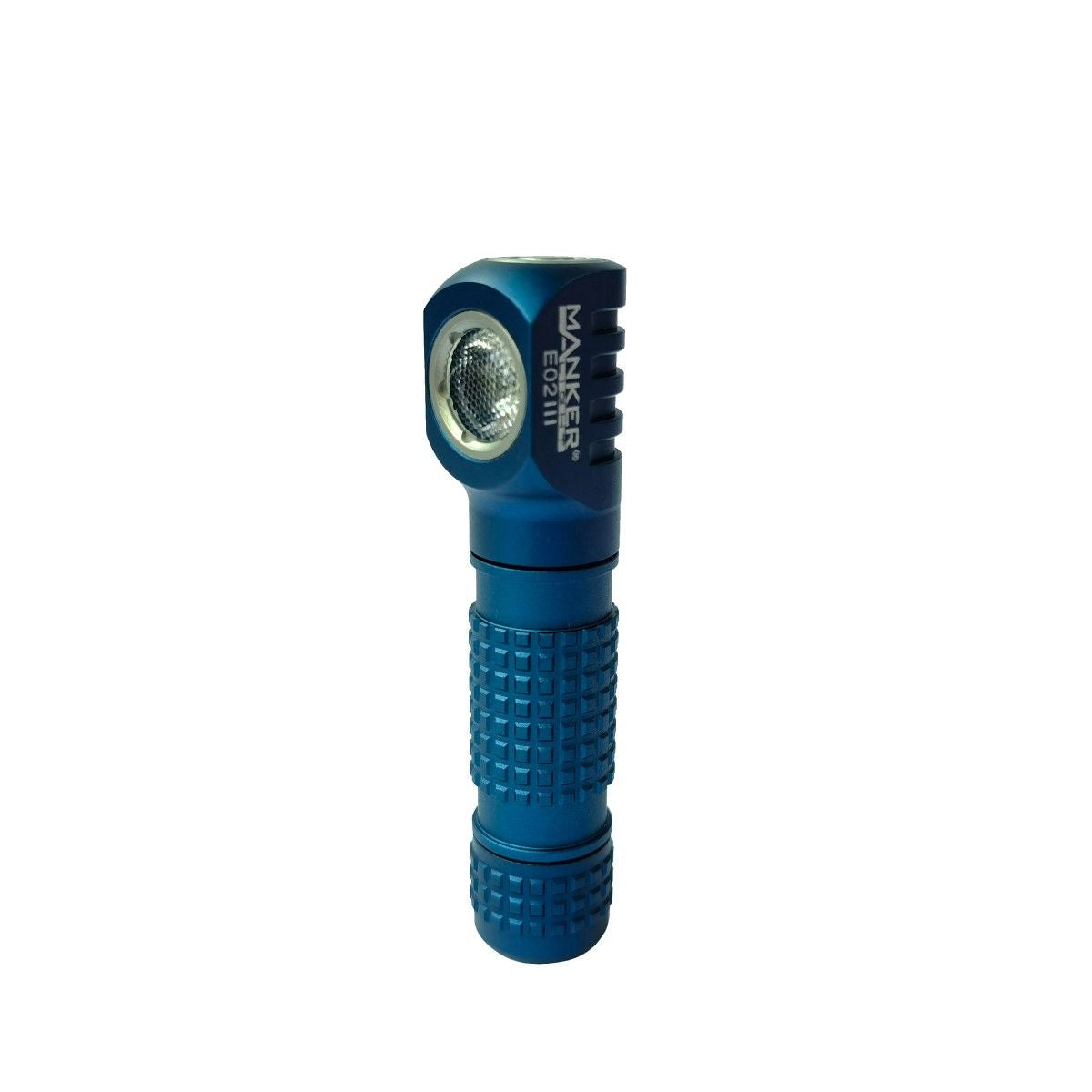

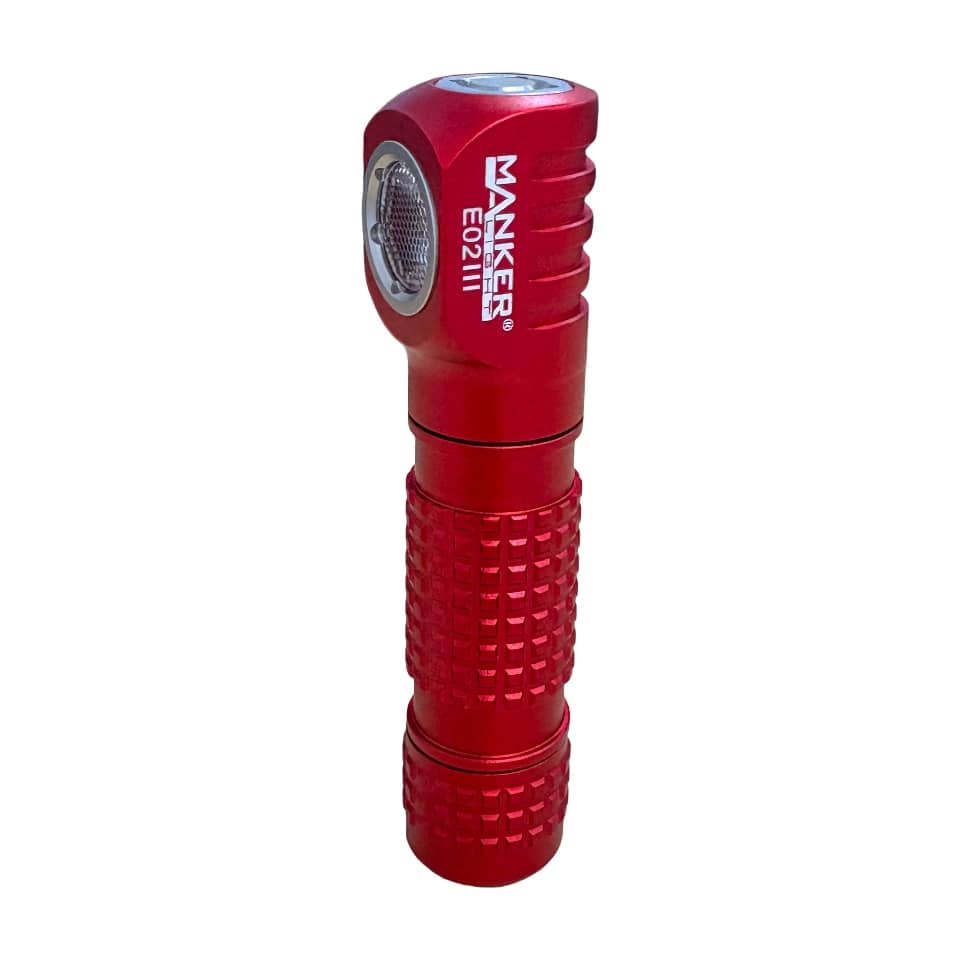

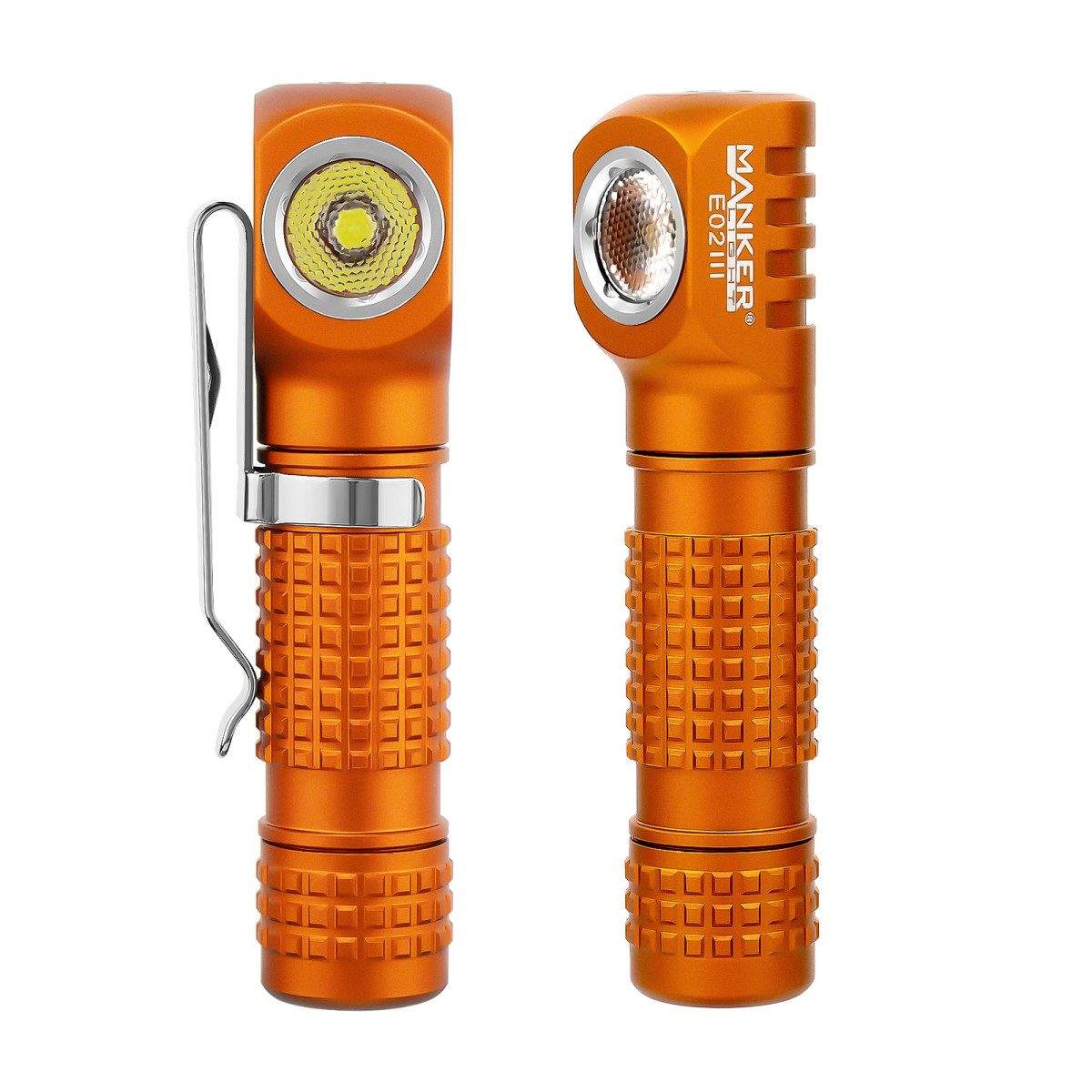

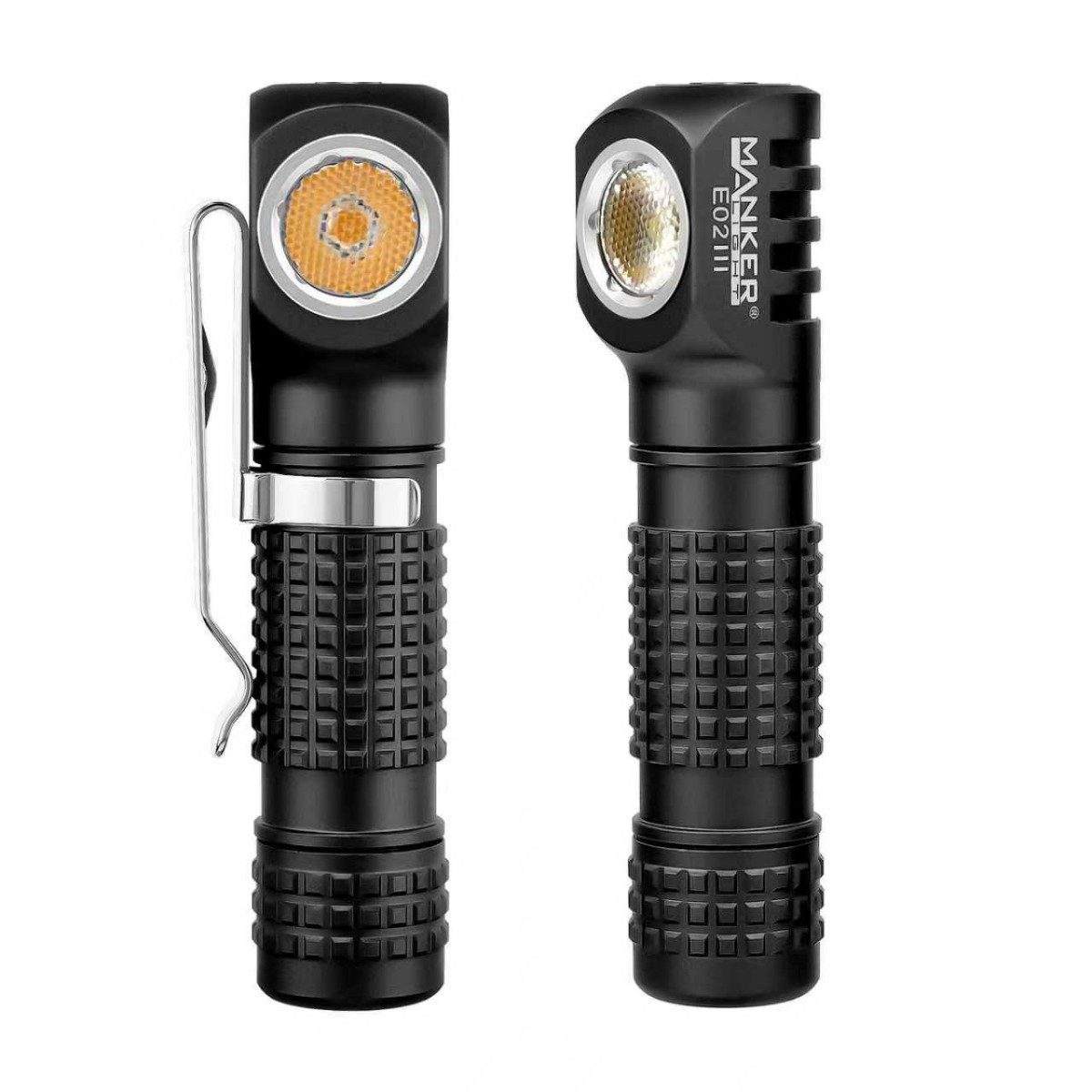

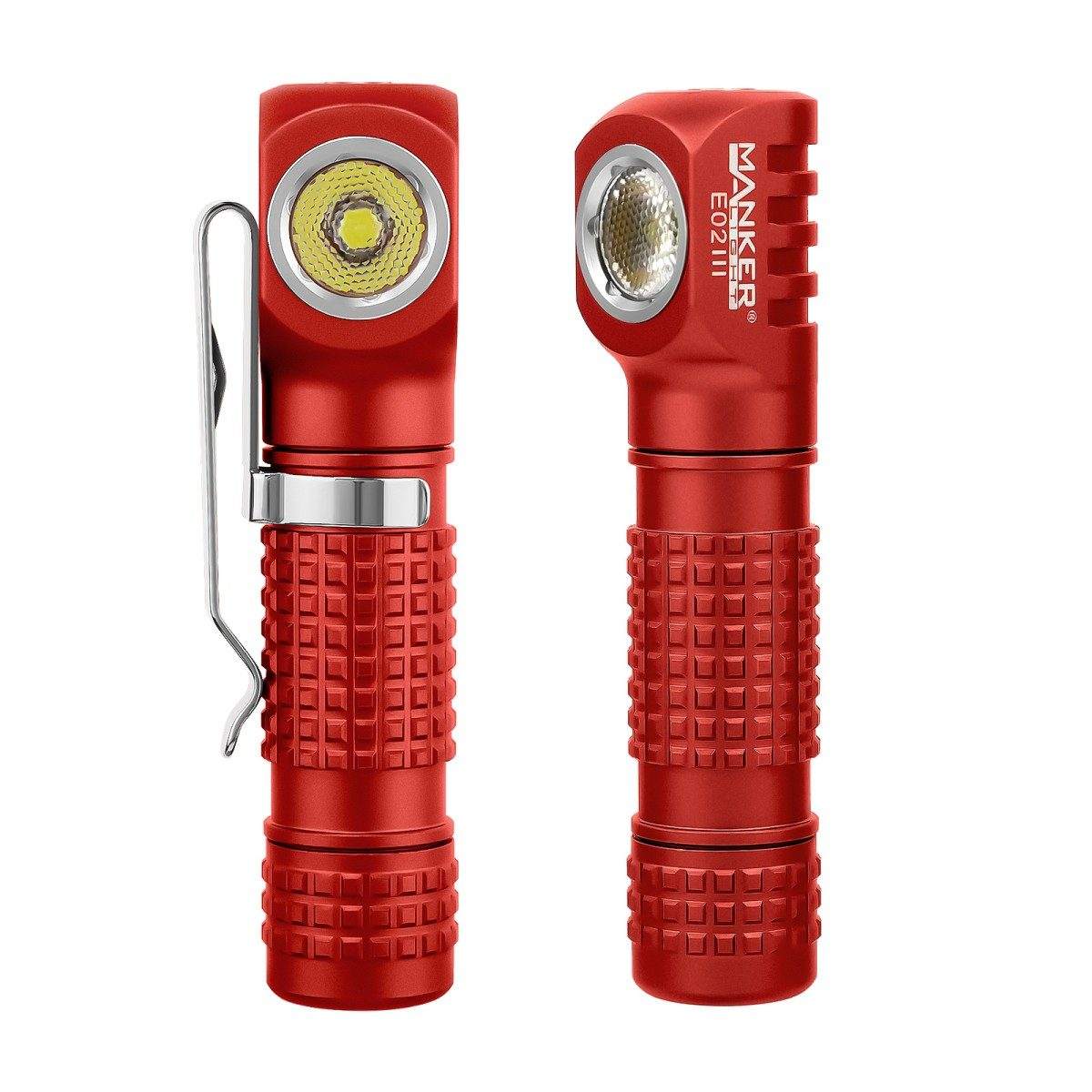

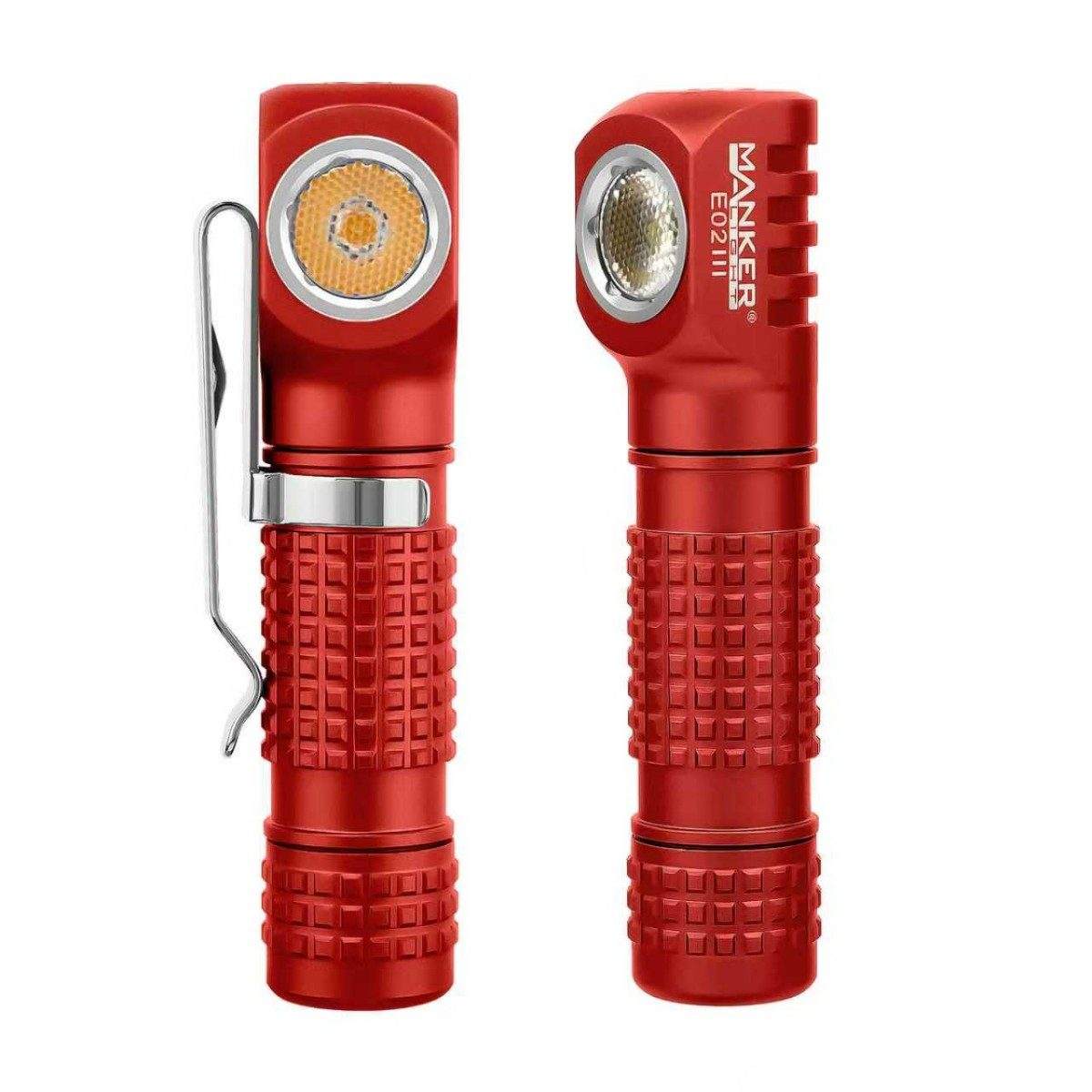

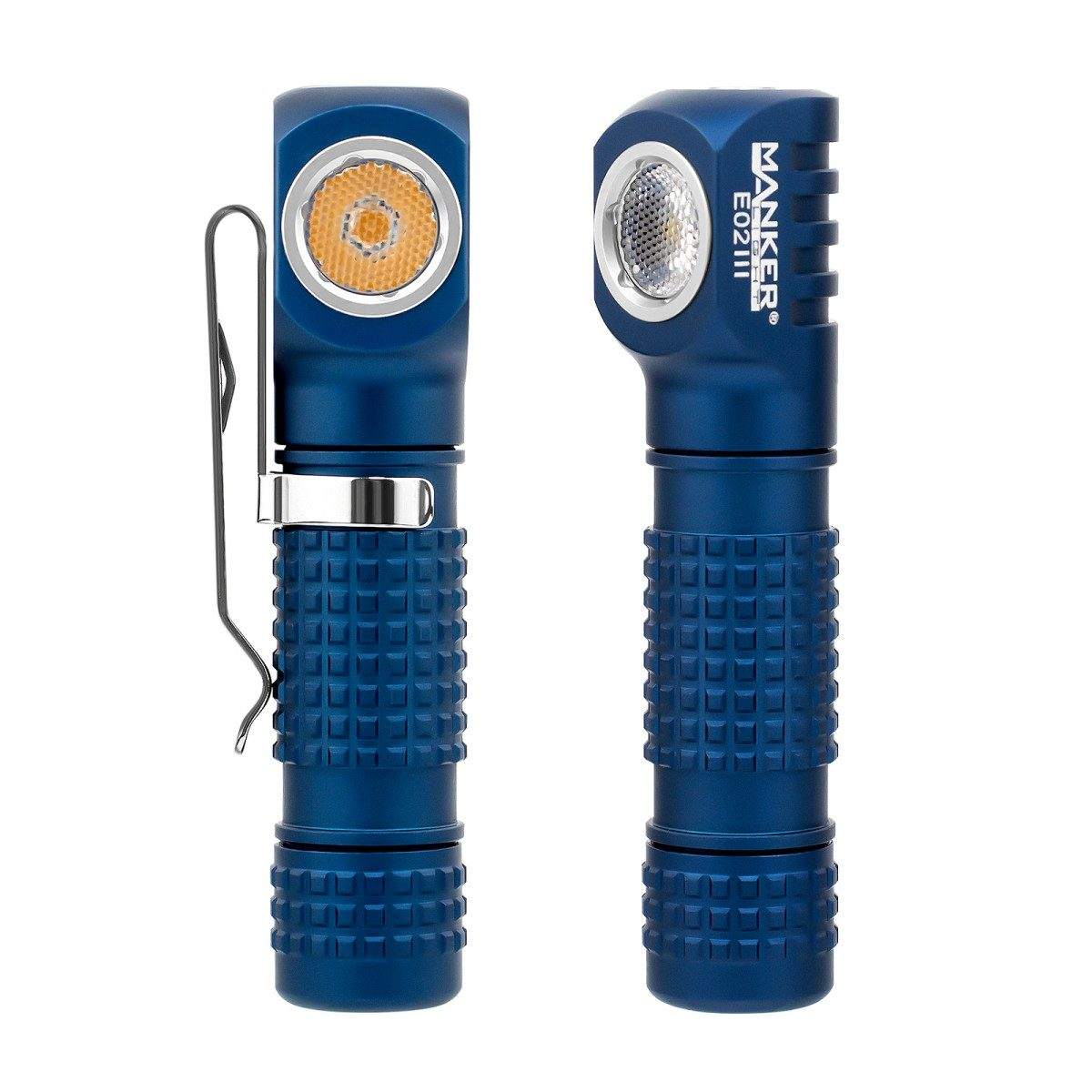

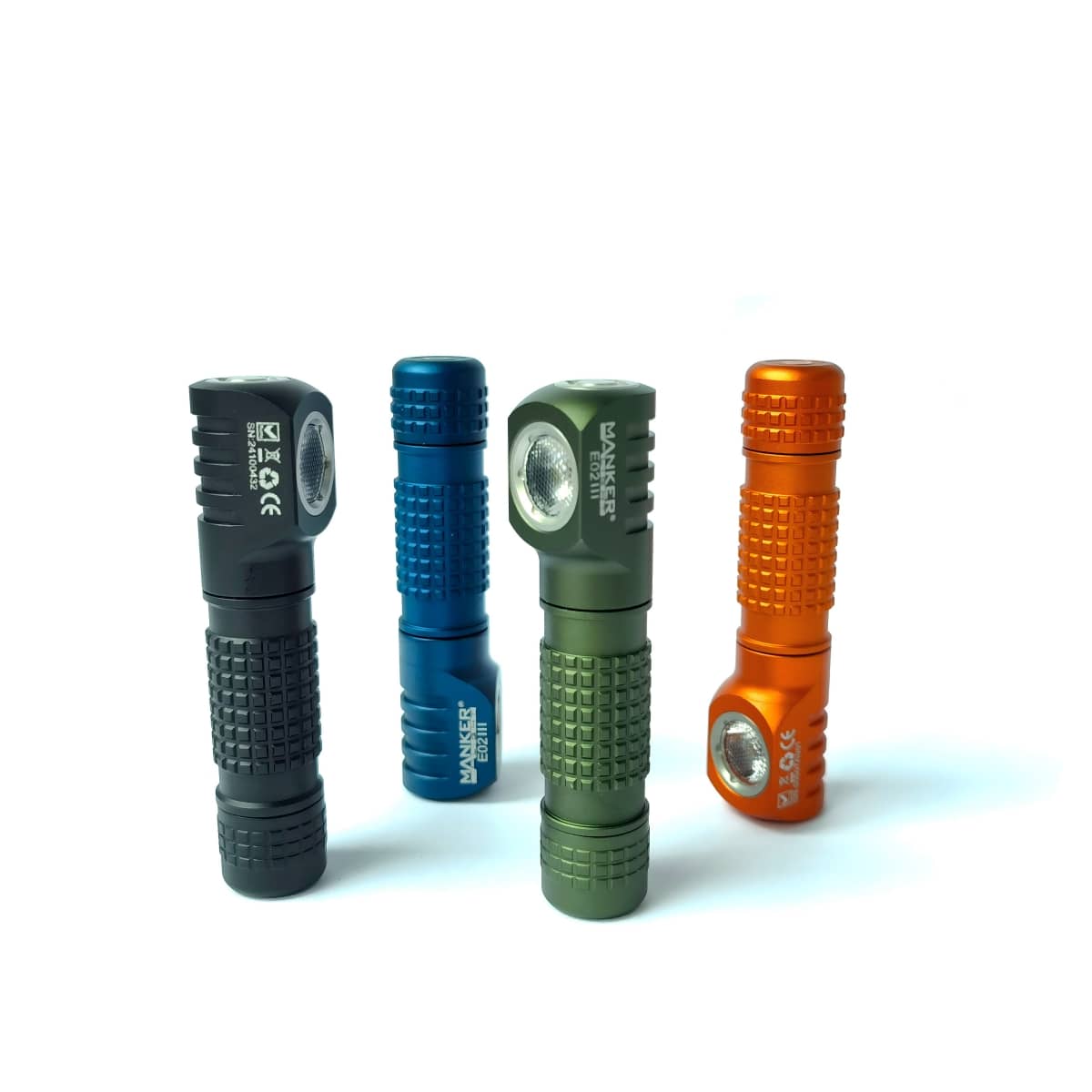

Manker E02III AAA / 10440 Flashlight
Couldn't load pickup availability
Share This:
The Manker E02 III is a compact, high-performance everyday carry (EDC) flashlight that delivers exceptional brightness and versatility. Building upon the success of its predecessors, this third-generation model incorporates user feedback to offer enhanced features and improved functionality.
Exceptional Brightness and Advanced Technology
Equipped with a high-performance LED, the E02 III achieves a maximum output of 560 lumens, making it one of the brightest flashlights in its class. The dual constant current drivers ensure consistent, flicker-free illumination, while the wide voltage range design enhances compatibility with various power sources. Advanced intelligent temperature regulation prevents overheating, maintaining optimal performance during extended use. The flashlight also features low voltage protection and reverse polarity protection to safeguard against improper battery installation.
Premium Materials and Durable Construction
Constructed from aircraft-grade 6061-T6 aluminum alloy and 304 stainless steel, the E02 III boasts a robust and corrosion-resistant build. The Type-III hard-anodized finish enhances durability, and the precision CNC-machined head ensures efficient heat dissipation. Aggressive knurling on the body and tail provides a secure grip, while bead-blasted surfaces offer a comfortable touch.
Compact Design for Daily Carry
Weighing just 32 grams (without battery) and measuring 72mm in length, the E02 III is ultra-compact and lightweight, making it ideal for daily carry. It fits comfortably in pockets, including coin pockets, ensuring it's always within reach without being obtrusive.
Versatile Power Options
The E02 III includes a Mankerlight Type-C USB rechargeable 300mAh 10440 Li-ion battery and is also compatible with AAA NiMH and AAA alkaline batteries, offering flexibility based on availability and preference.
User-Friendly Interface and Multiple Modes
Operating the E02 III is straightforward with its metal button located on the head. Users can easily cycle through multiple brightness levels and access special modes such as Strobe, Beacon, and SOS, catering to various lighting needs.

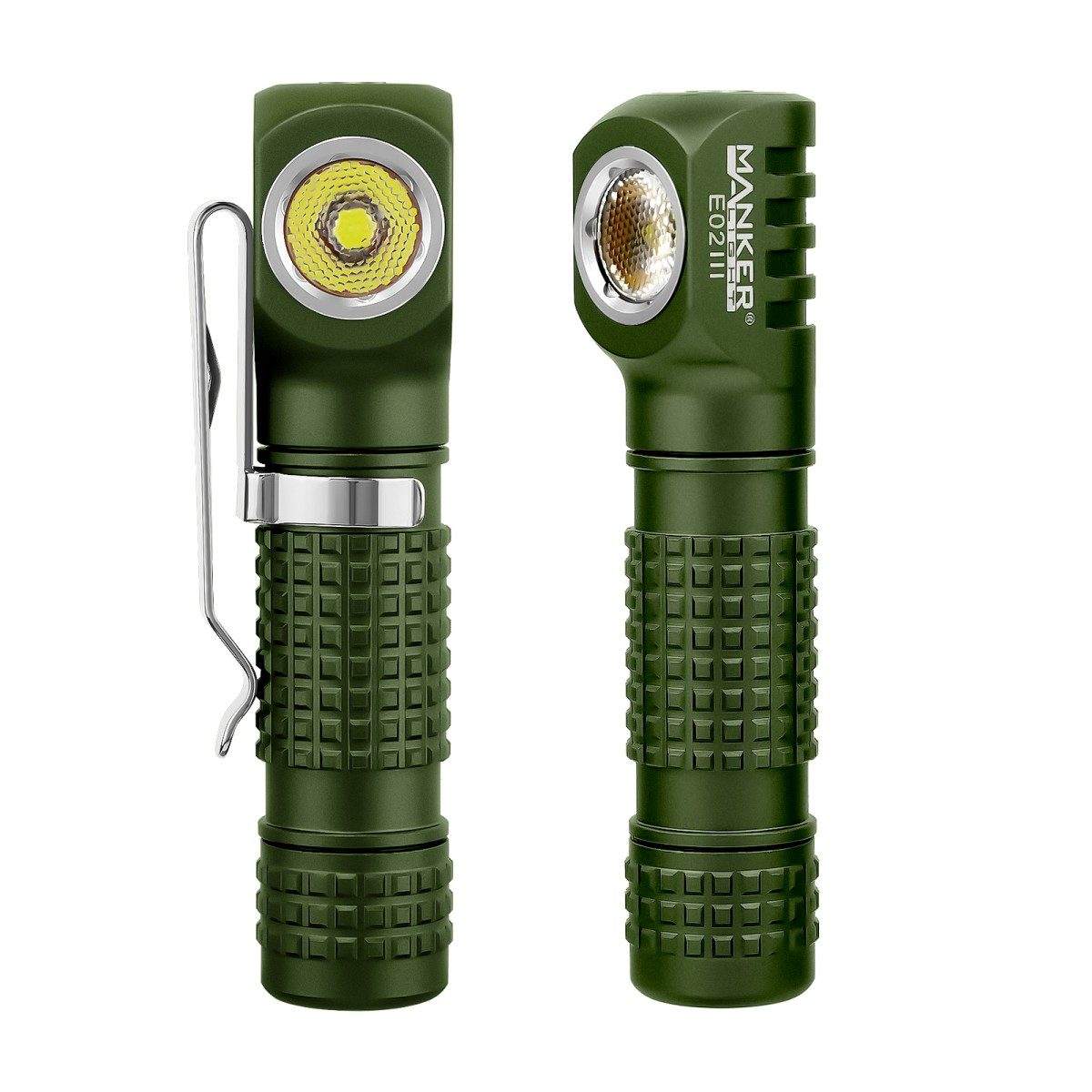

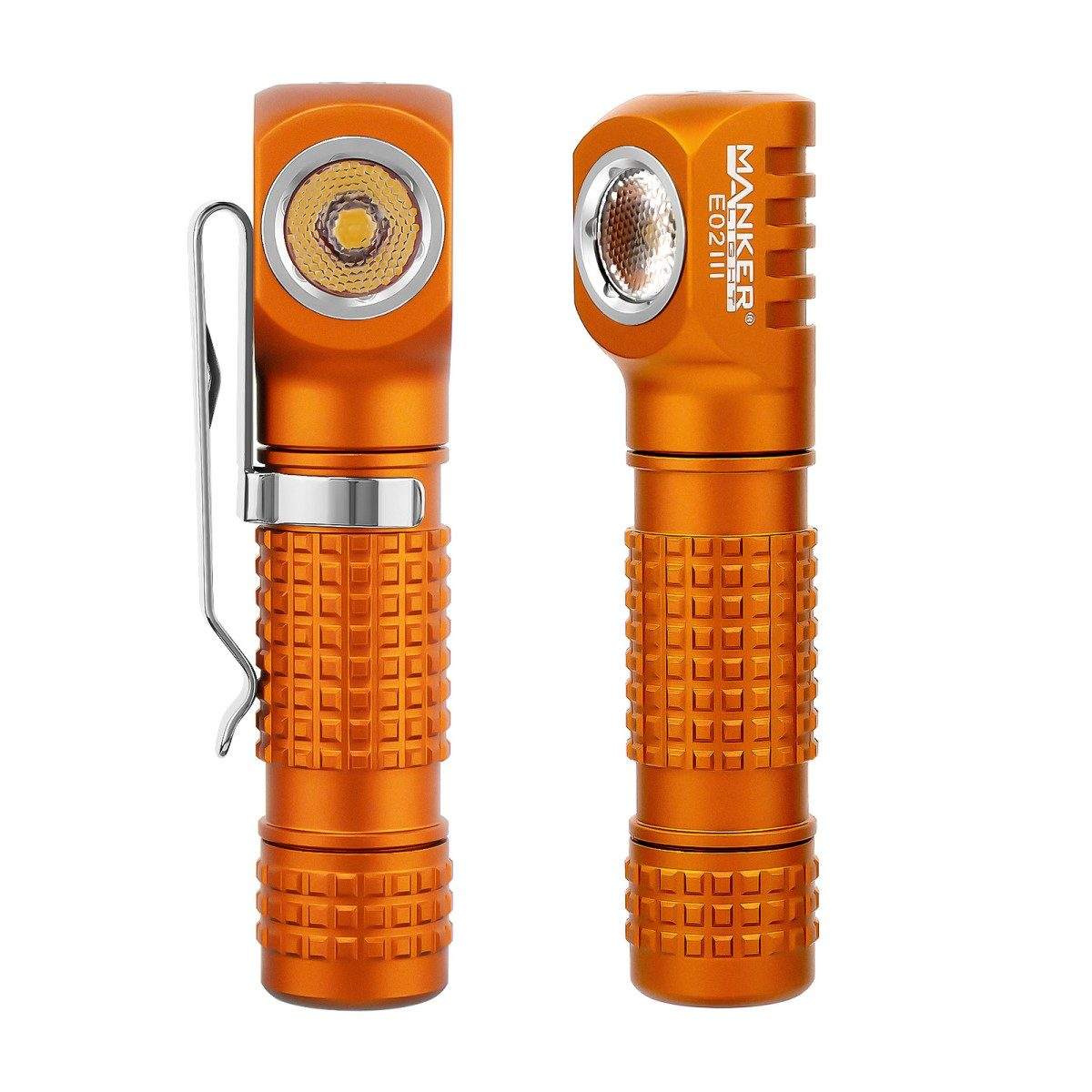

Removable and Reversible Pocket Clip
The flashlight comes with a removable and reversible pocket clip, allowing attachment to pockets, belts, or the brim of a hat for hands-free use. This feature enhances its practicality for tasks requiring both hands.
Optional Adjustable Elastic Headband
For those seeking headlamp functionality, an adjustable elastic headband is available as an option. This accessory transforms the E02 III into a headlamp, suitable for activities like working or dog walking.
Enhanced Magnetic Tailcap
The strengthened magnetic tailcap enables the flashlight to attach securely to metal surfaces, providing versatile, hands-free lighting solutions, especially useful for close-up tasks.
Lock/Unlock Feature to Prevent Accidental Activation
To prevent unintended activation, the E02 III features a simple lock/unlock mechanism. From the off state, a 5-second long press locks the flashlight; repeating the process unlocks it.
Waterproof and Impact Resistant
With an IP68 waterproof rating, the E02 III can withstand submersion up to 2 meters, ensuring reliable performance in various weather conditions. It also passes a 2-meter drop test, making it suitable for rugged, high-impact environments.
The Manker E02 III combines exceptional brightness, durable construction, and user-friendly features in a compact design, making it an excellent choice for everyday carry and a variety of lighting needs.
Specifications
• Light Source: 1x customized 6500K cool white LED emitter or 1x NICHIA 519A-V1 4000K high CRI R9080 LED emitter
• Light Modes: Moonlight mode (Mo 1 level - Mo 2 level - Mo 3 level) + General mode (Low - Medium - High) + Turbo + Special mode (Strobe - Beacon - SOS)
• Maximum Output: 560 lumens (using Mankerlight 10440 USB-C Li-ion Battery)
• Maximum Beam Intensity: 1,611 cd (using Mankerlight 10440 USB-C Li-ion Battery)
• Maximum runtime: 388 hours 55 minutes (using NANFU 1.5V LR03 AAA Alkaline battery)
• Maximum Beam Distance: 80 meters (262.47 feet)
• Impact Resistance: 2 meters
• Waterproof Standard: IP68 rated, tested 2 meter underwater for 60 minutes
• Battery compatible: 1x button-top 10440 li-ion / 1x Alkaline AAA / 1x Ni-MH AAA
• Working Voltage: 0.8 V - 4.2 V
• Driver: High efficiency constant current circuit (both 10440 and AAA)
• Body Material: Aircraft-grade 6061-T6 aluminum alloy with Type-III hard-anodized
• Clip Type: Removable & reversible clip
• Clip Material: 304 stainless steel
• Button Material: 304 stainless steel with bead blasted finish
• Screw-on Bezel Material: 304 stainless steel with bead blasted finish
• Connector Finish: immersion gold and gold plated
• Optic: high temperature resistant PMMA total internal reflection (TIR) lens
• Size: 72.3mm (length) x Φ15.2mm (body dia.) / 2.85" x 0.60";
Clip groove: Φ13.9mm (dia.) x 4mm(width) / 0.55" x 0.15"
• Weight: 23.9 g | 0.84 oz (without battery),
32.4 g | 1.14 oz (included USB-C 10440 battery)
Package content
1x Mankerlight E02 III flashlight
1x Mankerlight 300 mAh protected 10440 lithium battery with Type-C USB port
1x Type-C USB charging cable
1x Stainless steel reversible pocket clip
1x Spare waterproof o-ring
1x User manual
Operating Instructions
- Lock/Unlock: Locking out the flashlight when not in use is highly recommended. From OFF status, just long press 5 seconds to LOCK OUT. The flashlight will then blink two times to indicate that it has been LOCKED. To UNLOCK, long press 5 seconds again, flashlight will turn on last used brightness level in general mode to indicate it has been unlocked.
- General Mode: From OFF status, simply press and hold down to low level. Press and hold down to cycle through the different levels: Low > Medium > High > back to Low. From any of these levels, click once to turn OFF and store that last level into level memory.
- Moonlight Mode: From OFF status, long press 1.5 seconds to Moonlight mode. Press and hold down to cycle through the different moonlight levels: Mo1 > Mo2 > Mo3 > back to Mo1. from different moonlight levels, click once to turn OFF and store that last moonlight level into moonlight level memory.
- Turbo: From OFF or from other levels, double click to turn on Turbo. If a single click after this turns the flashlight OFF or if double click again or long press after this turns to turn on the level of general mode last used or if triple click (click 3 times fast) after this turns to special mode.
- Special Mode: From OFF or from other levels, triple click (click 3 times fast) to turn on Strobe. Press and hold down to cycle throught different levels: Strobe > Beacon > SOS back to Strobe. From any of these levels, click once to turn OFF.
Tip1: E02 III have memory function
Tip2: E02 III have low voltage protection (LVP) function. When the battery is low, it will stepdown to ultra-low level and keep its brightness in a certain time, and then turn off automatically when the battery is out of power. so after stepdowning to ultra-low brightness, it is time for you to recharge your battery. For example, when turning on general mode but getting ultra-low brightness. it prompts you need to charge or replace the battery.
Technical Data of 6500K Cool White
Power by Mankerlight 300mAh 3.7V USB-C 10440 li-ion battery:
Moonlight 1 level: 0.1 lumens, 277 hours 25 minutes;
Moonlight 2 level: 1 lumens, 104 hours 30 minutes;
Moonlight 3 level: 2 lumens, 53 hours 25 minutes;
Low level: 25 lumens, 6 hours 06 minutes;
Medium level: 80 lumens - 5.5 lumens, 1 hours 27 minutes + 1 hours 37 minutes;
High level: 290 lumens - 200 lumens - 5.5 lumens, 2 minutes + 26 minutes + 2 hours 30 minutes;
Turbo level: 560 lumens - 200 lumens - 5.5 lumens, 1 minutes + 24 minutes + 2 hours 45 minutes;
Strobe: 560 lumens
Beacon: 560 lumens
SOS: 560 lumens
Maximum light intensity: 1,611 cd
Maximum beam distance: 80 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes
Powered by Panasonic Eneloop Pro 950 mAh 1.2V AAA Ni-MH Battery:
Moonlight 1 level: 0.1 lumens, 170 hours 49 minutes;
Moonlight 2 level: 1 lumens, 73 hours 11 minutes;
Moonlight 3 level: 2 lumens, 36 hours 32 minutes;
Low level: 8 lumens, 8 hours 48 minutes;
Medium level: 30 lumens - 2 lumens, 2 hours 12 minutes + 54 minutes;
High level: 80 lumens - 60 lumens - 2 lumens, 3 minutes + 50 minutes + 1 hour 28 minutes;
Turbo level: 170 lumens - 60 lumens - 2 lumens, 1 minute + 54 minutes + 1 hour 48 minutes;
Strobe: 170 lumens
Beacon: 170 lumens
SOS: 170 lumens
Maximum light intensity: 549 cd
Maximum beam distance: 47 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes
Powered by NANFU LR03 1.5V AAA Alkaline Battery:
Moonlight 1 level: 0.1 lumens, 388 hours 55 minutes;
Moonlight 2 level: 1 lumens, 152 hours 34 minutes;
Moonlight 3 level: 2 lumens, 74 hours 12 minutes;
Low level: 8 lumens, 20 hours 54 minutes;
Medium level: 30 lumens - 2 lumens, 3 hours 11 minutes + 20 hours 24 minutes;
High level: 80 lumens - 60 lumens - 2 lumens, 3 minutes + 59 minutes + 44 minutes;
Turbo level: 170 lumens - 60 lumens - 2 lumens, 1 minutes + 57 minutes + 44 hours 17 minutes;
Strobe: 170 lumens
Beacon: 170 lumens
SOS: 170 lumens
Maximum light intensity: 549 cd
Maximum beam distance: 47 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes
Technical Data of Nichia 519A-V1 4000K High CRI R9080
Power by Mankerlight 300mAh 3.7V USB-C 10440 li-ion battery:
Moonlight 1 level: 0.1 lumens, 277 hours 25 minutes;
Moonlight 2 level: 0.8 lumens, 104 hours 30 minutes;
Moonlight 3 level: 1.5 lumens, 53 hours 25 minutes;
Low level: 20 lumens, 6 hours 06 minutes;
Medium level: 60 lumens - 4 lumens, 1 hours 27 minutes + 1 hours 37 minutes;
High level: 210 lumens - 145 lumens - 4 lumens, 2 minutes + 26 minutes + 2 hours 30 minutes;
Turbo level: 400 lumens - 145 lumens - 4 lumens, 1 minutes + 24 minutes + 2 hours 45 minutes;
Strobe: 400 lumens
Beacon: 400 lumens
SOS: 400 lumens
Maximum light intensity: 954 cd
Maximum beam distance: 62 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes
Powered by Panasonic Eneloop Pro 950 mAh 1.2V AAA Ni-MH Battery:
Moonlight 1 level: 0.1 lumens, 170 hours 49 minutes;
Moonlight 2 level: 0.8 lumens, 73 hours 11 minutes;
Moonlight 3 level: 1.5 lumens, 36 hours 32 minutes;
Low level: 6 lumens, 8 hours 48 minutes;
Medium level: 20 lumens - 1.5 lumens, 2 hours 12 minutes + 54 minutes;
High level: 60 lumens - 45 lumens - 1.5 lumens, 3 minutes + 50 minutes + 1 hour 28 minutes;
Turbo level: 130 lumens - 45 lumens - 1.5 lumens, 1 minute + 54 minutes + 1 hour 48 minutes;
Strobe: 130 lumens
Beacon: 130 lumens
SOS: 130 lumens
Maximum light intensity: 369 cd
Maximum beam distance: 38 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes
Powered by NANFU LR03 1.5V AAA Alkaline Battery:
Moonlight 1 level: 0.1 lumens, 388 hours 55 minutes;
Moonlight 2 level: 0.8 lumens, 152 hours 34 minutes;
Moonlight 3 level: 1.5 lumens, 74 hours 12 minutes;
Low level: 6 lumens, 20 hours 54 minutes;
Medium level: 20 lumens - 1.5 lumens, 3 hours 11 minutes + 20 hours 24 minutes;
High level: 60 lumens - 45 lumens - 1.5 lumens, 3 minutes + 59 minutes + 44 minutes;
Turbo level: 130 lumens - 45 lumens - 1.5 lumens, 1 minutes + 57 minutes + 44 hours 17 minutes;
Strobe: 130 lumens
Beacon: 130 lumens
SOS: 130 lumens
Maximum light intensity: 369 cd
Maximum beam distance: 38 meters
Drop resistant: 2 meters
Waterproof Standard: IP68, 2meters underwater in 60 minutes
Battery Charging
- E02 III comes with one Mankerlight 300mAh 3.7V 10440 li-ion battery with a built-in Type-C USB charging port.
- Our 10440 battery support fast charging USB-C charger (such as QC,PD) and also works via USB-C to USB-C charging.
- Battery charging indicator: plug USB Type-C socket of the included charging cable into the USB-C port of 10440 battery, and connect another USB socket to the adapter. our 10440 battery has built-in intelligent identified charging function. When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.
- Fully charging time: about 30 minutes
Warning
1. Do not shine light directly at anyone eyes.
2. Please remove battery insulation sheet and fully charge battery before initial use.
3. Please check and lubricate the threads regularly with professional lubricant.
4. Please remove battery from the flashlight during long term storage.
5. Please recharge the battery every 2-3 months when left unused for a prolonged time.
