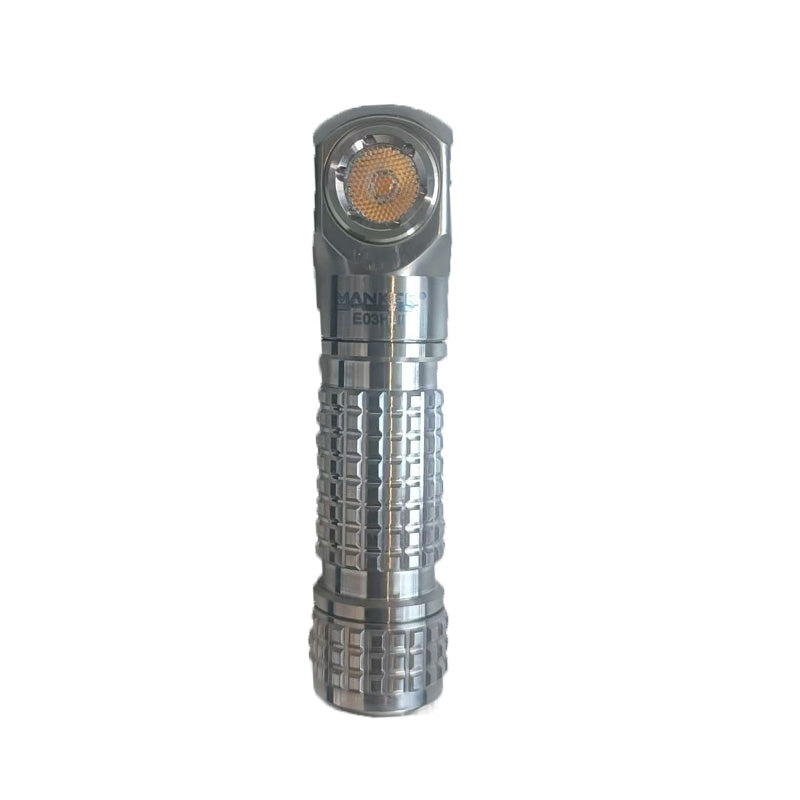

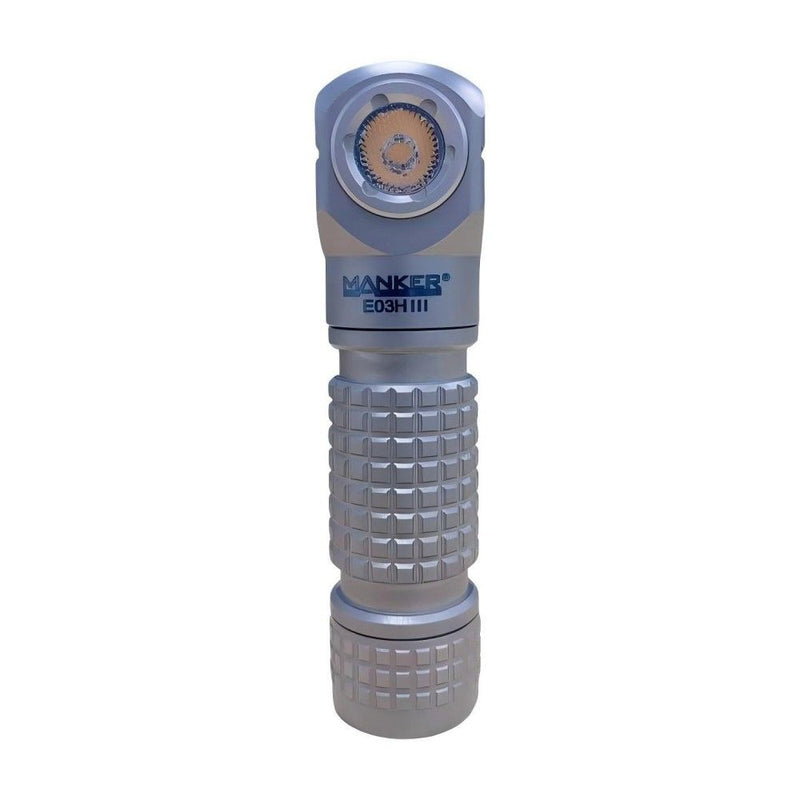

Manker E03H III Ti - Bead Blasted Titanium

In stock
SKU: E03H III Ti
Regular price $64.99
LED Option
Finish
Filter Option

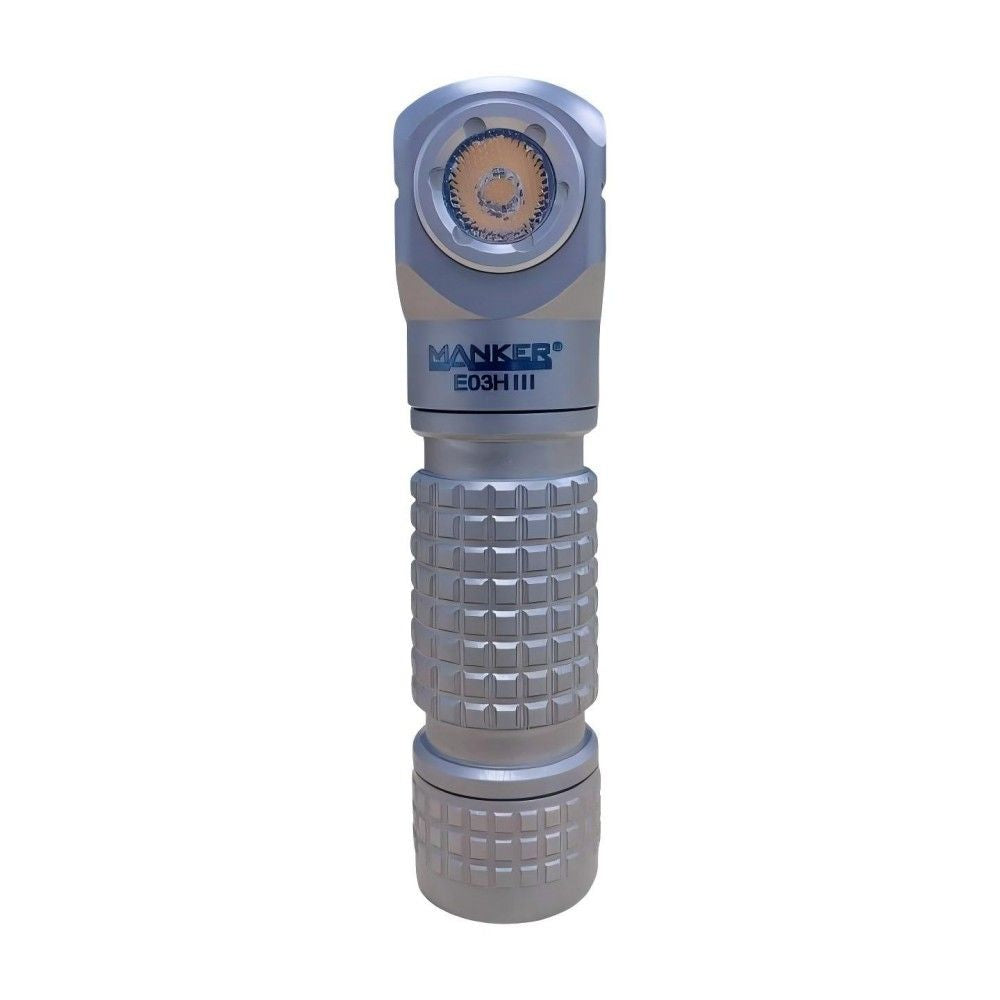

Mankerlight E03H III Ti is Premium Titanium Everyday Carry Angle Flashlight with A Headband in 14500 / AA Class
1,200 Lumens Illumination | Best-in-Class Features | Ultimate Durability Infinite Possibilities of Use

Features:
1. the Third Generation Model, Reimagined
- We’ve redesigned E03H III from the ground up, base on huge different feedback from E03H gen 1 & E03H gen 2's users, flashlight enthusiasts and our partners.
2. Best-in-Class Technology
- E03H III uses our most popular and highly-requested technologies including brightest in class (maximum 1200 lumens output), most effective dual constant current drivers (Non-PWM), wide range of voltage design, advanced intelligent temperature regulation, high performance customized LED emitter or Nichia 519A high CRI LED emitter, copper MCPCB with the employed thermoelectric separation technology, immersion gold and gold plated connector to ensure an effective conductivity, high temperature resistant total internal reflection (TIR) lens, Low voltage protect (LVP) technology and reverse polarity protection technology.
3. Premium Materials
- Made by titanium and 304 stainless steel. The titanium shell (head, body tube and tailcap) surface have bead blasted process for comfortable tactile and corrosion resistance. The whole head shell is precisely milled from one single block of titanium for better heat dissipation and stronger structure. The aggressive style knurling on the body tube and tailcap are precisely milled for perfect grip. The shell, the button and screw-on bezels are precisely chamfer milled and then bead blasted for a comfortable hand-touch feeling.
4. Easy-to-operate Versatile User Interface
- E03H III perfectly packs multiple brightness modes, Strobe, Beacon and SOS into the tiny package, bringing its versatility to the next level. One-fingertip press the metal button on the head to adjust the brightness of each mode.
5. Multi-fuel design
- E03H III comes with one Mankerlight Type-C USB rechargeable protected 920mAh 14500 li-ion battery, also compatible with AA NiMH or AA Alkaline battery on the market .

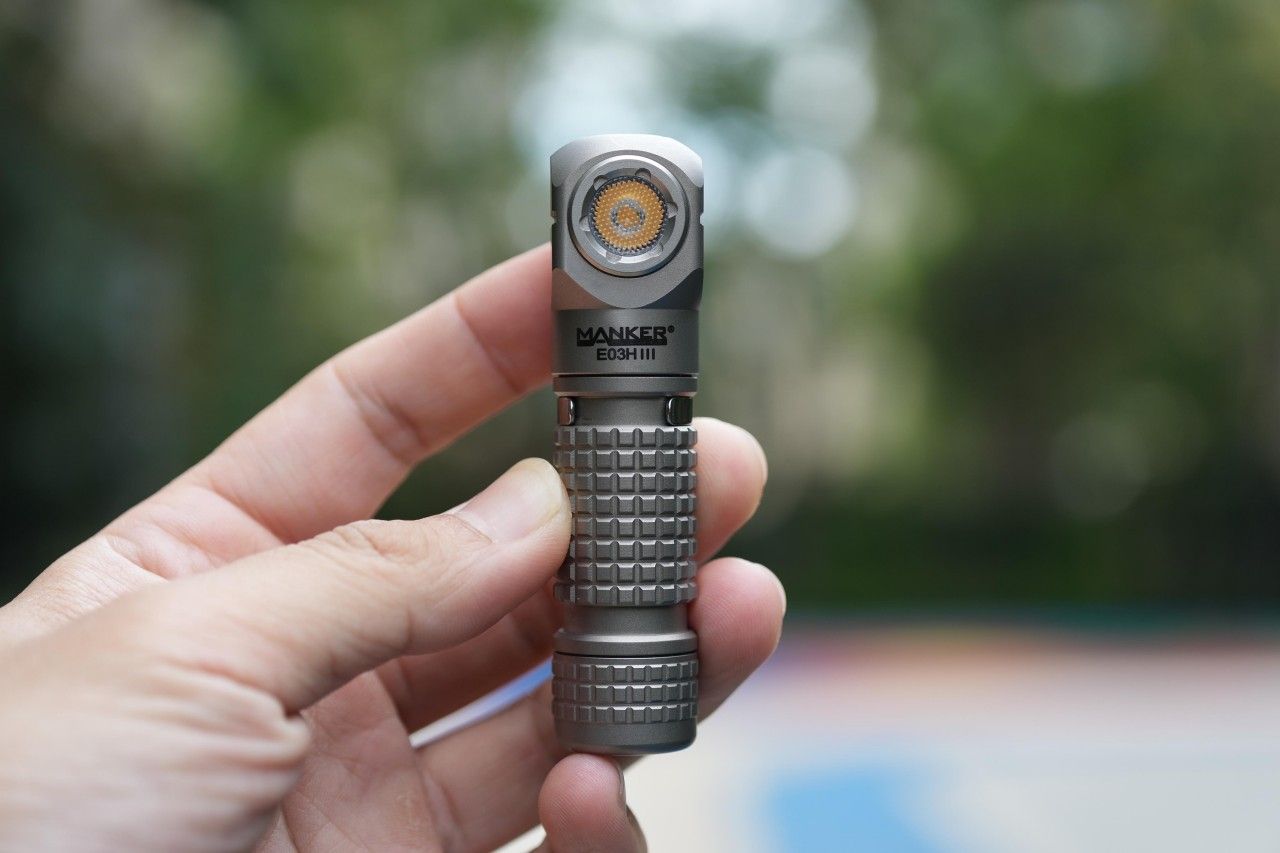

6. Perfect for Pocket
- E03H III offers an incredibly lightweight and ultra-compact design, Making it ideal for everyday carry.

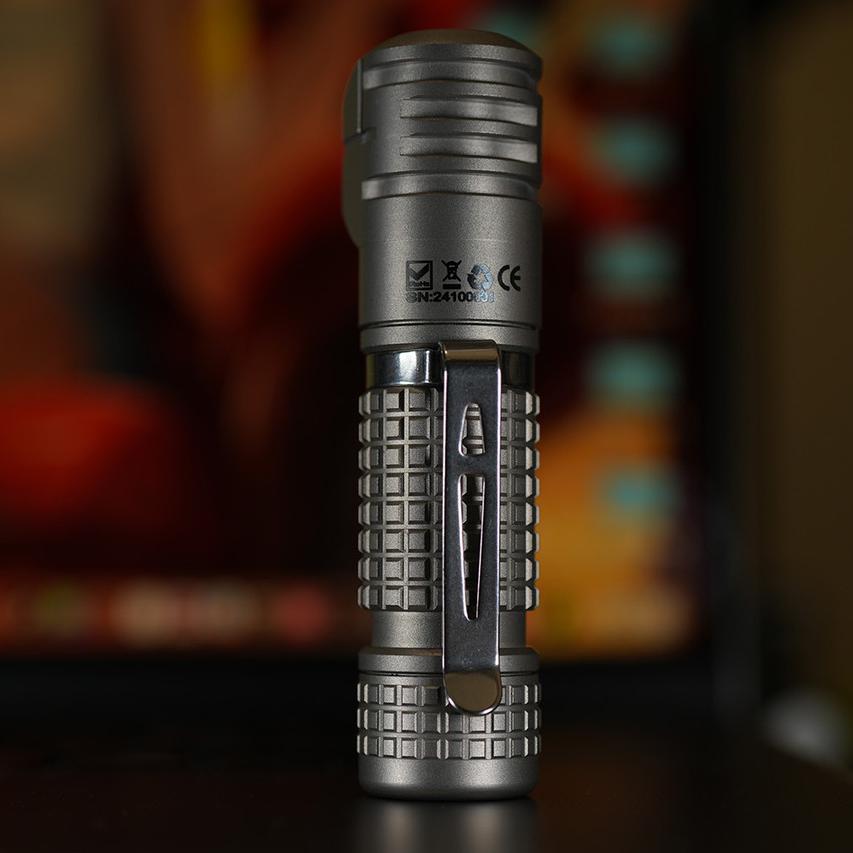

7. Removable & Reversible Pocket Clip
- Use this clip to loop your E03H III in your trouser pocket and backpack, Reverse the clip to attach onto belt, front pocket, brim of hat, etc. to free your hands. Remove the clip whenever you want.
8. With Adjustable Elastic Headband
- E03H III retain this feature from previous versions. The package comes with one adjustable elastic headband. We improve the quality and update the logo print on the headband. Installing your E03H III into the holder of this headband, E03H III EDC flashlight is changed to a headlamp for working, or dog walking, or night running, etc.

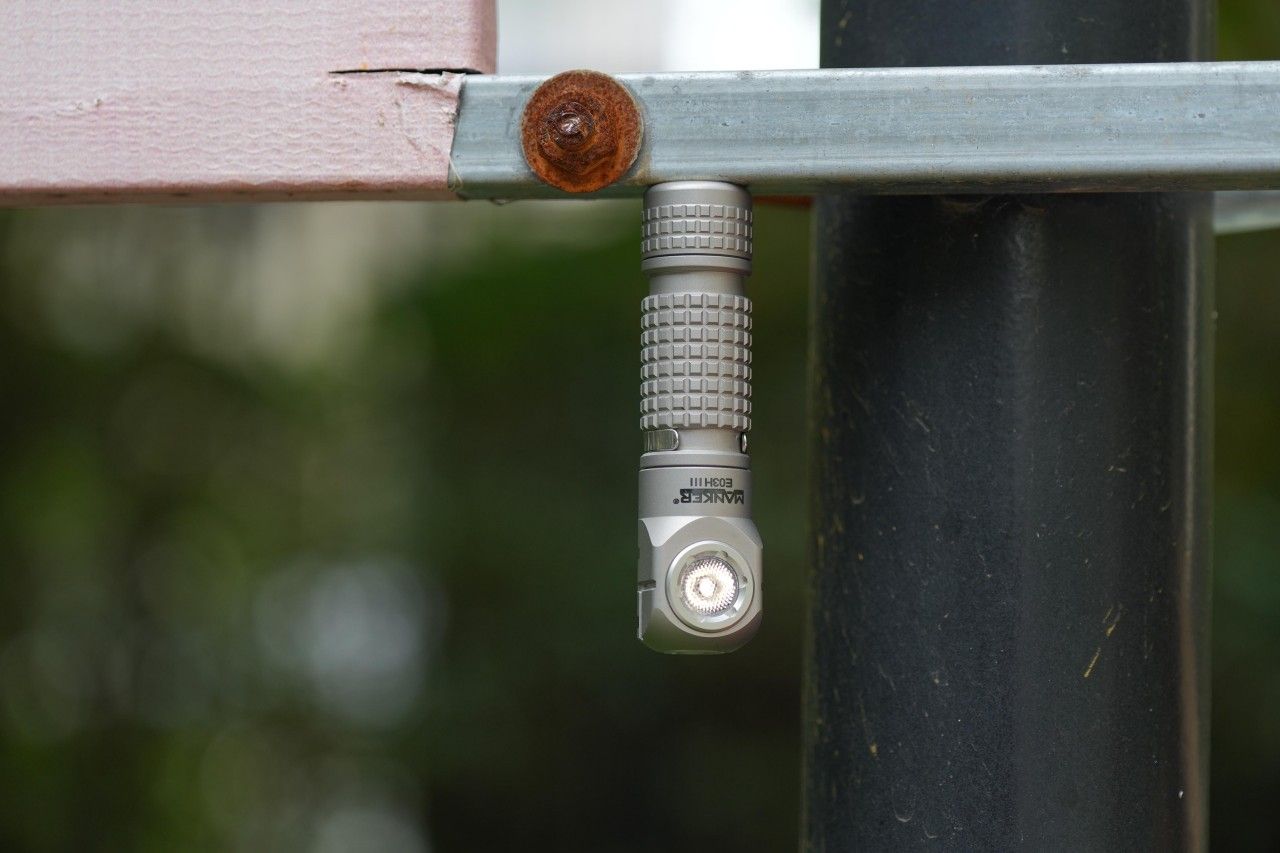

9. Stronger Magnetic Tail
-E03H III retain this feature from previous versions. We boost the strength and the size of magnet in tail. It can strongly attach to any metal surface, providing versatile, hands-free lighting. Ideal for mechanical work, camping, and roadside repairs.
10. Multi-purpose Filter (white)
- Base on feedback from previous versions' users, we redesign the filter, making it easy-install and easy-remove, also plus featuring new machanical-lock function to prevent accidental activation.
11. New Lock/Unlock Features
Base on feedback from previous versions' users, Simple to operate is better, so we have modified new Lock/unlock program. From OFF, just long press 5 seconds to LOCK flashlight. To UNLOCK, the same 5-second long press to turn ON. As E03H III filter have also a mechanical-LOCK protect. so double protections can prevent accidental activation in everyday carrying.
12. Waterproof IP68, 2 Meters underwater
- E03H III have IP68 waterproof level, pass the 2-meter water depth test. so you can use it in any weather without worry and prevents damage if accidentally dropped into the water.
13. 2 Meters Drop-resistant
- Pass the 2-meter drop test on 6 dropping surfaces. E03H III has better drop-resistant than previous versions because of its stronger structure: the whole head shell is precisely milled from one titanium block, LED copper MCPCB is screwed tightly into the head shell by two screws, driver PCB is also press tightly and the bezels surrounding the button and TIR lens are also screw-on.


Specifications
• Light Source: 1x 6500K cool white LED emitter or 1x NICHIA 519A-V1 4000K high CRI R9080 LED emitter
• Light Modes: Moonlight mode (Mo 1 level - Mo 2 level - Mo 3 level) + General mode (Low - Medium - High) + Turbo + Special mode (Strobe - Beacon - SOS)
• Maximum Output: 1200 lumens (powered by Mankerlight 14500 USB-C Li-ion Battery)
• Maximum Beam Distance: 115 meters (377.30 feet)
• Impact Resistance: 2 meters
• Waterproof Standard: IP68 rated, tested 2 meter underwater for 60 minutes
• Battery compatible: 1x button-top 14500 li-ion / 1x Alkaline AA / 1x Ni-MH AA
• Working Voltage: 0.8 V - 4.2 V
• Driver: High efficiency constant current circuit (both 14500 and AA)
• Body Material: Titanium with bead blasted finish
• Clip Type: Removable & reversible clip
• Clip Material: 304 stainless steel
• Button Material: 304 stainless steel with bead blasted finish
• Screw-on Bezel Material: 304 stainless steel with bead blasted finish
• Connector Finish: immersion gold and gold plated
• Optic: high temperature resistant PMMA total internal reflection (TIR) lens
• Size: 82.7mm (length) x Φ19.5mm (body dia.) x Φ20.1mm (tail dia.) / 3.26" x 0.77" x 0.79";
           Clip groove: Φ16.7mm (dia.) x 4mm(width) / 0.66" x 0.15"
• Weight: 41.3 g | 1.46 oz (without battery),
               62.8 g | 2.22 oz (included USB-C 14500 battery)

-

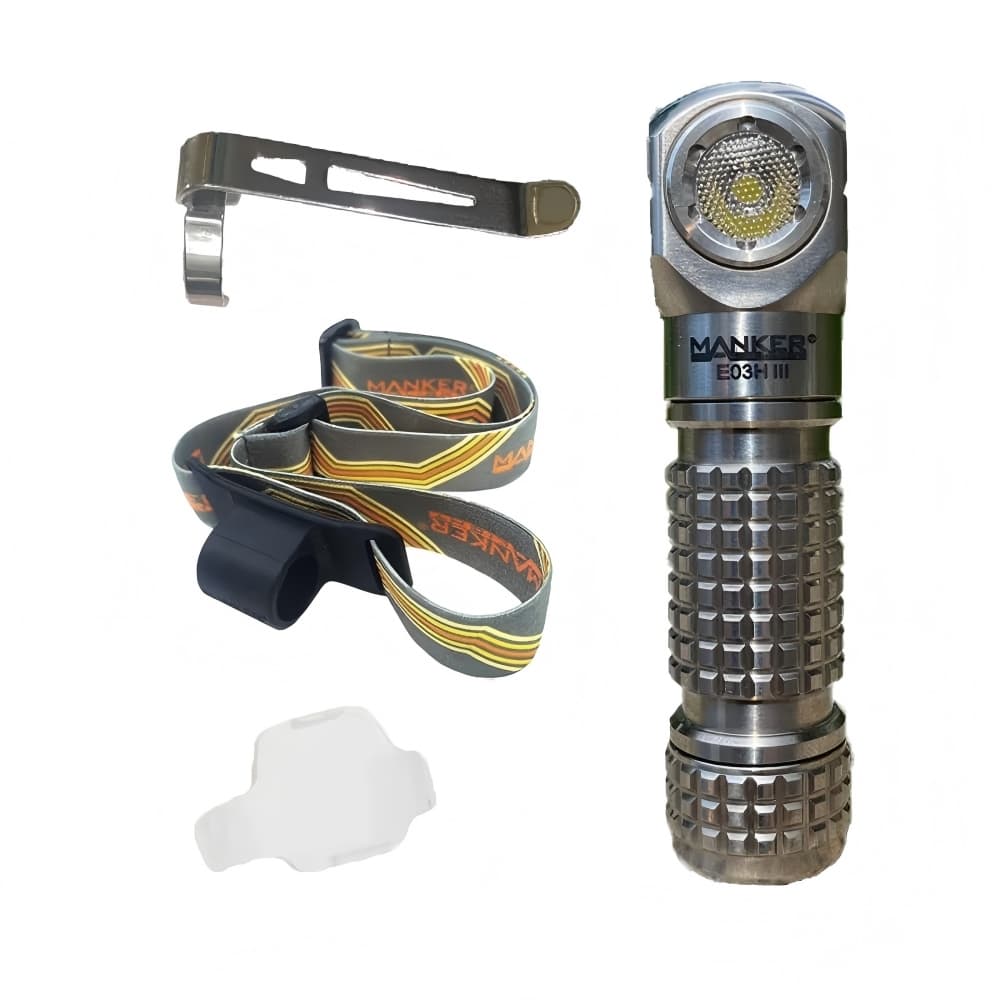

Package content
1x Mankerlight E03H III titanium flashlight
1x Mankerlight headband for E03H III
1x Stainless steel reversible pocket clip
1x Customized filter (1x white) - Limited Free
1x Mankerlight 920 mAh protected 14500 lithium battery with Type-C USB port
1x Type-C USB charging cable
1x Spare waterproof o-ring
1x User manual


Operating Instructions
- Lock/Unlock: Locking out the flashlight when not in use is highly recommended. From OFF status, just long press 5 seconds to LOCK OUT. The flashlight will then blink two times to indicate that it has been LOCKED. To UNLOCK, long press 5 seconds again, flashlight will turn on last used brightness level in general mode to indicate it has been unlocked.
- General Mode: From OFF status, simply press and hold down to low level. Press and hold down to cycle through the different levels: Low > Medium > High > back to Low. From any of these levels, click once to turn OFF and store that last level into level memory.
- Moonlight Mode: From OFF status, long press 1.5 seconds to Moonlight mode. Press and hold down to cycle through the different moonlight levels: Mo1 > Mo2 > Mo3 > back to Mo1. from different moonlight levels, click once to turn OFF and store that last moonlight level into moonlight level memory.
- Turbo: From OFF or from other levels, double click to turn on Turbo. If a single click after this turns the flashlight OFF or if double click again or long press after this turns to turn on the level of general mode last used or if triple click (click 3 times fast) after this turns to special mode.
- Special Mode: From OFF or from other levels, triple click (click 3 times fast) to turn on Strobe. Press and hold down to cycle throught different levels: Strobe > Beacon > SOS back to Strobe. From any of these levels, click once to turn OFF.

Tip1: E03H III have memory function
Tip2: E03H III have low voltage protection (LVP) function. When the battery is low, it will stepdown to ultra-low level and keep its brightness in a certain time, and then turn off automatically when the battery is out of power. so after stepdowning to ultra-low brightness, it is time for you to recharge your battery.


Technical Data of 6500K Cool White
Power by Mankerlight 920mAh 14500 USB-C li-ion battery:
Moonlight 1 level: 0.1 lumens, -
Moonlight 2 level: 1 lumens, -
Moonlight 3 level: 2.5 lumens, -
Low level: 45 lumens, 9 hours 30 minutes
Medium level: 160 lumens - 12 lumens, 2 hours 40 minutes + 50 minutes
High level: 600 lumens - 320 lumens - 12 lumens, 90 seconds + 1 hours 15 minutes + 50 minutes
Turbo level: 1200 lumens - 320 lumens - 12 lumens, 40 seconds + 1 hours 10 minutes + 50 minutes
Strobe: 1200 lumens
Beacon: 1200 lumens
SOS: 1200 lumens

Powered by Panasonic 2450 mAh Enloop Pro AA Ni-MH Battery:
Moonlight 1 level: 0.1 lumens, -
Moonlight 2 level: 1 lumens, -
Moonlight 3 level: 2.5 lumens, -
Low level: 15 lumens, 10 hours 30 minutes
Medium level: 60 lumens - 4 lumens, 3 hours 40 minutes + 30 minutes
High level: 165 lumens - 100 lumens - 4 lumens, 3 minutes + 1 hours 50 minutes + 55 minutes
Turbo level: 340 lumens - 100 lumens - 4 lumens, 90 seconds + 2 hours 5 minutes + 40 minutes
Strobe: 340 lumens
Beacon: 340 lumens
SOS: 340 lumens

Powered by NANFU LR6 3500mAh AA Alkaline Battery:
Moonlight 1 level: 0.1 lumens, -
Moonlight 2 level: 1 lumens, -
Moonlight 3 level: 2.5 lumens, -
Low level: 15 lumens, 12 hours
Medium level: 60 lumens - 4 lumens, 3 hours 40 minutes + 7 hours
High level: 165 lumens - 100 lumens - 4 lumens, 3 minutes + 1 hours 20 minutes + 10 hours 30 minutes
Turbo level: 340 lumens - 100 lumens - 4 lumens, 90 seconds + 1 hours 22 minutes + 13 hours
Strobe: 340 lumens
Beacon: 340 lumens
SOS: 340 lumens

Technical Data of Nichia 519A-V1 4000K High CRI R9080
Power by Mankerlight 920mAh 14500 USB-C li-ion battery:
Moonlight 1 level: 0.1 lumens, -
Moonlight 2 level: 0.8 lumens, -
Moonlight 3 level: 2 lumens, -
Low level: 40 lumens, 9 hours 30 minutes
Medium level: 130 lumens - 10 lumens, 2 hours 40 minutes + 50 minutes
High level: 400 lumens - 240 lumens - 10 lumens, 90 seconds + 1 hours 15 minutes + 50 minutes
Turbo level: 800 lumens - 240 lumens - 10 lumens, 40 seconds + 1 hours 10 minutes + 50 minutes
Strobe: 800 lumens
Beacon: 800 lumens
SOS: 800 lumens

Powered by Panasonic 2450 mAh Enloop Pro AA Ni-MH Battery:
Moonlight 1 level: 0.1 lumens, -
Moonlight 2 level: 0.8 lumens, -
Moonlight 3 level: 2 lumens, -
Low level: 13 lumens, 10 hours 30 minutes
Medium level: 50 lumens - 3 lumens, 3 hours 40 minutes + 30 minutes
High level: 120 lumens - 80 lumens - 3 lumens, 3 minutes + 1 hours 50 minutes + 55 minutes
Turbo level: 250 lumens - 80 lumens - 3 lumens, 90 seconds + 2 hours 5 minutes + 40 minutes
Strobe: 250 lumens
Beacon: 250 lumens
SOS: 250 lumens

Powered by NANFU LR6 3500mAh AA Alkaline Battery:
Moonlight 1 level: 0.1 lumens, -
Moonlight 2 level: 0.8 lumens, -
Moonlight 3 level: 2 lumens, -
Low level: 13 lumens, 12 hours
Medium level: 50 lumens - 3 lumens, 3 hours 40 minutes + 7 hours
High level: 120 lumens - 80 lumens - 3 lumens, 3 minutes + 1 hours 20 minutes + 10 hours 30 minutes
Turbo level: 250 lumens - 80 lumens - 3 lumens, 90 seconds + 1 hours 22 minutes + 13 hours
Strobe: 250 lumens
Beacon: 250 lumens
SOS: 250 lumens

Battery Charging
- E03H III comes with one Mankerlight 920mAh 14500 li-ion battery with a built-in Type-C USB charging port.
- Our 14500 battery support fast charging USB-C charger (such as QC,PD) and also works via USB-C to USB-C charging.
- Battery charging indicator: plug USB Type-C socket of the included charging cable into the USB-C port of 14500 battery, and connect another USB socket to the adapter. our 14500 battery has built-in intelligent identified charging function. When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.
- Fully charging time: about 2 hours via universal charging adapter.


Reversible Clip Install & Disassembly

-

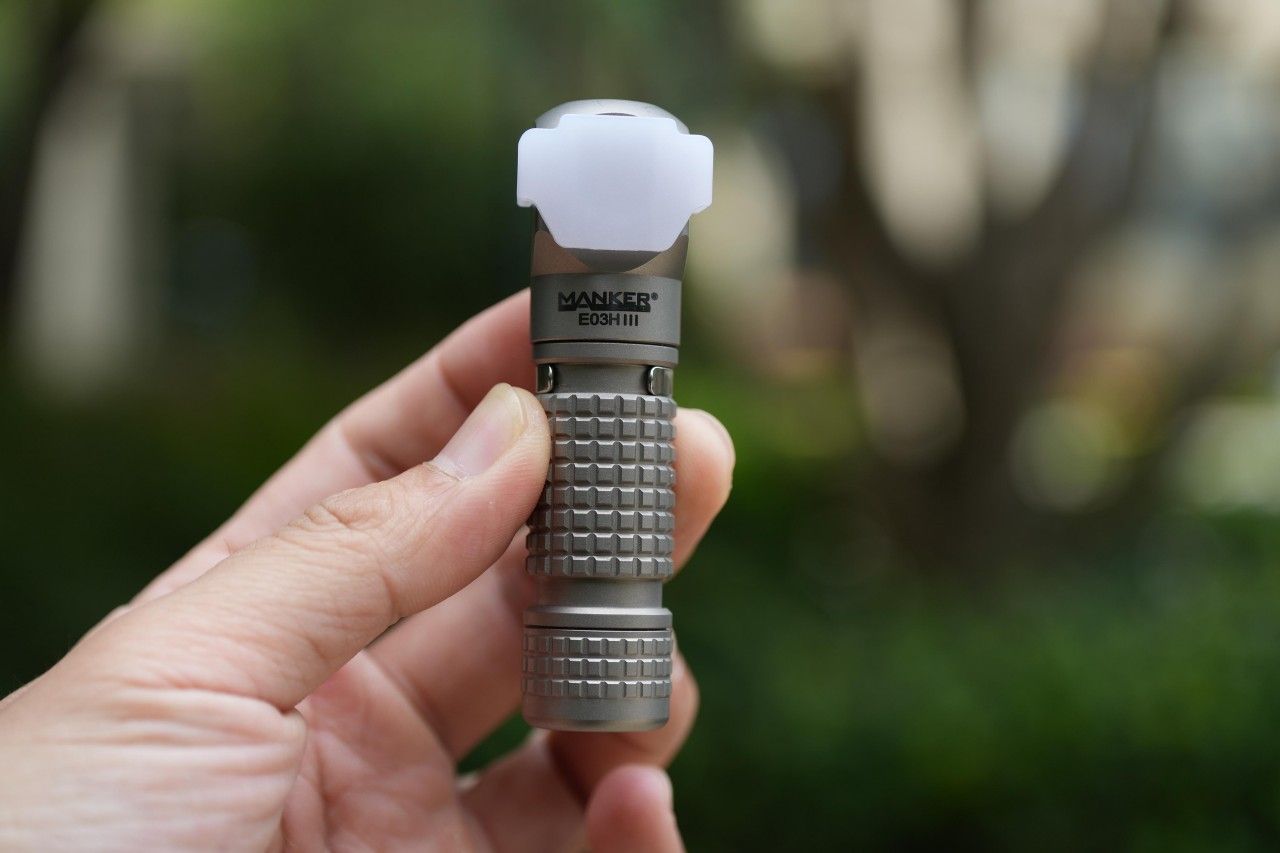

Multi-purpose Filter Install & Disassembly

If you install filter in horizontal direction from the front E03H III head, you can use it for getting wider & softer flood lighting


If you install filter in vertical direction from the E03H III button top, you can use it as physical lock to prevent accidental activation when travel.


If you do not want to use filter, you can also install filter in horizontal direction from back the head.
