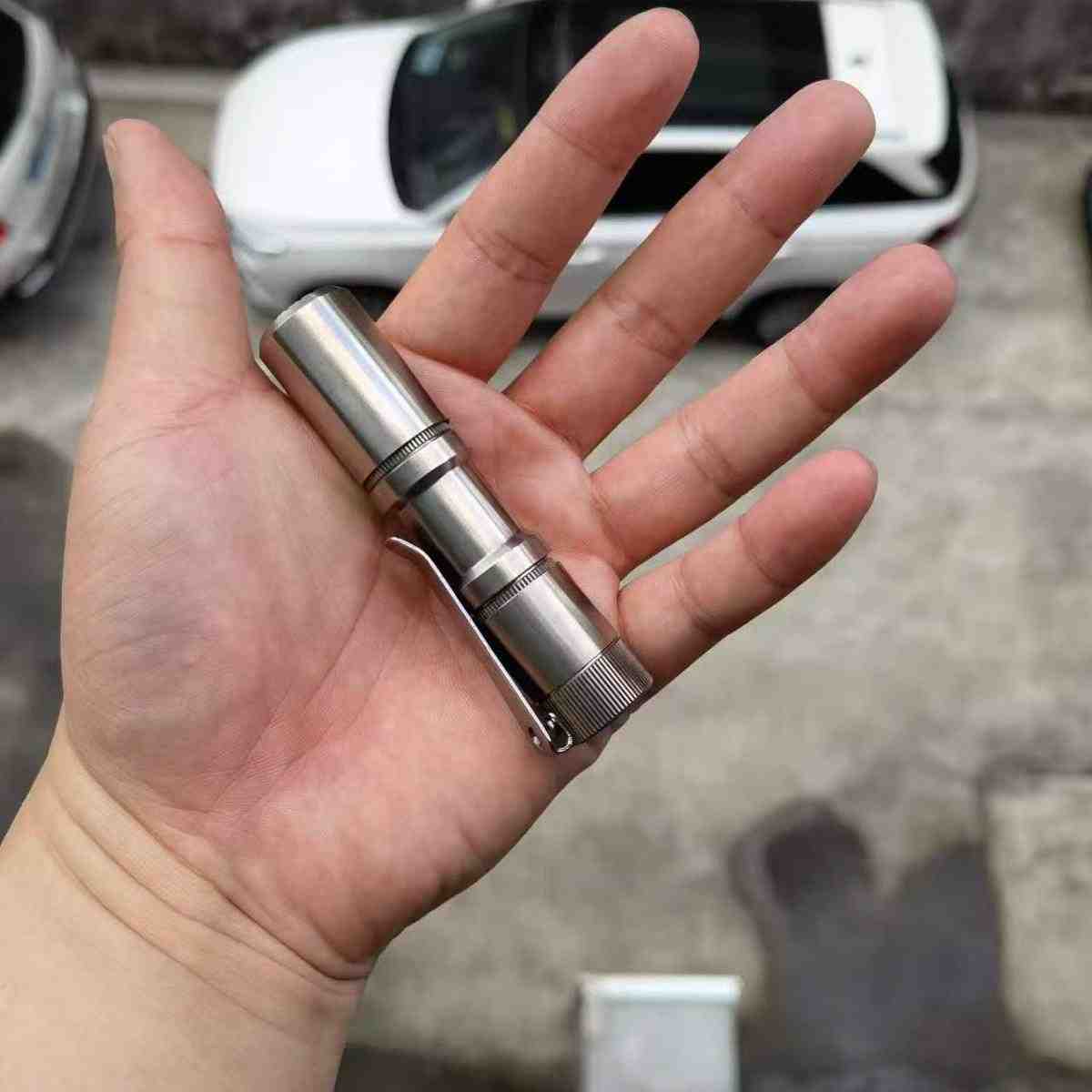

Manker E05II Ti 14500/AA EDC Flashlight
Couldn't load pickup availability
Share This:
The Manker E05II Ti 14500/AA EDC Flashlight is a compact and powerful flashlight that combines exceptional performance with a sleek and durable design. This flashlight is considered one of the most powerful everyday carry (EDC) titanium flashlights in the 14500/AA class, offering an output of up to 1300 lumens and an impressive beam distance of up to 148 meters. Whether you're an outdoor enthusiast, a tactical professional, or someone who requires a reliable light source for everyday activities, the E05II Ti is engineered to provide top-tier performance in a small, portable package.
One of the standout features of the Manker E05II Ti is its construction. The entire body of the flashlight is made from high-quality titanium, known for its lightweight, corrosion-resistant properties, and remarkable strength. The titanium is finished with a unique bead-blasted texture, which not only adds to the flashlight's aesthetic appeal but also enhances grip, ensuring that it is comfortable and secure in hand. The use of titanium ensures that the E05II Ti is durable enough to withstand tough conditions, yet light enough to be used as an everyday carry item without feeling bulky or cumbersome.
The flashlight is powered by a versatile multi-fuel design that allows users to choose between a 14500 Li-ion battery, Ni-MH AA, or Alkaline AA batteries. This flexibility is particularly useful in emergency situations or when traveling, as it ensures that users can always find a compatible battery type. When powered by the 14500 USB-C Li-ion battery, the flashlight delivers an impressive output of 1300 lumens on high, which is perfect for a wide range of applications such as hiking, camping, or self-defense. The flashlight also provides different output modes, including Low (8 lumens), Medium (300 lumens), and Strobe mode, allowing users to adapt the light to their specific needs. With a beam angle of 105 degrees, the light covers a wide area, providing excellent illumination for both close-range and distant objects.
In terms of runtime, the Manker E05II Ti offers excellent performance. When powered by the 14500 Li-ion battery, the flashlight can run for 50 hours on its low setting, 4 hours on medium, and 1 hour on high. The strobe mode operates at a frequency of 20Hz and provides 1300 lumens for emergency signaling or self-defense situations. When powered by AA batteries, the flashlight offers slightly reduced performance, but still provides useful runtimes, making it a reliable tool for extended use when you're out of reach of a USB charger.
The flashlight features a forward-clicky button for easy one-handed operation, which is essential for users who may need to activate the light quickly in demanding situations. The button is made of titanium, ensuring that it complements the overall premium design of the flashlight. The E05II Ti also features a memory function, meaning that when turned off for more than 2 seconds, it will remember the last used output mode (except for the strobe mode). This feature is particularly convenient for users who need consistent light output for recurring tasks.
The flashlight’s body also includes a deep carry clip made from titanium-plated 304 stainless steel, which allows users to attach the flashlight securely to a pocket or belt for easy access. The clip's design ensures that the flashlight stays in place during rigorous activities, providing quick and convenient access when needed.
Durability is a major focus for the Manker E05II Ti. It has an IP68 waterproof rating, which means it is fully protected against dust and can be submerged underwater up to 2 meters for up to 60 minutes. This makes it an excellent choice for outdoor adventures in rainy conditions or for water-based activities like fishing or kayaking. Additionally, the flashlight is impact-resistant to 1.5 meters, ensuring that it can withstand drops or accidental impacts during everyday use.
The flashlight also includes a tritium slot at the tail switch, which can hold a 6x1.5mm tritium vial for additional illumination in low-light environments. This adds a unique feature that can be particularly useful for tactical applications or for users who need to locate the flashlight in the dark.
For ease of use and convenience, the Manker E05II Ti comes with a Type-C USB charging port built into the included Mankerlight 14500 Li-ion battery. The charging process is quick and efficient, taking around 2 hours to fully charge the battery. The charging indicator light turns red when charging and green when the process is complete. This USB-C charging option eliminates the need for additional chargers, making it a highly portable and practical flashlight for everyday use.
Overall, the Manker E05II Ti 14500/AA EDC Flashlight stands out for its combination of high performance, durability, and versatility. Its compact size, multi-fuel capability, and powerful output make it suitable for a wide range of applications, from tactical use to outdoor adventures. The titanium body and premium features further enhance its appeal, making it an ideal choice for those who demand a reliable, high-quality flashlight in any situation. Whether you're using it for everyday tasks or in emergency situations, the Manker E05II Ti is built to perform and last.
- Gen 2 Model
- The whole shell are made from titanium
- Unique bead blast titanium finish on body
- Solid copper "pill" that houses LED's copper MCPCB and driver
- Titanium plated 304 stainless steel deep carry clip
- Mini size for perfect everyday carry
- Multi-fuel design:14500 li-ion, Ni-MH AA, Alkaline AA AA-size battery
- Extreme performance in its class (1300 lumens illumination / Dual constant current drivers)
- Forward 'clicky' button control for one-handed operation
- Light tail-stands easily for convenience
- 1 tritium slot at tail switch
- IP68 waterproof rated, 2 meters underwater
- 1.5 meters drop-resistant
- Multi-color filter options: white / red
- Versatile usage applicable
Specifications
• Light source: 1x 6500K cool white LED emitter
• Light Modes: Low - Medium - High + Strobe
• Output: 1300 lm - 300 lm - 8 lm + 1300lm (20Hz) (powered by 14500 USB-C Li-ion Battery)
• Runtime: 2 min +1 hrs+4 hrs - 1hrs 30 min + 3hrs 50 min - 50 hrs (powered by 14500 USB-C Li-ion Battery)
• Battery: 1x 14500 li-ion / 1x Alkaline AA / 1x Ni-MH AA
• Max Beam Distance: 148 meters (485.56 feet)
• Working Voltage: 0.9 V - 4.2 V
• Driver: High efficiency constant current circuit (both 14500 and AA)
• Body Material: Titanium with beam blasted finish
• Clip Type: Deep carry clip
• Clip Material: 304 stainless steel with titanium plated
• Button Material: Titanium with beam blasted finish
• Contact Spring Retainer Material: phosphore bronze / gold plated
• Lens: Dual-sided AR coated, 99% transmittance toughened Glass
• Optic: Orange peel aluminum reflector with vacuum plated
• Switch Type: Forward-click button (mechanical switch)
• Tritium: 1 slots in button cap. (fit for 6*1.5 mm)
• Size: 91.35mm (length) x ø17mm (min body dia.) x ø20mm (tail dia.) / 3.60" x 0.67" x 0.79"
• Weight: 79.3 g / 2.79 oz (included 14500 battery)
• Impact Resistance: 1.5 meters
• Waterproof: IP68 rated, tested 2 meter underwater for 60 minutes
Package content
1x Mankerlight E05 II titanium 6500K cool white LED flashlight
1x Mankerlight 920 mAh protected 14500 lithium battery with Type-C USB port
1x Type-C USB charging cable
1x Lanyard
1x Spare waterproof o-ring
1x User manual
Operating Instructions
ON/OFF: Fully press the switch.
Momentary ON: Half-press from OFF until released.
Output change①: Continously half-press the switch (interval more than 0.5 second) to change different outputs ( Low - Med. - High), full press to lockout the selected output.
Output change②: From OFF status, fully press the switch to turn on Low output, and then fully press to turn OFF; fully press again to turn on Med. output, and then fully press to turn OFF; fully press again to turn on High output, and then fully press to turn OFF; If keep fully press again, turn back to low output.
Memory function: When OFF the light for 2 seconds, full press to output last used (except Strobe)
Strobe: Quickly double half-press the switch from OFF.
Note: When battery voltage is low, the light will step-down directly to low output, sometime you turn off the light and then turn on again, it can be lighted up but will also step-down to low output soon. When battery voltage is extremely low, the light will shut OFF automatically.
Battery Charging
- E05 II Ti comes with one Mankerlight 920mAh 14500 li-ion battery with a built-in Type-C USB charging port.
- Our 14500 battery support fast charging USB-C charger (such as QC,PD) and also works via USB-C to USB-C charging.
- Battery charging indicator: plug USB Type-C socket of the included charging cable into the USB-C port of 14500 battery, and connect another USB socket to the adapter. our 14500 battery has built-in intelligent identified charging function. When battery is charging, the indicator will be red. After battery charging is completed, the indicator will change to green.
- Fully charging time: about 2 hours via universal charging adapter
Technical Data of 6500K Cool White
Powered by Mankerlight 14500 USB-C li-ion battery:
Low: 8 lumens, 50 hours
Medium: 300 lumens ~ 8 lumens 1 hrs 30 minutes + 3 hrs 50 minutes
High: 1,300 lumens ~ 300 lumens ~ 8 lumens, 2 minutes + 1 hours +4 hours
Strobe: 1,300 lumens 20Hz
Beam intensity: 5,476 cd
Beam distance: 148 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2meters underwater for 60 minutes
Powered by AA Ni-MH Battery:
Low: 1.5 lumens, 27 hours
Medium: 100 lumens ~ 1.5 lumens, 1 hours 50 minutes + 3 hours 3 minutes
High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 2 minutes + 2 hours + 30 minutes
Strobe: 420 lumens 20Hz
Beam intensity: 1,806 cd
Beam distance: 85 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes
Powered by AA Alkaline Battery:
Low: 1.5 lumens, 55 hours
Medium: 100 lumens ~ 1.5 lumens, 1 hours 20 minutes + 16 hours 50 minutes
High: 420 lumens ~ 100 lumens ~ 1.5 lumens, 1 minutes + 48 minutes + 3 hours 15 minutes
Strobe: 420 lumens 20Hz
Beam intensity: 1,806 cd
Beam distance: 85 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes
Technical Data of Nichia 519A 4000K R9080
Powered by Mankerlight 14500 USB-C li-ion battery:
Low: 6.5 lumens, 50 hours
Medium: 220 lumens ~ 6.5 lumens 1 hrs 30 minutes + 3 hrs 50 minutes
High: 800 lumens ~ 220 lumens ~6.5 lumens, 2 minutes + 1 hours +4 hours
Strobe: 800 lumens 20Hz
Beam intensity: 3,600 cd
Beam distance: 120 meters
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2meters underwater for 60 minutes
Powered by AA Ni-MH Battery:
Low: 1.5 lumens, 27 hours
Medium: 80 lumens ~ 1.5 lumens, 1 hours 50 minutes + 3 hours 3 minutes
High: 300 lumens ~ 80 lumens ~ 1.5 lumens, 2 minutes + 2 hours + 30 minutes
Strobe: 300 lumens 20Hz
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes
Powered by AA Alkaline Battery:
Low: 1.5 lumens, 55 hours
Medium: 80 lumens ~ 1.5 lumens, 1 hours 20 minutes + 16 hours 50 minutes
High: 300 lumens ~ 80 lumens ~ 1.5 lumens, 1 minutes + 48 minutes + 3 hours 15 minutes
Strobe: 300 lumens 20Hz
Impact resistance: 1.5 meters
Waterproof standard: IP68, 2 meters underwater for 60 minutes
