Manker Ranger MK39 II Combo Spotlight and Floodlight

In stock
SKU: MK39II CW
Regular price $358.99
LED
Battery

Tip: NW will ship in February

Mankerlight MK39 II has combo extreme long-range spotlight and incredible bright floodlight in compact size robust aluminum housing, with latest technology multiple LED emitters, more than 30 different light outputs, fast charging & powerbank function. plus, powered by a high capacity 24,000 mAh 4680 lithium battery, ensure a long runtime. And: Despite its high power, it is easy to handle and carry with you. These characteristics make MK39 II the ultimate lighting tool for a wide range of applications.

Features
- The second generation, cyberpunk style.
- Compact size, and also with a removeable handle, easy to take it anywhere.
- Hard-anodized body provides added protection against wear and corrosion.
- One-fingertip control, quickly switch between lock-out mode, spotlight, floodlight and spot & flood light mode.
- More than 30 different brightness levels are preseted, and can be widely used in different indoor & outdoor actiyities.
- Utilizes latest technology customized spotlight & floodlight LED emitters.
- Incredible output up to 25,000+ lumens, and extreme beam range of 1,120 meters over a long period of time.
- Mechanical lock-out prevent accidental activation in everyday carrying.
- Comes with a high capacity 24,000 mAh 4680 lithium battery, allowing you to extend your outdoor entertainment.
- Easy and fast charging via USB-C interface port built-in MK39 II housing.
- Convenient remarkable 24,000 mAh capacity powerbank function.
- Thanks to smart LED indication technology, anytime you can know the status of charging, reverse-charge and battery power status.










Specification
• Light Source
   LED Option1: 1x cool white spotlight LED emitter + 8 x cool white Floodlight LED emitters
   LED Option2:1x cool white spotlight LED emitter + 8 x neutral white Floodlight LED emitters
• Light Modes: Lock-out mode, spotlight mode, floodlight mode and combo mode (combo spot & flood)
• Light Levels: Moonlight mode (L1 - L2 - L3) + General mode (Low - Medium1 - Medium2 - Medium3 - High) + Turbo + Special mode (Strobe - Beacon - SOS)
• Maximum Output: 6,500 lumens in spotlight mode
                              20,000 lumens in floodlight mode
                              25,000 lumens in combo mode
• Maximum Beam Distance: 1,104 meters (3622.05 feet) in spotlight mode
                                         308 meters (1010.5 feet) in floodlight mode
                                         1,120 meters (3674.54 feet) in combo mode
• Battery: 1x button-top 24,000 mAh 4680 lithium battery
• Working Voltage: 2.8 V - 4.2 V
• Driver: High efficiency constant current circuit
• Optic: dual-sided AR coated, 99% transmittance toughened glass lens
• Reflector: Smooth (spotlight) + Orange peel (floodlight)
• Screw-on Bezel Material: 304 stainless steel with PVD black plated
• Body Material: Aircraft-grade 6061 aluminum alloy with Type-III hard-anodized
• Handle: Removeable
• Handle Material: Aircraft-grade 6061 aluminum alloy with Type-III hard-anodized
• Button: Aircraft-grade 6061-T6 aluminum alloy with Type-III hard-anodized + 304 stainles steel with PVD black plated
• Connector Finish: immersion gold and gold plated
• Impact Resistance: 1 meters
• Waterproof Standard: IPX-7 rated
• Size: 156mm in length (max.) x 100.64mm in high (max.) x 65mm in width (max.)
• Weight: 712 g | 25.12 oz (without battery),
1072 g | 37.81 oz (included a 4680 battery)




Package content
1x Mankerlight MK39 II Ranger LED flashlight
1x Mankerlight EVA storage bag
1x Mankerlight 24,000mAh rechargeable 4680 lithium battery
1x USB-C to USB-C charging cable
1x Spare waterproof o-ring
1x User manual




Operating Instructions

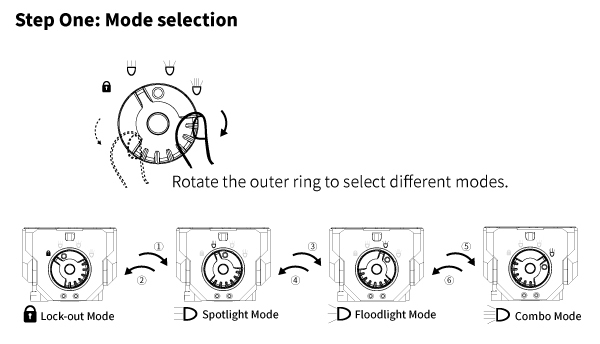

Step One: Mode selection
Rotate the outer ring to select different modes between lock-out, spotlight, floodlight and combo mode.
Take some examples:
① In lock-out mode, rotate the outer ring clockwise to spotlight mode.
② In spotlight mode, rotate the outer ring counterclockwise to lock-out mode.
③ In spotlight mode, rotate the outer ring clockwise to floodlight mode.
④ In floodlight mode, rotate the outer ring counterclockwise to spotlight mode.
⑤ In floodlight mode, rotate the outer ring clockwise to combo mode.
⑥ In combo mode, rotate the outer ring counterclockwise to floodlight mode.

#Good habit# Lock-out the flashlight when not in use is highly recommend.

Step Two: ON/OFF & Brightness level selection
Touch (press) the center button to turn ON/OFF or select different brightness levels you want.


Battery Installation
Your Ranger MK39 II serchlight operates on 1x Mankerlight 24,000mAh 4680 lithium battery.
1. Rotate tail-cap counterclockwise to loosen and remove.
2. Install 1x 4680 battery to MK39 II tube. Make sure battery positive (+) toward MK39 II head.
3. Rotate tail-cap clockwise until hand tightened.




Battery Charging
1. Install battery correctly and tightened the tailcap.
2. Push upforward USB dust cover, connect the USB-C cable to USB-C port built-in MK39 II housing, and then connect the other end of USB-C charging cable to the adapter or to a device with an available USB-C port.
3. LED indicator near USB-C port will indcate battery charging status:

▪ When connect the power, red light / blue light on interchangeably. The system is determining intelligently it is under charging or reverse-charging;
▪ When battery voltage: 2.8v - 3.0v, red light flash on;
▪ When battery voltage: 3.0v - 4.2v, red light constant on;
▪ When battery fully charged, Red light stop and blue light constant on.

4. After fully charge, please take out USB-C cable, and then push downforward USB dust cover to hidden USB-C port.




Powerbank Function
1. Install battery correctly and tightened the tailcap.
2. Push upforward USB cover, plug USB-C socket of charging cable into USB-C port built-in MK39 II housing, and connect another USB-C socket to the electronic device such as cellphone which need to be charged.
3. LED Indicator near USB-C port will indciate the power status:

When connect the power, red light / blue light on interchnageably.The system is determining intelligently it is under charging or reverse-charging.
If battery have power, LED indicator will show constant-on blue light.
If battery is out of power, LED indicator will turn off and also stop reverse-charging.




Battery Power Indicator
If you press the center button in unlock status, light indicator under the button will change different light colors to indicate remaining battery voltage:

▪ Battery voltage > 3.4v, blue light on and last 10s
▪ Battery voltage 3.2v - 3.4v, purple light on and last 10s;
▪ Battery voltage 3.0v - 3.2v, red light constant on;
▪ Battery voltage 2.8v - 3.0v, red light flash on;
▪ Battery voltage < 2.8v, flashlight turn off automatically.

#Good habit# When the power indicator show constant-on red light, it is time for you to recharge the battery.




Technical Data
In spotlight mode
Light level / Output / Runtime / Max. light intensity / Max. beam distance
Moonlight L1: 1 lumen, 42 days, -
Moonlight L2: 1.5 lumens, 40 days, -
Moonlight L3: 4.5 lumens, 26 days, -
Low level: 420 lumens, 23 hours 40 minutes, 22128cd, 298meters
Medium level 1: 900 lumens, 12 hours 30 minutes, 44880cd, 420meters
Medium level 2: 1,600 lumens, 7 hours 30 minutes, 88208cd, 594meters
Medium level 3: 2,300 lumens, 15 minutes + 5 hours 20 minutes, 12990cd, 720meters
High level: 3,600 lumens, 4 minutes 30 seconds + 5 hours 30 minutes, 206240cd, 916meters
Turbo: 6,500 lumens, 1minutes 30 seconds + 5 hours 20 minutes, 305000cd, 1104meters
Strobe: 3,600 lumens, -, -
SOS: 3,600 lumens, -, -
Beacon: 3,600 lumens, -, -
Drop resistant: 1m
Waterproof standard IPX-7

In floodlight mode
Light level / Output / Runtime / Max. light intensity / Max. beam distance
Moonlight L1: 1 lumen, 42 days, -
Moonlight L2: 2 lumens, 40 days, -
Moonlight L3: 4 lumens, 26 days, -
Low level: 1100 lumens, 13 hours 50 minutes, -, -
Medium level 1: 2200 lumens, 8 hours 20 minutes, -, -
Medium level 2: 4500 lumens, 4 hours 40 minutes, -, -
Medium level 3: 6800 lumens, 12 minutes 30 seconds + 4 hours 30 minutes, -, -
High level: 10500 lumens, 5 minutes + 4 hours 40 minutes, 15568cd, 250meters
Turbo: 20000 lumens, 2minutes 30 seconds + 4 hours 30 minutes, 23728cd, 308meters
Strobe: 10500 lumens, -, -
SOS: 10500 lumens, -, -
Beacon: 10500 lumens, -, -
Drop resistant: 1m
Waterproof standard IPX-7

In Combo mode(Both spotlight and floodlight ON)
Light level / Output / Runtime / Max. light intensity / Max. beam distance
Moonlight L1: 2 lumen, 41 days, -
Moonlight L2: 3.5 lumens, 36 days, -
Moonlight L3: 8.5 lumens, 19 days, -
Low level: 1500 lumens, 8 hours 55 minutes, 22500cd, 300meters
Medium level 1: 3000 lumens, 6 hours 15 minutes, 45000cd, 420meters
Medium level 2: 6000 lumens, 4 hours, 90000cd, 500meters
Medium level 3: 9000 lumens, 4 minutes + 4 hours 40 minutes, 129600cd, 720meters
High level: 13000 lumens, 1 minutes 30 seconds + 4 hours 30 minutes, 211600cd, 920meters
Turbo: 25000 lumens, 1minutes 30 seconds + 4 hours 10 minutes, 313600cd, 1120meters
Strobe: 13000 lumens, -, -
SOS: 13000 lumens, -, -
Beacon: 13000 lumens, -, -
Drop resistant: 1m
Waterproof standard IPX-7
