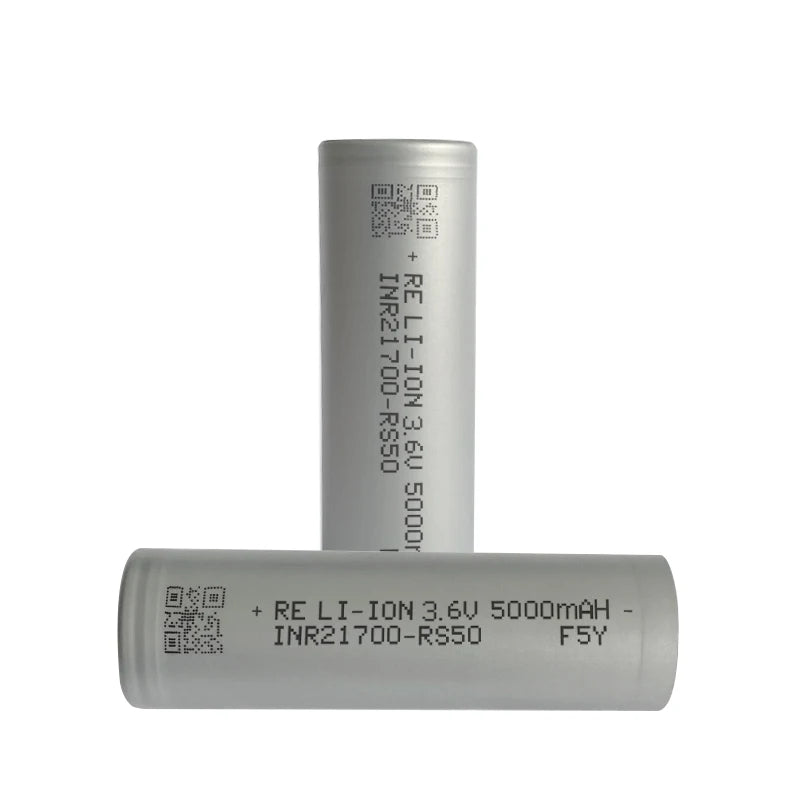

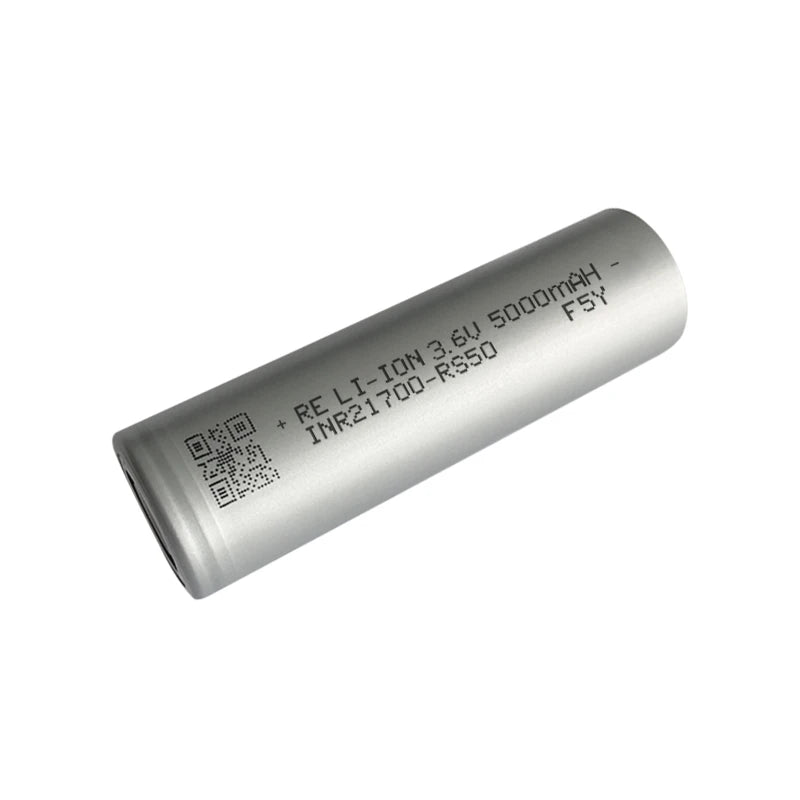

Reliance RS50 21700 5000mAh 70A High-Discharge Li-ion Battery
Couldn't load pickup availability
Share This:
The Reliance INR21700-RS50 is a high-performance rechargeable lithium-ion cell designed for applications requiring both high energy capacity and exceptional current delivery.
Featuring a 5000mAh typical capacity, 4950mAh minimum capacity, and a manufacturer-specified 70A maximum continuous discharge current with an 80°C temperature cutoff, the RS50 combines high energy density with impressive high-current performance in a standard 21700 format.
With low internal resistance and a compact flat-top design, the Reliance RS50 is suitable for compatible high-output flashlights, power tools, and professionally engineered battery systems.
Important: This is an unprotected flat-top 21700 lithium-ion cell without a built-in protection PCB/BMS.
5000mAh High Capacity
The Reliance RS50 delivers a typical capacity of 5000mAh and a minimum standard discharge capacity of 4950mAh.
With a nominal voltage of 3.6V, it provides approximately 18Wh of nominal energy, offering substantial energy storage for demanding applications.
The RS50 is designed to balance battery capacity with high-current performance, making it an attractive option for compatible equipment requiring both power and runtime.
Actual operating time depends on device power consumption, discharge current, temperature, and operating conditions.
70A Maximum Continuous Discharge with Thermal Cutoff
One of the key features of the Reliance RS50 is its manufacturer-specified maximum continuous discharge current of 70A, subject to an 80°C cell-temperature cutoff.
This high-current capability makes the RS50 suitable for demanding power applications where substantial current delivery is required.
Discharge Specifications
-
Maximum Continuous Discharge Current: 70A
-
Temperature Cutoff at 70A: 80°C
-
Standard Discharge Current: 1A
-
Discharge Cutoff Voltage: 2.50V
Important: The 70A specification includes an 80°C thermal cutoff. It does not guarantee that the battery can sustain 70A indefinitely or without appropriate temperature monitoring and cooling.
Actual sustained performance depends on cell temperature, cooling conditions, equipment design, and electrical load.
Low Internal Resistance

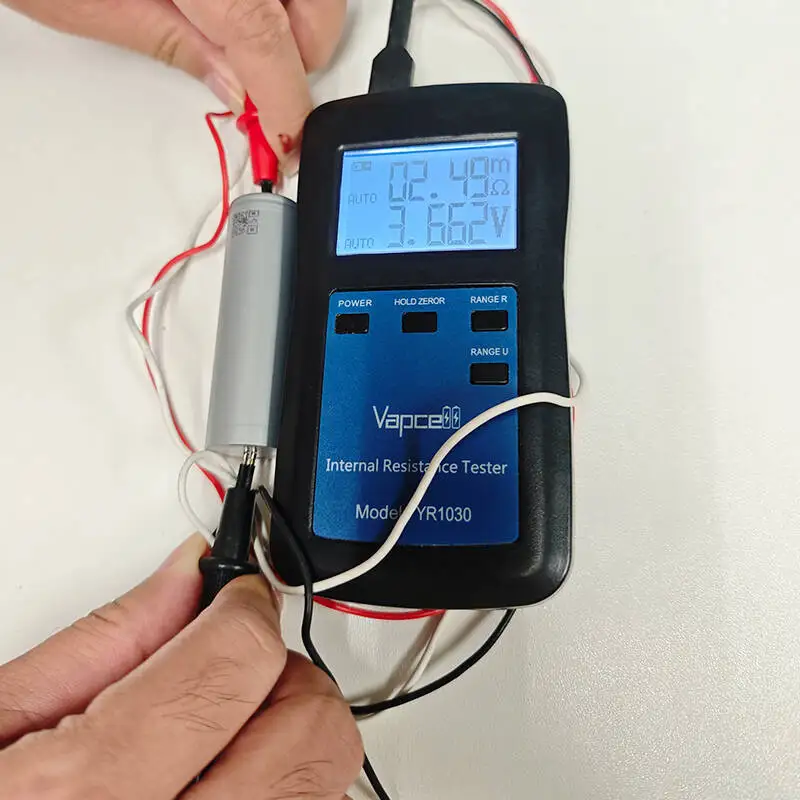

The Reliance RS50 features an initial AC internal resistance of 4.0mΩ or less, measured at 1kHz under manufacturer-specified conditions.
Low internal resistance helps reduce voltage drop under heavy loads and supports efficient high-current power delivery.
This makes the RS50 particularly suitable for compatible high-drain devices where electrical performance is important.

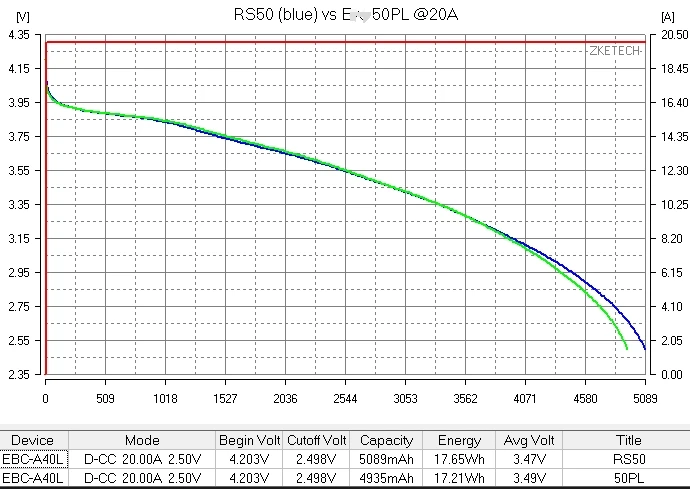

High-Rate Discharge Performance
The Reliance RS50 is designed to maintain useful discharge capacity across a wide range of current levels.
Its high-rate discharge characteristics make it suitable for applications requiring substantial power output.
As discharge current increases, available capacity and operating time may decrease due to voltage sag, heat generation, and temperature-related cutoff conditions.
For reliable operation, always use the cell within the manufacturer's specified voltage, current, and temperature limits.
Fast-Charging Capability
The RS50 supports constant-current/constant-voltage (CC/CV) lithium-ion charging.
According to the manufacturer's specifications:
-
Standard Charging Current: 2.5A
-
Rate Charging Current: 8A
-
Maximum Continuous Charging Current: 15A
-
End-of-Charge Voltage: 4.20V
Higher charging currents require suitable charging equipment, appropriate temperature control, and compliance with the manufacturer's specified conditions.
For everyday charging, the standard 2.5A charging current is a practical reference.
Unprotected Flat-Top Design
The Reliance INR21700-RS50 is an unprotected flat-top lithium-ion cell.
It does not include a built-in electronic protection PCB or BMS.
The battery must be used only in compatible equipment with appropriate voltage, current, and temperature protection.
Before purchasing, confirm that your device supports:
-
21700 lithium-ion batteries
-
Flat-top positive terminals
-
Unprotected battery cells
-
3.6V nominal lithium-ion voltage
-
The cell's physical dimensions
-
The battery's electrical and discharge characteristics
Not all flashlights designed for 21700 batteries are compatible with unprotected flat-top cells.
Compact 21700 Battery Format
The RS50 uses a cylindrical 21700 design, providing substantial capacity and high-current capability in a compact format.
According to the A1-3 manufacturer specification:
-
Maximum Diameter: 21.25mm
-
Maximum Height: 70.35mm
-
Maximum Weight: 67g
Please check the battery compartment dimensions before purchasing.
Key Features
-
5000mAh typical capacity
-
4950mAh minimum capacity
-
3.6V nominal voltage
-
Approximately 18Wh nominal energy
-
70A maximum continuous discharge with 80°C temperature cutoff
-
Low AC internal resistance of ≤4.0mΩ
-
Standard 2.5A charging current
-
8A rate-charging capability
-
Maximum continuous charging current of 15A under specified conditions
-
Flat-top positive terminal
-
Unprotected design without PCB/BMS
-
Standard 21700 cylindrical format
-
Designed for compatible high-drain applications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Reliance |
| Manufacturer | Jiangsu Reliance Energy Tech. Co., Ltd. |
| Model | INR21700-RS50 |
| Battery Chemistry | Rechargeable Lithium-Ion |
| Battery Size | 21700 |
| Typical Capacity | 5000mAh |
| Minimum Capacity | 4950mAh |
| Nominal Voltage | 3.6V |
| Nominal Energy | Approx. 18Wh |
| End-of-Charge Voltage | 4.20V |
| Discharge Cutoff Voltage | 2.50V |
| Standard Charging Current | 2.5A |
| Rate Charging Current | 8A |
| Maximum Continuous Charging Current | 15A |
| Standard Discharge Current | 1A |
| Maximum Continuous Discharge Current | 70A, with 80°C temperature cutoff |
| AC Internal Resistance | ≤4.0mΩ (1kHz) |
| Maximum Diameter | 21.25mm |
| Maximum Height | 70.35mm |
| Maximum Weight | 67g |
| Ambient Charging Temperature | -20°C to 45°C |
| Ambient Discharging Temperature | -40°C to 60°C |
| Positive Terminal | Flat Top |
| Protection Circuit | No – Unprotected |
Technical specifications are based on the Reliance INR21700-RS50 A1-3 manufacturer specification. Actual performance depends on charging conditions, discharge current, cell temperature, and device compatibility.
Important Battery Safety Information
WARNING: UNPROTECTED HIGH-DISCHARGE LITHIUM-ION CELL
The Reliance RS50 does not include a built-in electronic protection circuit. Improper handling, charging, or operation may cause overheating, fire, or serious injury.
-
Use only in equipment specifically compatible with unprotected 21700 lithium-ion cells.
-
Ensure the device or battery system provides appropriate overcharge, over-discharge, overcurrent, and temperature protection.
-
Use a suitable lithium-ion charger with CC/CV charging control.
-
Never short-circuit the positive and negative terminals.
-
Do not exceed the manufacturer's voltage, current, or temperature limits.
-
Never use damaged, dented, leaking, or improperly insulated cells.
-
Do not carry loose batteries with coins, keys, or other conductive objects.
-
Store and transport individual cells in protective battery cases.
-
Do not mix different battery models, ages, or charge levels in multi-cell devices.
-
Battery pack assembly should be performed only by qualified personnel using appropriate protection circuitry.
-
Keep batteries away from children.
Package Contents
-
1 × Reliance INR21700-RS50 5000mAh Unprotected Li-ion Battery
Charger and accessories are not included unless otherwise specified.
High Capacity Meets High-Current Performance
The Reliance RS50 21700 5000mAh Battery combines substantial energy capacity, low internal resistance, and manufacturer-specified high-current discharge capability.
With a 70A maximum continuous discharge rating subject to an 80°C temperature cutoff, it is designed for compatible high-performance flashlights and other demanding power applications.
Please verify device compatibility before ordering. This is an unprotected flat-top lithium-ion cell without a built-in PCB
