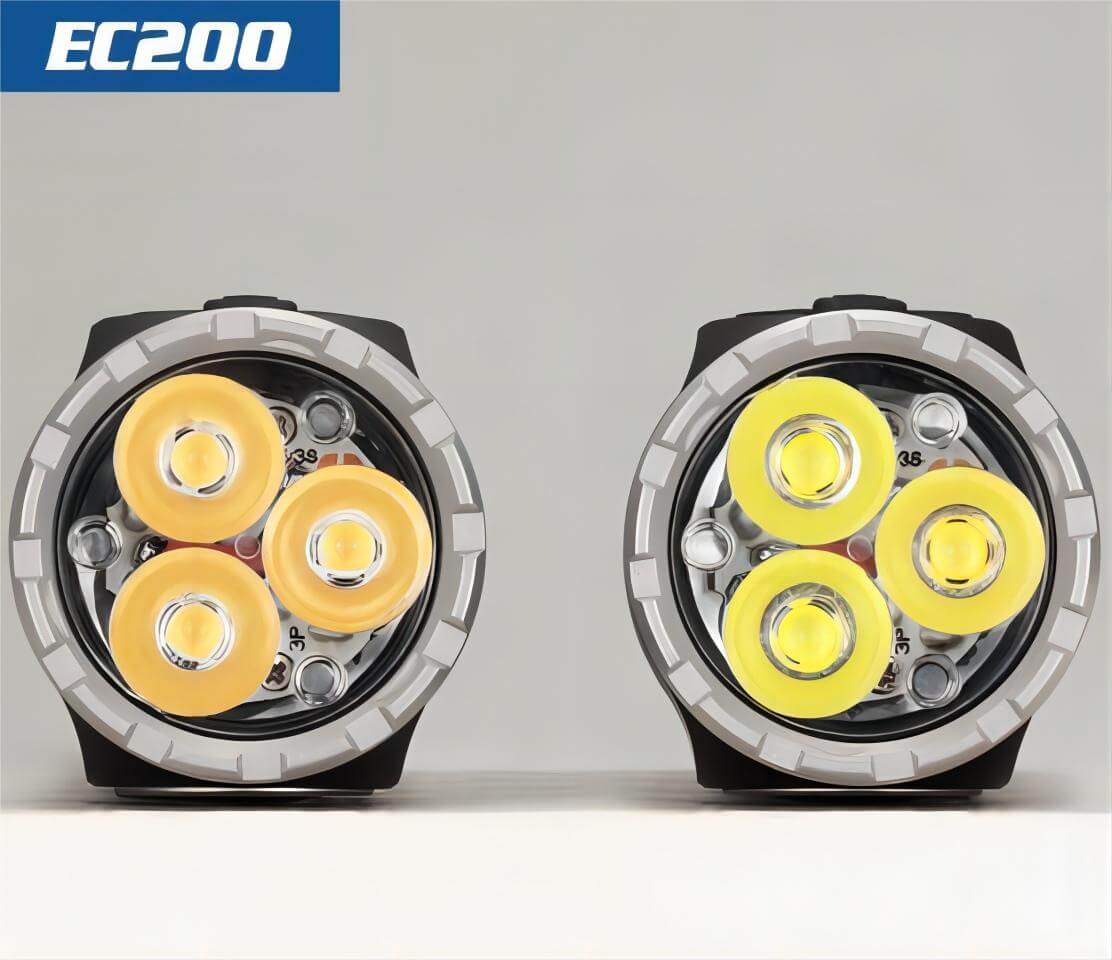

Introducing the EC200 series, a lineup of compact and versatile flashlights designed to meet a variety of lighting needs. With their convenient USB-C charging capability and durable construction, these flashlights are perfect for everyday carry, outdoor adventures, camping trips, and home use. The EC200 series features advanced LED technology, including 3 x CREE XP-G4 Cool White LEDs and 3 x Nichia 519A Neutral White High CRI LEDs. This combination provides a powerful and efficient lighting solution for any situation.

With a maximum output of 2250 lumens for the Cool White LEDs and 1550 lumens for the Neutral White LEDs, the EC200 series delivers ultra-bright illumination to light up your surroundings. Whether you're exploring the wilderness or working on a project at home, these flashlights have you covered.

Say goodbye to disposable batteries with the USB-C charging port. Simply connect the included USB-C charging cable to any compatible USB power source, and recharge your EC200 flashlight quickly and efficiently.

Operating the EC200 flashlight is easy thanks to its intuitive user interface. With simple button presses and holds, you can adjust the brightness level and access different lighting modes to suit your needs.

Prevent accidental activation of the flashlight with the lock-out function. By quickly clicking the switch four times, you can enter lockout mode, ensuring that the flashlight remains off when not in use. The location indicator also helps you easily locate the flashlight in the dark.

Never be caught off guard by a depleted battery with the low voltage indicator. When the battery voltage drops below a certain threshold, the indicator will alert you with flashing lights, allowing you to recharge or replace the battery as needed.

Constructed from rugged and indestructible aluminum with anti-scratching Type III hard anodization, the EC200 flashlights are built to withstand the rigors of outdoor use. Their multi-level dissipating heat design and copper starboard ensure excellent heat dissipation, preventing overheating during prolonged use.

The EC200 flashlights are equipped with several safety features to ensure a secure and reliable lighting experience. These include reverse polarity protection to prevent damage from improper battery installation and intelligent temperature control technology for stable and safe operation.

Included with the EC200 flashlights are various accessories to enhance their functionality and convenience, including a USB-C charging cable, clip, lanyard, spare O-rings, and a user manual. The magnetic tail stand and double-sided pocket clip provide additional versatility for hands-free use and carrying options.

The EC200 series flashlights are more than just lighting devices; they're reliable tools that illuminate your adventures and everyday tasks with precision and efficiency. Whether you're exploring the great outdoors or working on projects at home, trust the EC200 series to provide the illumination you need, when you need it.

LED: 3 x CREE XP-G4,  Cool White 6500K

3 x  Nichia 519A Neutral White High CRI R9080 4500K

Max output: CREE Cool White ANSI 2250 Lumens, Nichia High CRI 4500K ANSI 1550 Lumens

Quiescent Current (μA) : 55
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×18650
Rated range: 2.7-4.2V, (Recommended 18650 battery that max discharge current ≥8A)
Dimension: L102.0 mm / 4.02″, Head diameter 25.0mm / 0.98 “.
Weight: 48.5g / 1.71 oz (Excluded battery)
Accessories: USB-C Charging Cable, Clip, Lanyard, Spare O-rings, User manual.

How to use

1. ON/OFF
Press the button once to turn the light on and off. When the light is turned off, it will memorized current brightness level or mode.

2. CHANGE BRIGHTNESS LEVEL
Note: C = Click (press and release quickly), H = Hold (press and hold)

From OFF:
H: Hold the button for 0.5 seconds to enter into (L1/L2).
1C: Activates

(H-M1-M2).
2C: Activates (T1/T2).
3C: Activates (S1/S2/S3).
4C: Activates (This stops the light from turning on accidentally).



From ON

, ,
Press and hold the switch to automatically cycle, the level is selected when the side switch has been released, turn off memorized.
From

2C: Enter into , repeat operation to returns to

.
3C: Enter into , repeat operation to returns to

.
1C&H: Enter into , repeat operation to returns to

.
From
2C: Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.



3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the light is off, quickly click the switch 4 times to enter the button lockout mode (location indicator activation at same time,the indicator light flash every 2 seconds.
Double clicks to turn on/off the indicator light). Quickly click the switch 4 times,the button unlock and activate Low mode.

4. LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds.
When the battery voltage drops below 2.7V, the light will turn off.

Charging
Connect the USB charging cable to an external USB power source, then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 10W (5V 2A) )
The red indicator means charging, when the battery charging completed, change to blue indicator.

NOTE:

Rechargeable function only for one 18650 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging may damage the battery.

Power indicator
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
Constant Blue Indicator: 100%~80% ,
Blinks Blue Indicator: 80%~50% ,
Constant Red Indicator: 50%~20% ,
Blinks Red Indicator: 20%~0.

Battery installation

Please make sure that the positive pole of the battery points to the head of the flashlight
when you replace the battery.

Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head
on the ground. The radiation energy of the flashlight may cause damage to the flashlight
itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is
high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.

Features:

– A 2250 Lumens powerful EDC 18650 flashlight.
– Universal USB-C charging port.
– Customized user interface,Programmable variety of brightness
– Three white LEDs wide flood illumination and ultra-bright output.
– Ultra efficiency circuit design.
– TIR Lens, soft and balanced beam.
– Two-colors indicator of real-time battery power
– Rugged indestructible aluminum body with anti-scratching type III hard anodization
– Multi-level dissipating heat design and copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
– Side switch button to transferring mode, user-friendly interface to adjust output.
– High efficiency driver circuit, no visible flash in any mode.
– Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
– Intelligent temperature control technology for flashlight stable and safe use.
– Reverse polarity protection, to protect from improper battery installation.
– Lock-out function. Avoids light turn on by unexpected.
– Location indicator help easy to find the light in dark.
-Magnetic tail stand
-Double sides pocket clip
