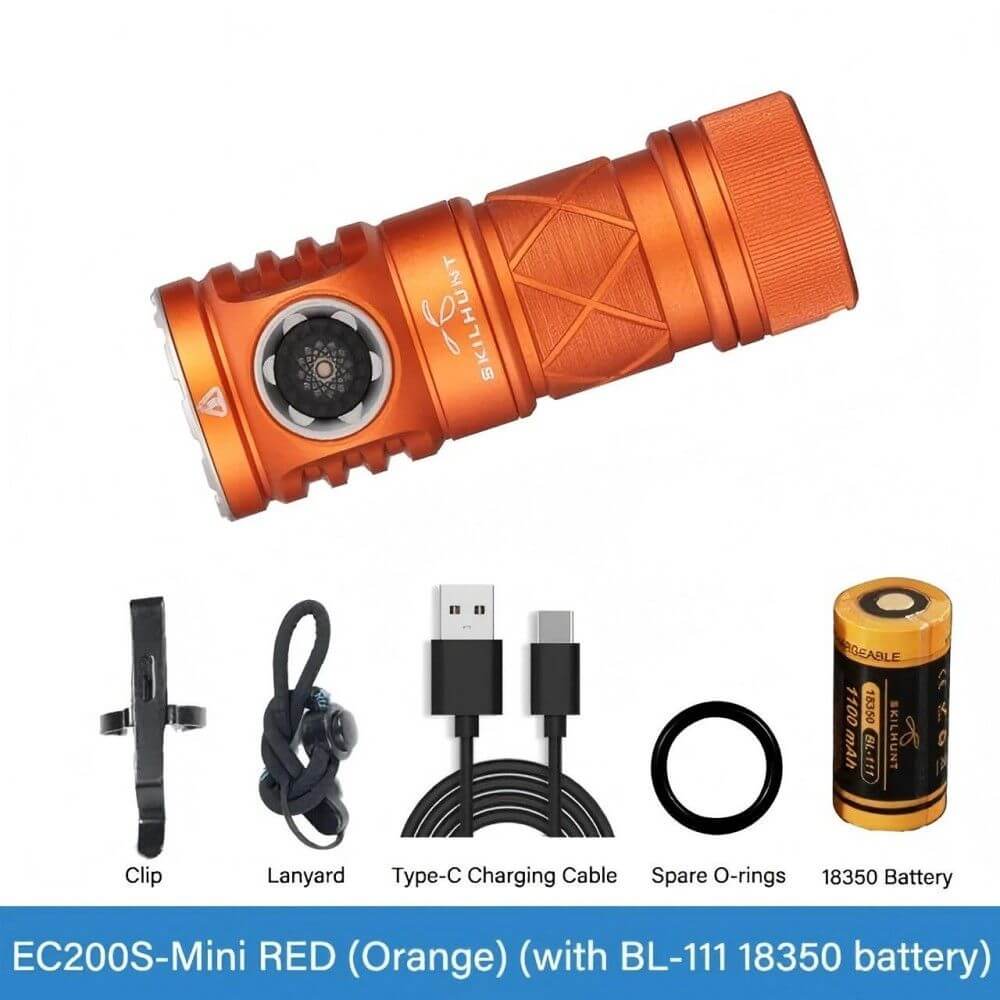

Skilhunt EC200S-Mini RED 2100 lumens EDC Flashlight

In stock
SKU: Black-Cool White-With BL-111 Battery
Regular price $59.99
Color
LED color
Battery

EC200S-Mini RED 2100 lumens White and Red beam USB-C Rechargeable Powerful EDC flashlight
EC200S is a portable and compact multifunctional light with convenient USB-C charging function. Providing powerful white and color light, suitable for various outdoor activities, running, camping, travel, and daily EDC needs as an ideal companion.

LED:
2 x CREE XP-G4 Cool White 6500K + 1 x XPE-2 RED 620-630 nm
2 x  Nichia 519A Neutral White High CRI R9080 4500K + 1 x XPE-2 RED 620-630 nm

Max output:
CREE Cool White ANSI 2100 Lumens +  Red 320 Lumens
Nichia Neutral White 4500K ANSI 1400 Lumens  +  Red 320 Lumens

Quiescent Current (μA) : 55
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×18350
Rated range: 2.7-4.2V, (Recommended 18350 battery that max discharge current ≥8A)
Dimension: L71.0mm / 2.80″, Head diameter 25.0mm / 0.98 “.
Weight: 42.5 g / 1.50 oz (Excluded battery)
Accessories: USB-C Charging Cable, Clip, Lanyard, Spare O-rings, User manual.

How to use
1. ON/OFF
Press the button once to turn the light on and off. When the light is turned off, it will memorized current brightness level or mode.
2. CHANGE BRIGHTNESS LEVEL
Note: C = Click (press and release quickly), H = Hold (press and hold)
From OFF:
1C: Activates

(H-M1-M2).
2C: Activates (T1/T2).
3C: Activates (S1/S2/S3).
4C: Activates (This stops the light from turning on accidentally).
H(0.5S): Hold the button for 0.5 seconds to enter into (L1/L2).
H(2S): Hold the button for 2 seconds to enter into (R1/R2/R3/R4).
1C&H:Activates (R1/R2/R3/R4).
From ON
, , ,
Press and hold the switch to automatically cycle, the level is selected when the side switch has been released, turn off memorized.
From

2C: Enter into , repeat operation to returns to
.
3C: Enter into , repeat operation to returns to
.
1C&H: Enter into , repeat operation to returns to
.
2C&H: Enter into , repeat operation to returns to
.
From ,
2C: Quickly double clicks switch tranfer S1-S2-S3 / RS1-RS2-RS3, turn off memorized.
From
2C&H: R4 to L1/L2 , repeat operation to returns to .
2C&H: R3/R2/R1 to M2/M1/H
, repeat operation to returns to .
3C: Enter into , repeat operation to returns to .
3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click switch 4 times to access the button lockout mode
(location indicator activation at same time,the indicator light flash every 2 seconds.
Double clicks can turn on/off the indicator). Quickly click switch 4 times,the button unlock and activate Low mode.
4. LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds,the light fast flash every 2 Minute at same time.
When the battery voltage drops below 2.7V, the light will turn off.
Charging
Connect the USB charging cable to an external USB power source, then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 10W (5V 2A) )
The red indicator means charging, when the battery charging completed, change to blue indicator.

NOTE:
Rechargeable function only for one 18350 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging may damage the battery.
Power indicator
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
Constant Blue Indicator: 100%~80% ,
Blinks Blue Indicator: 80%~50% ,
Constant Red Indicator: 50%~20% ,
Blinks Red Indicator: 20%~0.
Battery installation
Please make sure that the positive pole of the battery points to the head of the flashlight
when you replace the battery.

Caution:

Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head
on the ground. The radiation energy of the flashlight may cause damage to the flashlight
itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is
high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.

Features:
– A (white beam 2100+ red beam 320) lumens Dual Channel powerful EDC 18350 flashlight.
– Universal USB-C charging port.
– Customized user interface,Programmable variety of brightness
– High brightness white beam plus red beam.
– Ultra efficiency circuit design.
– TIR Lens, soft and balanced beam.
– Two-colors indicator of real-time battery power
– Rugged indestructible aluminum body with anti-scratching type III hard anodization
– Multi-level dissipating heat design and copper starboard, excellent heat dissi
