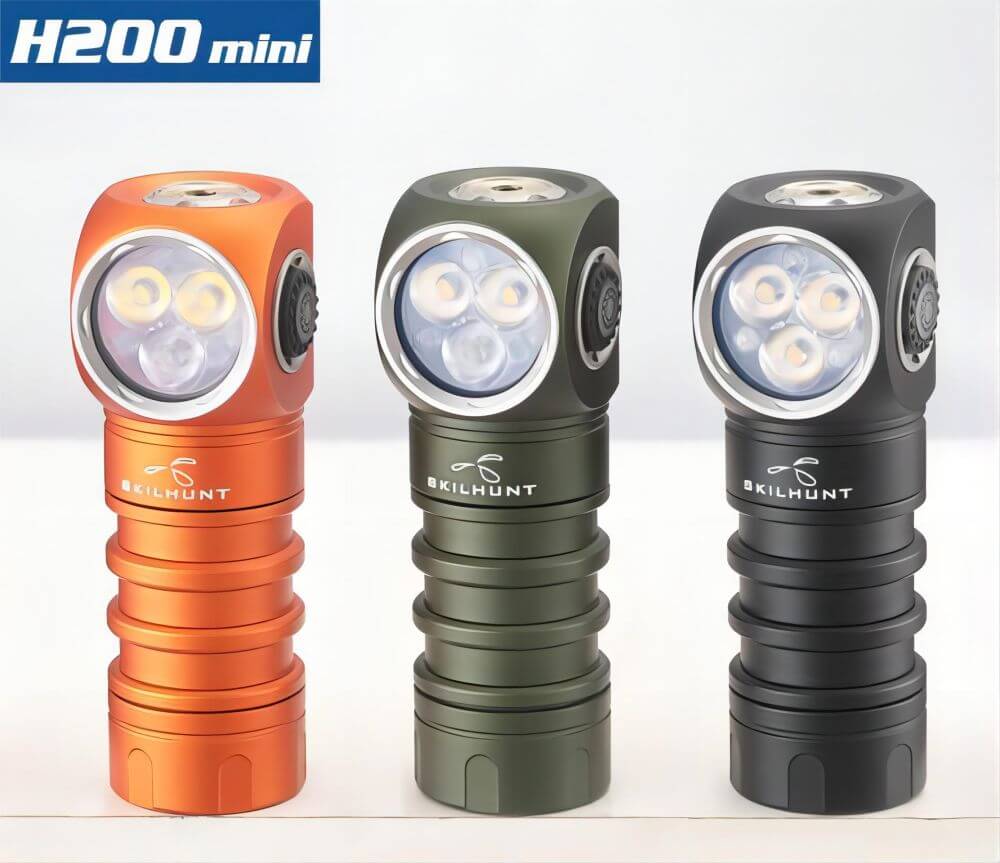

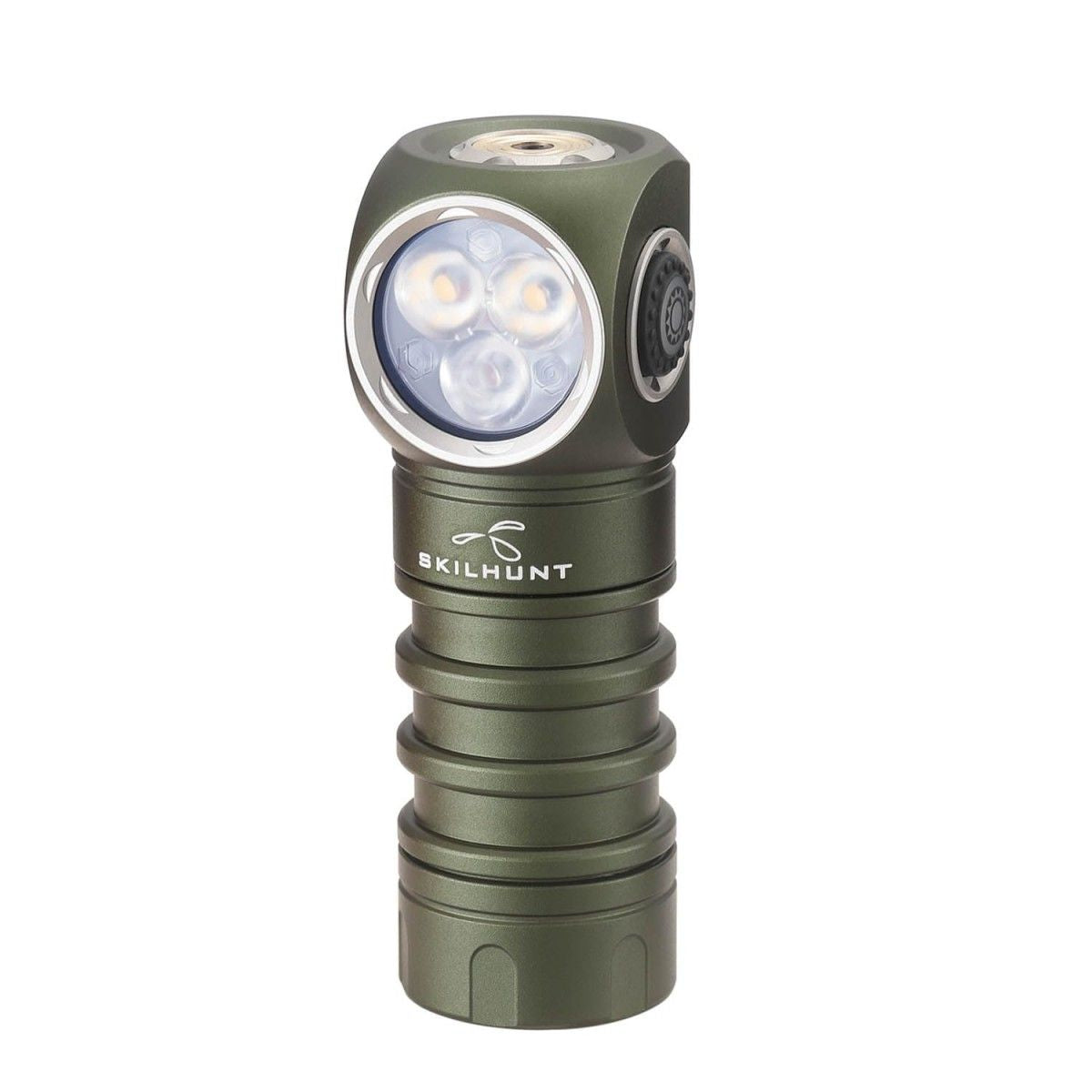

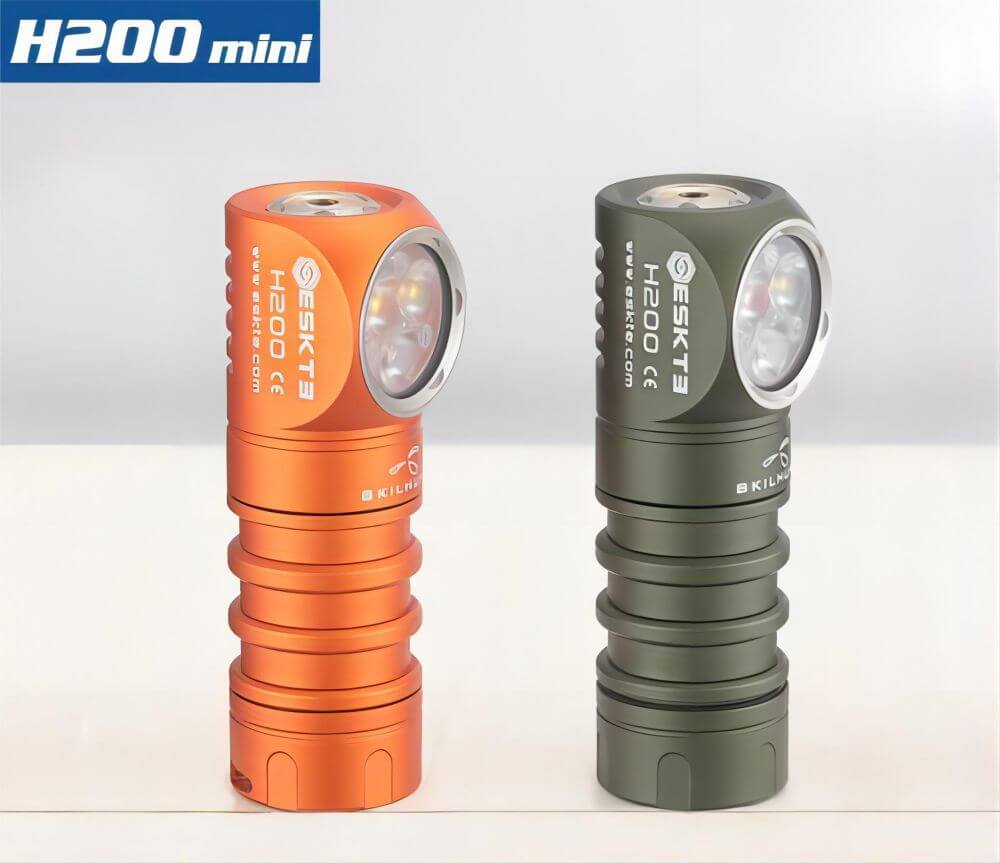

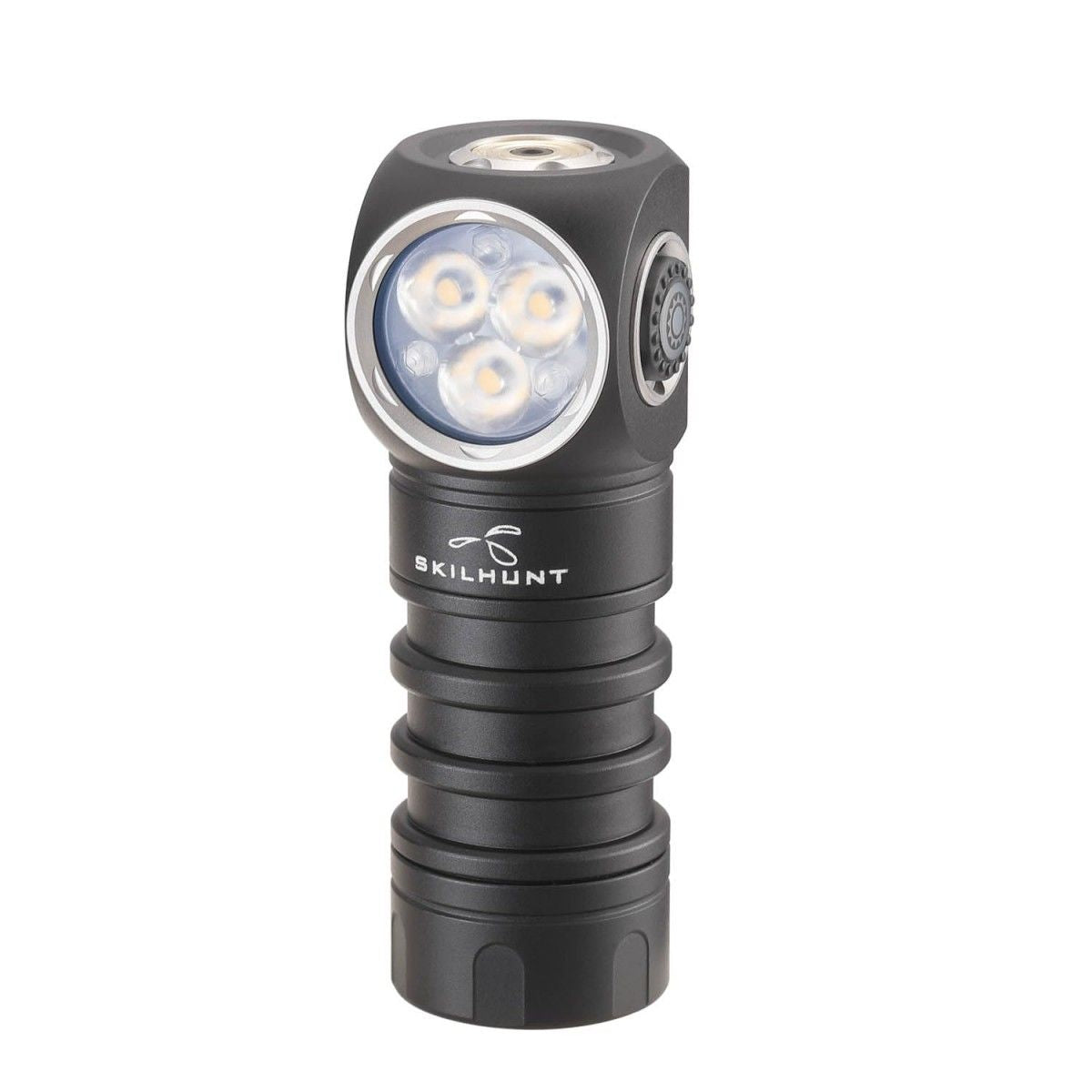

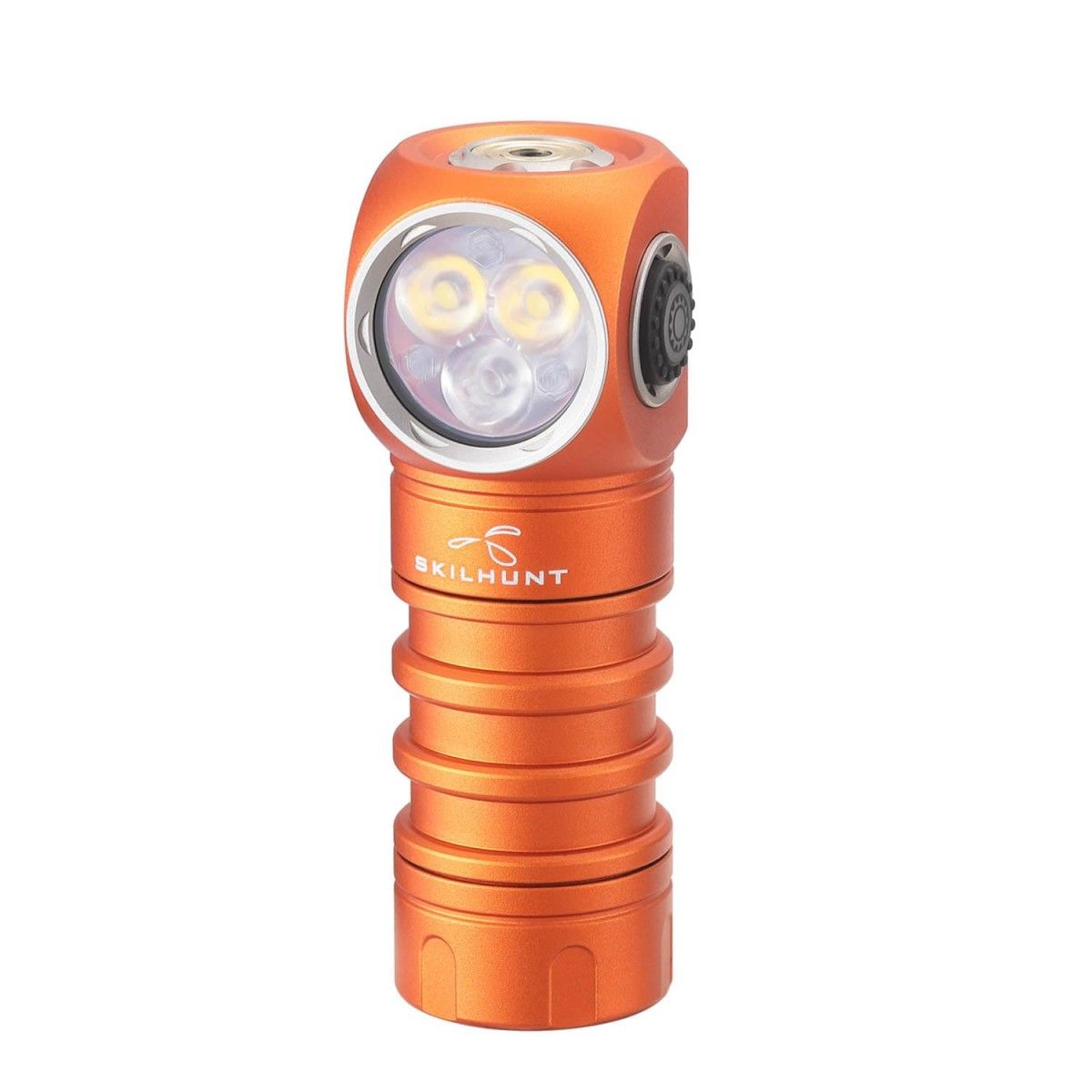

Skilhunt H200 Mini LED Headlamp

In stock
SKU: Cree CW 6500K-Black-without
Regular price $58.99
Battery Option

The Skilhunt H200 Mini LED Headlamp is a compact and versatile lighting solution designed for outdoor enthusiasts, adventurers, and professionals who require a reliable source of illumination in various scenarios. With its advanced features, multiple light sources, and user-friendly interface, the H200 mini ensures optimal performance and convenience.

At the heart of the H200 mini is the powerful LED, available in three variants: CREE XP-G4 with a cool white output of 6500K, Nichia 519A High CRI R9080 with a warm white output of 4500K, and another warm white variant with a 3000K output. The maximum output varies between the LED models, with the CREE Cool White reaching an impressive 1600 lumens, the Nichia High CRI at 1100 lumens, and the 3000K variant at 1000 lumens. This flexibility allows users to choose the lighting option that best suits their needs, whether it be for visibility, color accuracy, or preserving night vision.

The H200 mini offers a variety of operating modes, including four brightness levels, strobe, and SOS modes. This versatility caters to a wide range of lighting scenarios, making it suitable for camping, hiking, emergency situations, and more. The flashlight's IPX-8 waterproof rating ensures its functionality even in wet conditions, and it can withstand impacts from a height of 1 meter, adding to its robust and durable design.

Powered by a single 18350 battery, the H200 mini operates within a recommended voltage range of 2.7V to 4.2V, supporting 18350 batteries with a maximum discharge current of ≥ 8A. The compact dimensions of the headlamp, measuring L72.7mm and with a head diameter of 23.5mm, contribute to its portability, while the weight of 44g (excluding the battery) makes it easy to carry.

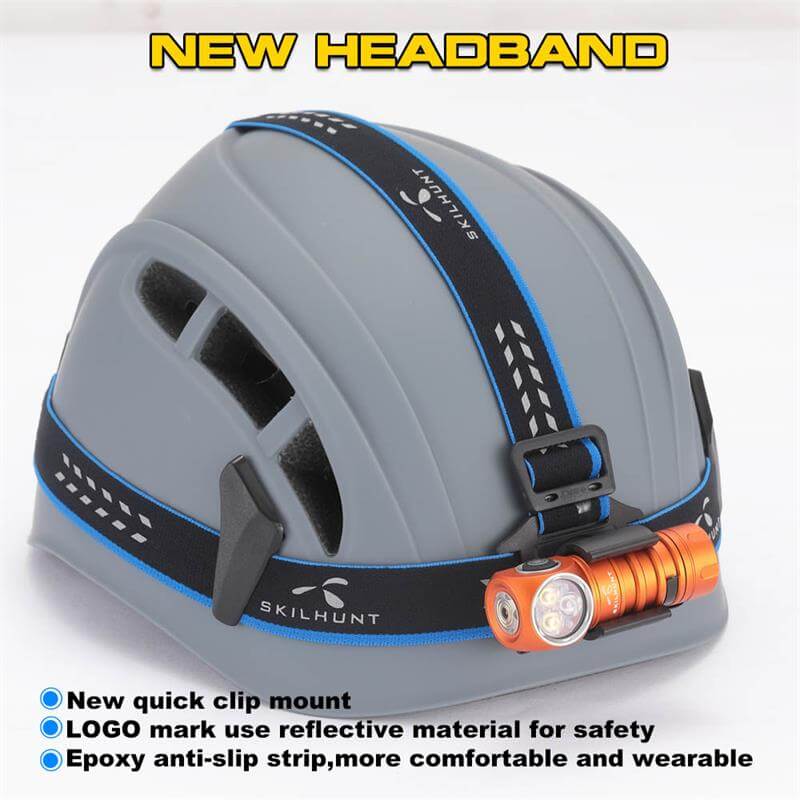

The flashlight includes a range of accessories such as a user manual, spare O-rings, lanyard, clip, headband, and a magnetic charging cable. The magnetic charging system offers fast and convenient charging, eliminating the need for external charging devices. The H200's operation is facilitated by a user-friendly interface, featuring a side switch for mode adjustment and a tail switch for power control.

The headlamp's operation is detailed in the manual, covering aspects such as battery installation, mode selection, lock-out function, low voltage indicator, and charging instructions. Notably, the lock-out function helps prevent accidental activation of the flashlight, and a location indicator provides visibility in the dark when the light is locked.

Key features of the H200 mini include its super-bright LED with a maximum output of 1600 lumens, dual white light sources for versatility, a built-in magnetic charging system for convenience, and a rugged aluminum body with anti-scratch hard anodization. The flashlight incorporates a multi-level dissipating heat design and a new copper starboard for excellent heat dissipation, ensuring stable performance even during extended use.

Intelligent temperature control technology further enhances the flashlight's safety and stability. The H200 mini features reverse polarity protection to prevent damage from improper battery installation. The flashlight also includes a magnetic tail, providing additional functionality in various situations, such as using it as candlelight.

In conclusion, the Skilhunt H200 Mini LED Headlamp is a feature-rich and reliable lighting tool designed to meet the diverse needs of outdoor enthusiasts and professionals. With its compact design, powerful LED options, and advanced features, the H200 Mini offers a dependable source of light in various scenarios, making it a valuable companion for those who venture into the great outdoors or encounter unexpected situations.

LED: CREE XP-G4 6500K /  Nichia 519A High CRI R9080 4500K / 3000K
Max output: CREE Cool White ANSI 1600 Lumens,  Nichia High CRI 4500K ANSI 1100 Lumens, 3000K ANSI 1000 Lumens
Max runtime: /
Quiescent Current : 60μA
Max beam distance:
141m (XP-G4 ) / 93m (NVSW519AT 4500K) / 89m (NVSW519AT 3000K) / 56m (Red 1)
Max peak beam intensity:
5000cd (XP-G4) / 2200cd(NVSW519AT 4500K) / 2000cd(NVSW519AT 3000K) / 800cd (Red 1)
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×18350
Rated Range: 2.7V ~ 4.2V (Recommended 18350 battery that max discharge current ≥ 8A
Dimension: L72.7mm / 2.86″, Head diameter 23.5mm / 0.93 “.
Weight: 44 g / 1.55 oz (without battery)
Accessories: User manual,Spare O-rings,Lanyard,Clip, Headband, Magnetic Charging Cable .

1,Battery installation & Replace magnet:

Insert the battery positive pole toward the light head.,otherwise it will not work. When the light turning on,the beam is directed away from the eyes.When take the light with Bankcards(magnetic) or cellphone, should replaced Magnet with rubber pad.

Single click the side switch to turn the light on/off. When the light is turned off,
it will memorized current brightness level or mode.
When the flashlight was OFF status:
Single click switch to

Hold press switch 0.5 second to <Low/Red Group>(L2/WR,R1/R2).
Quickly double clicks switch to <Turbo Group> (T1/T2).
Quickly triple-click switch to <Strobe Group> (S1/S2/S3).
When the flashlight was ON <Main Group>, <Turbo Group>, <Low/Red Group>
Press and hold the switch to automatically cycle, the level is selected when the side
switch has been released, turn off memorized.
When the flashlight was ON <Main Group>
Quickly double clicks switch tranfer <Turbo Group>, repeat quickly double clicks switch
back to <Main Group>.
Quickly triple clicks switch transfer <Strobe Group>, repeat quickly triple clicks switch
back to <Main Group>.
Quickly click and hold switch tranfer <Low/Red Group>, repeat quickly click and hold
switch back to <Main Group>.
When the flashlight was ON <Strobe Group>
Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.
When the flashlight is off , quickly click switch 4 times to access the button lockout
mode (location indicator activation at same time,the indicator light flash every second.
Double clicks can turn on/off the indicator). Quickly click switch 4 times,the button
unlock and activate Low mode.
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds,
the light fast flash every 2 Minute at same time.
When the battery voltage drops below 2.7V, the light will turn off.

5. Charging instructions and notices:
Connect the magnetic charging cable to an external USB power source,
then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 10W (5V 2A) )
The red indicator means charging, when the battery charging completed,
change to blue indicator.
Rechargeable function only for one 18650 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging will damage the charging circuit.

1.Super bright & latest  LED, Max 1600 lumens. High-Performance, High-Efficiency and energy conservation.
2.With dual white light sources for versatility and a red light source for night vision preservation.
3.Built-in magnetic charging system, fast charge and convenient.
4.Rugged indestructible aluminum body with anti-scratching type III hard anodization
5.Multi-level dissipating heat designand new copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
6.Side switch button to transferring mode user-friendly interface to adjust output.
7.Wide input range provides more choices of batteries. High efficiency driver circuit, no visible flash in any mode.
8.Automatic memory function, remember last used setting and can be preset to specific output mode for instant access.
9.Intelligent temperature control technology for flashlight stable and safe use.
10.Reverse polarity protection, to protect from improper battery installation.
11.When turn off, hold press button to activate lockout function. Avoid light turn on by unexpected.
12.When light lockout, location indicator will flash, easy get the light in dark.
13.Magnetic tail, can be used in many special occasions, use as candlelight, etc.
14. Waterproof to IPX-8
