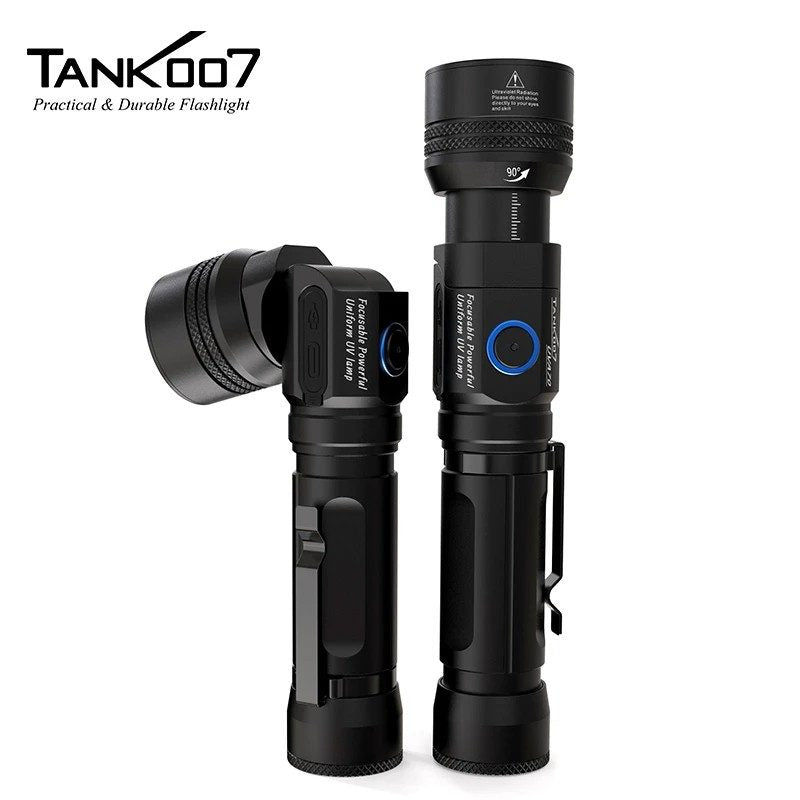

TANK007 UVA70 365nm UV Flashlight 346mW/cm² Professional NDT

In stock
SKU: UVA70
Regular price $178.99

The TANK007 UVA70 is a professional-grade 365nm ultraviolet flashlight designed for industrial non-destructive testing (NDT), forensic investigation, leak detection, and specialized fluorescence inspection.

Featuring a high-power 365nm UV light source, the UVA70 delivers an impressive irradiance of 346mW/cm² at 15cm, providing powerful ultraviolet illumination for demanding inspection applications.

Its adjustable-focus optical system allows users to switch between close-range uniform UV illumination and concentrated long-range UV output. The innovative 105° swivel head provides exceptional positioning flexibility, making it easier to inspect hard-to-reach areas inside equipment, cabinets, machinery, and pipelines.

Powered by a rechargeable 21700 Li-ion battery, the UVA70 combines professional UV performance with a practical hands-free design, IP67 protection, and a removable magnetic tailcap.

High-Power 365nm UV Output

The UVA70 uses a dedicated 365nm UVA light source designed for professional fluorescence detection and industrial inspection.

With an irradiance of up to 346mW/cm² at 15cm, it provides strong UV illumination for identifying fluorescent responses and examining UV-reactive materials.

Unlike ordinary white-light flashlights, the UVA70 reveals fluorescent features that may not be visible under normal lighting.

Suitable applications include:

  • Industrial non-destructive testing (NDT)

  • Fluorescent penetrant inspection

  • Oil and gas leak detection

  • Forensic examination

  • UV-reactive material inspection

  • Fluorescence detection

  • Equipment and component inspection

Adjustable-Focus UV Optical System

The UVA70 features an adjustable-focus optical design that allows users to adapt the UV beam to different inspection requirements.

Close-Range Uniform UV Illumination

The wide illumination configuration provides more uniform UV coverage over an inspection area.

This is particularly useful for:

  • Fluorescent penetrant inspection

  • Surface examination

  • Industrial component inspection

  • Close-range fluorescence detection

Concentrated Long-Range UV Beam

The focused configuration concentrates ultraviolet illumination into a more intense beam.

This helps users inspect specific areas and detect UV-reactive materials at greater distances.

The adjustable optical system makes the UVA70 versatile for both detailed close-range inspection and longer-distance UV applications.

105° Large-Angle Swivel Head

One of the standout features of the UVA70 is its 105° adjustable swivel head.

Unlike conventional fixed-head UV flashlights, its rotating head allows users to direct UV illumination at different angles without repeatedly repositioning the entire flashlight.

This is particularly useful when inspecting:

  • Inside electrical cabinets

  • Machinery and equipment compartments

  • Overhead pipes

  • Industrial pipelines

  • Confined workspaces

  • Hard-to-reach surfaces

The flexible head design helps reduce unnecessary bending and repositioning during extended inspection work.

Powerful Magnetic Tailcap for Hands-Free Operation

The UVA70 features a removable magnetic tailcap designed for convenient hands-free operation.

The magnetic base attaches to suitable ferrous metal surfaces, allowing the flashlight to remain securely positioned while users work with both hands.

Combined with the adjustable swivel head, this provides greater flexibility when performing industrial inspections, maintenance, and equipment checks.

21700 Rechargeable Battery

The UVA70 is powered by a rechargeable 21700 Li-ion battery.

The high-capacity battery design provides extended operating time, with a manufacturer-listed maximum runtime of up to 6 hours.

This makes it suitable for extended inspection sessions and professional applications where dependable UV illumination is required.

Actual runtime depends on battery condition and operating mode.

Rugged Construction for Professional Applications

Designed for demanding industrial and outdoor environments, the UVA70 features a durable aluminum alloy body.

Its construction provides protection against dust, water exposure, and accidental impacts.

Key durability features include:

  • IP67 dust and water resistance

  • 1.5-meter drop resistance

  • Durable aluminum alloy housing

  • Adjustable swivel head

  • Removable magnetic tailcap

  • Ergonomic grip and portable design

These features make the UVA70 suitable for industrial maintenance, field inspections, and professional UV applications.

Key Features

  • Professional-grade 365nm UVA flashlight

  • High-power UV illumination

  • Irradiance: 346mW/cm² at 15cm

  • Adjustable-focus UV optical system

  • Uniform close-range UV illumination

  • Concentrated long-range UV beam

  • 105° adjustable swivel head

  • Removable magnetic tailcap

  • Hands-free magnetic mounting

  • Powered by 1 × 21700 rechargeable Li-ion battery

  • Maximum runtime: Up to 6 hours

  • IP67 dust and water resistance

  • 1.5-meter impact resistance

  • Durable aluminum alloy construction

  • Designed for industrial NDT and forensic inspection

Technical Specifications

Specification Details
Brand TANK007
Model UVA70
Product Type Professional UV Inspection Flashlight
UV Wavelength 365nm
UV Irradiance 346mW/cm² at 15cm
Optical System Adjustable-Focus
Beam Characteristics Uniform / Concentrated
Swivel Head 105°
Battery 1 × 21700 Li-ion
Maximum Runtime Up to 6 Hours
Magnetic Tailcap Removable
Hands-Free Operation Magnetic Mounting
Waterproof Rating IP67
Impact Resistance 1.5 Meters
Body Material Aluminum Alloy

Specifications are based on TANK007 UVA70 product information. Actual UV irradiance and runtime may vary depending on operating conditions, battery condition, and measurement setup.

Recommended Applications

Industrial Non-Destructive Testing

Useful for UV-based inspection processes involving fluorescent materials and penetrant testing.

Forensic Investigation

Suitable for examining certain fluorescent evidence and UV-reactive materials during forensic inspections.

Oil and Gas Leak Detection

Can assist with identifying fluorescent leak-detection materials when used with compatible inspection products.

Equipment and Pipeline Inspection

The adjustable 105° swivel head makes it easier to direct UV illumination into confined equipment compartments, cabinets, and pipeline areas.

Fluorescence Inspection

Useful for examining minerals, industrial materials, and other objects that exhibit fluorescence under 365nm UV illumination.

Important UV Safety Information

  • Never look directly into the UV light source.

  • Avoid exposing eyes and skin to direct UV radiation.

  • Wear appropriate UV-protective eyewear and protective clothing when operating the flashlight.

  • Use the flashlight in accordance with applicable industrial inspection safety procedures.

  • UV fluorescence varies depending on the material being examined.

  • Not all substances or stains will fluoresce under 365nm illumination.

Professional UV Performance with Flexible Positioning

The TANK007 UVA70 combines powerful 365nm ultraviolet illumination, 346mW/cm² irradiance at 15cm, adjustable-focus optics, and a 105° swivel head in a rugged rechargeable flashlight.

With its magnetic hands-free mounting, 21700 battery platform, IP67 protection, and uniform UV illumination capability, it is a versatile tool for industrial NDT, forensic examination, leak detection, and professional fluorescence inspection.

Powerful 365nm UV. Uniform Illumination. Flexible Professional Inspection.
