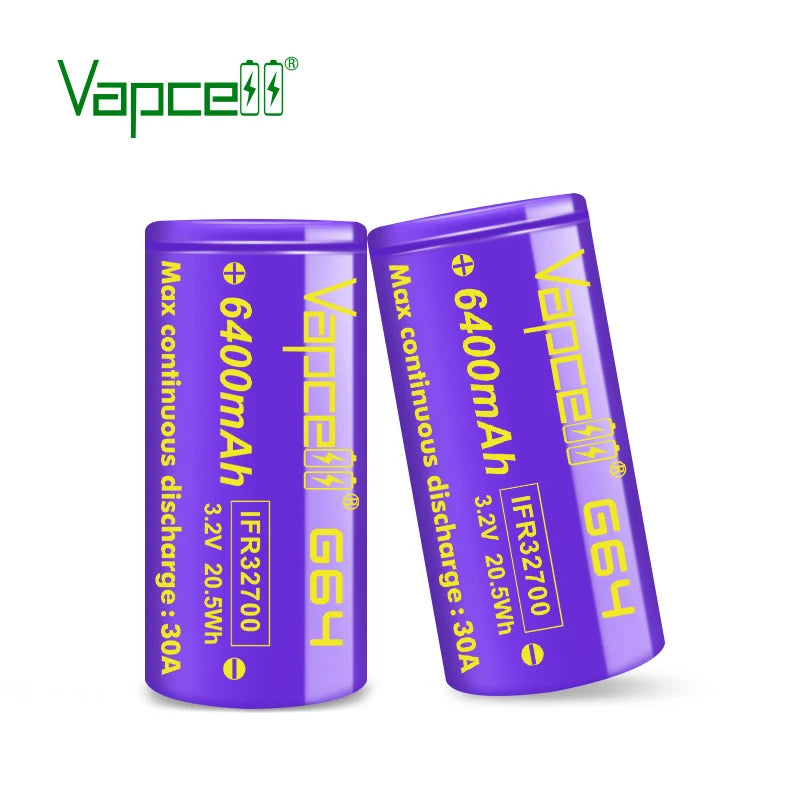

Vapcell G64 IFR 32700 6400 mah 30A rechargeable Battery
Couldn't load pickup availability
Share This:
The Vapcell G64 IFR 32700 6400mAh 30A rechargeable battery is a high-capacity, high-discharge power cell engineered for demanding applications. This robust battery offers impressive performance metrics, making it suitable for a wide range of high-drain devices. Below, we provide a detailed overview of its features and specifications.
The Vapcell G64 is designed with a typical capacity of 6400mAh, ensuring prolonged usage between charges. Even at a minimum, the battery maintains a capacity of 6200mAh when discharged at 0.2C. This high capacity makes it ideal for devices that require long-lasting power, reducing the need for frequent recharges. The nominal voltage of the G64 is 3.20V, which is typical for IFR (Lithium Iron Phosphate) batteries, known for their stability and safety.

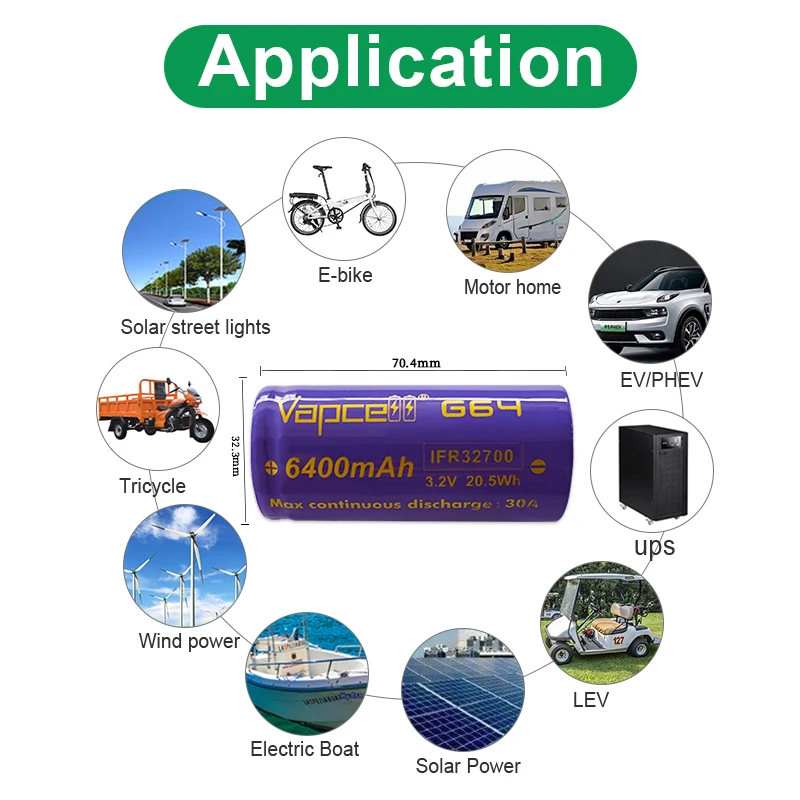

One of the standout features of the Vapcell G64 is its ability to handle high discharge currents. The battery supports a maximum continuous discharge current of 30A, making it perfect for high-drain applications such as power tools, electric vehicles, and large portable devices. Additionally, it can handle a maximum pulse discharge current of 55A for up to 5 seconds, providing a burst of power when needed.
The Vapcell G64 supports both standard and quick charging, offering flexibility depending on your needs. The standard charge current is 6000mA with a CCCV (Constant Current, Constant Voltage) charge mode and a cut-off current of 200mA. For those needing faster recharges, the battery can handle a quick charge current of up to 18000mA, significantly reducing the time required to reach full capacity.
The battery measures 32.3±0.2mm in diameter and 70.5±0.3mm in height, fitting the standard dimensions of the 32700 battery format. Weighing in at 150g, the G64 is relatively heavy, reflecting its high capacity and robust construction. This weight is a small trade-off for the extended usage time and powerful performance it provides.
With a maximum internal resistance of 8mΩ (measured at AC 1kHz), the Vapcell G64 is highly efficient, ensuring minimal energy loss during operation. Low internal resistance is crucial for maintaining high performance and efficiency, especially during high discharge and quick charge cycles.
The battery is designed to operate efficiently under a range of conditions. The end-of-charge voltage is 3.65V, and the end-of-discharge voltage is 2.0V, ensuring that the battery can deliver consistent power until it is nearly fully depleted. These parameters help in maintaining the health of the battery and prolonging its lifespan.
IFR batteries, such as the Vapcell G64, are known for their enhanced safety features compared to other lithium-ion batteries. They are less prone to thermal runaway and can withstand higher temperatures, making them safer for high-drain applications. This makes the Vapcell G64 a reliable choice for critical devices where safety is paramount.
G64 |
|
Size |
32.3±0.2*70.5±0.3mm |
Typical Capacity |
6400mAh (0.2C discharge) |
Min capacity |
6200mAh (0.2C discharge) |
Nominal voltage |
3.20V |
Max Continuous Discharge Current |
30A |
Max Pulse Discharge Current |
55A for 5seconds |
End-of-charge voltage |
3.65V |
End-of-discharge Voltage |
2.0V |
Weight |
150g |
Internal resistance |
Max 8mΩ(AC 1kHz) |
Standard Charge |
6000mA,CCCV 200mA cut-off |
Quick Charge Current |
18000mA |
