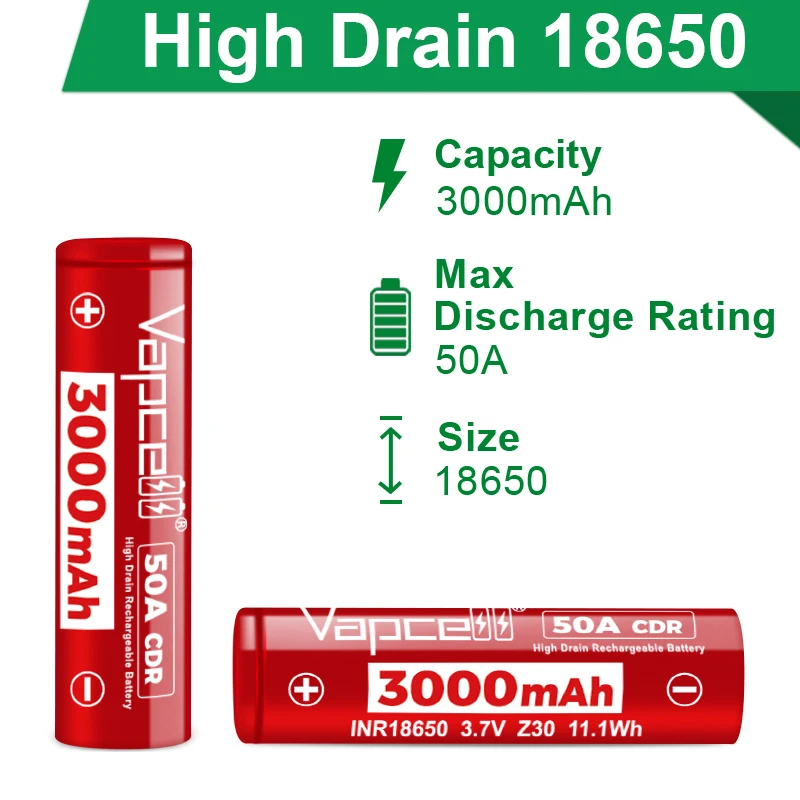

Vapcell Z30 18650 3000mah 50A High Drain Battery

In stock
SKU: Z30-1pcs-flat top
Regular price $7.99
COMB
Type

The button top Ā size is 2-3mm longer than a standard 18650 cell like flat top & unprotected. The button top is widely required for flashlights, doorbells and other devices.

Model

INR18650

Size

āŒ€18.3±0.2*65.0 ±0.3mm

NominalĀ Voltage

3.60V

End-of-chargeĀ Voltage

4.20V

End-of-discharge Voltage

2.50V

Typical Capacity

3000mAh (0.2C discharge)

MinĀ Capacity

2850mAh (0.2C discharge)

Weight

Max:48g

InternalĀ Resistance

Max:5mΩ (AC 1KHz)

Standard Charge

3000mA,CCCVĀ 100mA cut-off

Quick Charge Current

8000mA

Max Continuous Discharge Current

50000mA(50A)

Max Discharge Current

80000mA(80A)for 5 seconds

Cycle life

40AĀ discharge/Ā 70 %Ā capacity , ≄600 cycles

Operating Temperature

Charging, 0°C ~ 45°C

Ā

Discharging, -20°C~70°C

Storage Temperature

-5°C~35°C

Storage Humidity

≤75%RH

Appearance

Without scratch,distorion,contamination,

Ā

and leakage

Standard environmental condition

Temperature: 23±5°C

Ā

Humidity:Ā 45-75%RH

Ā

Atmospheric Pressure :86-106KPA

Ā

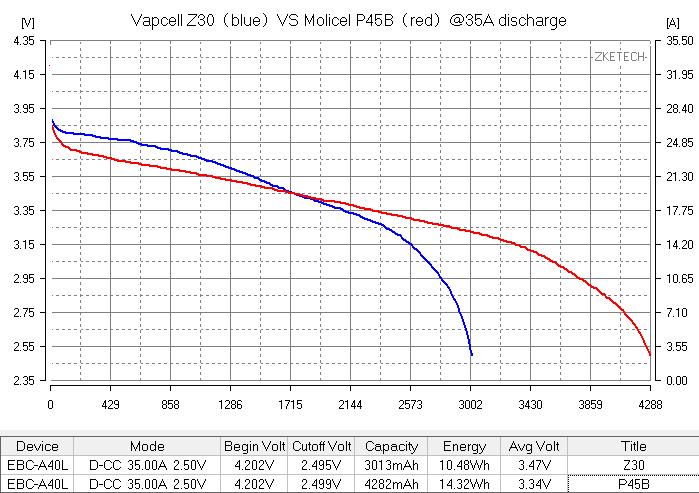

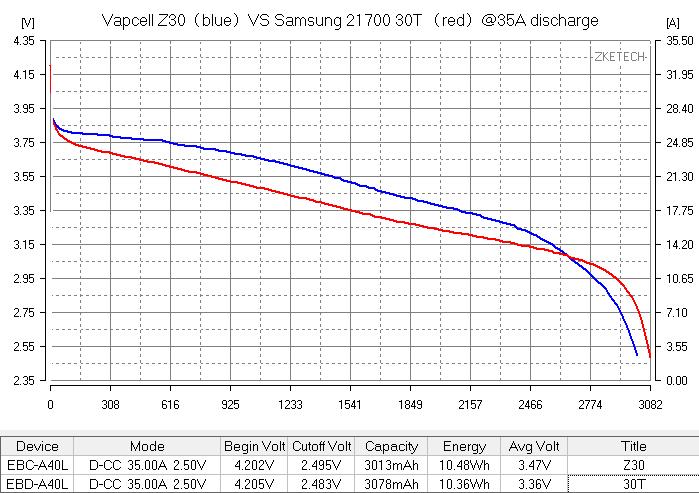

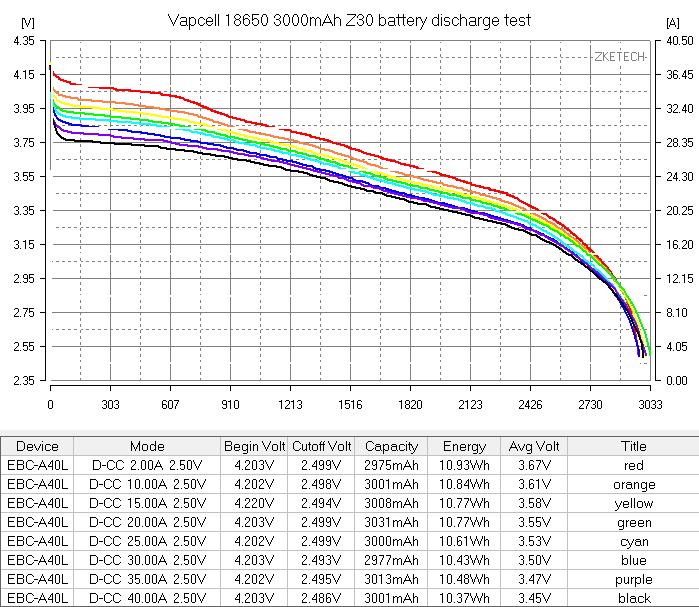

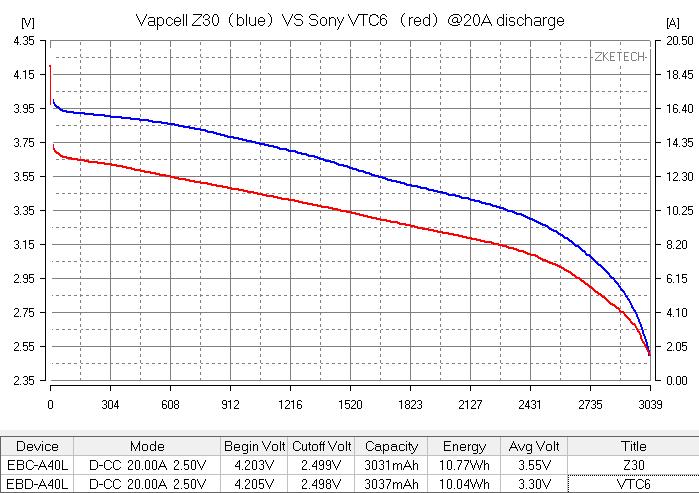

Discharge Graph:

Z30 -2.bmp
