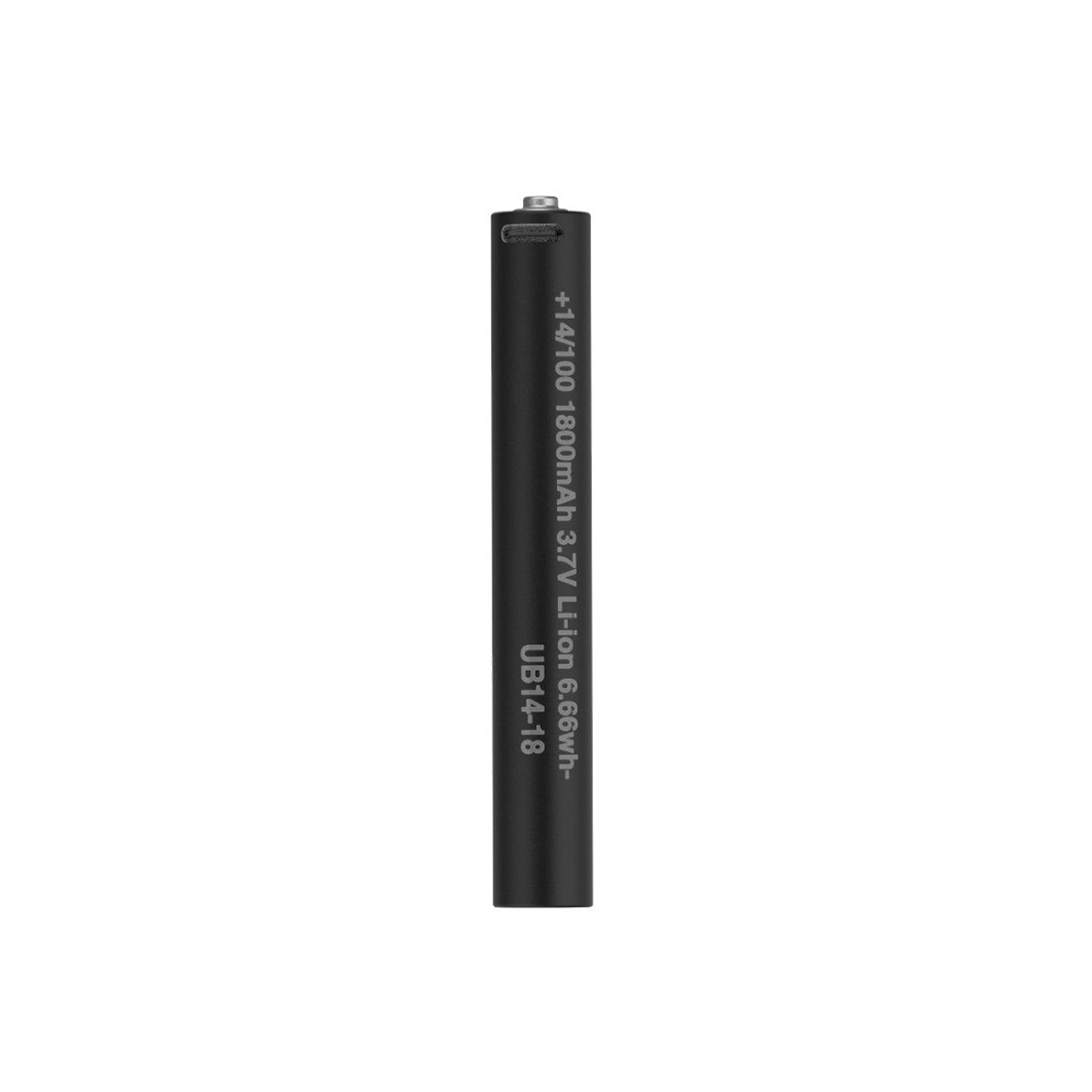

Weltool UB14-18 Type-C 3.7V 14100 Battery

In stock
SKU: UB14-18
Regular price $9.00
The traditional lithium-ion battery with protective plate is connected with a protective circuit at the negative electrode through a nickel sheet. The UB14-18 uses a built-in protection circuit in the battery anode technology, and the steel shell is riveted and integrated with the battery, which effectively avoids short circuit caused by collision or wear, and does not increase the battery diameter.

Type-C USB charging interface is set in the positive protection circuit. It can be connected to a USB charging cable to connect a 5V adapter to directly charge the battery, or it can be connected to the USB interface of a computer with high current output. It can also be connected to a mobile power supply to charge the battery. You can also put the battery into the charger when charging. There is a charging indicator on the battery to indicate the charging status. The red light is charging, and the blue light is full.

UB14-18 ued for T1 Pro+bb7 and T15

Model: UB14-18
Nominal capacity 1800mAh
Rated capacity: 1800mAh
Internal resistance of finished product: ≤80mΩ
Voltage: 3.7V
Continuous discharge current: 3.6A(10-40℃)
Charging current is 1.0A (Type-C USB charging)
Cut-off voltage of overcharge protection: 4.25±0.05V V.
Over-discharge protection cut-off voltage: 2.75±0.1V
Cyclic charging and discharging times: 70% capacity after 300 times of charging and discharging.
Charging temperature: 10-45℃
Discharge temperature: -20-55℃
Storage temperature: -20-40℃
The dimensions of finished products are 14.3±0.2 mm (diameter) and 100±0.5 mm (length).
Weight 40±0.5g
