XTAR VC2SL Upgraded USB-C Li-ion/NIMH Battery Charger

In stock
SKU: VC2SL-XTAR VC2SL-us
Regular price $29.99
Color
Socket Standard

On the basis of retaining all the functions of VC2S, the VC2SL uses USB-C input port and can charge protected 21700 batteries

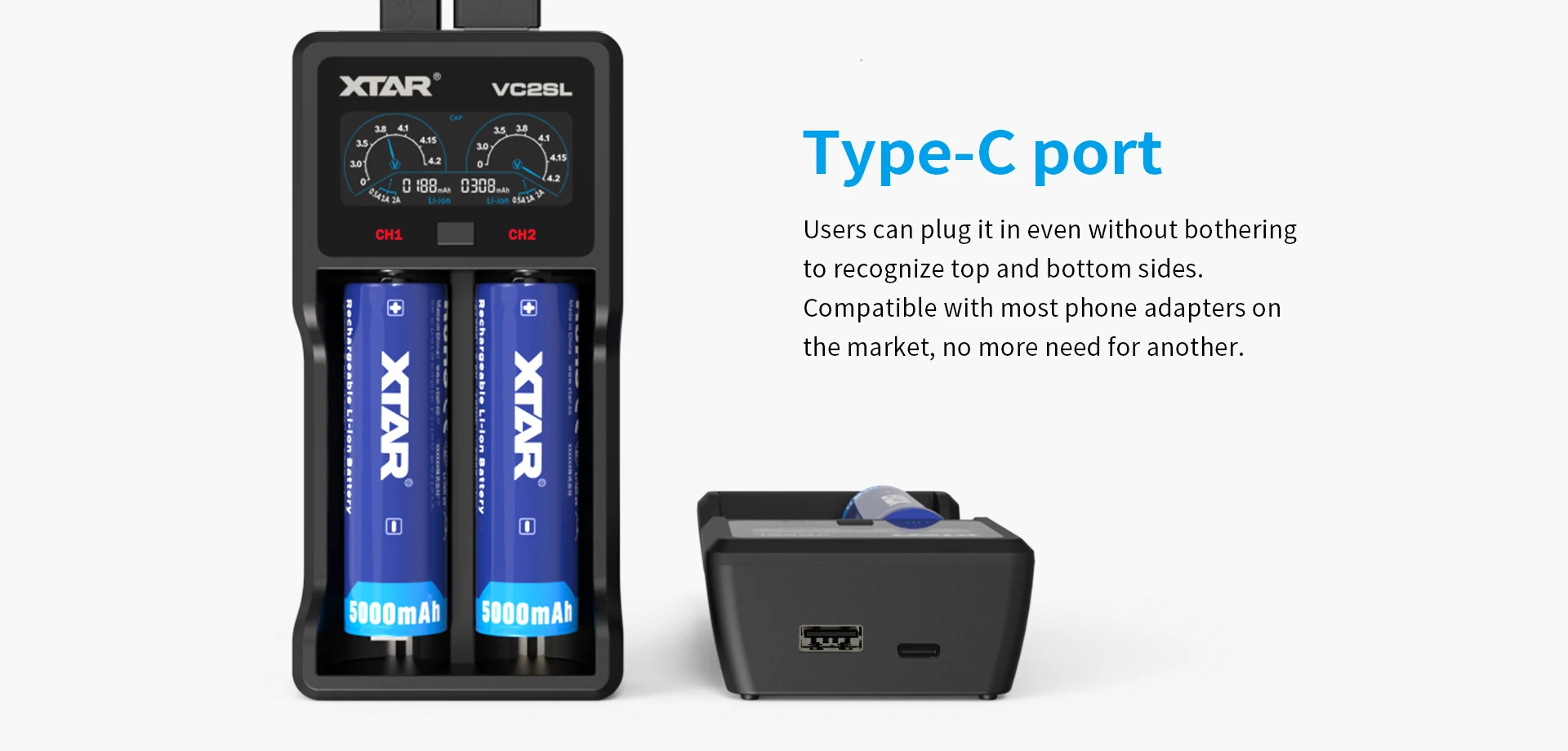

• USB Type-C port
• Compatible with 3.6/3.7V Li-ion and 1.2V Ni-MH batteries
• Can charge protected 21700 batteries
• Support charging current 1x2A, 2x1A, 2x0.5A
• Battery internal resistance test
• Portable power bank function
• Safe charging with multiple protections

XTAR VC2SL Charger

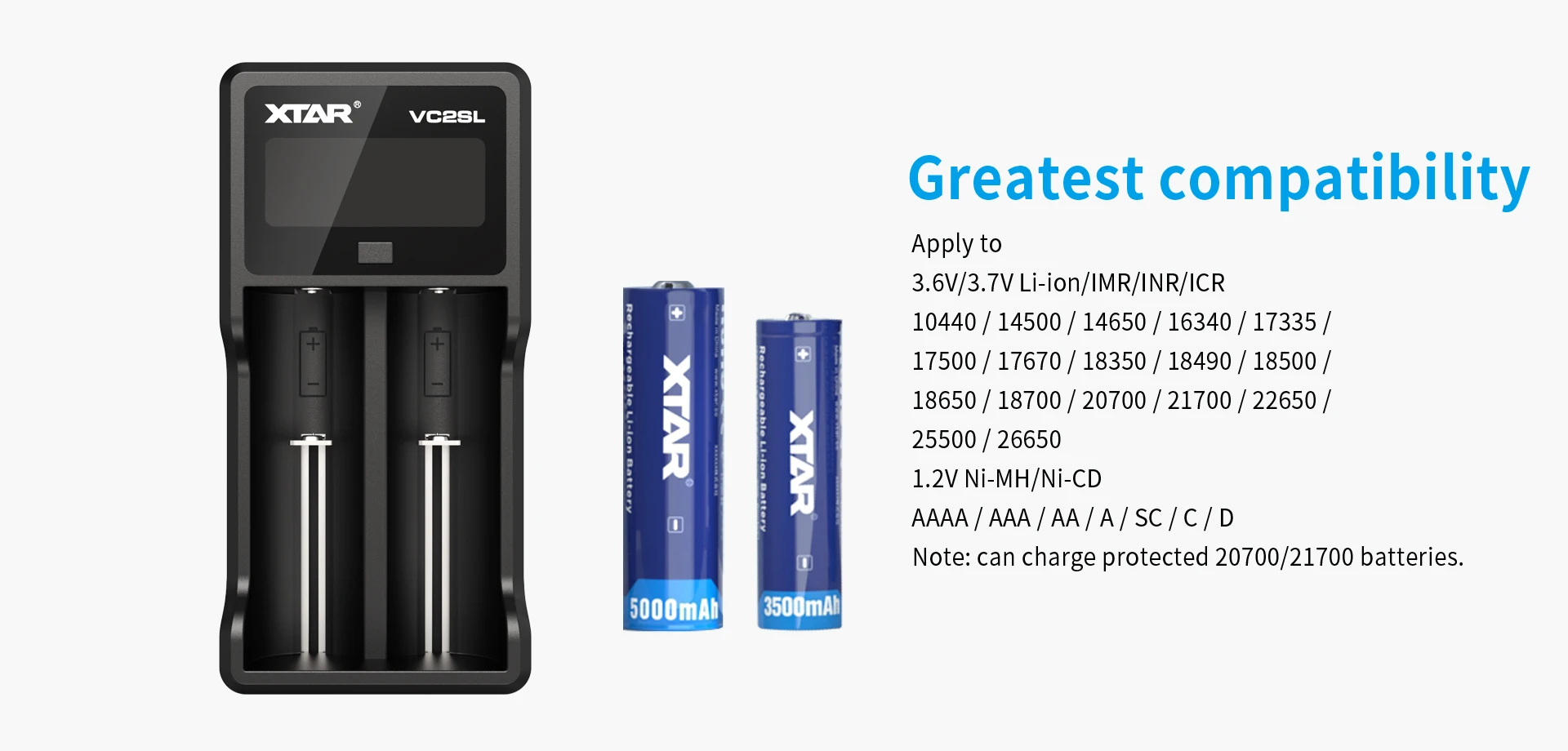

1.【Household Battery Charger】XTAR VC2SL rechargeable batteries charger apply to 3.6V/3.7V Li-ion/IMR/INR/ICR 10440/14500/14650/16340/17335/17500/17670/18350/18490/18500/18650/18700/20700/21700/22650/25500/26650 and 1.2V Ni-MH/Ni-CD AAAA/AAA/AA/A/SC/C. Can charge protected 20700/21700 batteries.

2.【Fast Battery Charger】Type-C port 5V 2.1A input, the maximum charging current of a single slot of the charger is 2A, it takes about 1.5 hours to fully charge a 18650 2500mAh lithium battery. The constant current is 2A×1 slot / 1A×2 slots / 0.5A×2 slots.

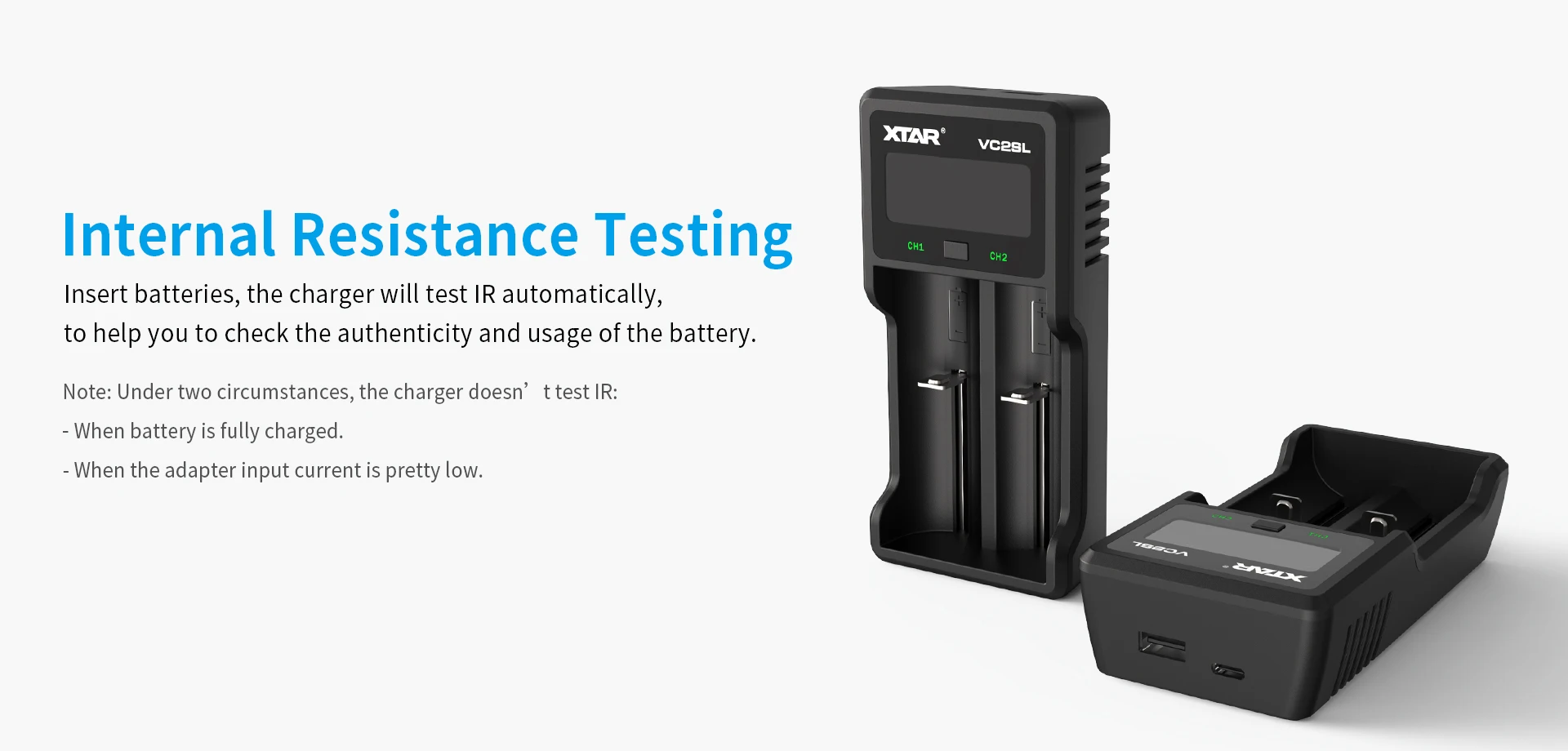

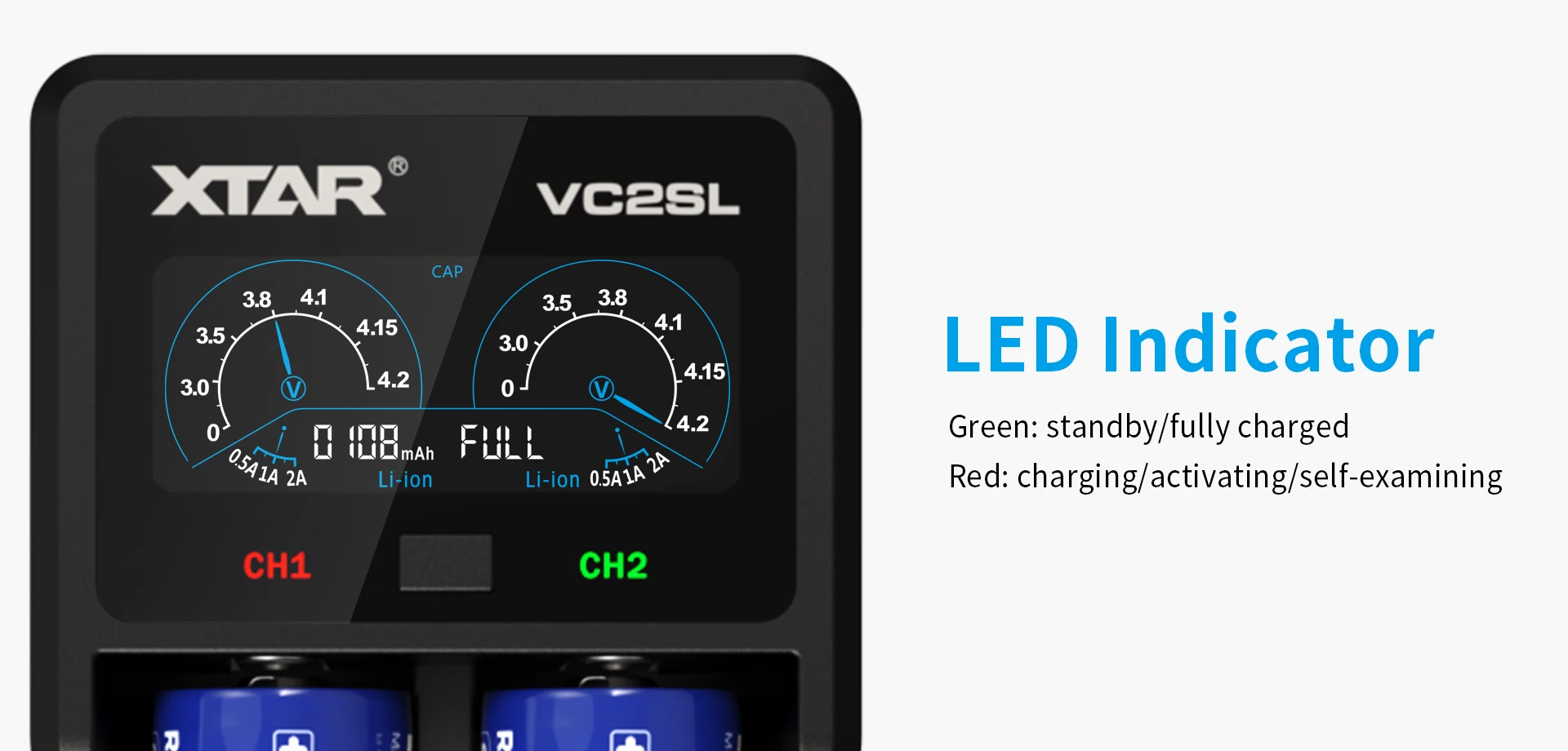

3.【VA LCD display charger】Through the high-definition display, we can grasp the charging current, charging capacity, battery voltage, battery type and battery internal resistance in real time. (When the battery is fully charged or the input current of the adapter is less than 700mA, the charger will not detect the internal resistance.)

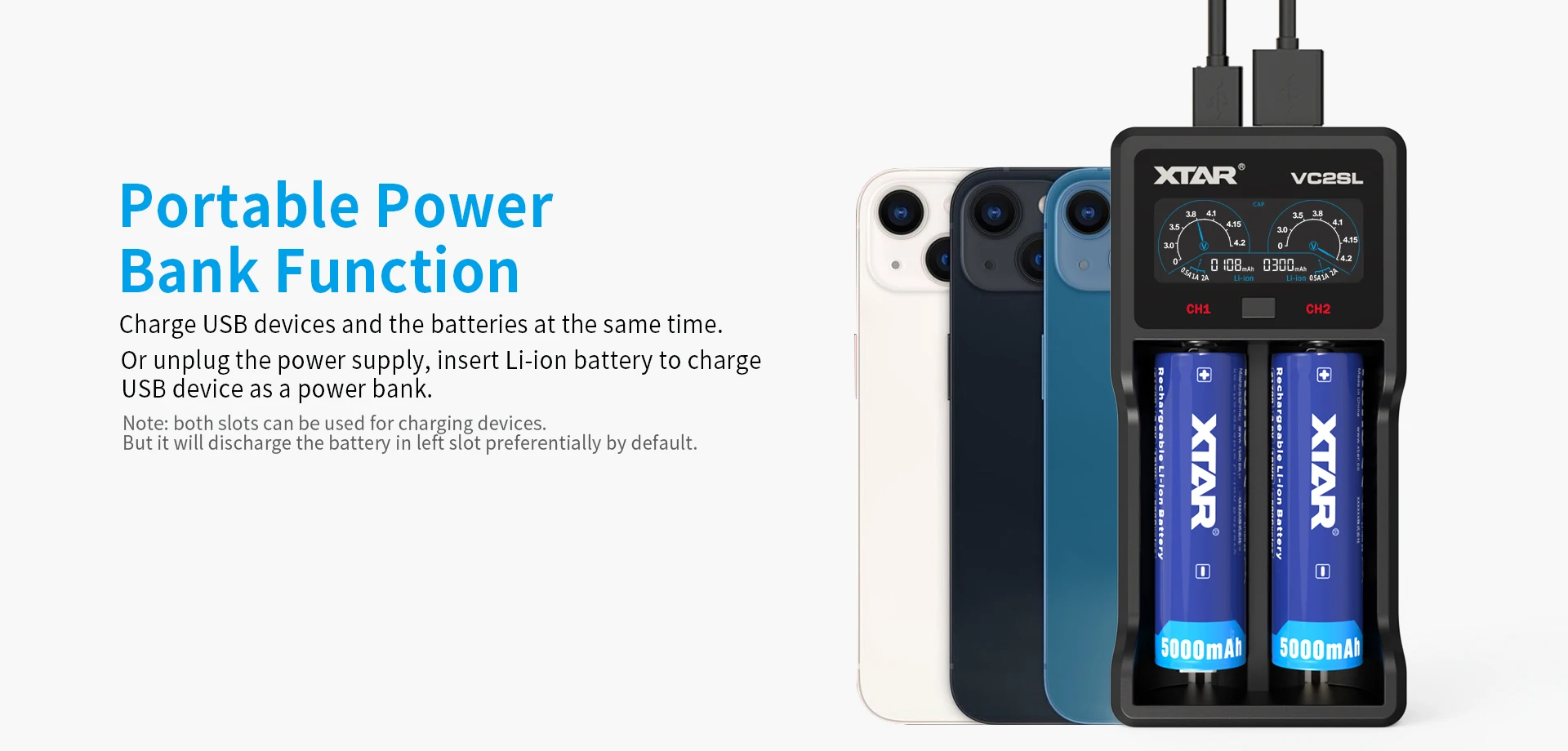

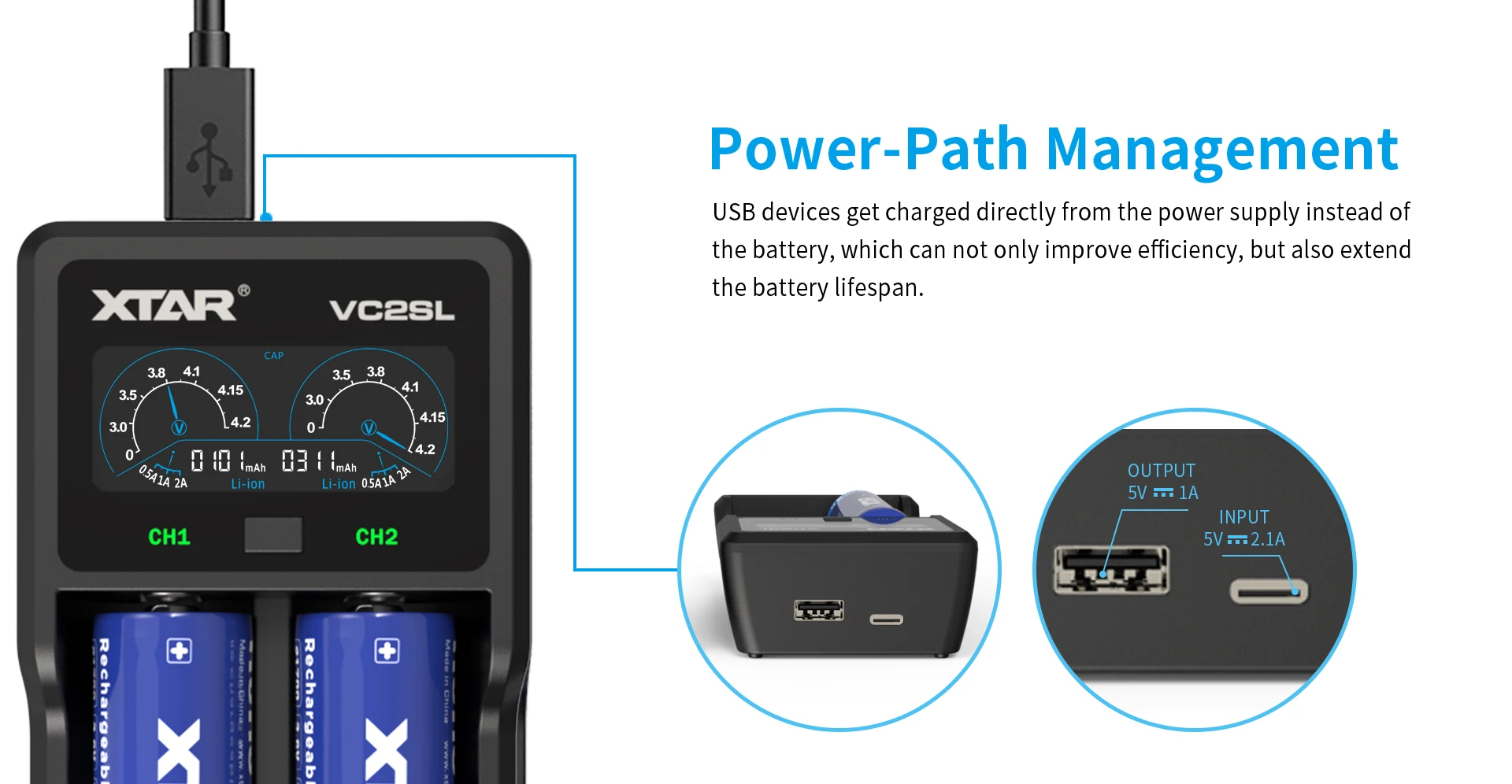

4.【Mobile power bank】The USB output function of the charger enables the charger to be used as a power bank to charge external devices. Under the design of the power path management of the excellent charger, when the charger is connected to the power source, the charger can directly draw power from the power source to charge the external device and the battery at the same time. Insert a battery with sufficient power into the charger CH1, and the charger powered by the battery can be used as a mobile power supply to charge external devices.

5.【Safe battery charger】The charger has built-in multiple protections such as over-current protection, over-voltage protection, overcharge protection, and short circuit protection to protect charging safety.

6.【Smart Charger】Insert the battery, the charger will automatically detect the battery to charge the battery. For lithium batteries, the charger adopts trickle current-constant current-constant voltage three-stage charging to fully charge the battery and protect the battery life.

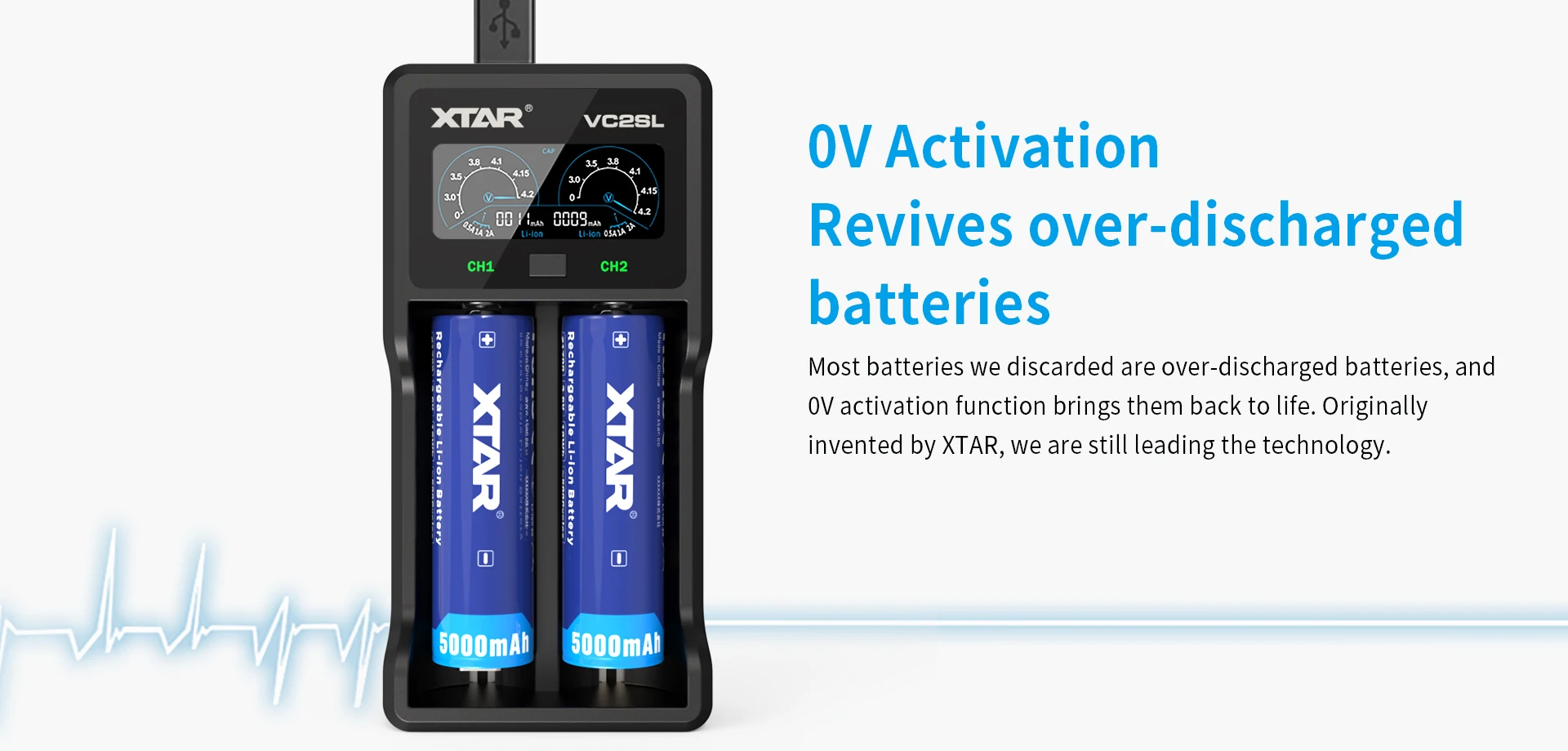

7.【0V Activation Function】The charger can activate some over-discharged batteries, and the charger will automatically charge the activatable battery in about ten minutes.

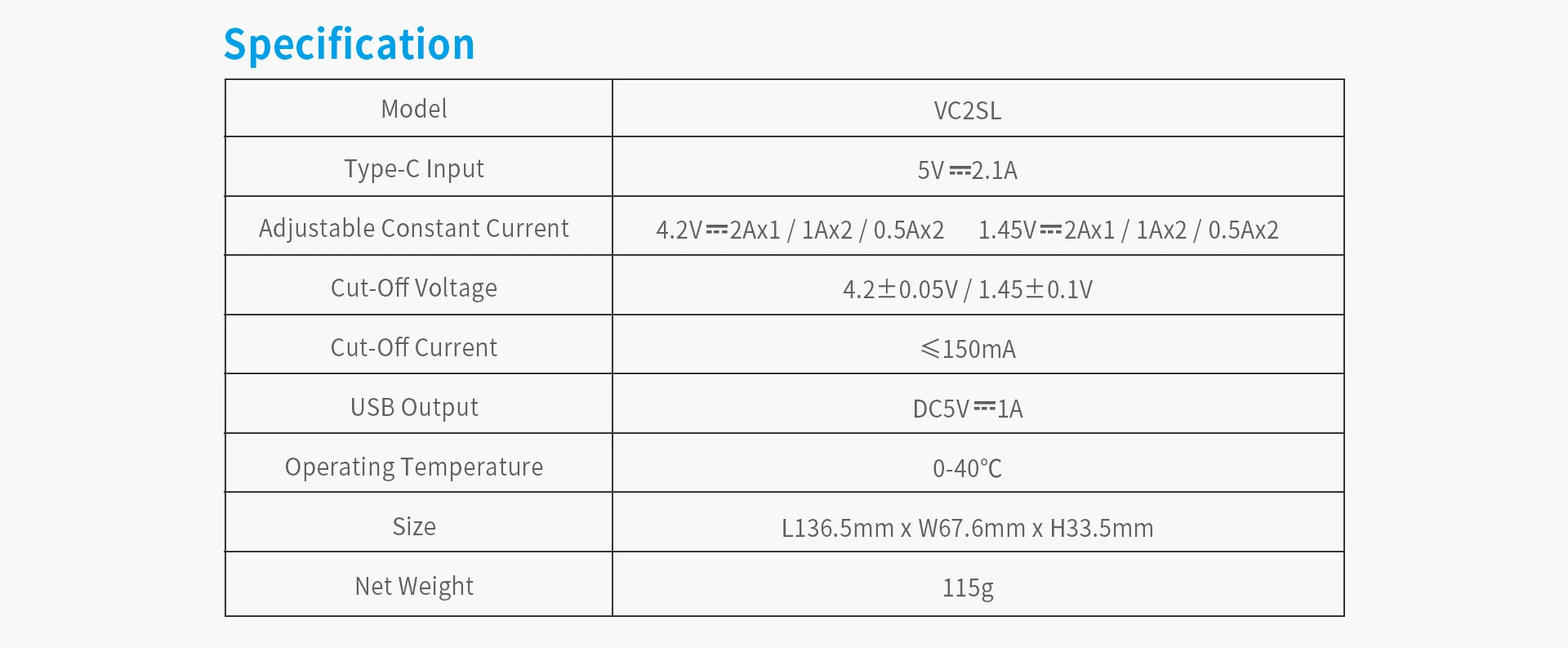

Model: VC2SL
Type-C Input: 5V 2.1A
Constant Current: 4.2V 2A×1 / 1A×2 / 0.5A×2 . 1.45V 2A×1 / 1A×2 / 0.5A×2
Cut-Off Voltage: 4.2±0.05V / 1.45±0.1V
Cut-Off Current: ≤150mA
USB Output: DC 5V 1A
Operating Temperature: 0-40℃
Size:L136.5mm×W67.6mm×H33.5mm
Net Weight: 115g
