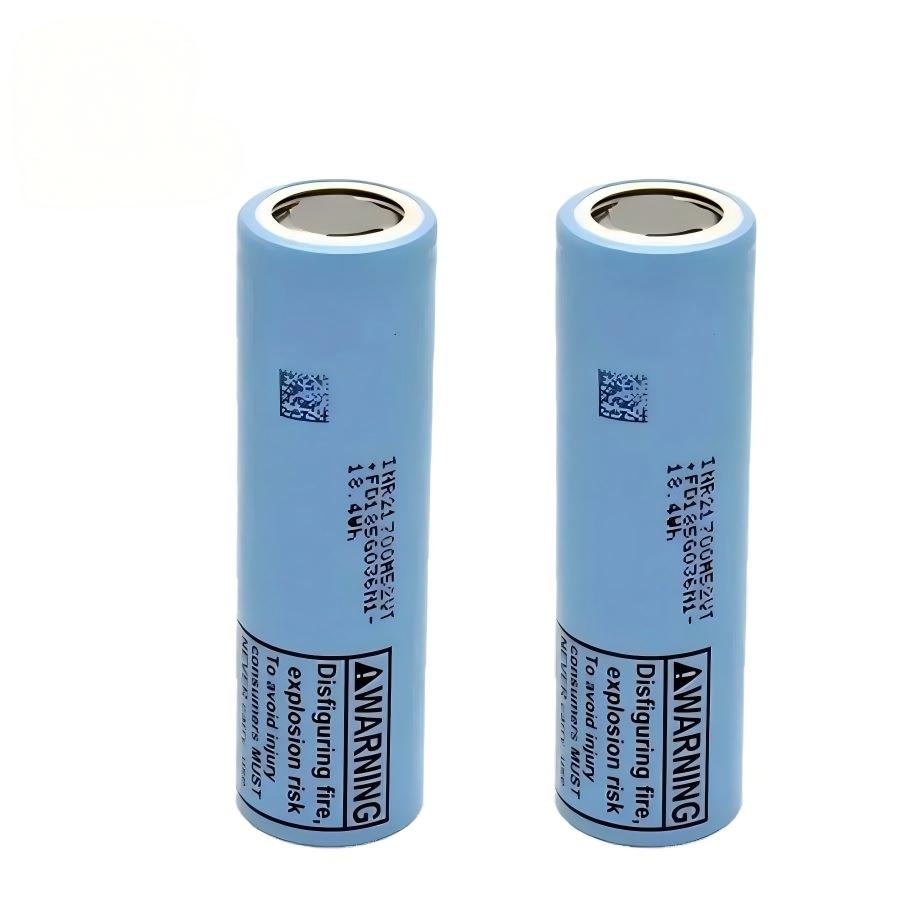

LG INR21700 M52V Lithium ion Cell
Couldn't load pickup availability
Share This:
HIGHLIGHTS OF INR21700 M52V:
Nominal Voltage: 3.69V
Capacity: 5000mAh
Full charge Voltage: 4.2V
Discharge Cut-off Voltage: 2.75V
Max. Charge Current: 0.7C(3500mAh) in 25 ~ 45 ℃
Continuous Discharge: 3C(15A) in 10 ~ 25 ℃
Internal Impedance:≤ 18mΩ
Energy:18.34Wh min.
What does 21700 Battery Applicate in?
Medical equipment: monitor, ventilator, anesthesia machine,infusion pump, ECG machine, etc.
Customized Smart Robot: Educational Robot, Clean Robot, Service Robot, Industrial Robot,etc
Energy storage: backup power, AGV, solar panel, electricity, UPS, yachts, etc.
Financial equipment: mobile payment, micro printer, bar code scanner, POS machine, etc.
Elecmmunication: miner lamps, GPS, Smart robot , Laptop and etc.

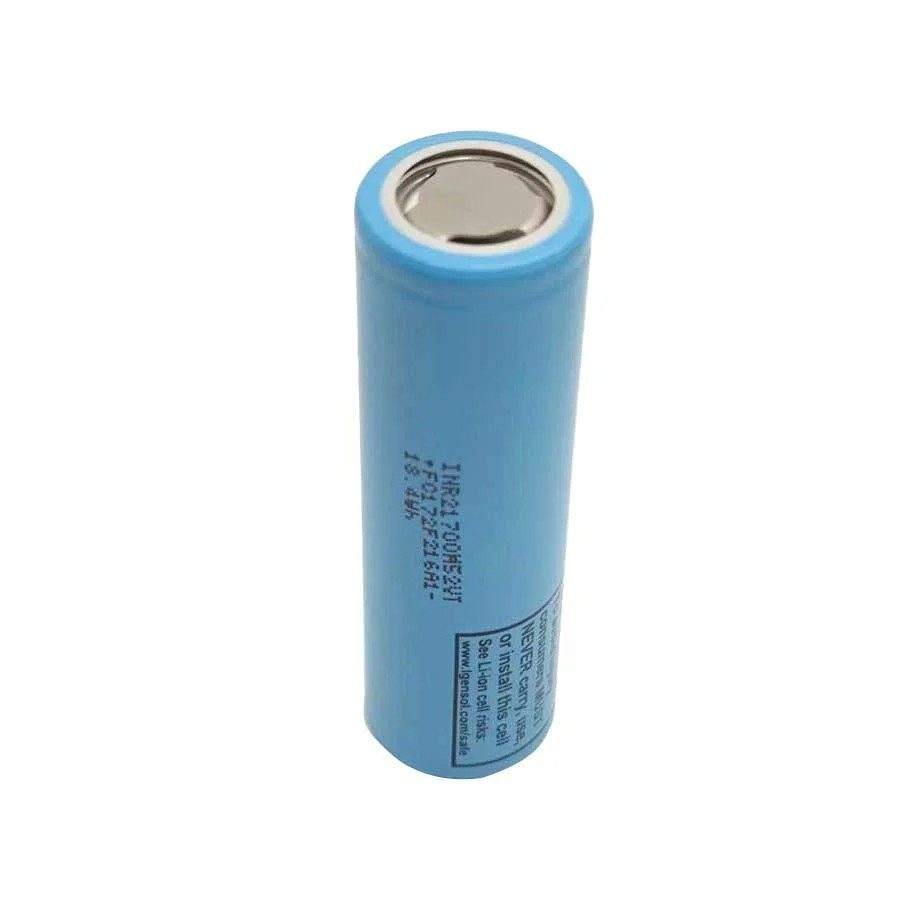

APPEARANCE of 21700 M52V Cell
There shall be no such defects as deep scratch, crack, rust, discoloration or leakage, which may adversely affect the commercial value of the cell.
Diameter : 21.5mm max.
Height : 70.6mm max.
| Model No. | INR21700 M52V | |
|---|---|---|
| Nominal Voltage | Average by Standard charge/discharge | 3.69 V |
| Energy | Charge/discharge * 1C=5000mA Charge (CC-CV) : 0.3C (1500mA), 4.20V, 50mA cut off, Charge Time: 4.5h @ 25℃(one complete charge) Discharge(cc):0.2C(1000mA),2.5V cut off @ 25℃ |
Min. 18.34Wh |
| Shipping Cell Voltage | State Of Charge (“SOC”) | Below SOC 30 % |
| Charge voltage | Capacity measurement SOC Usable cycle SOC (in field use) In all measurements and operations of the Cell, the maximum closed circuit voltage shall not exceed the following value |
4.2V 4.1V |
| Max. Charge Current (complete full charge, ) (atmosphere tempereature) |
0~25℃ | 0.3C(1500mA） |
| 25~45℃ | 0.7C(3500mA) | |
| Discharge Cut off Voltage | Capacity measurement SOC Usable cycle SOC (in field use) In all measurements and operations of the Cell, the minimum closed circuit voltage shall not exceed the following value |
2.50V 2.85V |
|
Max. Charge Discurrent (complete full charge, ) (atmosphere tempereature) |
-20 ~ 10℃ | 0.5 C (2500 mA) |
| 10 ~ 25 ℃ | 3.0 C (15000 mA) | |
| 25 ~ 55 ℃ | 1.5 C (7500 mA) | |
|
Safety Over Voltage (complete full charge, ) (atmosphere tempereature) |
Cell voltage including tolerance shall not exceed the 4.25 V to prevent any safety events. And cell performance can’t be guaranteed between 4.20 V and 4.25 V |
Max. 4.25V |
| Weight | Non-tubing cell | 67.4±1.0g |
| Operating Temperature (Atmosphere Temperature） |
Charge | 0 ~ 45 ℃ |
| Discharge | -20 ~ 55 ℃ | |
| Operating Temperature (Cell Surface Temperature) |
Charge | 0 ~ 50 ℃ |
| Discharge | -20 ~ 70 ℃ | |
| Max. cell surface temperature should be controlled by BMU protection unit below 50℃ for charging and 70℃ for discharging |
||
| Storage Temperature (for shipping state) (Atmosphere Temperature |
1 month | -20 ~ 55 ℃ |
| 3 month | -20 ~ 45 ℃ | |
| 1 year | -20 ~ 25 ℃ | |
| Recovery capacity after the storage ≥ 80% of minimum energy(or caoacity) |
||
