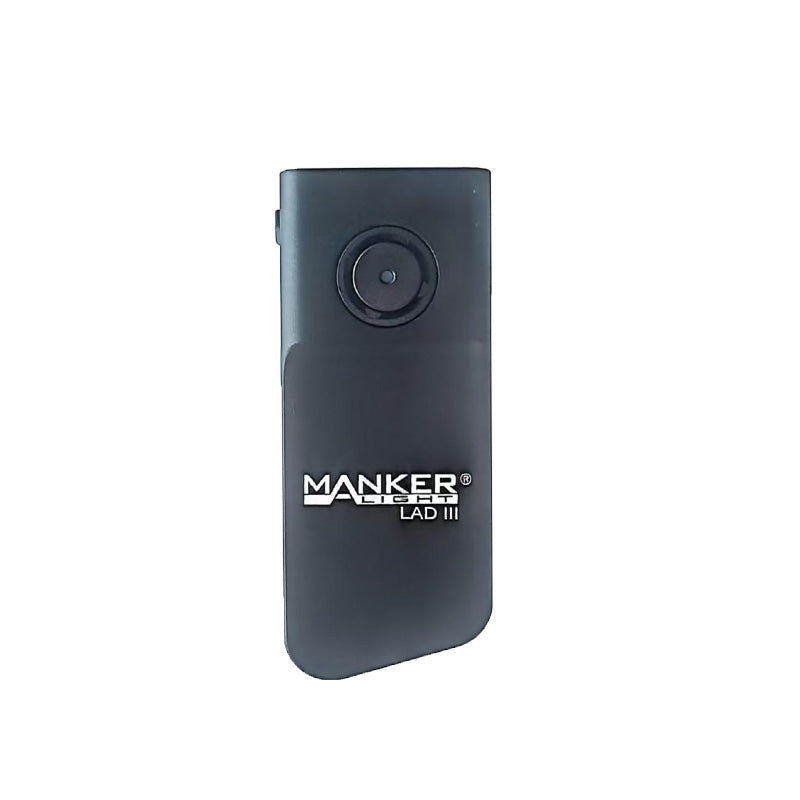

Manker LAD III - USB-C Rechargeable EDC Flashlight

In stock
SKU: LAD III-Black-CW 6500K
Regular price $29.99
Color
Color Temperature

Feature
- Gen 3 model, high performance
- Unibody construction, solid, durable but lightweight
- Ultra-compact size, easy to carry it everyday
- Utilizes 2x LUMINUS SST20 LED emitters
- Customized TIR LENS to deliver soft wide beam
- Max. 1020 lumens output and 70 meters beam distance
- Max. 126 hours runtime (0.2lm moonlight)
- Intelligent temperature regulation
- High efficiency constant current circuit (Non-PWM)
- Built-in body USB-C charging
- Smart LED Indication technology
- Easy-to-operate versatile user interface
- LOCK-OUT function can prevent accidential activation
- Programmable moonlight levels in engineering mode (design for flashlight enthusiasts who love ultra-low brightness)




Specification
Light Source: 2x LUMINUS SST20 LED emitters
Light color option: cool white 6500K / neutral white 4000K CRI>90
Light Modes: Moonlight mode (Mo 1 level - Mo 2 level - Mo 3 level) + General mode (Low - Medium - High) + Turbo + Special mode (Strobe - Beacon - SOS) + LOCK-OUT mode
Maximum Output: 1020 lumens
Maximum runtime: 126 hours
Maximum Beam Distance: 70 meters (229.66ft)
Impact Resistance: 2 meters
Waterproof Standard: IP67 rated
Battery: built-in 500mAh polymer lithium battery
Working voltage: 2.8v - 4.2v
Driver: High efficiency constant current circuit
Body Material: Aircraft-grade aluminum alloy with Type-III hard-anodized
Button Material: stainless steel with black plated
Optic: high temperature resistant total internal reflection (TIR) lens
Size: 64.2 mm (length) x 26.0 mm (wide) x 10.0 ~ 14.0 mm (thickness) / 2.53" x 1.02" x 0.39" ~ 0.56"
        Lanyard hole: 4.0 mm / 0.16"
Weight: 33.4 gram / 1.18 oz




Package content
1x Mankerlight LAD III LED flashlight
1x USB Type-C charging cable
1x User manual




User Interface
From OFF: Press and hold (1.5s) = Moonglight (default on Mo1 level)
When in Moonlight, Press & Hold = Cycle levels Mo1 > Mo2 > ML3 and back Mo1, release = ON @ selected that level
From OFF: Quick Click = ON @ last mode memory (only general mode: Low, Medium, or High)
From ON: Quick Click = OFF
From ON: Press & Hold = Cycle levels Low > Medium > High and back Low, release = ON @ selected that level
From ON or OFF: Double Click = Turbo
From ON or OFF: Triple Click = Strobe/Disco Group (Always start @ =Strobe)
From Strobe: Press & Hold = Cycle Beacon > SOS > Strobe, release = ON @ selected that level
From OFF: Press and hold (5s) = lock-in (4 flickers = indicate lock out flashlight successfully)
When in lock-out, Quick Click = breath flash (indicator under button), Quick click again = OFF
From Lock-out: Press and hold (2s) = unlock ( ON @ last mode memory)

New Moonlight Programming Feature (Tip: this function is designed only for flashlight enthusiasts)
1. From OFF, long press (press and hold) 5 seconds to Moonlight mode
2. When in Moonlight, Press & Hold = Cycle levels ML1 > ML2 > ML3, release = ON @ selected that level.
3. Quickly press 6 times and hold on the 6th for 5 seconds. LED indicator will flash red.
4. Single Press for down and Double Press for up brightness levels.
5. Press & Hold = Moonlight brightness memorized.




Technical Data of 6500K Cool White
Moonlight 1 level: 0.2 lumens, 126 hours;
Moonlight 2 level: 1 lumens, 85 hours 33 minutes;
Moonlight 3 level: 3 lumens, 11 hours 29 minutes;
Low level: 30 lumens, 5 hours;
Medium level: 100 lumens, 2 hours 12 minutes;
High level: 500 lumens - 300 lumens, 1 minutes 49 seconds + 50 minutes;
Turbo level: 1020 lumens - 300 lumens, 30 seconds + 47 minutes;
Strobe: 1020 lumens
Beacon: -
SOS: -
Maximum light intensity: 1,228 cd
Maximum beam distance: 70 meters
Drop resistant: 2 meters
Waterproof Standard: IP67

Technical Data of Neutral White 4000K CRI>90
Moonlight 1 level: 0.2 lumens, 118 hours 24 minutes;
Moonlight 2 level: 1 lumens, 75 hours 48 minutes;
Moonlight 3 level: 3 lumens, 10 hours 47 minutes;
Low level: 30 lumens, 4 hours 12 minutes;
Medium level: 70 lumens, 2 hours 6 minutes;
High level: 370 lumens - 210 lumens, 1 minutes 10 seconds + 55 minutes;
Turbo level: 720 lumens - 210 lumens, 30 seconds + 51 minutes;
Strobe: 720 lumens
Beacon: -
SOS: -
Maximum light intensity: 692 cd
Maximum beam distance: 53 meters
Drop resistant: 2 meters
Waterproof Standard: IP67




Battery Level Indication
When flashlight is operated, LED Indicator under the button will change different lights to indicate remaining battery voltage.
- Battery voltage >3.4v, blue light turn on and last 10 seconds.
- Battery voltage 3.4v - 3.2v, purple light turn on and last 10 seconds.
- Battery voltage 3.2v - 2.8v, red light constant-on. (tip: It is time to recharge battery)
- Battery voltage < 2.8v, red flash on, and flashlight turn off automatically.




Battery Charging
When battery is charging, LED indicator will constant red light on;
When battery has fully charged, LED indicator will constant blue light on.
