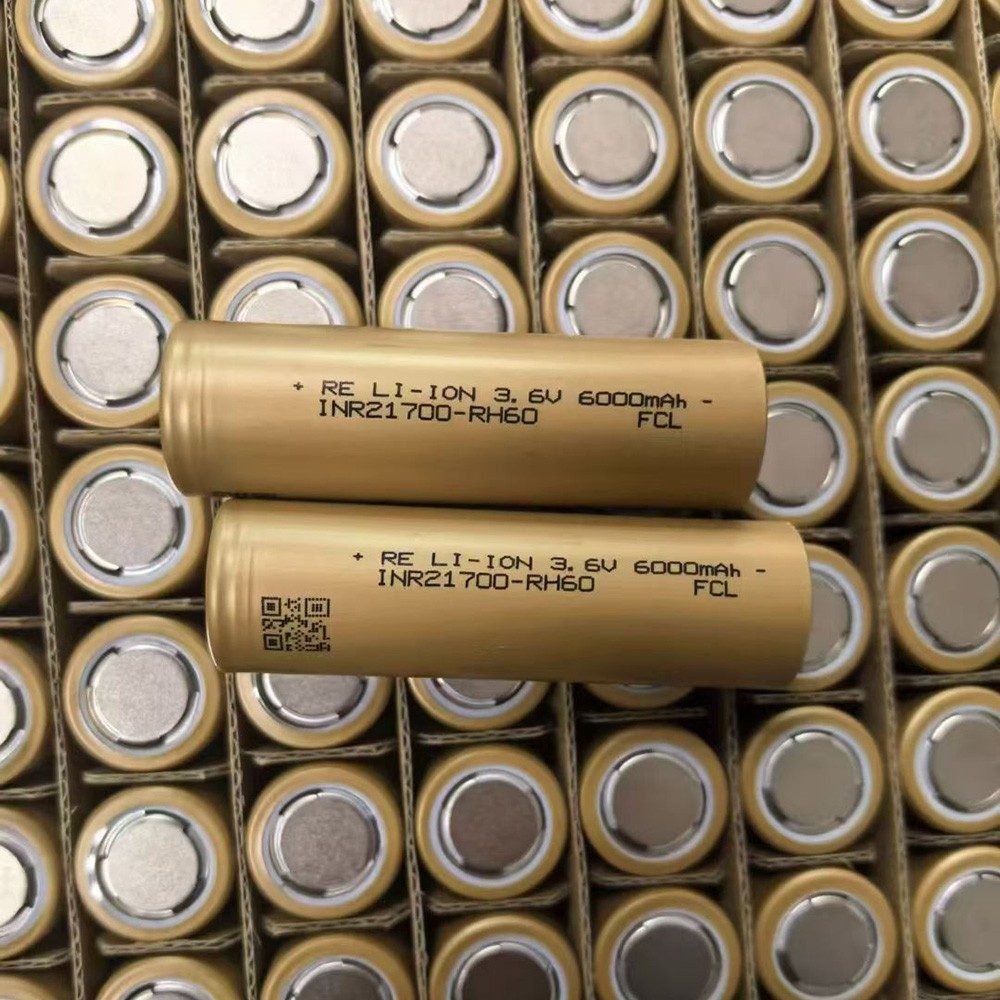

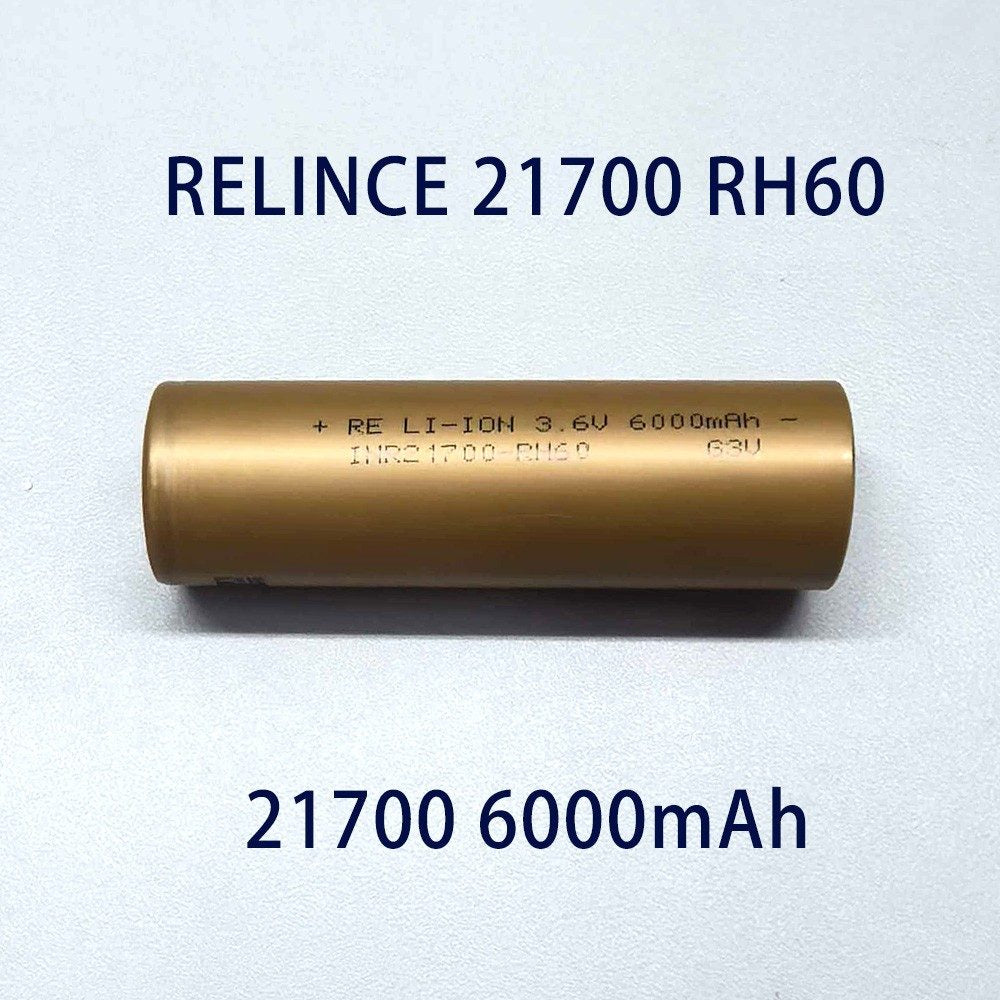

Reliance RH60 21700 Battery Cell – 6000mAh 30A

In stock
SKU: RH60-1pcs
Regular price $11.99
COMB

Engineered for builders who want maximum runtime with stronger discharge capability than a typical energy cell, the Reliance INR21700-RH60 delivers an excellent balance of capacity, efficiency, and usable power. This cell is a very interesting hybrid option for e-bikes, long-range packs, energy storage, and other battery builds where both runtime and current capability matter.


Key Features

  • High Capacity: 6000mAh class capacity, 5850mAh minimum
  • Strong Hybrid Performance: 30A maximum continuous discharge with 80°C temperature cut-off
  • Low Internal Resistance: ACIR ≤ 7mΩ at 1kHz
  • Fast Charging: up to 6A maximum continuous charge
  • Wide Temperature Range: discharge operation down to -40°C ambient
  • Compact for its Class: up to 21.6mm diameter and 70.9mm height
  • Hybrid Cell: much stronger than a typical 6000mAh energy cell while keeping excellent runtime

Technical Specifications

Manufacturer Reliance
Model INR21700-RH60
Format 21700
Chemistry INR (Lithium-ion)
Nominal Voltage 3.60V
Max Voltage 4.20V
Cut-off Voltage 2.50V
Nominal Capacity 6000mAh class
Minimum Capacity 5850mAh
Standard Charge 3A (0.5C) CCCV to 4.20V, 100mA cut-off
Max Charging Current 6A
Standard Discharge 1.2A
Max Continuous Discharge 30A (with 80°C temperature cut-off)
Internal Resistance ≤ 7mΩ AC (1kHz)
Dimensions Ø 21.6mm max × 70.9mm max
Weight ≤ 71g
Operating Temp Charge: -10°C to 45°C / Discharge: -40°C to 60°C
Cycle Life 300 cycles at 20A discharge with ≥80% capacity retention

Recommended Applications

  • High-capacity e-bike battery packs
  • Long-range battery builds
  • Energy storage systems
  • DIY battery projects requiring high energy density
  • Applications where runtime is more important than extreme current
