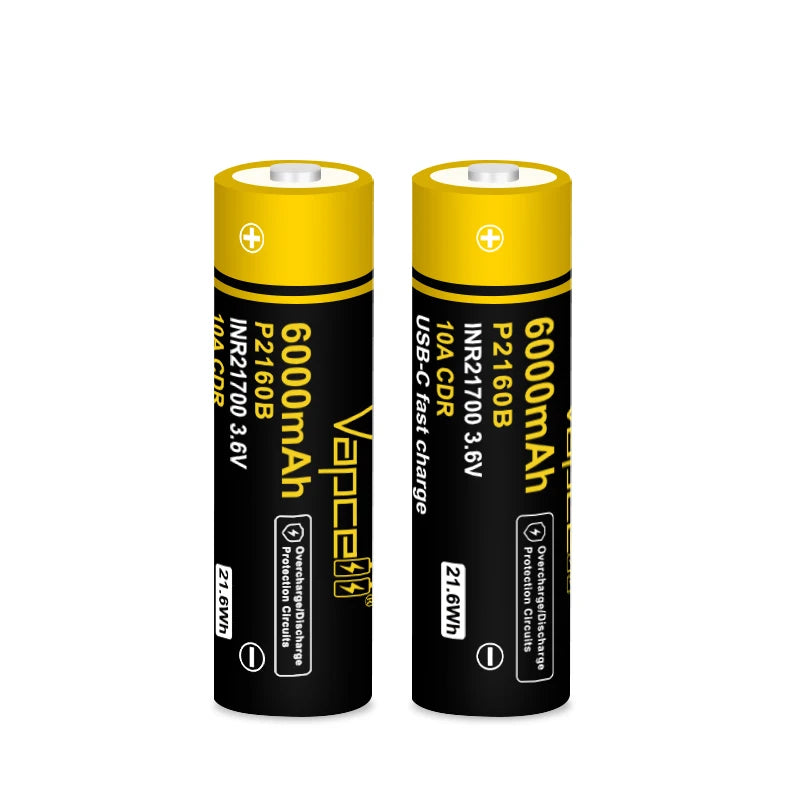

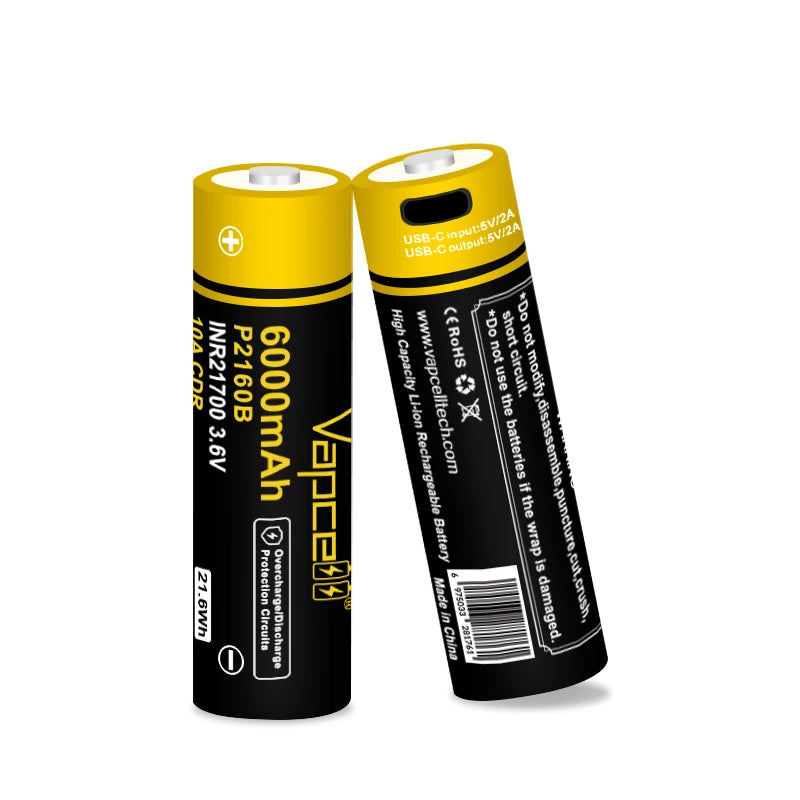

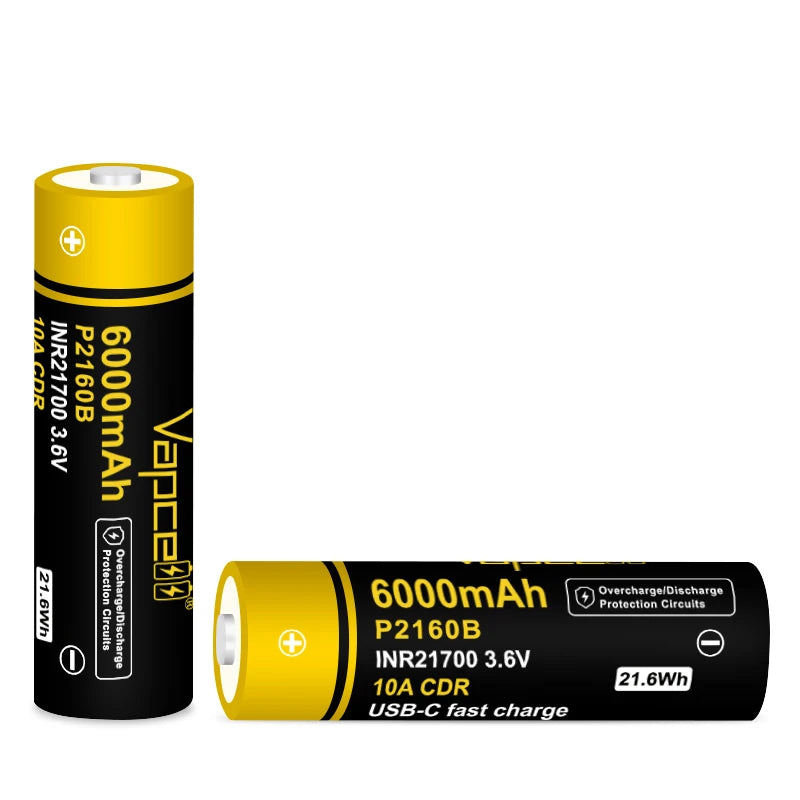

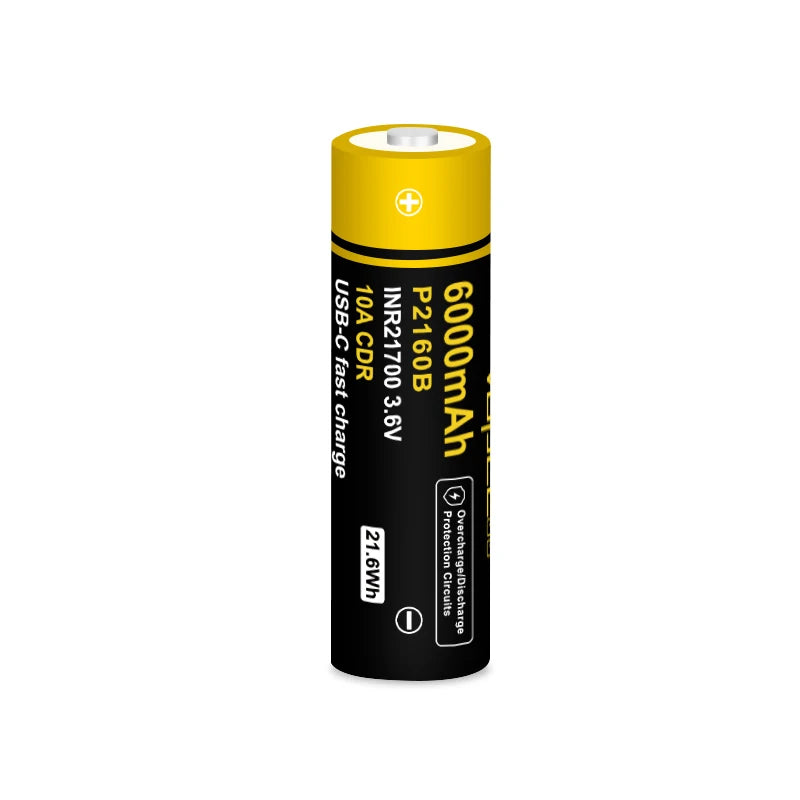

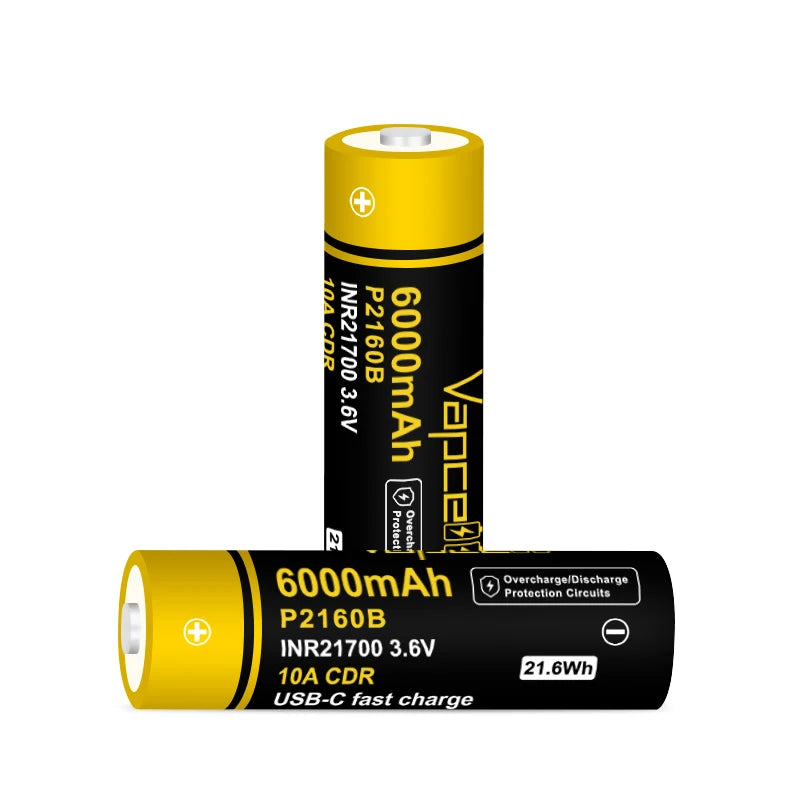

Vapcell P2160B 6000mah 10A 21700 Type- C Battery

In stock
SKU: P2160B-1pcs
Regular price $13.99
Color
P2160B battery, there are bidirectionalc-port input and output function, but are emergencyuse, long-term charging or output power supply to the device will be positive circuit board hot, the circuit board can not dissipate the heat caused bythe hot, but the battery does not have an impact onthe people who mind the short-term use of the next or low-power c-port input and output
Model vapcell P2160B 6000mah 10A
Type Button top
Size 21.7*77.6mm
Nominal voltage 3.60V
End-of-charge voltage 4.20V
End-of-discharge Voltage 2.50v
Typical Capacity 6000mAh (0.2C discharge)
Min capacity 5800mAh (0.2C discharge)
Energy 21.6Wh
Weight Max:78g
Internal Resistance Max:26mΩ  (AC 1kHz)
Standard Charge 2000mA,CCCV 100mA cut-off
Quick Charge Current 3500mA
Max Continuous Discharge Current 10000mA (10A)
Cycle life 1C discharge/ 70 % DOD, ≥1000 cycles
USB Type-C Interface Specification
USB charge Mode CC CV
USB input power 5.0V, ≥2.0A
USB end-of-charge voltage 4.20V
USB CC mode charge current 2000mA
USB CV mode charge current 100mA
USB output 5.0V ,max 2A
Protect plate (PCB) Specification
Over charge protection voltage 4.25+0.1/-0V
Over discharge protection voltage 2.50+0/-0.1V
Over current protection current 15~20A
Battery storage conditions
Operating Temperature Charging, 0°C ~ 45°C
Discharging, -20°C~70°C
Storage Temperature -5°C~35°C
Storage Humidity ≤75%RH
Appearance Without scratch,distorion,contamination,
and leakage
Standard environmental condition Temperature: 23±5°C
Humidity: 45-75%RH
Atmospheric Pressure :86-106KPA
