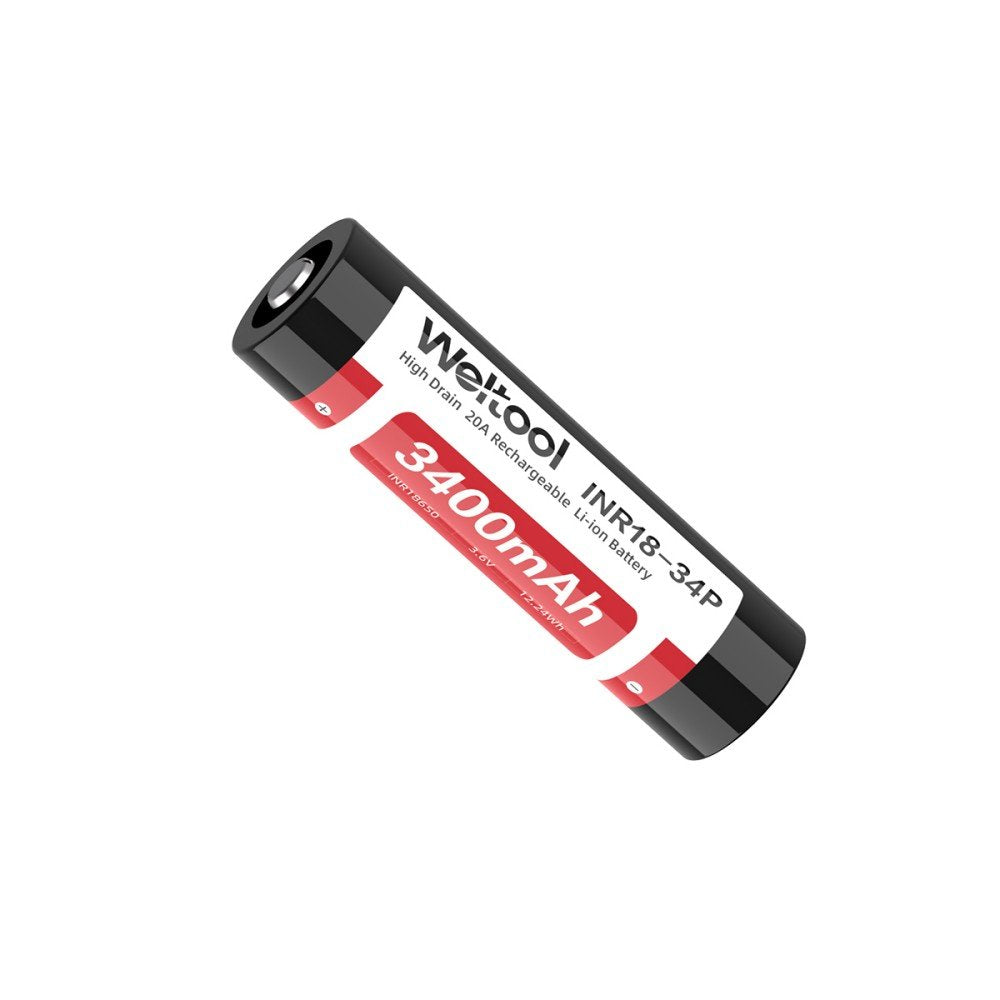

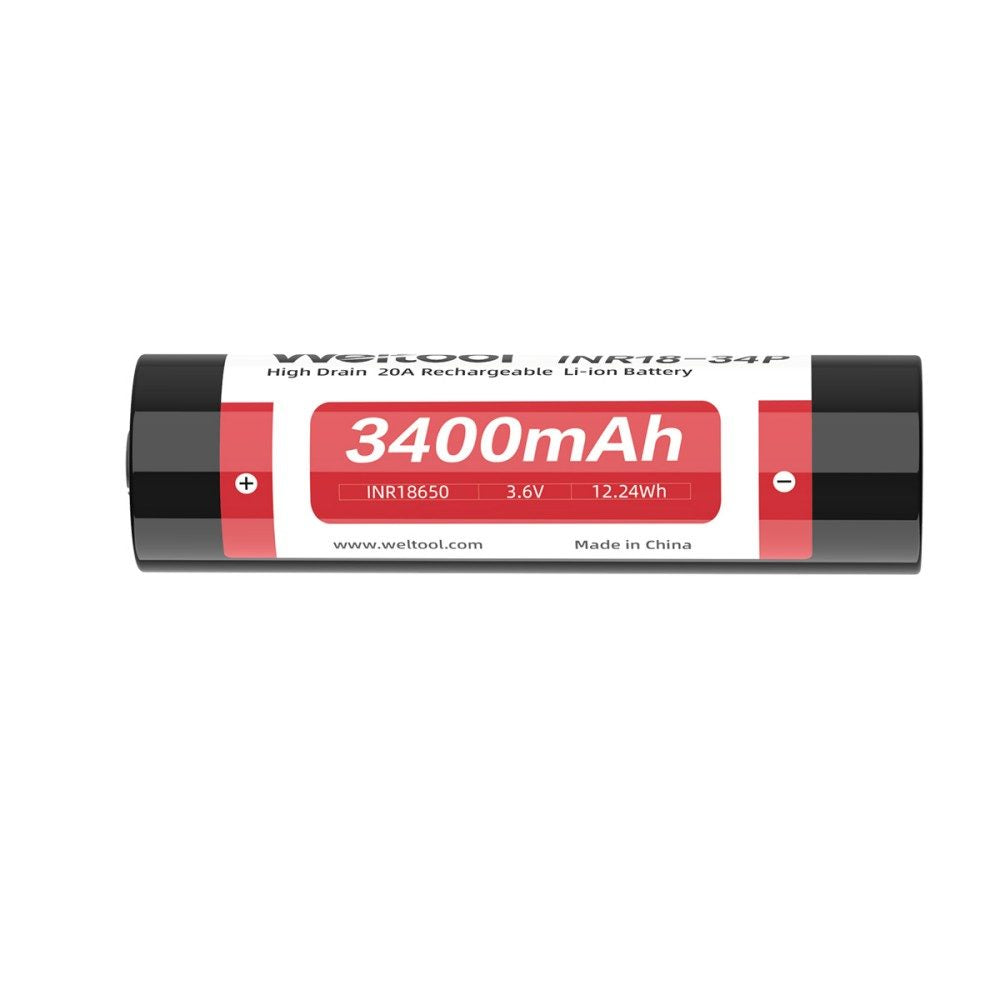

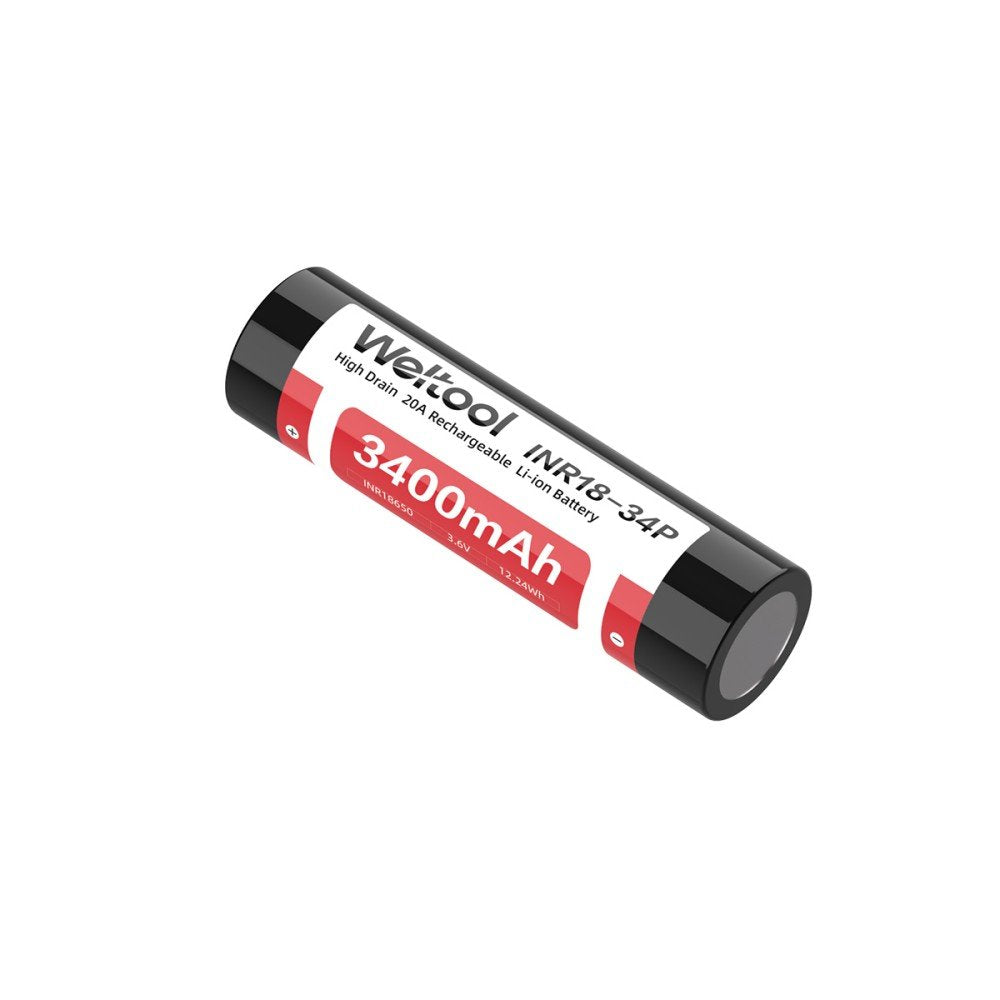

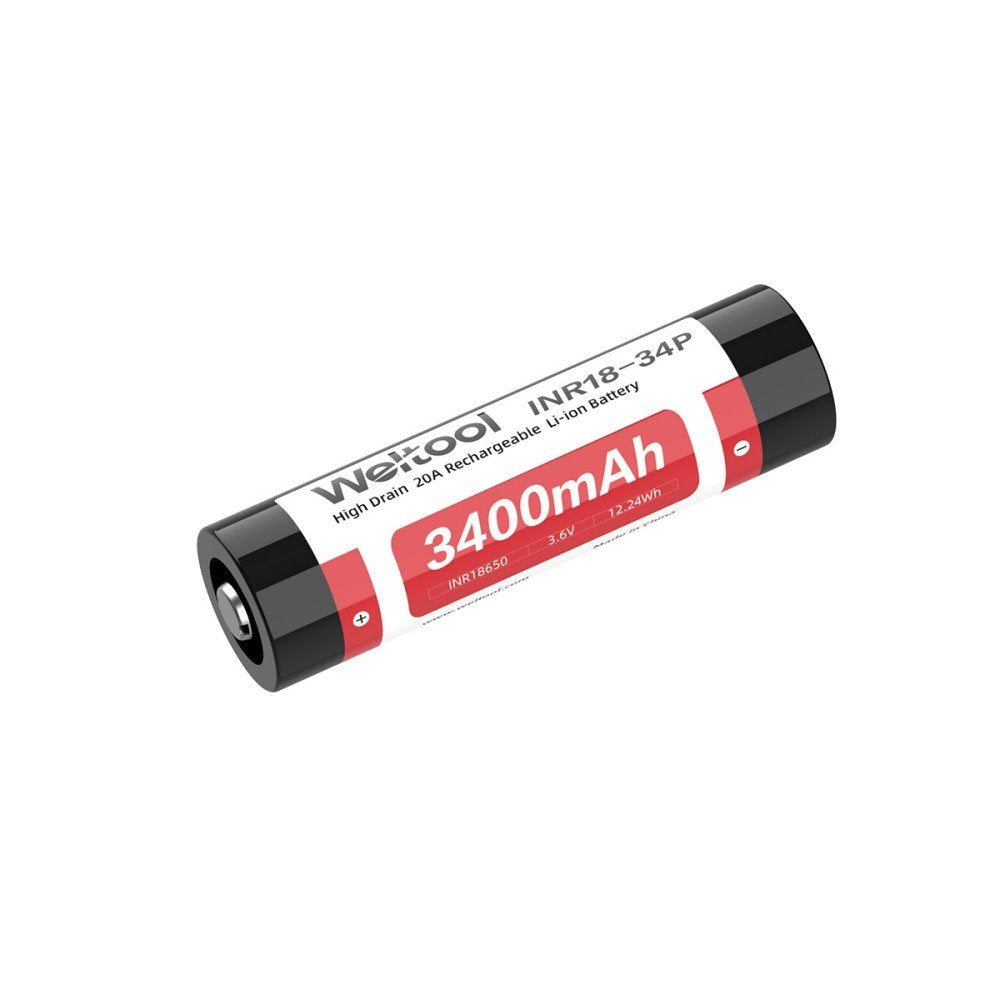

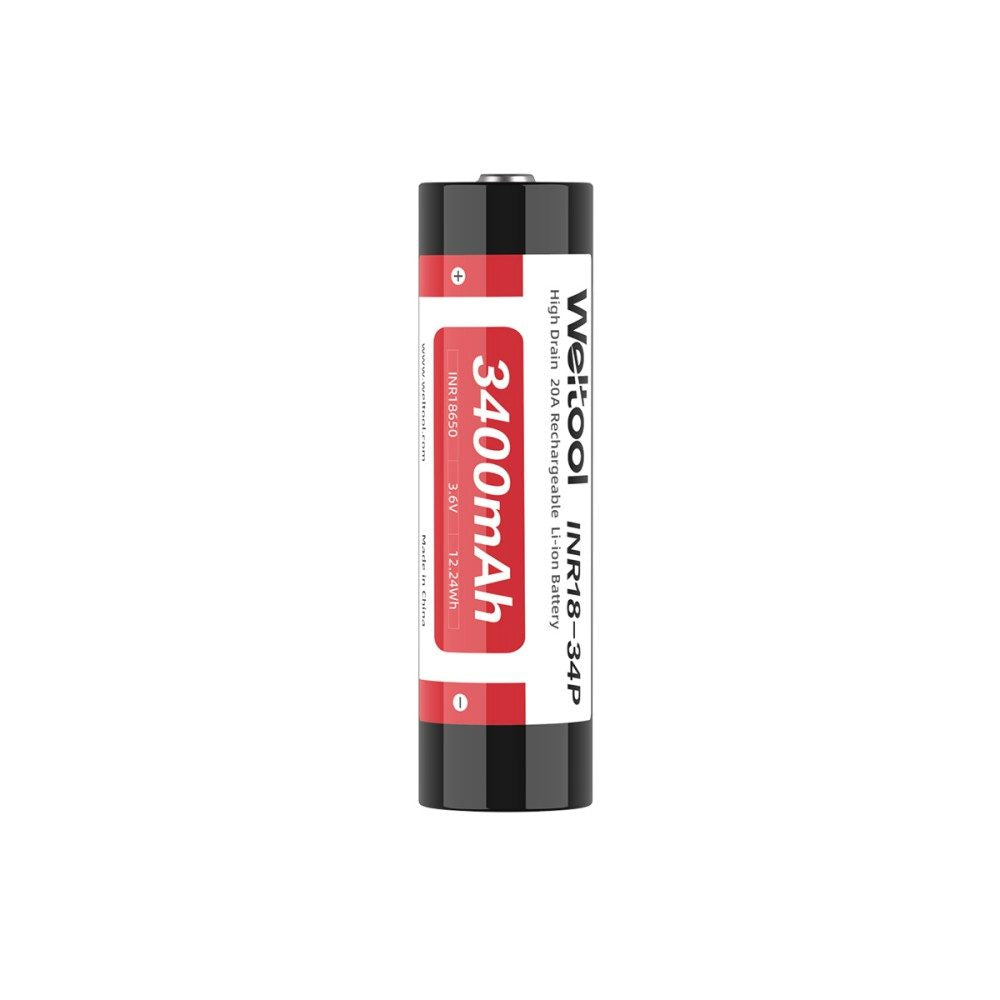

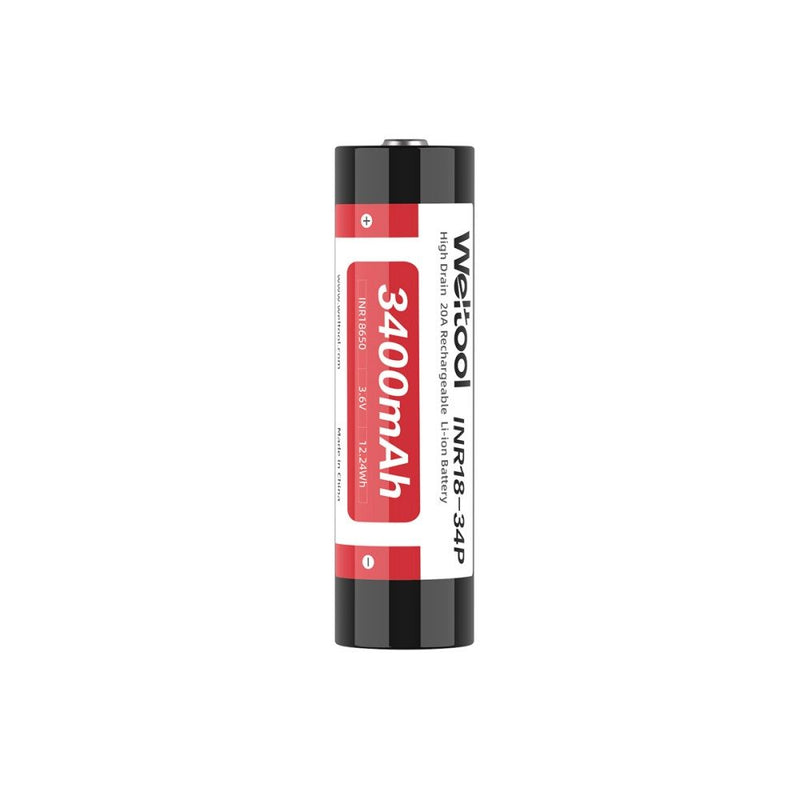

Weltool INR18-34P high drain 18650 Li-ion battery 3400mAh

In stock
Regular price $9.99

Weltool INR series lithium-ion batteries use original cells without additional protection circuits. When in use, please ensure the battery is not over-discharged or overcharged.

The INR18-34P is a high-drain cell with a peak discharge current of 20A and a button top design.


Specifications:

Model: INR18-34P

Capacity: 3500mAh (0.1C discharge), 3400mAh (0.2C discharge)

Internal Resistance: ≤19mΩ

Nominal Voltage: 3.6V

Continuous Discharge Current: 20A (with 75 ℃ thermal cut-off protection)

Standard Charging Current: 1.75A

Max Charging Current: 6A (peak charging current of charger)

Overcharge Cut-off Voltage: 4.2±0.05V

Over-discharge Cut-off Voltage: 2.5±0.1V

Cycle Life: ≥60% capacity remaining after 500 charge/discharge cycles

Charging Temperature Range: +0~+45 ℃

Discharging Temperature Range: -20~+60 ℃

Storage Temperature Range:-20~+45 ℃ (within 3 months)

Dimensions: 18.5±0.2 mm (diameter), 67.5±0.5 mm (length)

Weight: 49±0.5g
