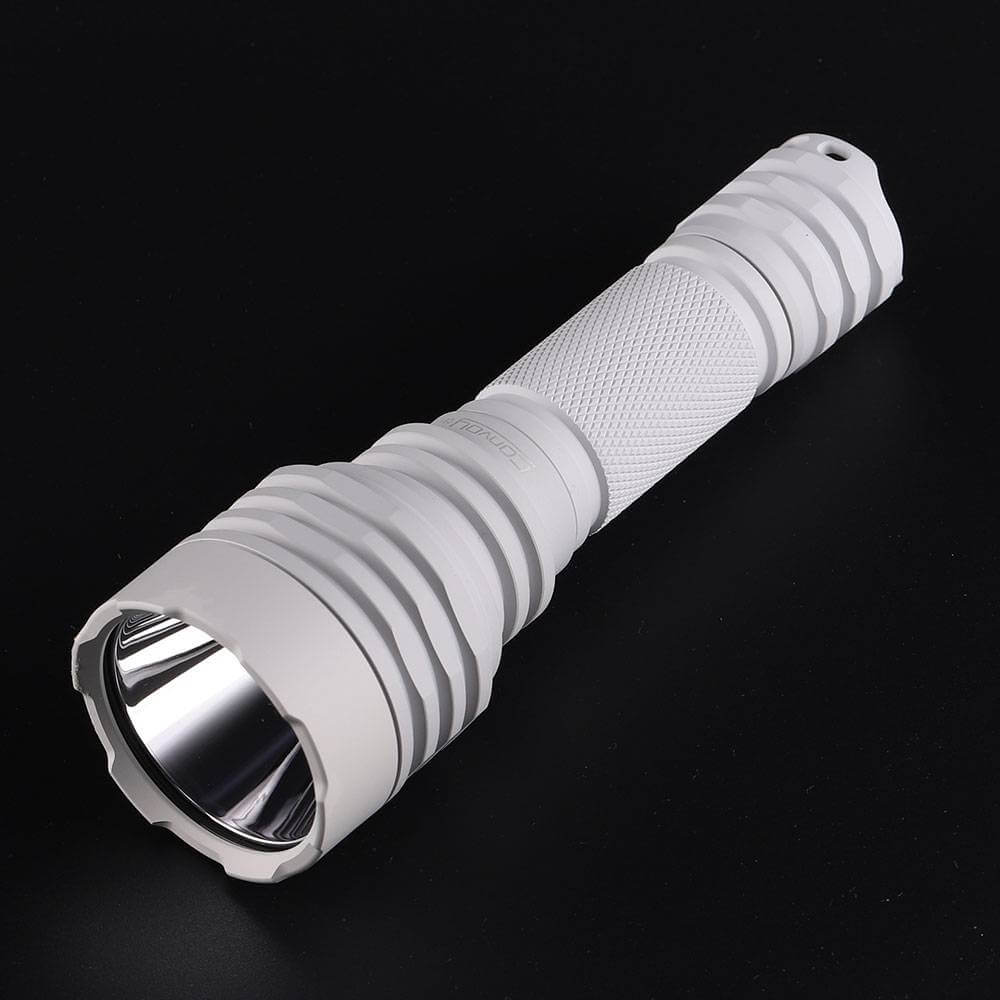

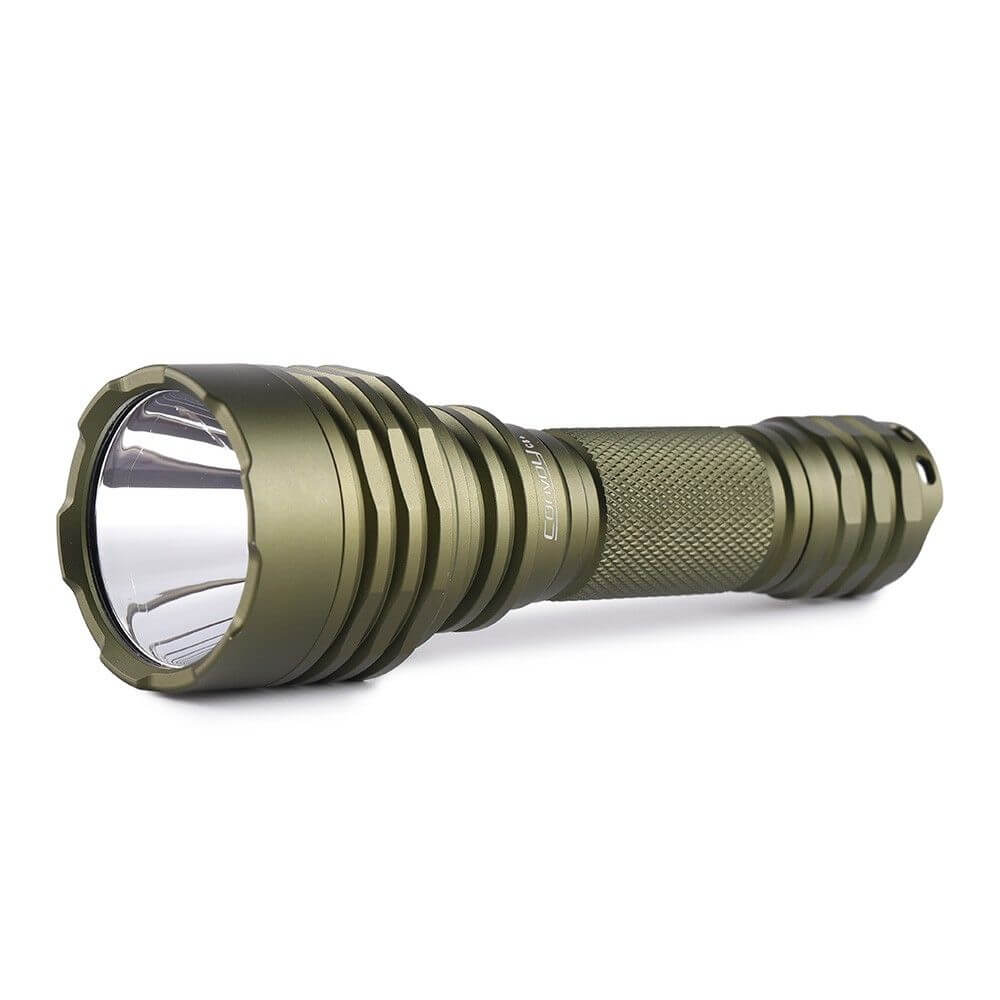

Convoy C8+ SFT25 18650 Flashlight

In stock
Regular price $22.99

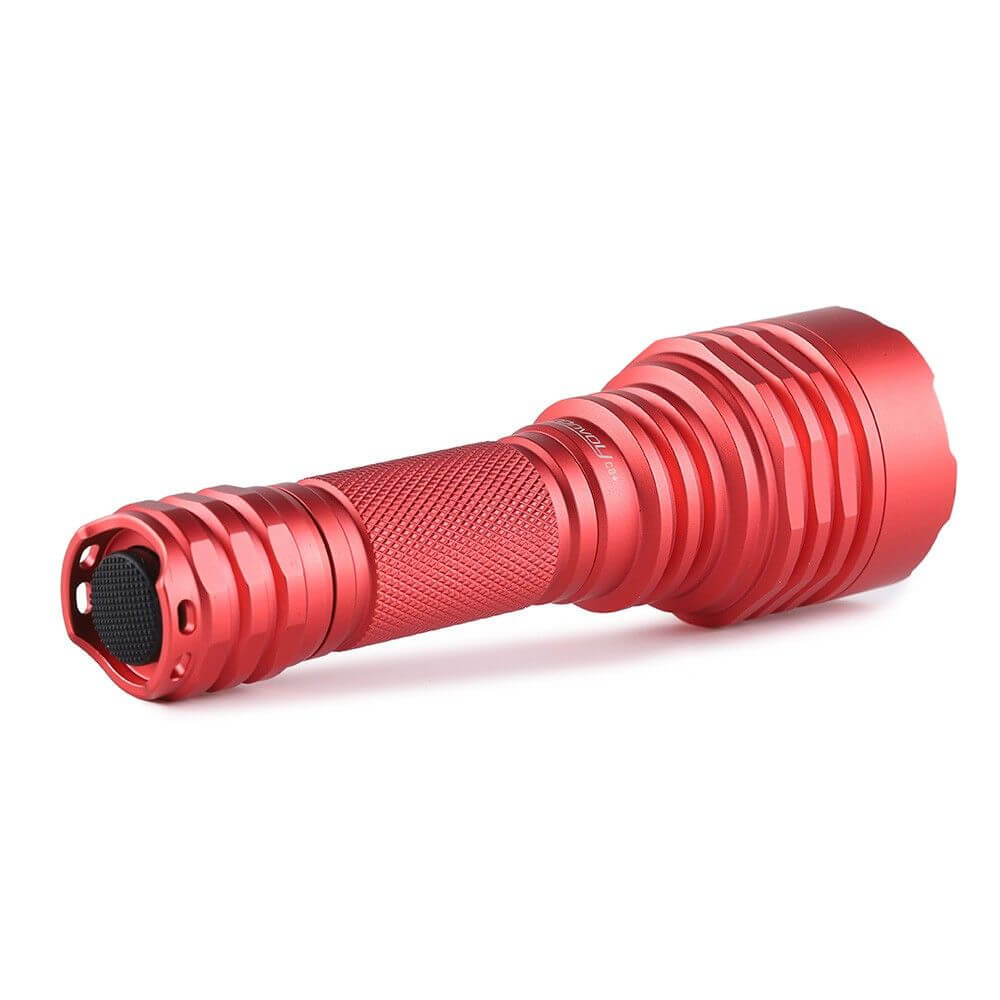

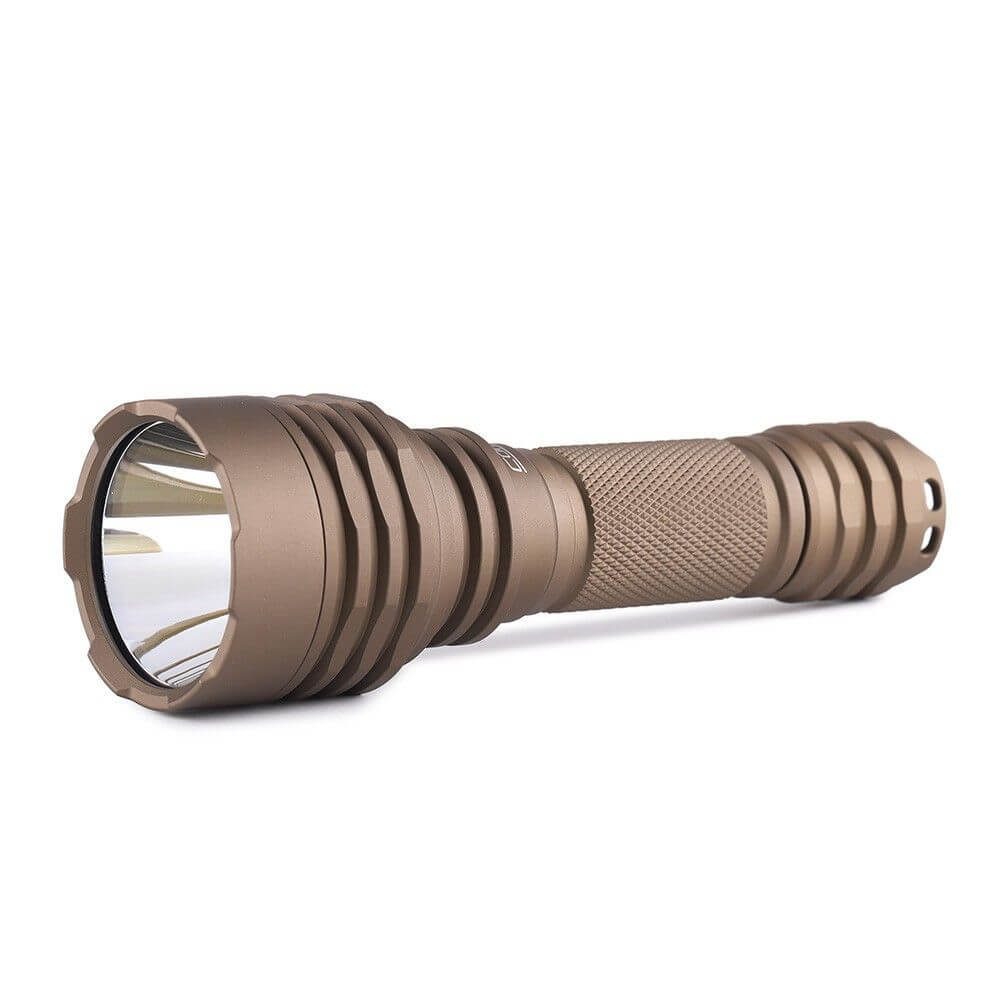

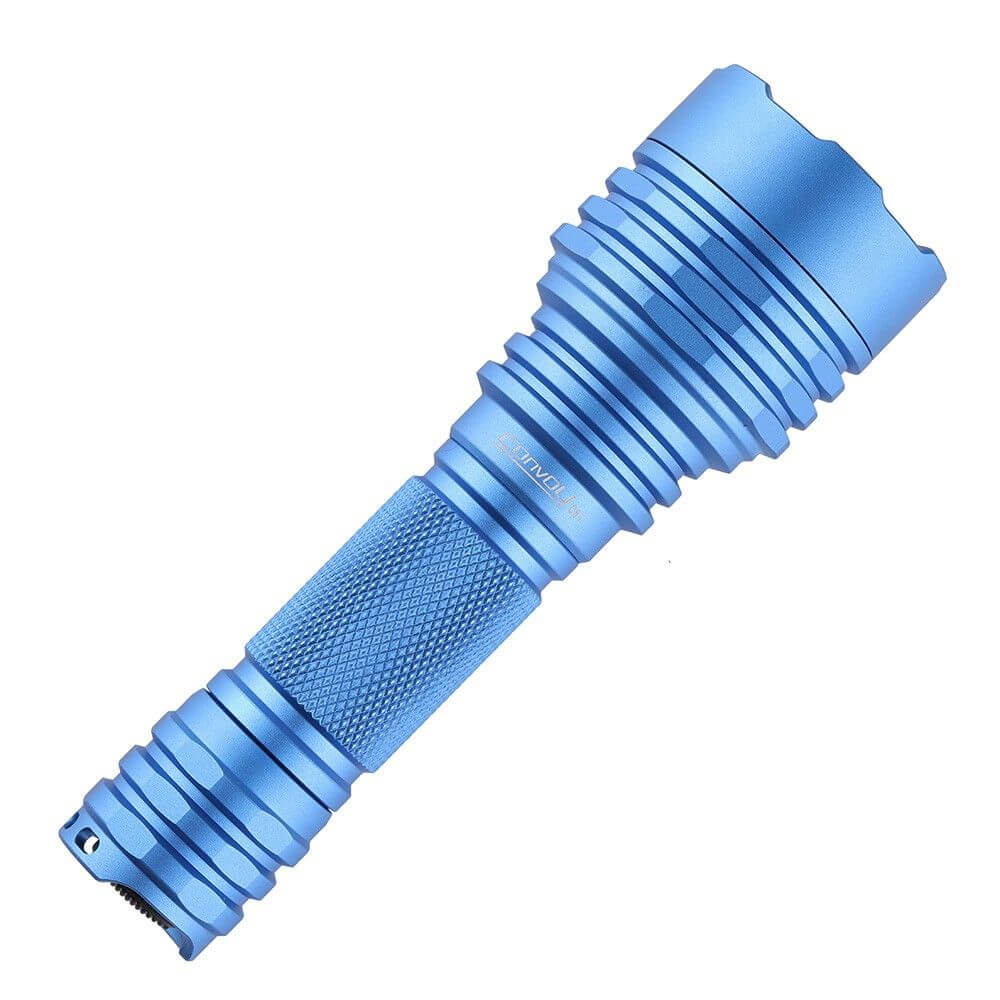

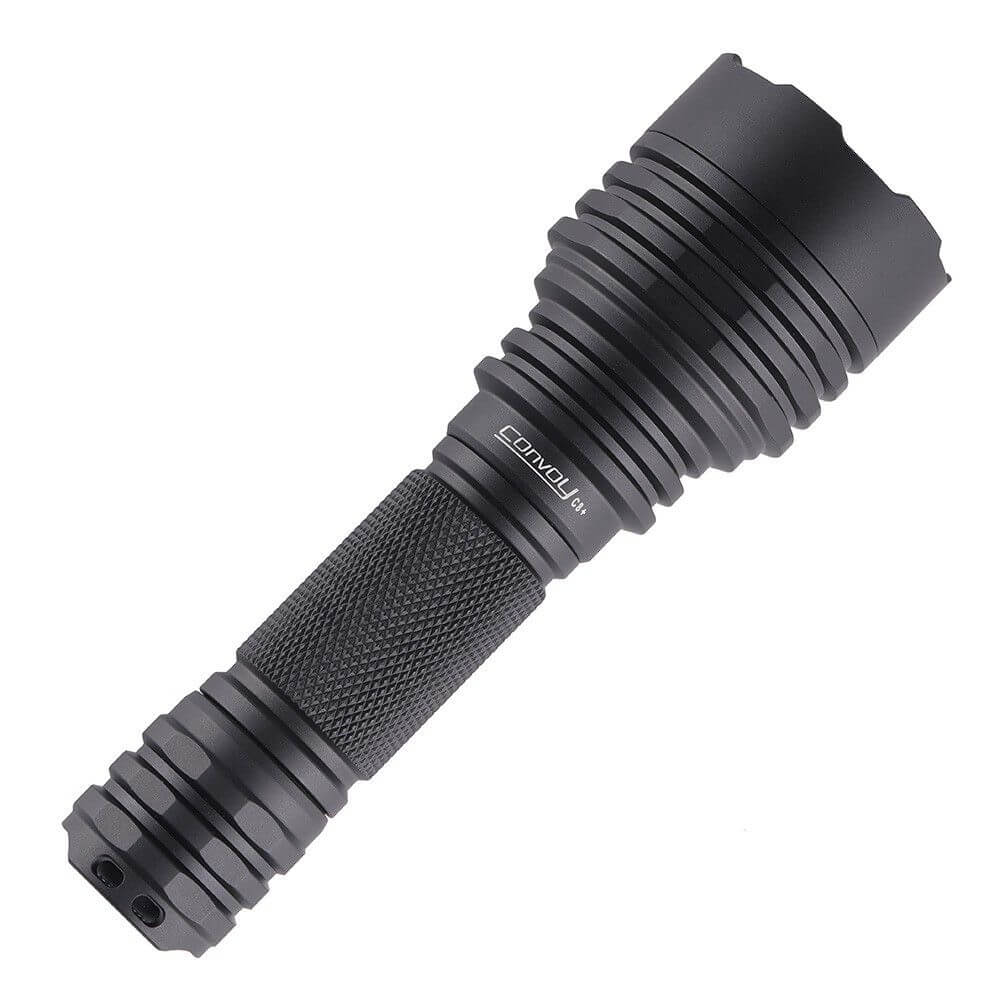

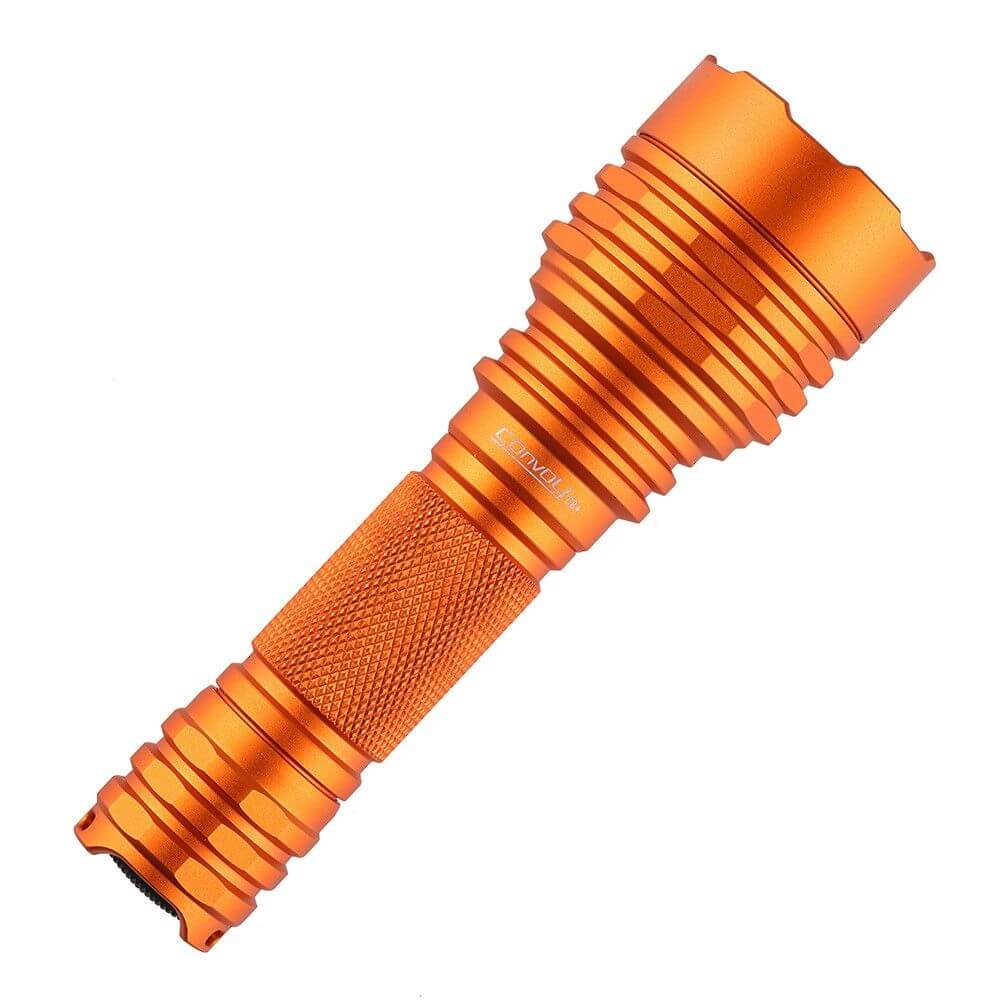

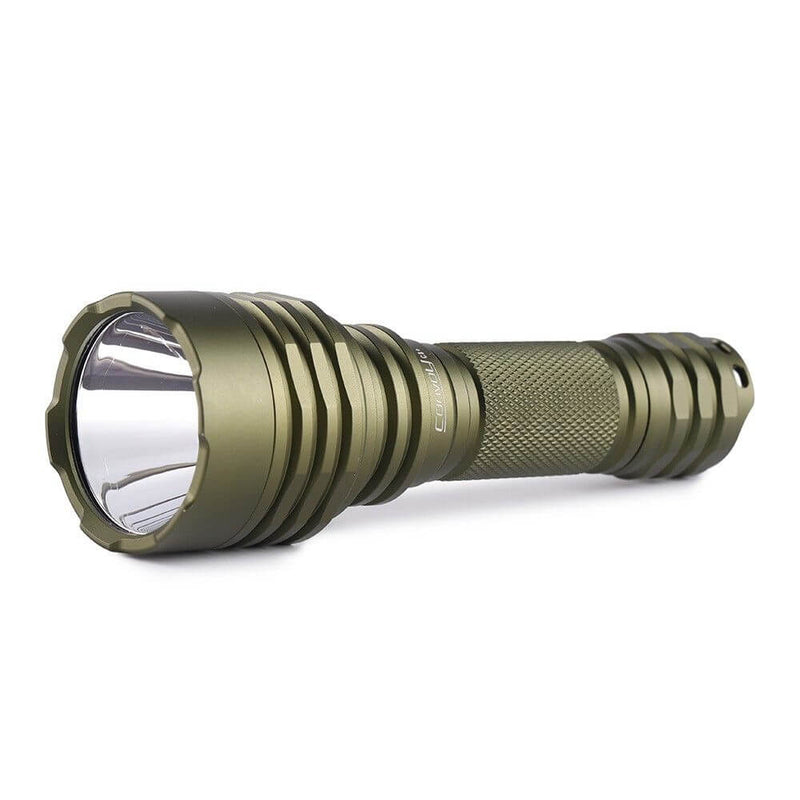

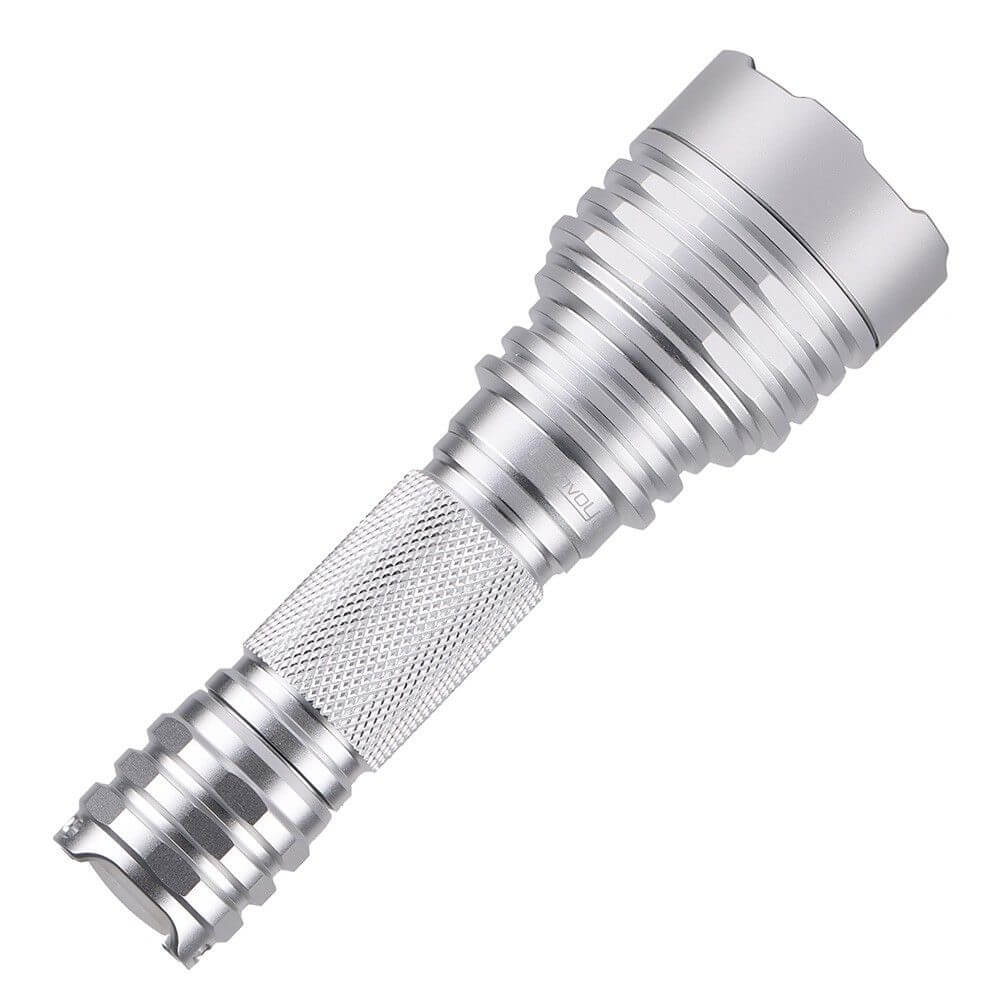

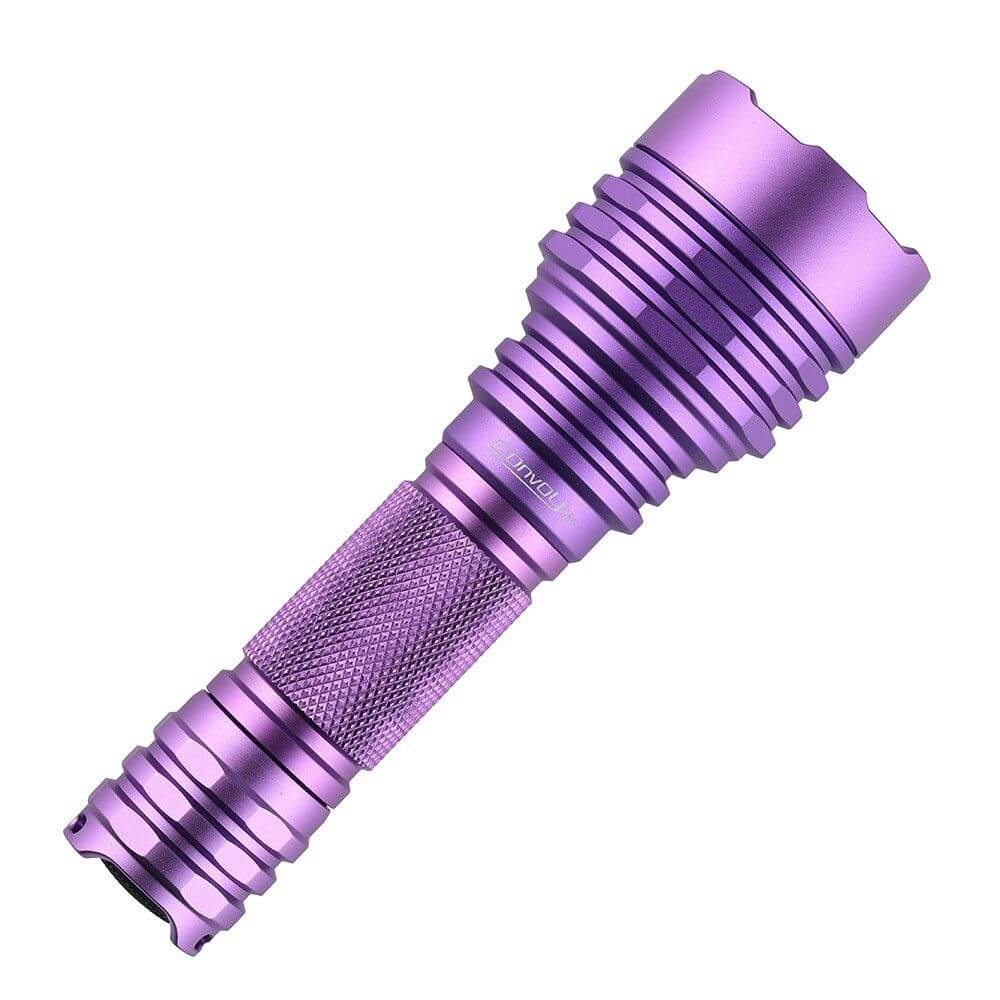

Color
Driver Type
Battery

The Convoy C8+ SFT25 18650 flashlight is a durable, versatile, and high-performance tool designed to cater to the needs of professionals, outdoor enthusiasts, and anyone in need of reliable illumination. Built with high-quality materials and advanced features, this flashlight offers exceptional brightness, customizable settings, and robust durability, making it an ideal choice for a wide range of applications.

Constructed from premium aluminum alloy, the Convoy C8+ ensures strength and durability while maintaining a lightweight profile. Its sleek yet robust design is complemented by an ar-coated glass lens that enhances light transmission and minimizes reflection. The flashlight’s color temperature of 6500K delivers a crisp, cool white beam, providing clear visibility in both urban and wilderness environments.

The flashlight is compatible with various LED options, allowing users to choose the configuration that best suits their needs. The reflector type is carefully tailored for different LED types, such as a smooth reflector for SST40, SFT40, and XPL HI LEDs, and an orange peel reflector for options like XHP50 and SST70 LEDs. This flexibility ensures optimal beam quality, whether the focus is on long-range illumination or a broader, more diffused light pattern.

The Convoy C8+ is powered by a single INR or IMR 18650 unprotected lithium battery, delivering impressive performance while remaining compact and portable. With a head diameter of 44.5mm, a body diameter of 25.2mm, and a length of 142mm, the flashlight is easy to carry and handle. Weighing just 145g, it strikes a perfect balance between portability and power. A tail spring made of phosphor copper and gold plating ensures efficient conductivity, capable of withstanding currents up to 10A for enhanced performance.

This flashlight offers a variety of operating modes, including four preset brightness levels (0.1%, 3%, 30%, 100%) and a customizable 12-group mode configuration. Users can easily switch between groups by tapping the switch multiple times, allowing precise control over the flashlight’s output to suit different scenarios. Whether you need subtle illumination for close-up tasks or maximum brightness for outdoor exploration, the C8+ can be tailored to your preferences.

For added convenience, the flashlight includes a mode memory feature, which remembers the last-used setting for quick access. The low voltage warning ensures that users are alerted when the battery requires recharging, preventing unexpected shutdowns during critical moments. Reverse polarity protection adds an extra layer of safety, protecting the flashlight from damage if the battery is inserted incorrectly.

Temperature control is another advanced feature of the Convoy C8+. As the flashlight’s temperature rises, the current gradually decreases to maintain safe operating levels. This intelligent system ensures that the flashlight remains functional even during extended use, although users should note that the surface may still heat up during prolonged operation. The tailstand capability allows the flashlight to be placed upright on a flat surface, providing hands-free illumination when needed.

For those seeking even more customization, the flashlight supports ramping mode, which allows users to smoothly adjust brightness levels to their exact preferences. This mode includes several sub-options, such as setting the brightness to specific percentages or activating special configurations like strobe or SOS signals. The intuitive operation ensures that users can quickly adapt the flashlight to any situation.

The Convoy C8+ includes a variety of protective features to enhance reliability and longevity. A safety mechanism prevents the battery from over-discharging, while the high-quality materials and construction ensure the flashlight is resistant to impacts and harsh environmental conditions. Additionally, the included lanyard provides a secure way to carry the flashlight, making it convenient for outdoor adventures, professional tasks, or everyday use.

The flashlight’s battery check function is another practical feature. By tapping the switch, users can receive visual feedback on the battery’s voltage level, with flashes indicating the approximate charge remaining. This allows users to monitor battery status and plan recharges effectively.

In terms of accessories, the Convoy C8+ includes a lanyard for easy portability. Its ergonomic design and intuitive controls make it suitable for both novice and experienced users. The flashlight’s factory reset option ensures that settings can be restored to default, offering peace of mind if accidental changes occur.

The Convoy C8+ SFT25 18650 flashlight is a reliable and versatile tool that combines advanced features with rugged durability. Its customizable settings, efficient power management, and user-friendly design make it a standout choice for outdoor enthusiasts, professionals, and everyday users alike. Whether used for camping, search and rescue, or general household tasks, the C8+ delivers consistent and dependable performance in a sleek, portable package.

Material: Aluminum alloy
Lens: ar-coated glass lens
Color temperature: 6500K

Reflector type :   smooth for SST40 , SFT40 , 519A , SST20 , 219 , LH351D , LMP LML2AW.DC , XPL HI , 719A , GT LED
                           smooth for all osram LEDs (KW CSLNM1.TG , KR CSLNM1.23, etc. )
                           orange peel for B35AM , SST70 , XHP50 , XHP70 , SFT70

Driver: See below for details.
Tail spring: Phosphor copper gold plated. Can withstand the maximum current of 10A

Low voltage warning:  Yes
Reverse polarity protection:  Yes
Mode memory:  4modes and 12groups drivers have mode memory
Temperature control function: Yes except for ramping, As the temperature rises, the current will drop slowly, but this does not mean that the surface of the flashlight will not heat up.
Tailstand:  Yes
Battery : C8+ runs on 1pcs INR or IMR18650 unprotected lithium battery

Diameter of head : 44.5mm
Length : 142mm
Diameter of body :   25.2mm
Weight : 145g

Accessory: 1*lanyard

4 modes
0.1%-3%-30%-100%

12 groups:
1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)
   Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
       -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
       -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
       -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
       -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
       -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
       -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
       -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
   Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
battery-check  instructions:
 <2.95V    1 flash,
2.95-3.25V  2 flashes,
3.25-3.55V  3 flashes,
3.55-3.85V  4 flashes,
>3.85V     5 flashes


Ramping mode
1st Mode - 100% Brightness (one tap of the switch to select)
2nd Mode - 35% Brightness (two quick taps)
3rd Mode - Strobe (three quick taps)

Switching on the flashlight will always start in the 1st Mode

For the 1st and 2nd Modes, tap the switch quickly 5 times to enter into a config menu. The brightness will start to smoothly adjust, tap the switch once to set the desired level of brightness. The light will flash once to indicate you've reached the highest brightness. If the switch isn't pressed at the highest brightness it'll change to the lowest level and begin to smoothly increase in brightness again.

For the 3rd Mode, tap the switch quickly 5 times to enter into a special config menu. The light will slowly blink, tap the switch to set the desired mode. Each blink represents the following modes

- 1. 1% Brightness
- 2. 100% Brightness
- 3. Strobe 100%
- 4. Beacon 100%
- 5. Slow Flash
- SOS 40% (no blink, it chooses automatically if an above mode isn't selected)

Factory Reset:
8 quick taps in any mode will restore the flashlight to the default settings.

5 groups [ without mode memory ]
1.click the switch to turn the flashlight on/off,tap the switch to select mode
2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.
       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (100%)
       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (100%-20%)
       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%-strobe)
       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (20%-100%)
       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (strobe-100%)
