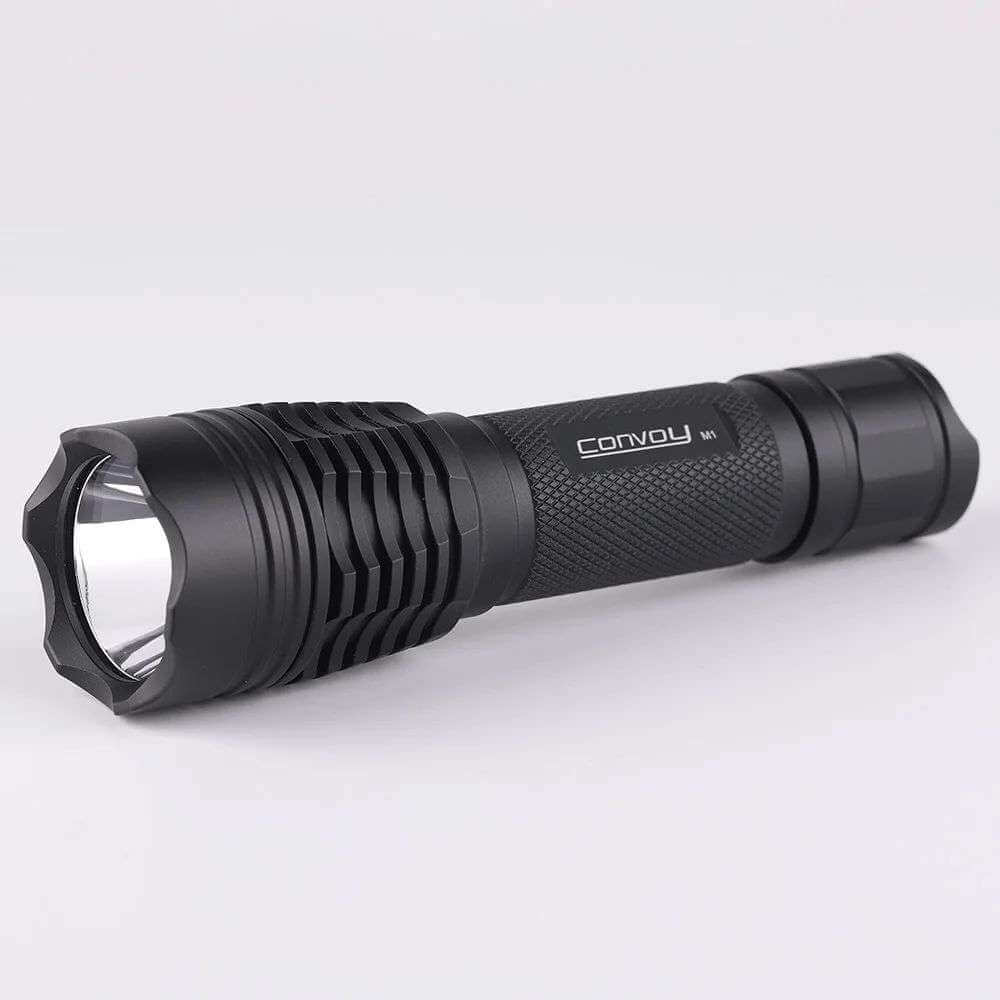

Convoy M1 XHP50.3 HI / XHP70.3 HI R9050 18650 Flashlight

In stock
SKU: M1-5700k-without-XHP70.3 HI R9050
Regular price $34.99
Emitting Color
Battery
LED

PARAMETER
Material:  Aluminum Alloy
Low voltage warning:  Yes
Reverse polarity protection:  Yes
Lens type:  ar-coated glass lens
Reflector:orange peel reflector
Driver:6V 4A boost for XHP50.3, 6V 5A boost for XHP70.3
Mode memory:Yes
Tailstand:  Yes
Battery included: 1piece 18650 lithium battery
Diameter(Head/Body/Tail): 35.6 / 24.9 / 26.8 mm
Length: 133.6mm
Weight:110g


12 groups:

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

   Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

       -------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

       -------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)

       -------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)

       -------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

       -------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)

       -------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)

       -------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

       -------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

       -------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)

       -------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)

       -------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)

       -------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)

   Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.



battery-check instructions:

 <2.95V   1 flash,

2.95-3.25V 2 flashes,

3.25-3.55V 3 flashes,

3.55-3.85V 4 flashes,

>3.85V    5 flashes


About battery

EVE 35V



Full Model Name: INR18650/35V

It is manufactured by EVE Energy Co., Ltd.,



Item

Specification



3.1TypicalDischarge Capacity

3500mAh

Charge: 0.68A,4.20V,CCCV 68mAcut-off Discharge: 0.68A, 2.50V DCcut-off



3.2 Min. DischargeCapacity

3400mAh

Charge: 0.68A,4.20V,CCCV 68mAcut-off Discharge: 0.68A, 2.50V DCcut-off

3.3TypicalVoltage

3.60V

3.4 StandardCharge

CCCV,0.68A,4.20±0.05V,68mAcut-off

3.5 RapidCharge

CCCV,1.5A,4.20±0.05V,68mAcut-off

3.6 StandardDischarge

DC, 0.68A, 2.50Vcut-off



3.7 Max.Discharge

Continuous

DC, 10.2A, 2.50V cut-off (Not for cyclelife)

Instantaneous

DC, 13A, 2.50Vcut-off

3.8 Charge/DischargeVoltageRange

4.20~2.50V

3.9 CellWeight

50.0gMax



3.10 CellDimension

Height: 65.00±0.15mm Diameter:18.35±0.10mm

3.11OperationTemperature(SurfaceTemperature)

Charge: 0 to 15°C

0.2C

Charge: 15 to 45°C

0.5C











Discharge: -20 to 60°C(Pack cut-off temperature70°C)

3.12 StorageTemperature(At ShippingSOC)

1year

3months

1month

0~25°C

0~45°C

0~60°C



Liitokala 35A

Brand: LiiitoKala
Model: Lii-35A
Battery Type: Li-Ion 18650
Rated Capacity: 3500mah(3300-3500mah)
Rated voltage: 3.7v
Weight: 47g ± 1g
Rechargeable battery: Yes
Rechargeable times: up to 500 times
Internal resistance: 38m
Limited charging voltage: 4.2v
Working Voltage: 2.75-4.2v
Size: 65.5mm x 18.5mm (diameter)

Molicel M35A

Full Model Name:INR-18650-M35A

It is manufactured byE-One Moli Energy Corp.

 RATED SPECIFICATIONS



Items

Specifications

Remarks

1

Ratedcharge

Limiting 1.7A and constant 4.2V charge for 2.5h or 100mA at 23oC.

2

Rateddischarge

Constant 0.68A discharge until 2.5V at 23oC.

3

Ratedcapacity

3.35Ah(Minimum) 3.45Ah (Typical)

Rated discharge capacity after rated charge.

4

Nominalvoltage

3.6V

Mean voltage during rated discharge after ratedcharge.

5

Shippingvoltage

3.45V

Nominal approximate state of charge 30%.

6

Internalresistance

35m

Fresh cell measured by AC impedance at 1kHz

7

End of chargevoltage

4.20 0.05V



8

End of dischargevoltage

2.5V

Discharge voltage for determination of rated capacity.

9

Chargingtime

150min

Ratedcharge.

10

Maximum charging current

1.7A



Maximum discharging current

10A

Cycle life is reduced at high  rates.

11

Operating temperature

Charging

0 ~ 60oC



Discharging

-40 ~ 60oC



12

Storage temperature for shippingcell

< 35oC

Recommended temperature less than 23oC forlongtermstorage.

13

Shelflife

1year
